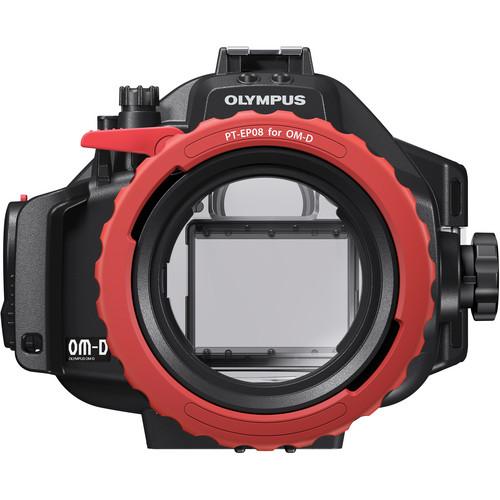

User Manual for Olympus PT-EP08 Underwater Housing for OM-D E-M5 Click to enlarge the picture
Contents of the user manual for the Olympus PT-EP08 Underwater Housing for OM-D
- Product category: Still Cameras & Housings Olympus
- Brand: Olympus
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Olympus Still Cameras & Housings
|
User manual for the Olympus PT-EP08 Underwater Housing for OM-D contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Olympus product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Olympus user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Olympus product will considerably shorten its lifespan!
|
Product description Capture stunning photos and full HD 1080p video at depths as great as 148' with your Olympus OM-D E-M5 Mirrorless Micro Four Thirds Digital Camera, thanks to this PT-EP08 Underwater Housing. Dual fiber-optic ports give you the ability to connect an optional UFL-1 strobe or two via the PTCB-E02 cable(s). Using the FL-LM2 removable flash included with the camera, you can wirelessly control the optional, dedicated UFL-2 underwater flash. The accessory shoe located on top of the housing permits the attachment of a lighting arm or mounting base for a strobe.
Mechanical controls enable access to virtually all camera functions. Take advantage of the E-M5's Underwater Macro and Wide shooting modes, which get you closer to your subjects to reduce distortion for better image quality. The housing is constructed from durable, corrosion-resistant polycarbonate, which is black on the front, top, and sides, but clear on the back to allow you to monitor the waterproof seal and camera. The housing ships without a required lens port, and features a bayonet mount that accepts a series of interchangeable glass ports for various lenses. Adding the optional PAD-EP08 Port Extension Adapter allows you to attach the PPO-EP01, PPO-E01, PPO-E02, PPO-E03, and PPO-E04 ports to accommodate Four Thirds lenses. Wide-angle lenses increase your angle of coverage, allowing you to get close to your subject while fitting more in the frame, while macro lenses will enable extreme close-up shots. Both types of optics cut down on distortion caused by the water, thus improving clarity for better image quality. - Construction Details
-
- Made from durable, corrosion-resistant polycarbonate, which is black on front, top, and sides, but clear in back to enable you to monitor O-ring seal and camera
- Controls and Handling
-
- Large, mechanical controls, including push-buttons, dials/knobs, and a lever, provide easy access to virtually all camera functions with or without gloves
- Eyepiece offers an enhanced view of camera's electronic viewfinder
- Lens Port System
-
- Ships without required lens port
- Accepts various interchangeable, bayonet-mount ports for different lenses
- Port PPO-EP01 accepts M. ZUIKO DIGITAL ED 9-18mm f/4-5.6, ED 14-42mm f/3.5-5.6 / II / IIR, 45mm f/1.8, ED 75mm f/1.8, ED 60mm f/2.8 Macro, and ED 12-50mm f/3.5-6.3 EZ lenses
- 14-42mm requires PPZR-EP01 zoom gear, while 14-42mm II / IIR and 9-18mm all require PPZR-EP02 zoom gear
- When you use optional Macro Lens Adapter PMLA-EP01, you can add Underwater Macro Conversion Lens PTMC-01, which has a 67mm filter thread diameter
- With optional Port Adapter PAD-EP08 and Port Extension Ring PER-E01, you can use other underwater ports
- Port PPO-E04 accommodates ZUIKO DIGITAL ED 8mm f/3.5 Fisheye
- PPO-E01 fits 35mm f/3.5 Macro (requires Four Thirds Adapter MMF-3)
- PPO-E03 fits ED 50mm f/2 Macro
- Strobe Connection and Operation
-
- Dual fiber-optic ports for connecting 1-2 optional UFL-1 strobes via PTCB-E02 cable
- Using FL-LM2 removable flash included with camera, you can wirelessly control optional, dedicated UFL-2 underwater flash
- Cold shoe on top of housing provides mounting point for flash or video light, which can be added via lighting arm or base with connector
In the Box Olympus PT-EP08 Underwater Housing for OM-D E-M5 PFUD-EP08 Underwater LCD Hood for PT-EP08 Housing efycwxxvevddatuttyry Silica Gel Silicone Grease POL-EP01 O-Ring for PT-EP01 Underwater Housing efycwxxvevddatuttyry O-Ring Remover Hand Strap PBC-EP08 Body Cap for Underwater Case Limited 1-Year Warranty Compatibility Chart PDF 778.1kb Table of Contents
|
Upload User Manual
Have you got an user manual for the Olympus PT-EP08 Underwater Housing for OM-D E-M5 in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersOlympus PT-EP08 Specs | Depth Rating | 148' (45 m) | | Control Type | Mechanical push-buttons, dials/knobs, and lever | | Controls | Enables access to virtually all camera functions
All controls: Open/close dial, Slide lock, Slide lock 2, Shutter lever, Fn2 button, REC button, Sub dial, Zoom dial, Mode dial, LV lever, Main dial, Play button, Fn1 button, MENU button, INFO (Info display) button, Cross-cursor up button, OK button, Cross-cursor right button, Cross-cursor down button, ON/OFF dial, Erase button, Cross-cursor left button | | Construction | Housing: Polycarbonate O-ring: Silicone rubber | | Moisture Alarm | None | | Port | Ships without required lens port
Accepts various interchangeable, bayonet-mount ports with glass elements for MFT and FT lenses
See list in Overview for details | | Internal Flash Usable | N/A, camera has no built-in flash | | External Strobe Connector | 2 x fiber-optic cable ports for optional UFL-1 strobe(s) (cables not included)
Use FL-LM2 flash to trigger optional UFL-2 underwater strobe wirelessly | | Mount | Accessory shoe for lighting attachment
Tripod mount | | Dimensions (W x H x D) | 7.91 x 6.42 x 4.49" (20.1 x 16.3 x 11.4 cm) | | Weight | 2.2 lb (1.0 kg) | | | | Package Weight | 3.55 lb | | Box Dimensions (LxWxH) | 9.0 x 7.4 x 6.9" |
