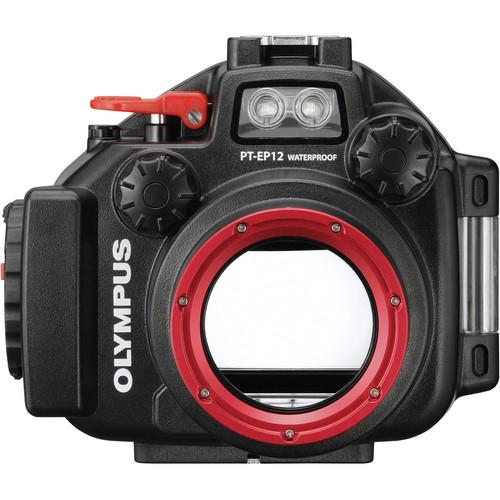

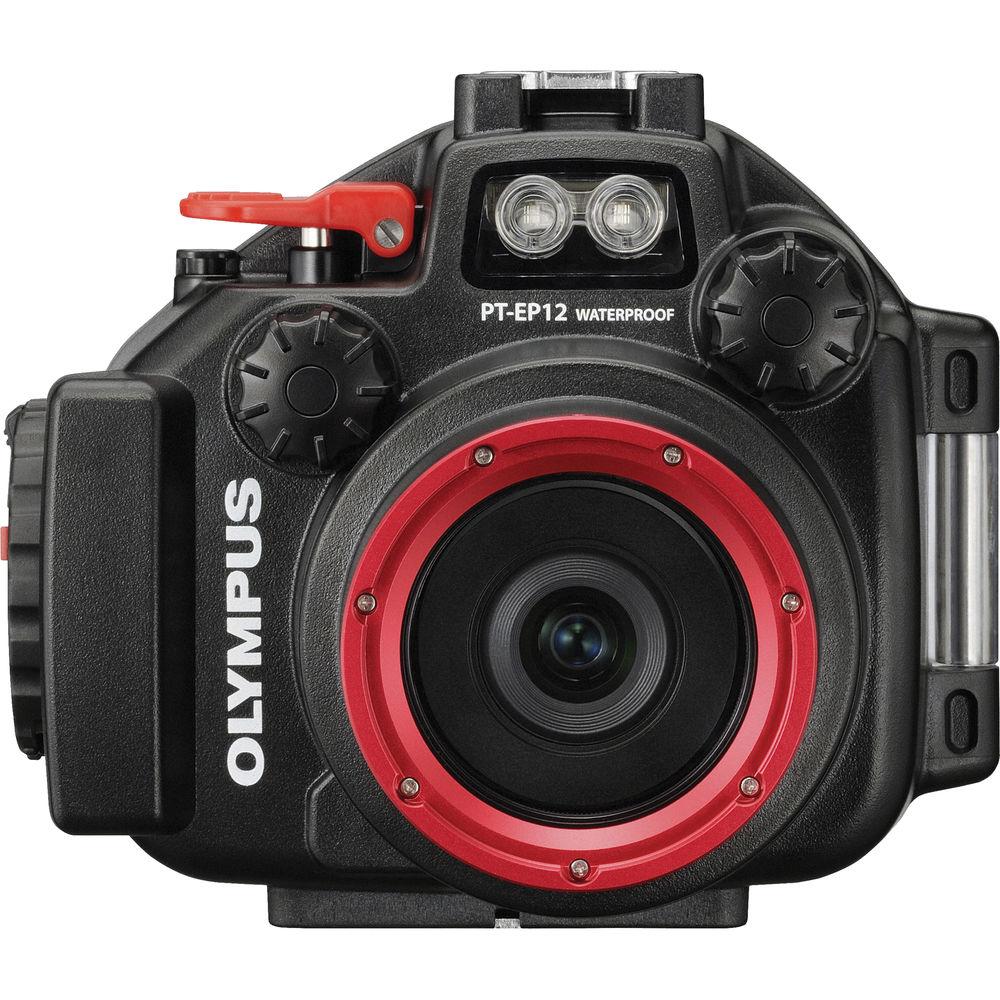

Product description Capture images and video beneath the surface with your PEN E-PL7, Mirrorless, Micro Four Thirds, Digital Camera inside this Olympus PT-EP12 Underwater Housing, which features a depth rating of 147.6'. Mechanical controls, including push-buttons, dials, and a lever, provide access to all camera functions. Built for durability, the housing is constructed from corrosion-resistant polycarbonate. Dual fiber-optic cable ports enable the connection of optional external flash units.
A built-in flat port fits several wide-angle prime and zoom lenses and also accepts optional macro and wide-angle add-on conversion lenses for more detailed close-ups or increased coverage, respectively. For a complete picture of the available accessories, see System Chartsevesywqfeyvavwusadcdczfffsvcssaaaurtv. To allow for the attachment of accessories such as lighting arms, there is a cold shoe mount located on the top of the housing. - Waterproofing
- Features a depth rating of 147.6'.
- Controls and Handling
- Mechanical controls, including push-buttons, dials, and a lever, provide access to all camera functions. Large buttons make for easy operation, even when wearing diving gloves.
- Construction Details

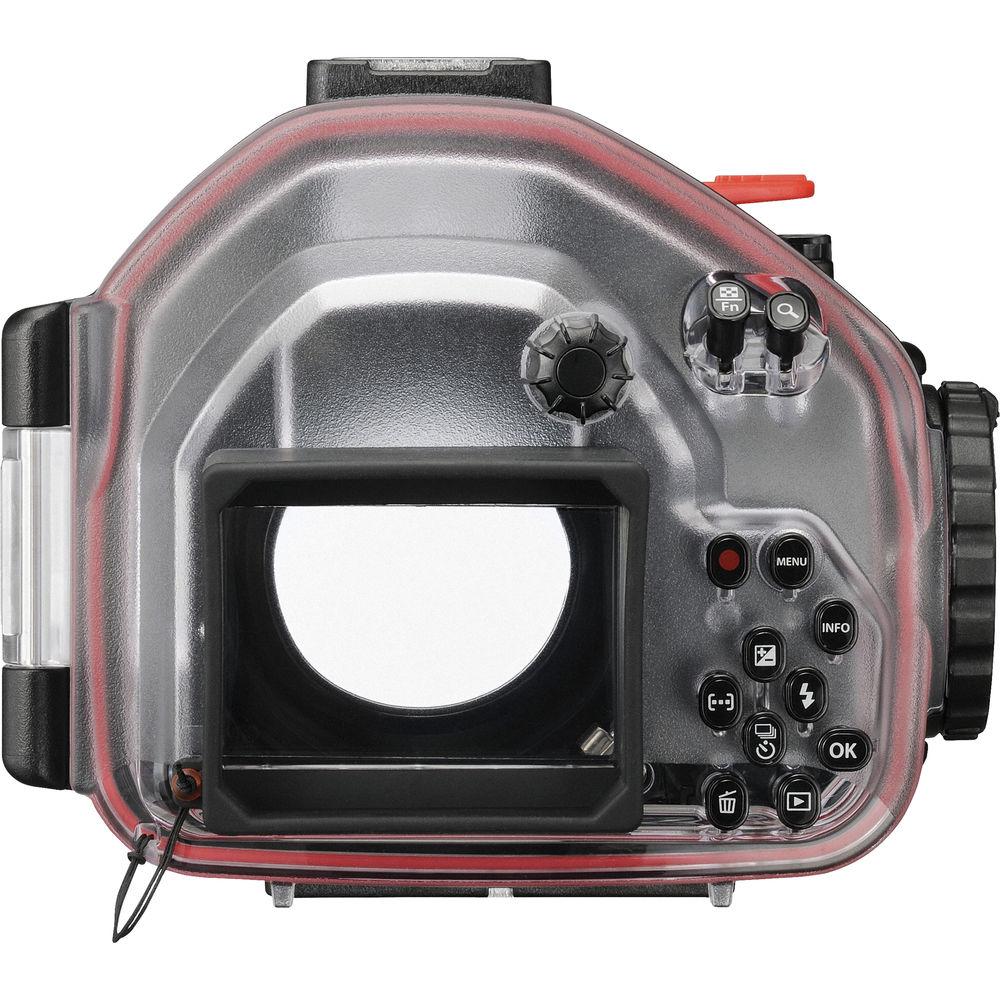

- Manufactured from durable, corrosion-resistant polycarbonate. Has a front cover and a back cover, which are locked by a rotary buckle. A monitoring window enables you to detect water penetration in the unlikely event of a breach in the housing's seal.
- Lens Port
- Built-in port with a flat front element fits M.ZUIKO DIGITAL ED 14-42mm f/3.5-5.6 EZ, ED 12mm f/2.0, 17mm f/1.8, 25mm f/1.8, and 45mm f/1.8 lenses. Also accepts optional PTMC-01 macro and PTWC-01 wide-angle add-on conversion lenses for more detailed close-ups or increased coverage, respectively.
- Flash Connection and Operation
- Dual fiber-optic cable ports enable the connection of optional external flash units, including the Olympus UFL-3, UFL-2, and UFL-1, via the optional PTCB-E02 fiber-optic cable.
- Mounting
- Standard threaded mount for connection to optional tripod, bracket, or tray. For attaching accessories such as lighting arms, there is a cold shoe mount located on the top of the housing.
- Accessories
- For a complete picture of the available accessories, see System Chart linked above.
UPC: 050332188075 In the Box Olympus PT-EP12 Underwater Housing for PEN E-PL7 Limited 1-Year Warranty Compatibility Chart PDF 22.2mbsevesywqfeyvavwusadcdczfffsvcssaaaurtv Table of Contents
|
Upload User Manual
Have you got an user manual for the Olympus PT-EP12 Underwater Housing for PEN E-PL7 in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersOlympus V6300630U000 Specs | Depth Rating | 147.6' / 45 m | | Control Type | Mechanical push-buttons, dials, and a lever | | Controls | Provide access to all camera functions | | Material of Construction | Polycarbonate | | Lens Port | Built-in port with flat front element fits M.ZUIKO DIGITAL ED 14-42mm f/3.5-5.6 EZ, ED 12mm f/2.0, 17mm f/1.8, 25mm f/1.8, and 45mm f/1.8 lenses
Accepts optional macro and wide-angle add-on conversion lenses
See System Chart linked in Overview | | Buoyancy | Not specified by manufacturer | | External Flash Connector | Dual fiber-optic cable ports | | Mounting | Standard threaded mount for connection to optional tripod, bracket, or tray
Cold shoe mount on top for accessories such as lighting arms | | Dimensions | 6.6 x 5.6 x 5.2" / 16.8 x 14.2 x 13.2 cm | | Weight | 1.75 lb / 0.8 kg | | | | Package Weight | 3.65 lb | | Box Dimensions (LxWxH) | 8.7 x 8.5 x 7.4" |
