User Manual for Olympus PT-EP13 Underwater Housing for OM-D E-M5 Mark II Click to enlarge the picture
Contents of the user manual for the Olympus PT-EP13 Underwater Housing for OM-D
- Product category: Still Cameras & Housings Olympus
- Brand: Olympus
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Olympus Still Cameras & Housings
 |
User manual for the Olympus PT-EP13 Underwater Housing for OM-D contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Olympus product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Olympus user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Olympus product will considerably shorten its lifespan!
|

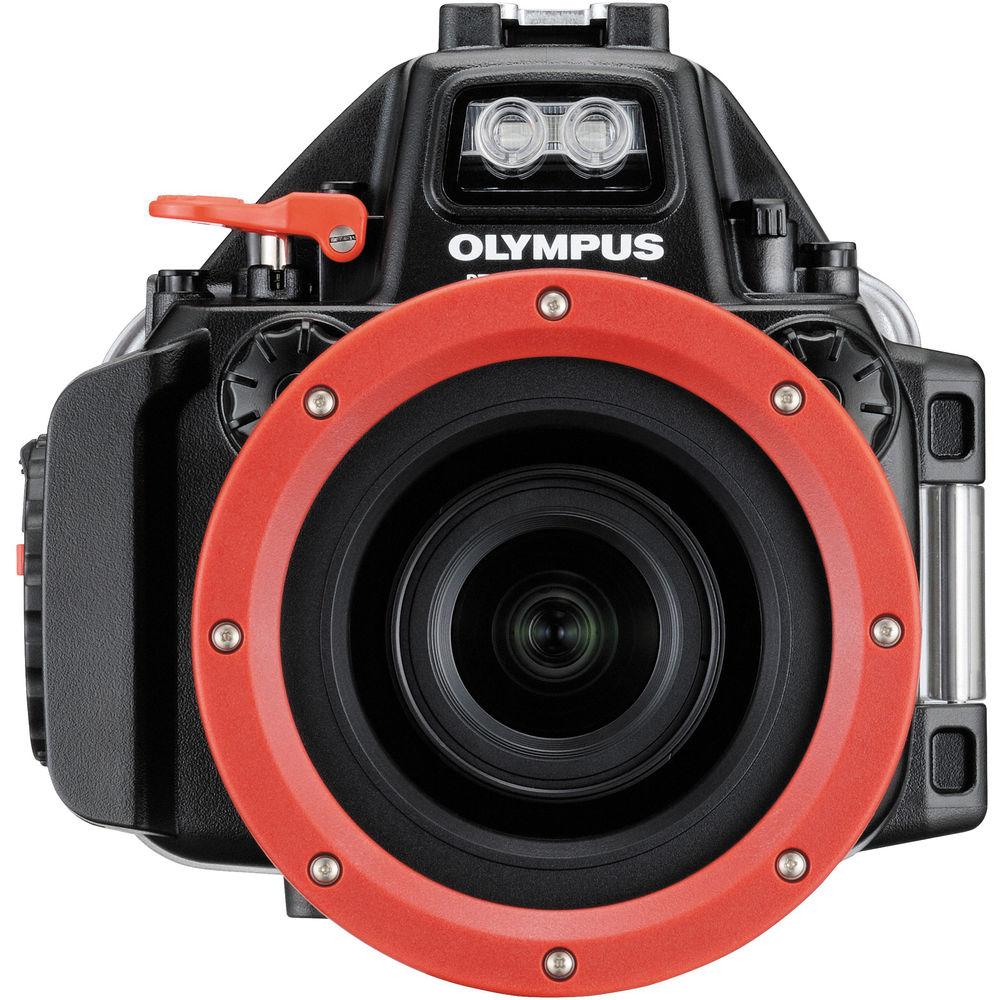

Product description Capture images and video beneath the surface with your OM-D E-M5 Mark II Micro Four Thirds camera in this Olympus PT-EP13 Underwater Housing, which has a depth rating of 147'. Dual fiber-optic cable ports enable the connection of optional external flash units. The housing allows you to use the shoe-mount flash bundled with the camera to trigger these external units. It is also equipped with a shoe mount of its own for connecting accessories such as flashes and lighting arms. Mechanical controls afford access to all camera functions except the DOF preview on the front.
Built for durability, the PT-EP13 is constructed from corrosion-resistant polycarbonate. Its integrated flat lens port fits the M.Zuiko 9-18mm f/4.0-5.6, 14-42mm f/3.5-5.6 I / II / IIR, 12-50mm f/3.5-6.3 EZ, 45mm f/1.8, 60mm f/2.8 Macro, and 75mm f/1.8 lenses. The port is meant to stay attached to the housing, but can be removed if you loosen the screws holding it in place. An optional port from AOI could then be mounted to allow for the use of different lenses. See System Chart.

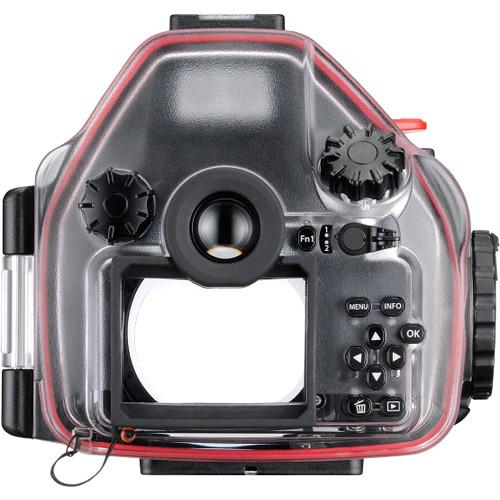

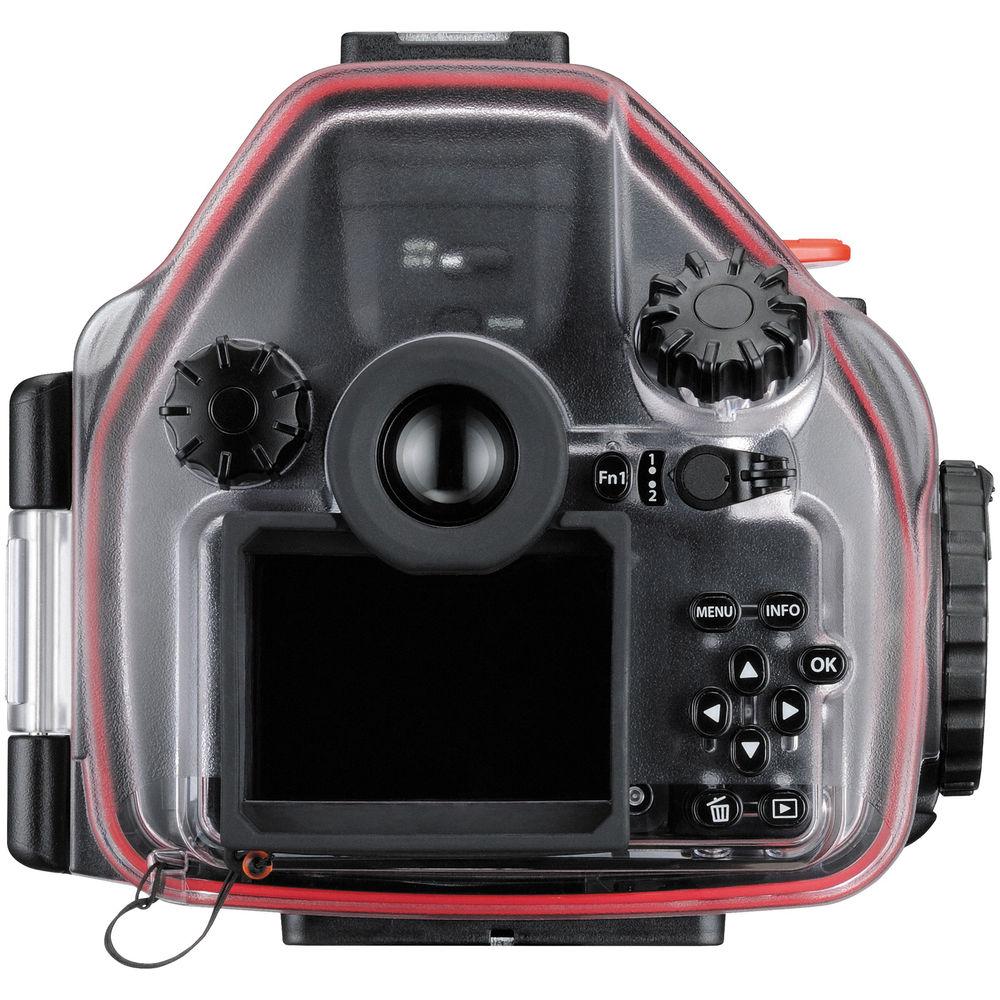

The housing's clear back lets you monitor the O-ring seal and gives you a full view of the camera's display screen. Additionally, the waterproof enclosure features an optical viewfinder as another method of shot composition. - Construction Details
-
- Has a depth rating of 147'
- Configured with an accessory shoe mount for connecting accessories such as flashes and lighting arms
- Made from corrosion-resistant polycarbonate
- Clear back lets you monitor O-ring seal and gives you full view of camera's display screen
- Integrated lens port body also constructed from polycarbonate
- Port has a flat glass front element, which is multi-coated to reduce reflections
- Strobe Connection and Operation
-
- Dual fiber-optic cable ports enable connection of optional external strobes, such as Olympus UFL-3 with guide number of 72' at ISO 100 and color temperature of 5400K
- Allows you to use shoe-mount flash bundled with camera to trigger external units
- Supplied flash window cover blocks camera's flash when you're using an external strobe, in order to prevent backscatter, glare, and hard shadows. Two holes preserve access to fiber-optic cable ports
- If you don't want to block flash but still want to soften it, included PTDP-EP13 diffuser fits over flash window as an alternative to the cover
- Strobes can also be triggered wirelessly by on-camera flash
- Controls, Handling, and Operation
-
- Mechanical controls, including push-buttons, grooved dials, and a lever, afford access to all camera functions except DOF preview on the front
- Buttons are large for ease of operation, even when wearing diving gloves
- Features a removable, magnifying optical viewfinder that allows you to take full advantage of the E-M5 Mark II's electronic viewfinder while wearing a diving mask
- Supplied monitor hood blocks stray light to improve visibility
- Optional bracket for carrying housing and attaching accessories via mounting holes
- Lens Port
-
- Integrated flat port accommodates M.Zuiko 9-18mm f/4.0-5.6, 14-42mm f/3.5-5.6 I / II / IIR, 12-50mm f/3.5-6.3 EZ, 45mm f/1.8, 60mm f/2.8 Macro, and 75mm f/1.8 lenses
- Built-in port features multi-coated glass to reduce inner reflections

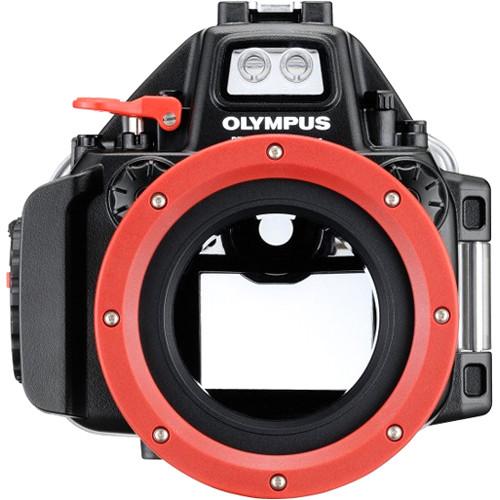

- Port is meant to stay attached to housing, but can be removed if you loosen screws holding it in place
- Optional port from AOI could be mounted to allow for use of different lenses
- Optional Macro Lens Adapter PMLA-EP01 enables use of Underwater Macro Conversion Lens PTMC-01, which has a 67mm filter thread diameter
- Optional anti-reflection/shading rings available
- See System Chart linked above for full compatibility info
UPC: 050332188884 In the Box Olympus PT-EP13 Underwater Housing for OM-D E-M5 Mark II POL-EP13 O-Ring SILCA-5S Silica Gel PBC-EP01 Cap for PT-EP01 Housing (Replacement) PSOLG-2 Silicone Grease PFUD-EP13 LCD Monitor Hood PTDP-EP13 Flash Diffuser Flash Window Cover PTAC-05 O-Ring Remover Hand Strap Limited 1-Year Warranty Compatibility Chart PDF 11.7mb Table of Contents
|
Upload User Manual
Have you got an user manual for the Olympus PT-EP13 Underwater Housing for OM-D E-M5 Mark II in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersOlympus PT-EP13 Specs | Depth Rating | 147' / 45 m | | Control Type | Mechanical push-buttons, grooved dials, and lever | | Controls | Provide access to all camera functions except DOF preview button on the front | | Material of Construction | Housing and Lens Port Body: Polycarbonate
Lens Port Front Element: Multi-coated glass | | Lens Port | Integrated flat port with multi-coated glass accommodates M.Zuiko 9-18mm f/4.0-5.6, 14-42mm f/3.5-5.6 I / II / IIR, 12-50mm f/3.5-6.3 EZ, 45mm f/1.8, 60mm f/2.8 Macro, and 75mm f/1.8 lenses
Port is meant to stay attached to housing, but can be removed and replaced by optional AOI port
Optional Macro Lens Adapter PMLA-EP01 enables use of Underwater Macro Conversion Lens PTMC-01 with 67mm filter thread
See System Chart linked in Overview | | External Flash Connector | Dual fiber-optic cable ports for optional external strobes
Shoe-mount flash bundled with camera triggers strobes | | Viewfinder | Magnifying optic | | Mounting | Cold shoe mount
Optional bracket | | Dimensions | Approx. 6.9 x 6.8 x 6.9" / 17.5 x 17.3 x 17.5 cm | | Weight | 2.7 lb / 1.2 kg | | | | Package Weight | 4.9 lb | | Box Dimensions (LxWxH) | 9.7 x 8.6 x 7.9" |
