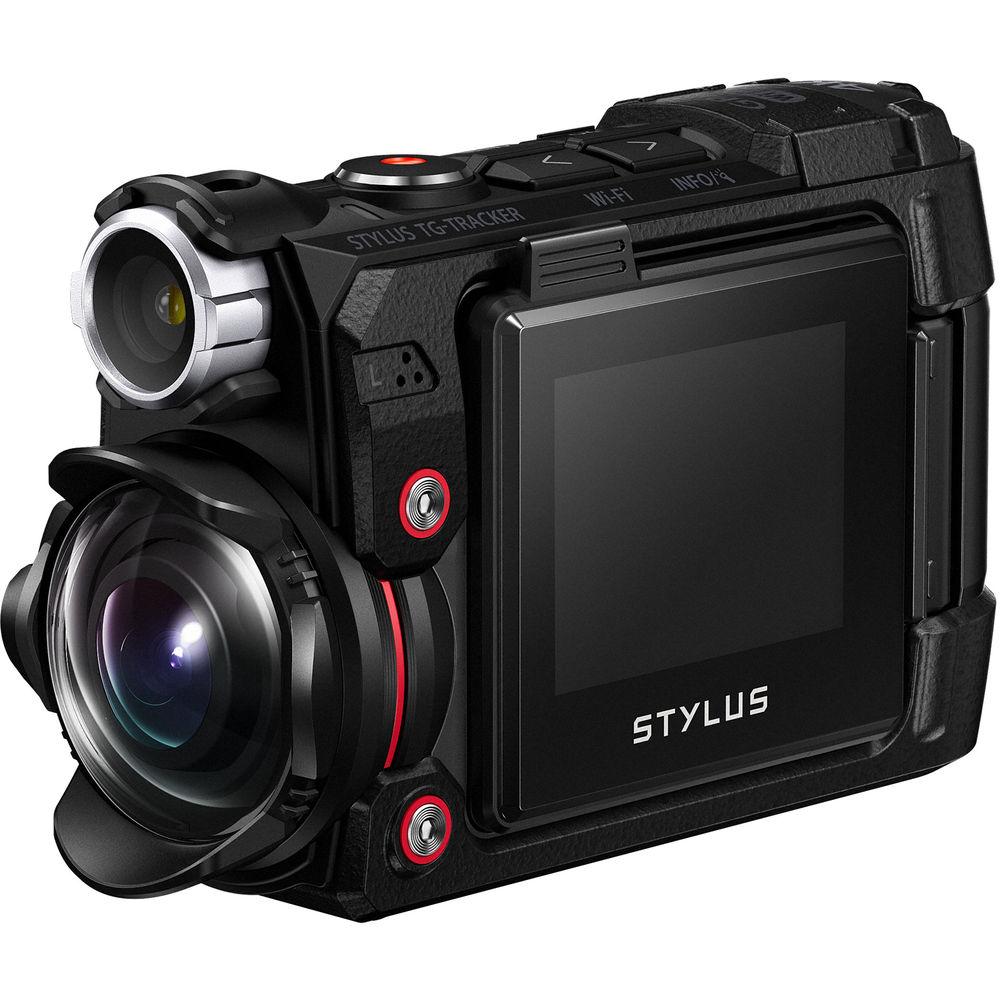

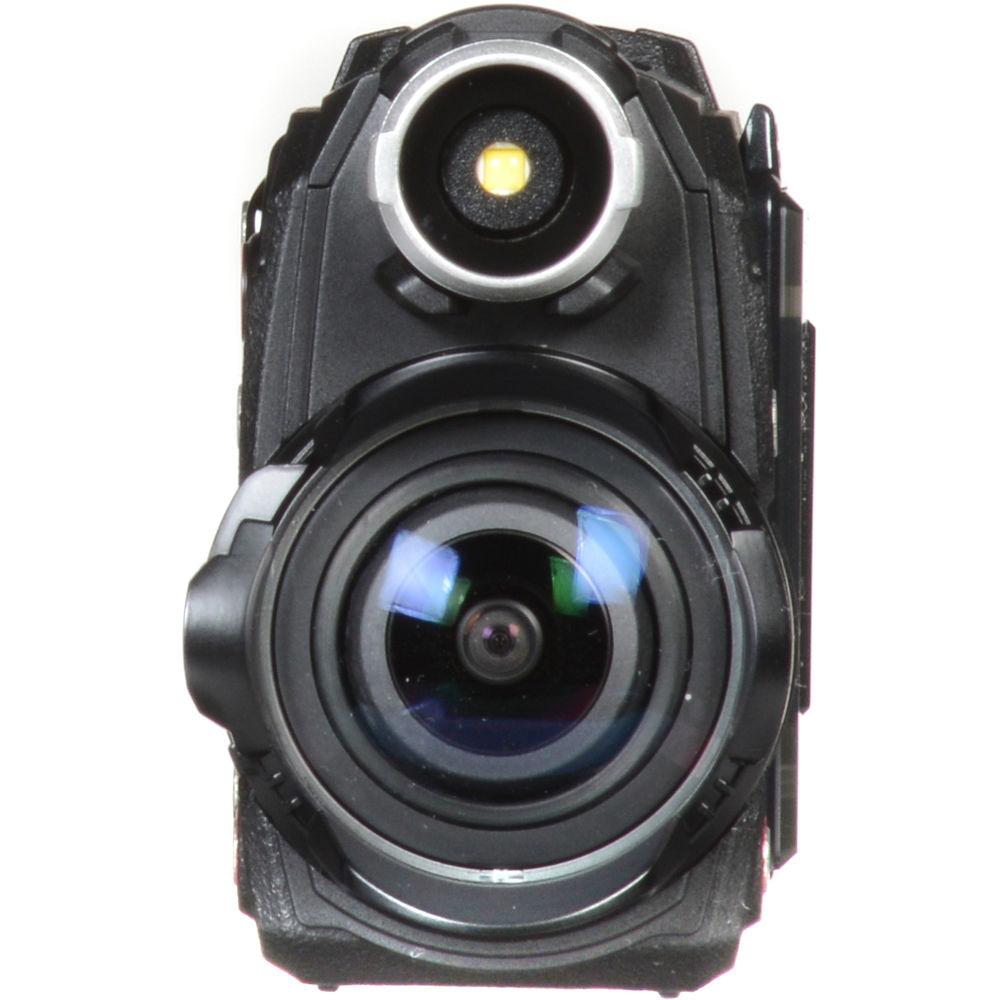

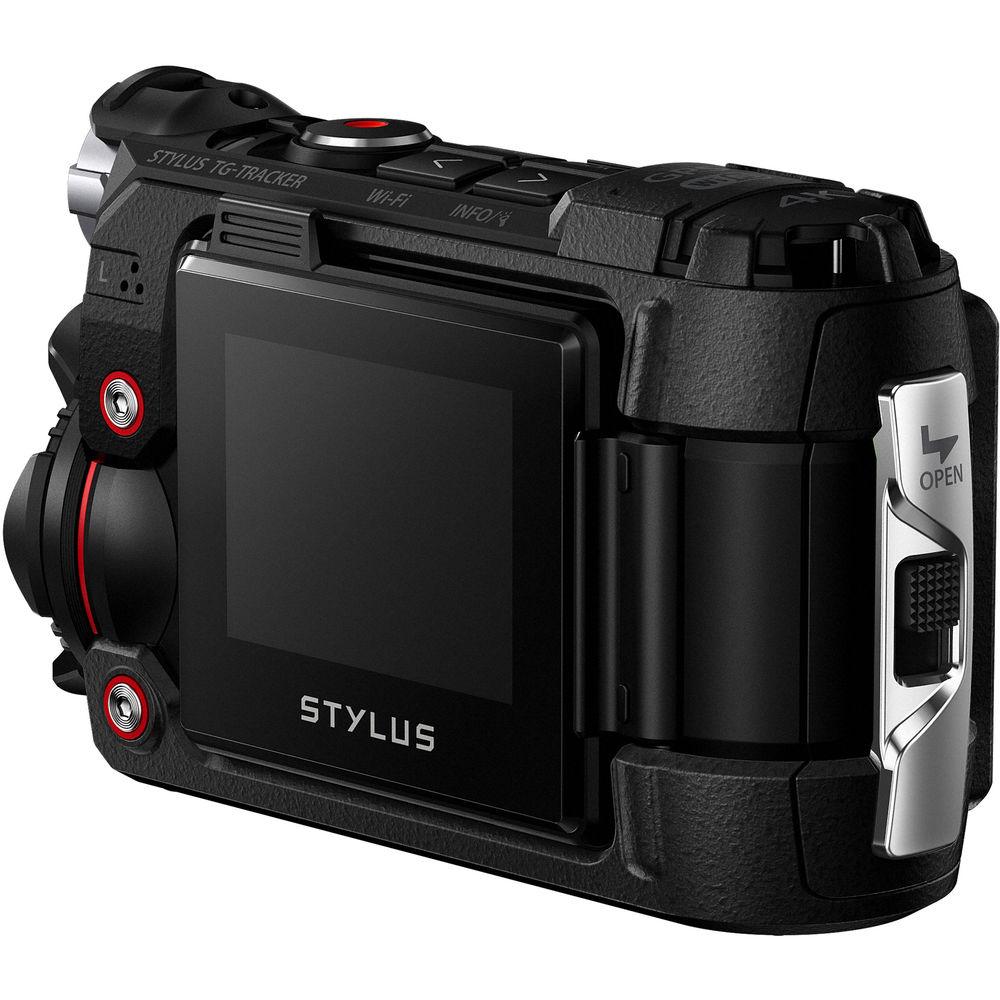

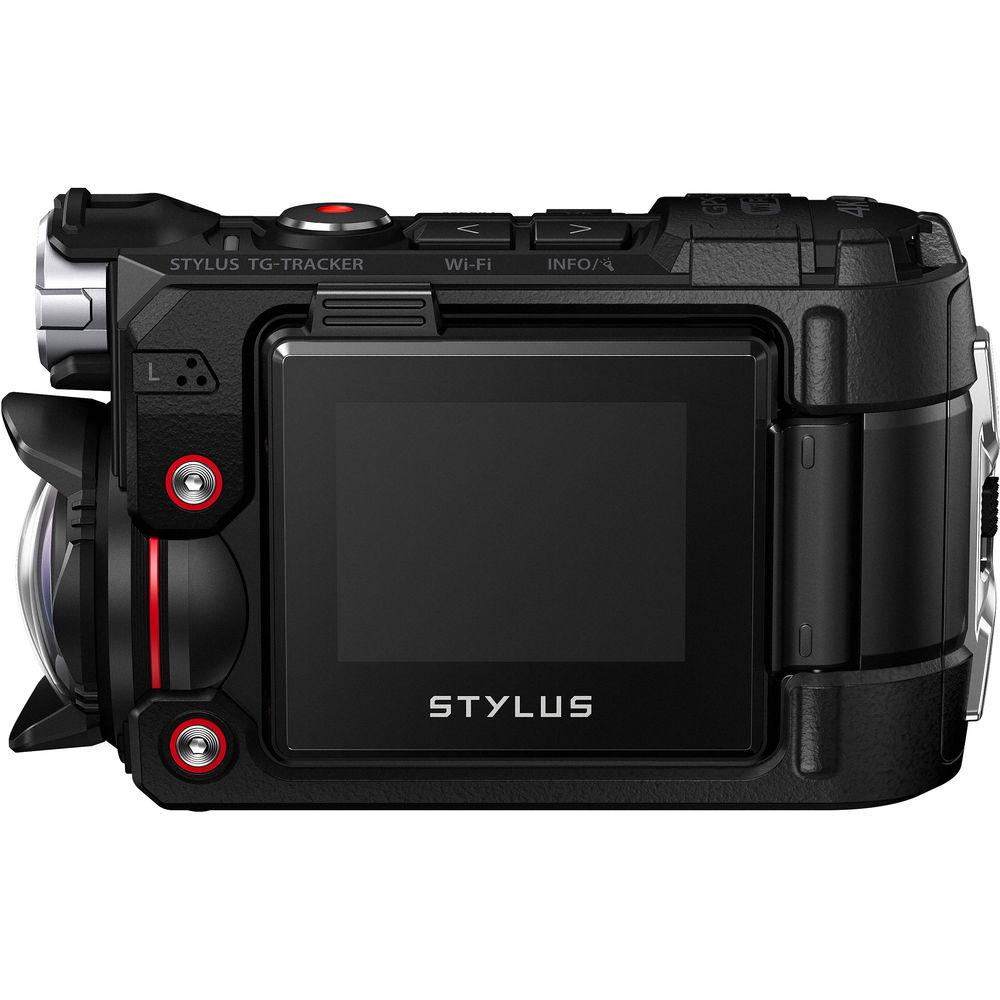

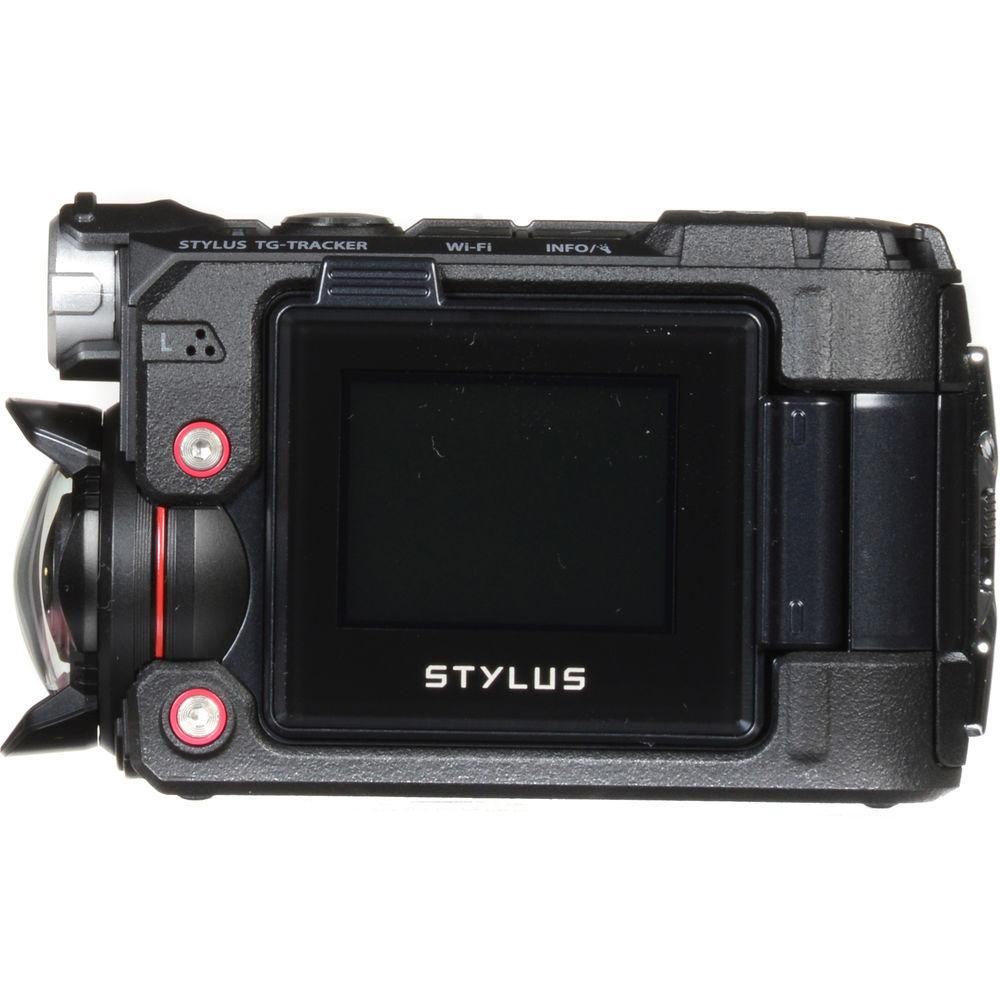

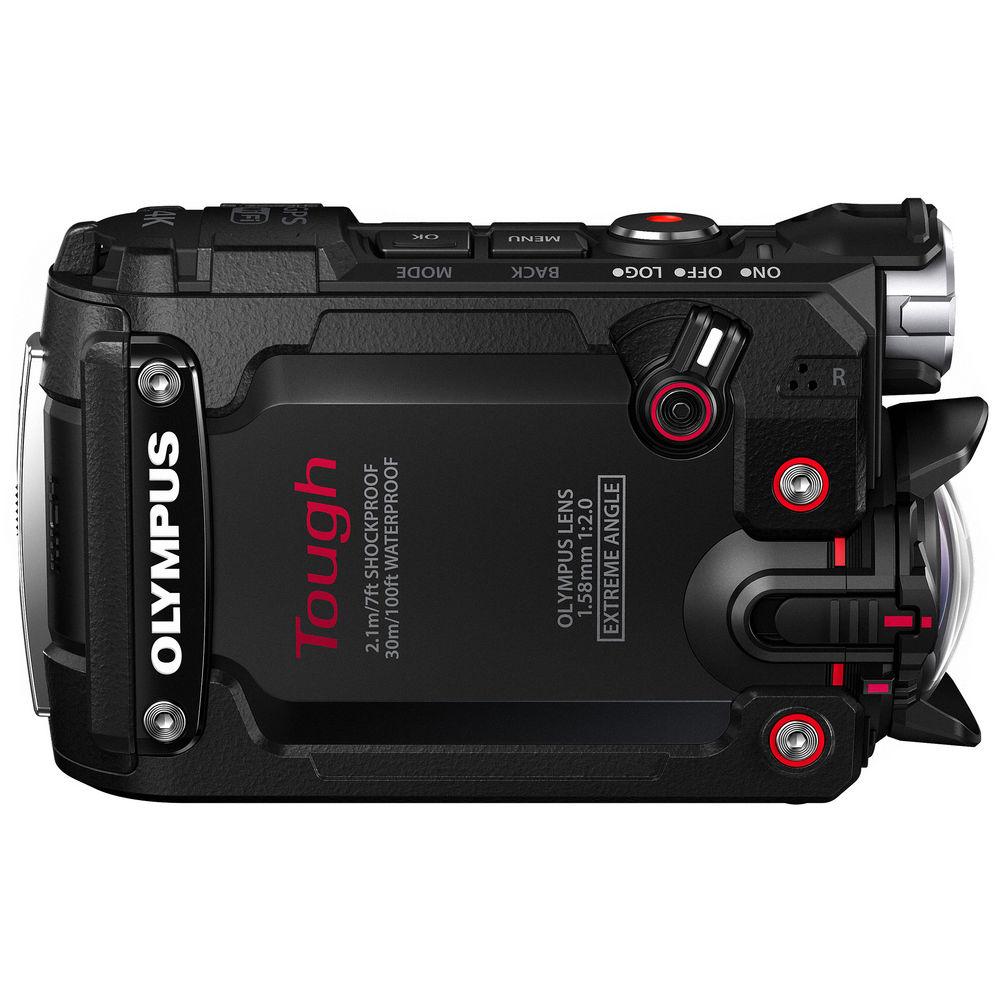

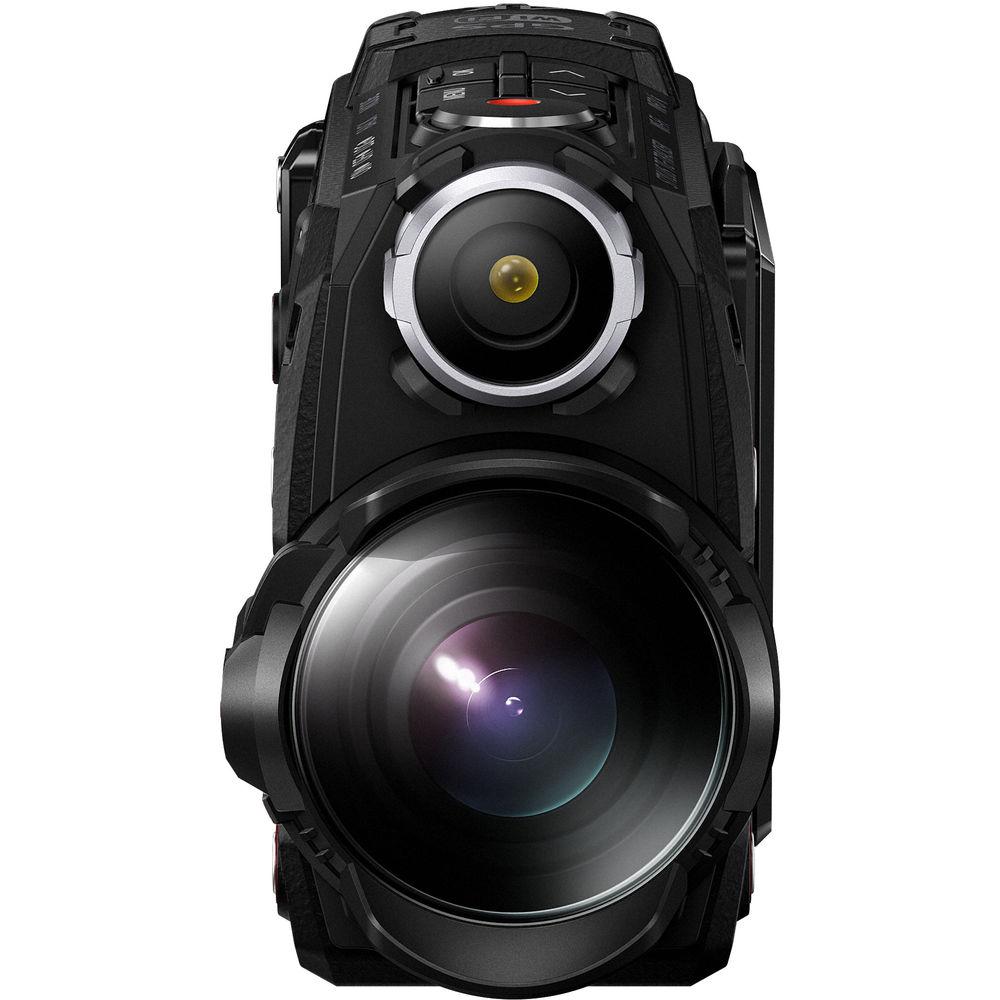

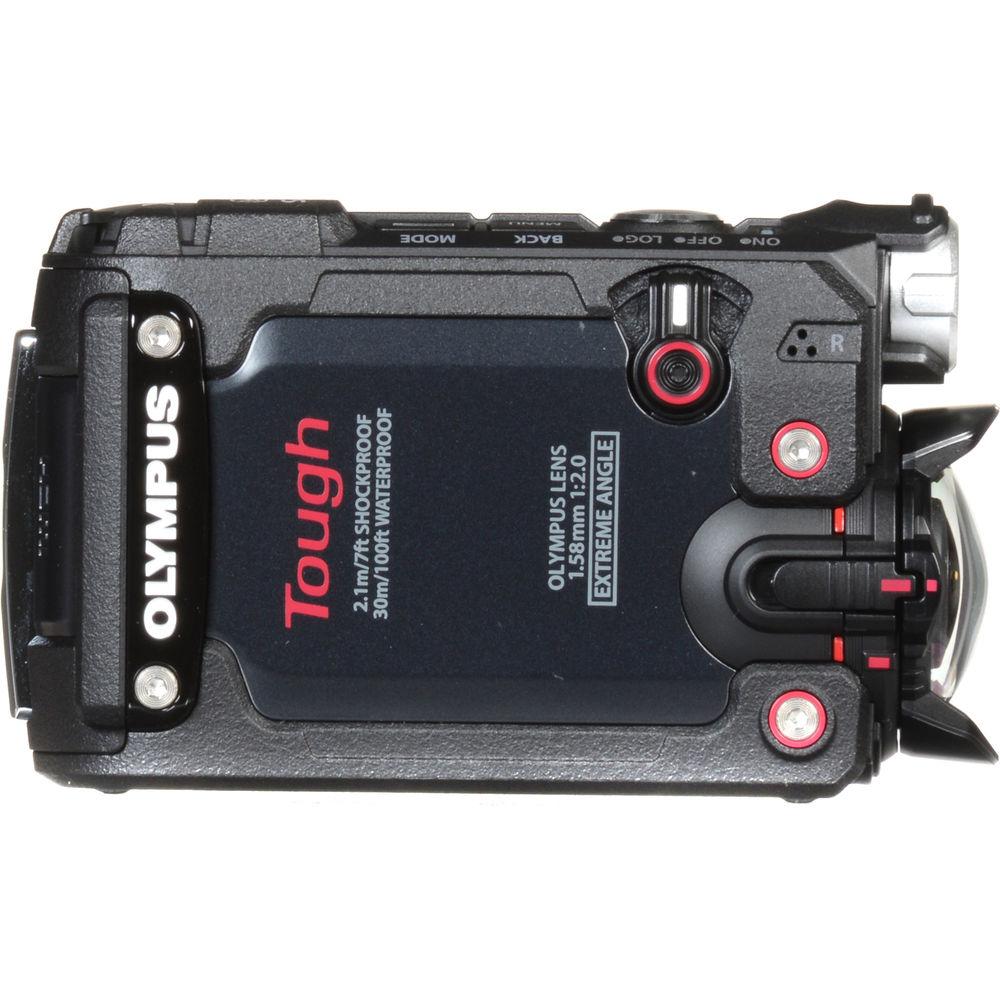

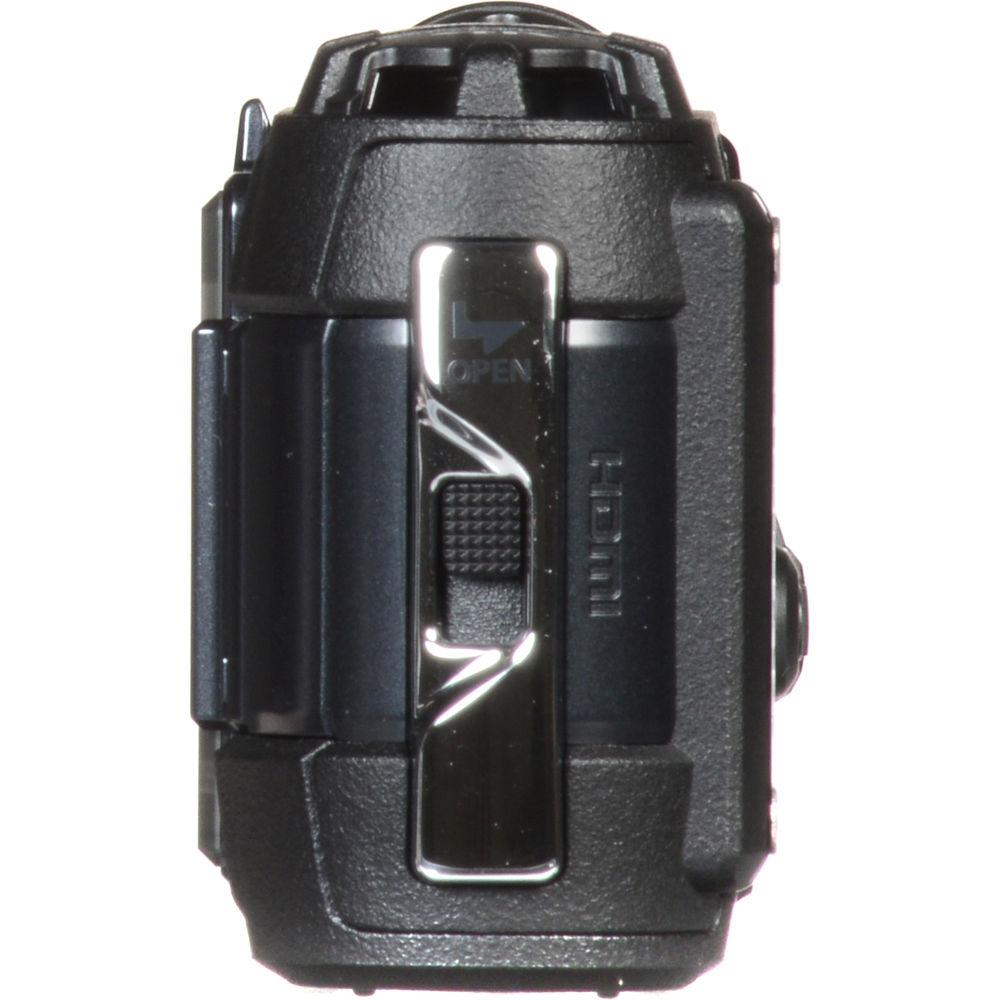

User Manual for Olympus Stylus Tough TG-Tracker Action Camera Click to enlarge the picture
Contents of the user manual for the Olympus Stylus Tough TG-Tracker Action Camera
- Product category: Sports & Action Cameras Olympus
- Brand: Olympus
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Olympus Sports & Action Cameras
|
User manual for the Olympus Stylus Tough TG-Tracker Action Camera contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Olympus product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Olympus user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Olympus product will considerably shorten its lifespan!
|
Product description Unveiled: A New Action Camera from Olympus, the TG-Tracker Read More - Quick Look: Olympus Stylus Tough TG-Tracker
- Tough TG 5 Overview Video
- Tough TG 5 Promo Video
- TG Tracker Product Features Video
- TG Tracker Product Overview Video

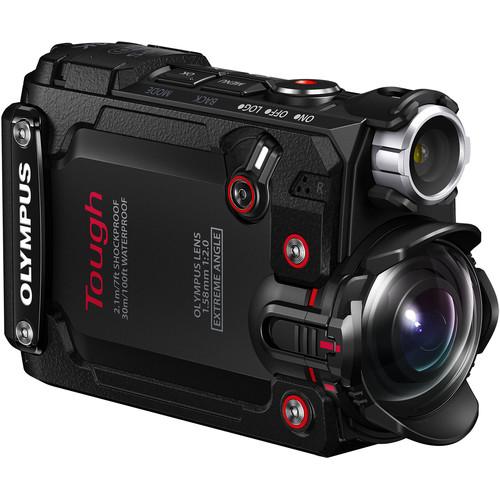

Proudly displaying the Tough badge of honor, the black Olympus Stylus Tough TG-Tracker is a rugged action camera ready to capture all of the action in resolutions up to UHD 4K at 30 fps. Compared to other action cameras, the TG-Tracker doesn't require a separate camera housing to provide its toughness, with its body shockproof from drops up to 7' and waterproof to depths of 98.4'. It's also dustproof and will operate in temperatures as low as 14°F, so whether you're at the beach on at the top of the slope, the camera is up to the task.
Being tough isn't all the TG-Tracker has to offer. Besides high-resolution UHD video at 30 fps, you can record 1080p video up to 60 fps, 720p video up to 240 fps, and 8MP still photos. Equipped with an ultra-wide 204° lens, the camera is able to see practically everything in front of it, and even a bit on the sides. A built-in LED headlamp positioned above the lens lets you illuminate dark or dimly lit environments. You can confidently frame your shots using the tilt-out 1.5" LCD screen, or connect to a mobile device via Wi-Fi and use the Olympus Image Share (OI.Share) app to remotely monitor and operate the camera, as well as transfer files for immediate sharing.
For adventurers looking to analyze their activities, switch the TG-Tracker to LOG mode to record the data from the camera's built-in GPS, compass, accelerometer, thermometer, and barometer. The location data from these sensors, such as location, altitude, direction, and temperature, can be viewed on the camera's monitor and downloaded for later use with the Olympus Image Track (OI.Track) mobile app. - Video Recording
-
- UHD 4K at 30 fps
- 1080p up to 60 fps
- 720p up to 240 fps
- Rugged Design
-
- Waterproof to depths of 98.4'
- Shockproof from drops up to 7'
- Crushproof to 200 lbf
- Freezeproof to 14°F
- Built-in Sensors Track Location and Movement
-
- Five Built-in Sensors: GPS, eCompass, Accelerometer, Thermometer, Barometer
- Choose to display location data, an artificial horizon, or altitude (depth) on the LCD screen
- View and download data logs using OI.Track app
- Additional Features
-
- 204° f/2 lens
- 8MP still photos
- 1.5" tilt-out LCD screen
- Built-in headlamp for shooting in dark areas
- Interval capture for time-lapse
- Electronic 5-axis image stabilization
- Built-in Wi-Fi for remote monitoring, control, and file sharing
- Records to microSD/SDHC/SDXC memory cards
UPC: 050332190498 In the Box Olympus Stylus Tough TG-Tracker Action Camera (Black) Wrist Strap LI-92B Rechargeable Lithium-Ion Battery (3.6V, 1350mAh) AC Adapter USB Cable Lens Protector Underwater Lens Protector Joint Screw Mount Coupling Steady Grip CD-ROM with User Manual and Software Limited 1-Year Warranty User Manual PDF 1.7mb Table of Contents
|
Upload User Manual
Have you got an user manual for the Olympus Stylus Tough TG-Tracker Action Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersOlympus TG-Tracker Specs | Focal Length | 1.58mm | 35mm-Equivalent Focal Length | 13.9 | Maximum Aperture | f/2 | Minimum Focusing Distance | 7.9" / 20.0 cm | Angle of View | 204° | | Recording Media | x microSD/HC/XC Supports UHS-I | Video Format | 3840 x 2160p at 30 fps (MOV) 1920 x 1080p at 30/60 fps (MOV) 1280 x 720p at 30/60/120/240 fps (MOV) 854 x 480p at 30/60/120/240 fps (MOV) | Still Image Resolution | JPEG: 8 Megapixel, 3840 x 2160 (16:9) JPEG: 2.1 Megapixel, 1920 x 1080 (16:9) JPEG: .9 Megapixel, 1280 x 720 (16:9) JPEG: .4 Megapixel, 854 x 480 (16:9) | Channels | Stereo | Audio Format | LPCM WAV | | Display Type | LCD | Screen Size | 1.5" | Screen Resolution | 115,200 Dots | | Shutter Speed | 1/2 - 1/24000 Second () | Exposure Metering | Digital ESP, Spot | Interval Recording | .5 Second 1 Second 2 Second 5 Second 10 Second 30 Second 60 Second | Self-Timer | 2, 12 Sec | | Image Stabilization | Digital | Shockproof Rating | 7.0' / 2.1 m | Waterproof Depth Rating | 98.4' / 30.0 m (Camera) | IP Rating | IP6X | White Balance Modes | Auto Cloudy Daylight Underwater | Built-In Mic | Yes | Built-In Speaker | Yes | Built-In Light/Flash | Light - Yes Flash - No | Wi-Fi | Yes, Wi-Fi 4 (802.11n) | Tripod Mount | 1/4" - 20 | | Outputs | 1 x Micro-HDMI (Type D) 1 x USB Micro-B | | Battery | Rechargeable Lithium-Ion Battery Pack, 3.6 VDC, 1350 mAh | Charging Method | AC Adapter USB | Power Adapter | 100 - 240 VAC, 50 / 60Hz | Operating Temperature | 14 to 104°F / -10 to 40°C Humidity: 90% | Dimensions (W x H x D) | 1.4 x 2.2 x 3.7" / 35.0 x 56.5 x 93.2 mm excluding protrusions | Weight | 6.35 oz / 180 g including battery and card | | Package Weight | 1.185 lb | Box Dimensions (LxWxH) | 7.85 x 5.95 x 3.55" |
