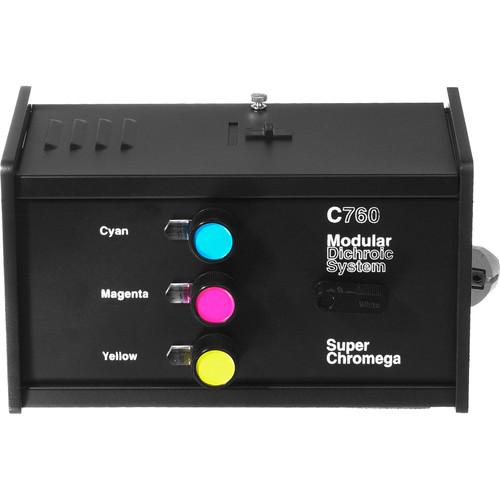

User Manual for Omega Dichroic Lamphouse for C760 & C700 Enlargers Click to enlarge the picture
Contents of the user manual for the Omega Dichroic Lamphouse for C760 &
- Product category: Enlarger Heads Omega
- Brand: Omega
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Omega Enlarger Heads
|
User manual for the Omega Dichroic Lamphouse for C760 & contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Omega product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Omega user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Omega product will considerably shorten its lifespan!
|
Product description The Omega Dichroic lamphouse for the C700 series enlargers is designed for discriminating users requiring added flexibility, the C760 modular enlarger is one of the most versatile darkroom tools available. The C760 dichroic lamphouse features continuously variable, fade-free dichroic filters and interchangeable attenuators to control light output up to three f/stops. - Built-in solid state power supply. Optional solid state Voltage stabilizer (#403730) regulates line voltage for consistent light output
- A white light lever removes the filters from the light path without disturbing the filter setting, increasing illumination for easier focusing
- Interchangeable light attenuaters can control light output one, two or three f/stops, enabling the use of optimum f/stop and exposure time. Ideal for creative effects such as burning and dodging
- Continuous variable dichroic cyan, magenta and yellow filters are fade-free and individually calibrated for precise color control
- Filtration range of 0-200 units using calibrated, magnified, color coded, illuminated reference scales in one unit increments. Zero detent for white light in black and white printing
- Diffused illumination system actually suppresses scratches and dust for blemish free prints
- Two mixing chambers are included; one for film formats 35mm and smaller, and one for film formats up to 6cm x 7cm; with patented diffusers to ensure bright, even illumination for all film sizes
- Built-in infrared heat absorbing filter yields purer color rendition and better color saturation
- Built-in ultraviolet filtration prevents off color highlights and shadows
- Exclusively designed pre-focused Quartz Halogen lamp operating at 85W/82V for long life, consistent color temperature and maximum light output
- Die-cast aluminum heat sink and flow through air convection cooling system dissipates heat efficiently, keeping the film stage cool during use
In the Box Omega Dichroic (Color) Lamphouse (220V - European Voltage) for C760 & C700 Enlargers 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Omega Dichroic Lamphouse for C760 & C700 Enlargers in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersOmega 403623 Specs | Light Source | 85Watt/82volt Quartz Halogen (ESJ) | | Light Control | Dichroic filtration | | Cooling | Air convection cooling system | | Filter Drawer | Not applicable | | Power Supply | 220volt/50hertz, 85Watts | | Weight | 6.33lbs |
