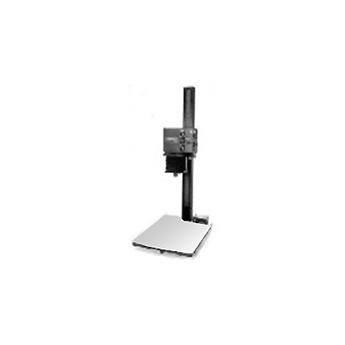

User Manual for Omega LPL 4550XLG 4x5 Variable Contrast Enlarger Click to enlarge the picture
Contents of the user manual for the Omega LPL 4550XLG 4x5 Variable Contrast
- Product category: Enlargers Omega
- Brand: Omega
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Omega Enlargers
|
User manual for the Omega LPL 4550XLG 4x5 Variable Contrast contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Omega product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Omega user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Omega product will considerably shorten its lifespan!
|
Product description The Omega/LPL 4 x 5" Enlargers are available in two series: The top-of-the-line 4550XLG series, and the value-oriented 4500-II series. 4550XLG Enlargers feature a longer column than the 4500-II models, as well as an extended chassis and oversized baseboard for enhanced maximum enlargement capability. In addition, 4550XLG Enlargers have a higher-power light source (with higher-performance cooling system to match), for faster printing. Enlargers from either series may be purchased in color dichroic, straight black & white diffusion, or black & white variable contrast, constant exposure (VCCE) configuration, depending on the filtration module selected. Additional slide-in modules may be purchased separately, and are fully interchangeable among Saunders/LPL 4 x 5" Enlargers. - Quartz-halogen diffusion system for fast black & white printing.
- Scratch and dust suppression characteristics of diffusion-type light source.
- Factory-aligned carriage and column for perfect alignment and elevation.
- Smooth-as-silk controls, unmatched by other enlargers. Die-cast lens stage with square, extra-long bellows travels on twin stainless steel focusing tracks.
- Convenient elevation system with hand grip for rapid lifting, and a drive knob for finer changes. Separate locking knob.
- Memory-Lock white-light system for easy focusing.
- Built-in, vibration-free noiseless blower plus heat sink.
- Left and right-hand fast focus controls plus a 5:1 geared fine focus system help you achieve tack-sharp results with speed and confidence.
- Fully laminated, oversize neutral gray baseboard with vibration-dampening doubler plate.
UPC: 053661020078 In the Box Omega LPL 4550XLG 4x5 Variable Contrast Enlarger Baseboard 39mm Lensboard 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Omega LPL 4550XLG 4x5 Variable Contrast Enlarger in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersOmega 209467 Specs | Maximum Film Size | 4 x 5" | | Light Source | Quartz Halogen Diffusion Head | | Maximum Height | 59" | | Modular Head System | Accepts all 4x5 series heads/Filter modules | | Baseboard Size | 31.5 x 23.75" | | Maximum Print Size On Baseboard | 20 x 24" | | Filter Drawer | Not applicable | | Replacement Lamp | EVW (250w/82v) | | Reversible Column | No | | Wall Projection | No | | Tilts | No | | Voltage | 100-130VAC 50/60Hz | | Voltage Stabilized | Yes, voltage-stabilized, solid-state power supply with US electronics | | Weight | 78lbs. (shipping weight) | | Specialties | Built-in vibration-free noiseless blower plus heat sink. | | Accessories | Extension tube (39mm thread) allows 1:1 size printing of 4x5 negatives (#201-139),
Four Bladed Masking Attachment (#240-500),
Wall Mount/Brace Kit (#240-210),
Focus Extension (#240-220),
35mm Mixing Chamber/Multiplier (#255-535),
6x7 Mixing Chamber/Multiplier (#255-567). | | | | Package Weight | 80.4 lb | | Box Dimensions (LxWxH) | 56.5 x 26.5 x 26.0" |
Rating70% users recommend this product to others. And what about you?
This product has already been rated by 98 owners. Add your rating and experience with the product.
