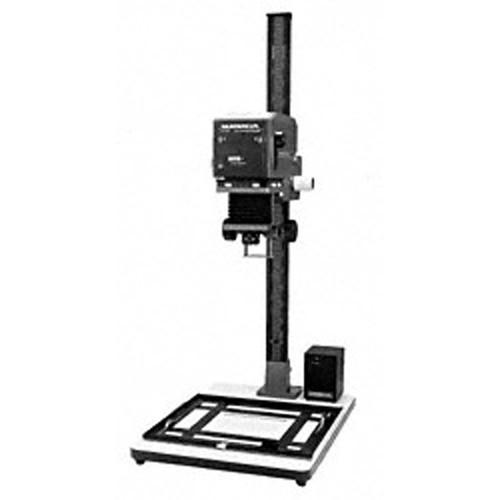

User Manual for Omega LPL 670VCCE 6x7cm Variable Contrast Black & White Enlarger Click to enlarge the picture
Contents of the user manual for the Omega LPL 670VCCE 6x7cm Variable Contrast
- Product category: Enlargers Omega
- Brand: Omega
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Omega Enlargers
|
User manual for the Omega LPL 670VCCE 6x7cm Variable Contrast contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Omega product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Omega user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Omega product will considerably shorten its lifespan!
|
Product description The specially designed Omega 670VCCE variable contrast system incorporates a unique, dual-range design that provides two separate filtration channels covering all popular variable contrast papers. Simply dial in the desired filtration then the enlarger compensates to maintain constant exposure!As filtration is changed, the enlarger automatically introduces the correct amount of neutral density to maintain constant exposure throughout the range of paper grades. This is achieved with state-of-the-art, dichroic cut-off filters which selectively pass certain wavelengths while rejecting others, resulting in a spectrally pure beam of light. The 670VCCE features the same chassis and baseboard as the popular LPL 670MXL dichroic and 670CXL triple-condenser enlargers. What's more, the 670VCCE can be purchased as a complete enlarger or lamphouse only, for use on an existing 670-series chassis. Lamphouses are completely interchangeable, without tools. NOTE: Does Not Come With Lens & Negative Carrier - Dual Filtration Channels The heart of the 670VCCE is its revolutionary lamphouse.
- Two independent filtration channels allow use of all popular contrast papers:
Channel one is calibrated for Kodak Polycontrast IV, Kodak Polymax and other equivalent variable contrast papers.
Channel two is calibrated for use with Ilford Multigrade IV RC papers, or compatible papers such as Agfa and Oriental. - A convenient slide-switch makes channel selection quick and easy. Once the appropriate channel has been chosen, you simply dial in the desired paper grade.
Paper grade readout displays are illuminated, stepless and marked in half-grade increments:
Channel one displays filtration settings from -1 to 6,
Channel Two displays filtration settings from 00 to 5. The unused channel readout is automatically masked to prevent the possibility of error. UPC: 536610199501 In the Box Omega LPL 670VCCE 6x7cm Variable Contrast Black & White Enlarger Chassis Baseboard Variable Contrast Lamphouse Leica threaded (39mm) lens mount Lamp (EFP) Power Supply 5-Year Warranty NOTE: Does Not Come With Lens & Negative Carrier Table of Contents
|
Upload User Manual
Have you got an user manual for the Omega LPL 670VCCE 6x7cm Variable Contrast Black & White Enlarger in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersOmega 200667 Specs | Maximum Film Size | 6cm x 7cm | | Light Source | Variable contrast | | Maximum Height | 48" | | Modular Head System | Accepts all 670 heads | | Baseboard Size | 18" x 23" | | Maximum Print Size On Baseboard | 16" x 20" | | Filter Drawer | Not applicable | | Replacement Lamp | EFP (100w/12v) | | Reversible Column | Yes | | Wall Projection | Yes | | Tilts | Yes | | Voltage | 120VAC, 50/60 Hz | | Voltage Stabilized | No | | Weight | 46.80lbs. (shipping weight) | | Specialties | A single convenient lift-and-lock magnification control. Fully counterbalanced die-cast carriage. | | Accessories | Fine Focusing Attachment(#240-300),
Focusing Extension (#240-220).
These attachments must be used together in order to fine focus,
Copy Camera Adapter (#240-320),
Film Hanger Set (#200-150) | | | | Package Weight | 33.45 lb | | Box Dimensions (LxWxH) | 48.5 x 24.5 x 14.5" |
