User Manual for omnicharge 20,100 mAh Omni 20 USB Type-C 4-Port Portable Battery Pack Click to enlarge the picture
Contents of the user manual for the omnicharge 20,100 mAh Omni 20 USB
- Product category: Portable Battery Packs omnicharge
- Brand: omnicharge
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for omnicharge Portable Battery Packs
 |
User manual for the omnicharge 20,100 mAh Omni 20 USB contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any omnicharge product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official omnicharge user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a omnicharge product will considerably shorten its lifespan!
|

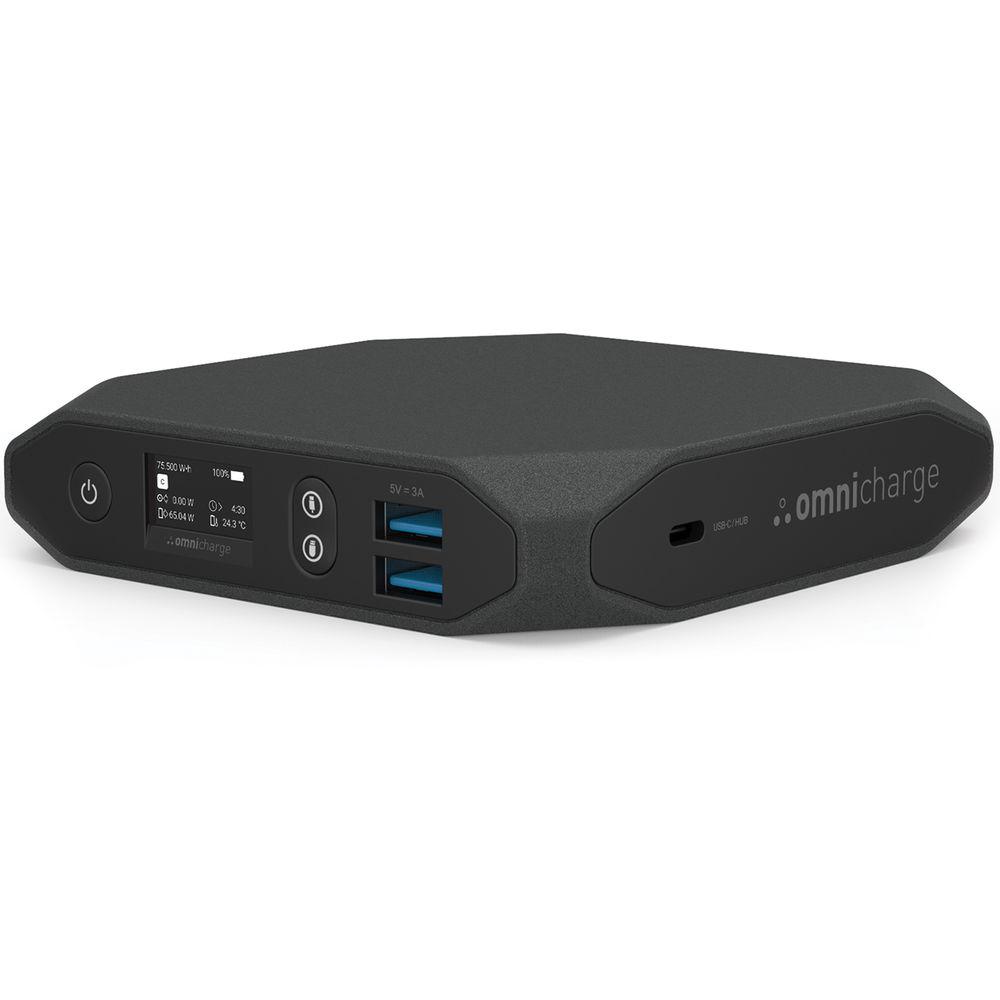

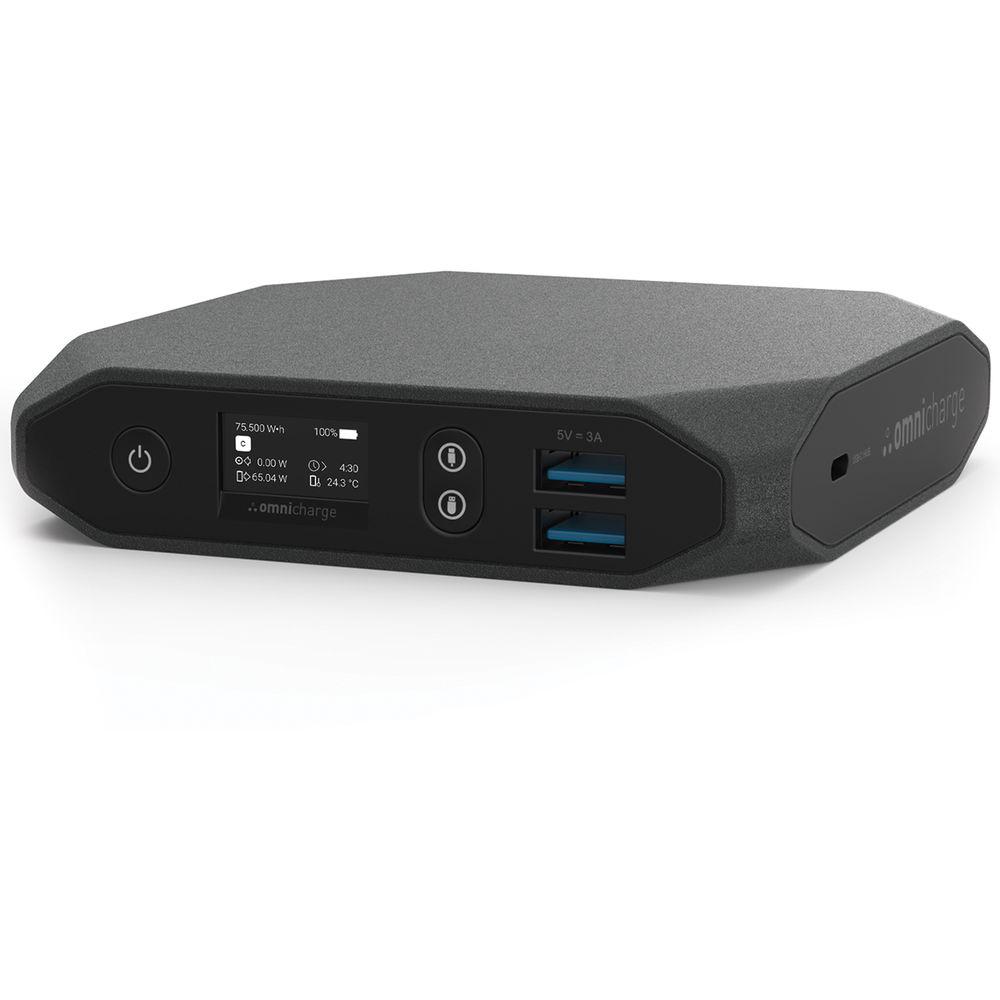

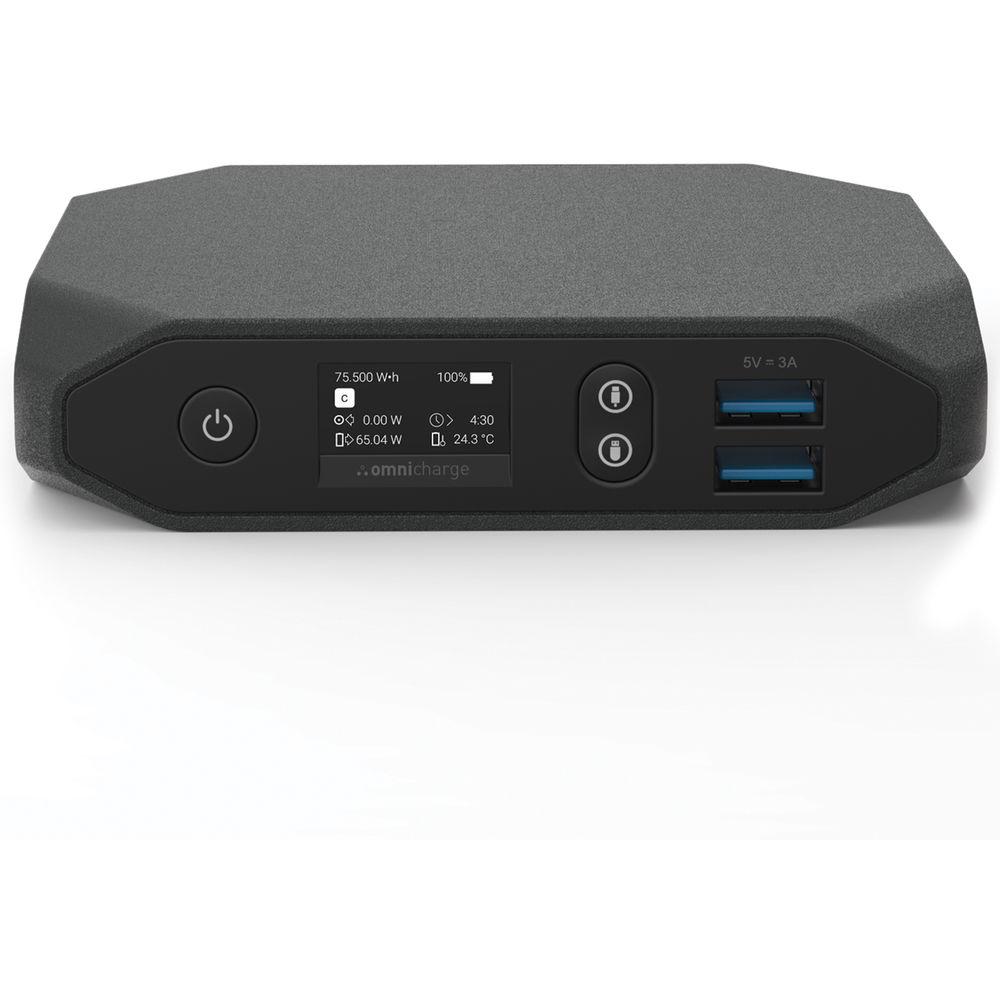

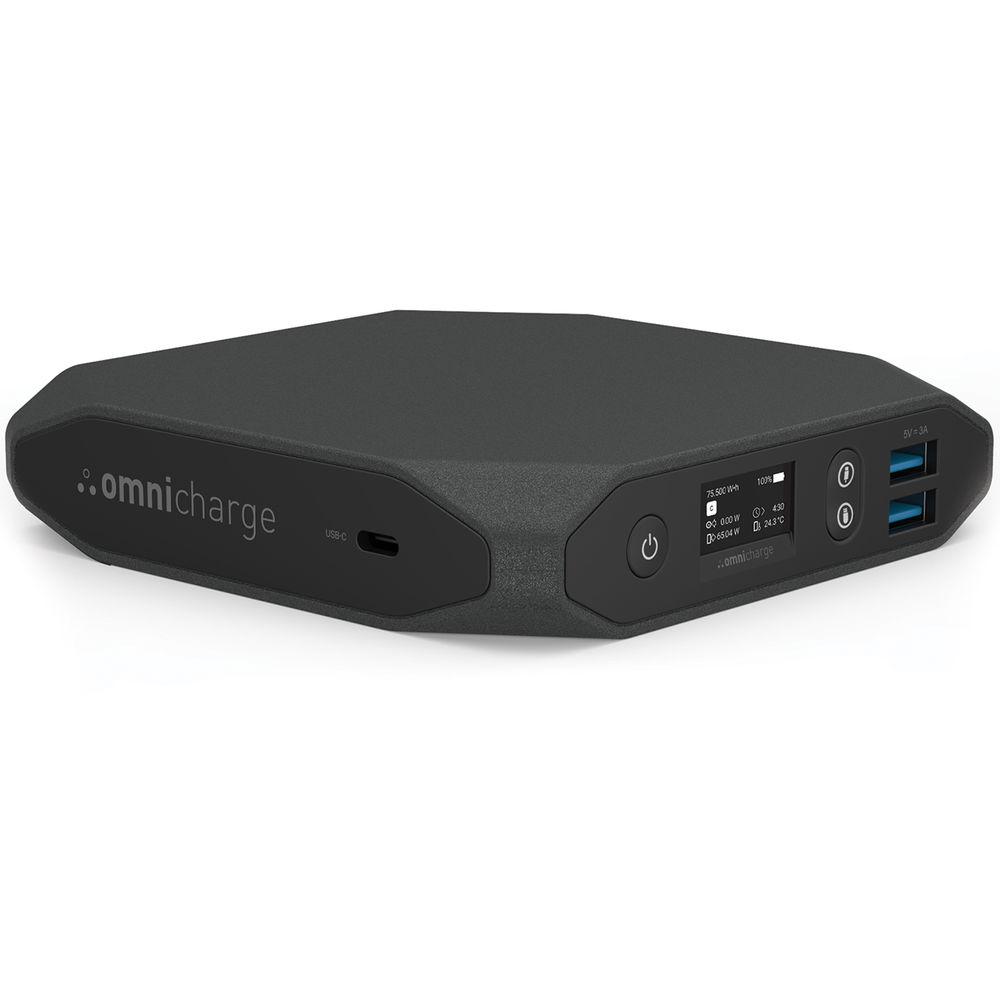

Product description The 20,100 mAh Omni 20 USB Type-C 4-Port Portable Battery Pack from Omnicharge is both a portable battery and a USB hub. Featuring two USB Type-C and two Type-A ports, the Omni 20 can transfer data to and from your devices at USB 3.0 speeds once its connected to a Type-C-compatible computer. By itself, a USB Type-C port supports up to 60W of power, which can charge a MacBook, but when used simultaneously, they have a max combined power output of 100W. Additionally, the Omni 20 has a built-in OLED display with helpful battery information such as remaining charge, power output, and charge time. To keep your devices and itself protected, it's built with a variety of power safety systems. - USB Type-C In & Out
- The Omni 20 is equipped with two USB Type-C ports. They have a single output of 60W and a combined output of 100W, split 60/40. Moreover, both ports accept power input from any USB Type-C charger.
- Pass-Through Charging
- With pass-through charging, the Omni 20 can charge your devices while charging itself.
- USB Hub
- When connected to your USB Type-C compatible system, the other USB ports on the Omni 20 supports USB 3.0 speeds and can be used to transfer files to and from other devices.
- Charging Manager
- The Battery Limit function lets you control how much you want to discharge or charge your Omni 20's batteries, which can reduce stress on the chemicals inside the cell, to help prolong their life cycle. The Omni 20 is rated to last over 500 cycles.
- Power Protection System
- Battery Low Temperature
Battery Over Temperature
Battery Over Discharge / Overcharge
Battery Self-Balancing
Battery Short-Circuit
Output Over Power
Output Over-current
Input Over-voltage
Input Over-current
Motherboard Over Temperature
Motherboard Short-Circuit
MCU Reset UPC: 853655007678 In the Box omnicharge 20,100 mAh Omni 20 USB Type-C 4-Port Portable Battery Pack Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the omnicharge 20,100 mAh Omni 20 USB Type-C 4-Port Portable Battery Pack in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersomnicharge Omni 20 Specs | | | Input Charging Port | USB Type-C | | Output Ports | 2 x USB Type-A
2 x USB Type-C | | | | Battery Chemistry | Lithium-Ion | | Capacity (Wh) | 72.3 Wh | | Capacity (mAh) | 20,100 mAh | | Charging Time | 1 to 3 Hours | | Charge Cycles | 500 | | | | DC Input Power | 5 VDC at 3 A
9 VDC at 3 A
12 VDC at 3 A
15 VDC at 3 A
20 VDC at 3 A | | Port Output Power | 5 V, 3 A
9 V, 3 A
12 V, 3 A
15 V, 3 A
20 V, 3 A | | AC Power Output | 100 W | | | | Operating Temperature | 32 to 113°F / 0 to 45°C | | Dimensions (W x H x D) | 5.0 x 4.8 x 1.1" / 127.0 x 121.9 x 27.9 mm | | Weight | 1.1 lb / 0.5 kg | | | | Package Weight | 2.25 lb | | Box Dimensions (LxWxH) | 7.1 x 7.0 x 3.4" |
