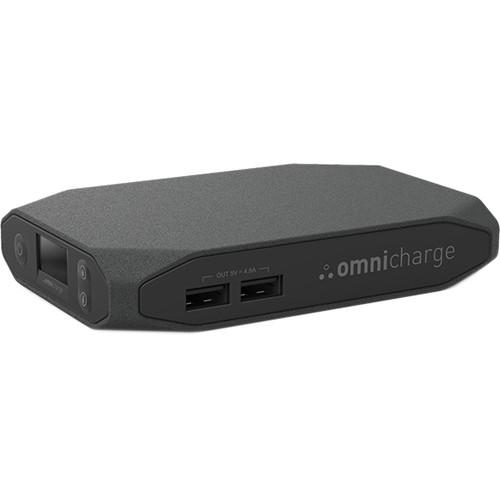

User Manual for omnicharge Omni 13 13600mAh Compact Power Bank Click to enlarge the picture
Contents of the user manual for the omnicharge Omni 13 13600mAh Compact Power
- Product category: Portable Battery Packs omnicharge
- Brand: omnicharge
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for omnicharge Portable Battery Packs
 |
User manual for the omnicharge Omni 13 13600mAh Compact Power contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any omnicharge product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official omnicharge user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a omnicharge product will considerably shorten its lifespan!
|

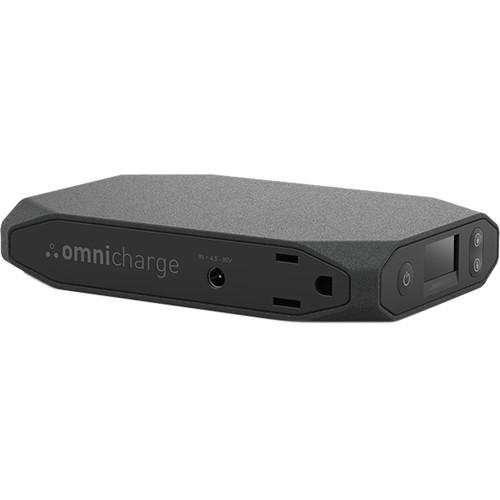

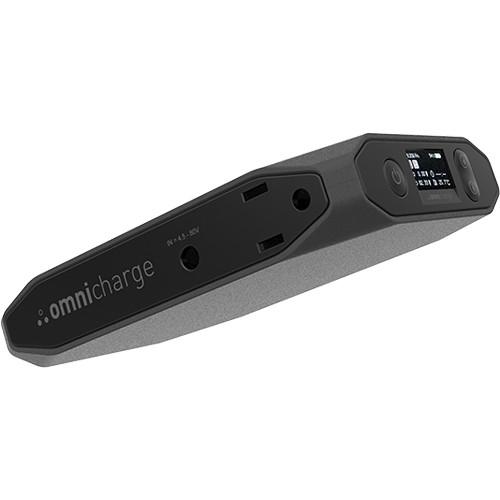

Product description Omnicharge Compact Power Banks Read More Quickly charge your compatible devices with the Omni 13 from omnicharge.This portable power bank provides 13600mAh of rechargeable power in a compact design. It delivers up to 4.8A of high-speed charging via its dual USB outputs to supply your device with power. To ensure your device gets the proper charge, the Omni 13 utilizes real-time power management capabilities through the OLED screen. The AV/HVDC outlet is capable of a max power output of 65W. The Omni 13 even supports solar charging when connected to a solar panel. - Rapid Charging USB Ports

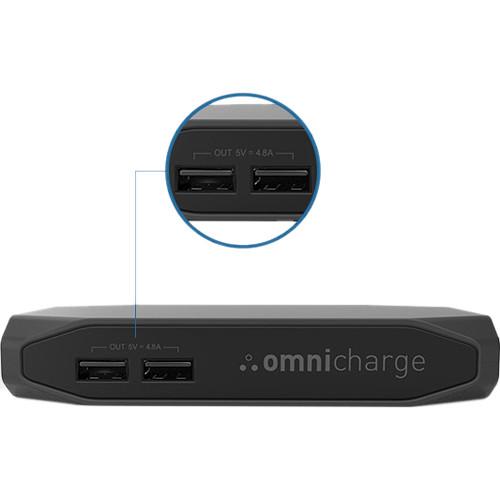

- The two USB Type-A ports provide 5V/4.8A of power output.

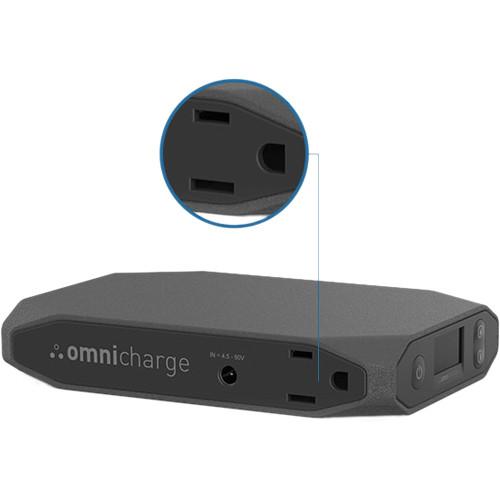

- AC/HVDC
- The AC/HVDC outlet has a max power output of 65W.

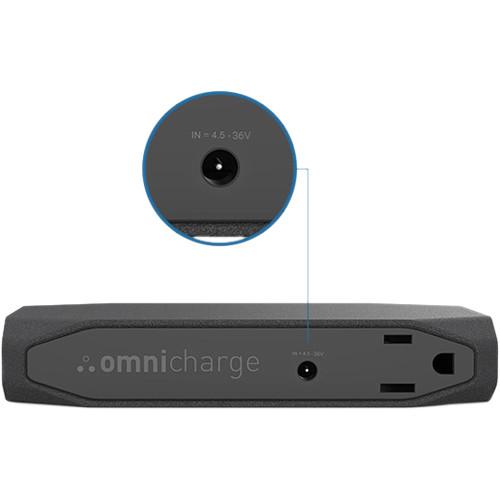

- DC Input
- The DC input supports 4.5 to 36V and up to 2 A (1 - 34W).

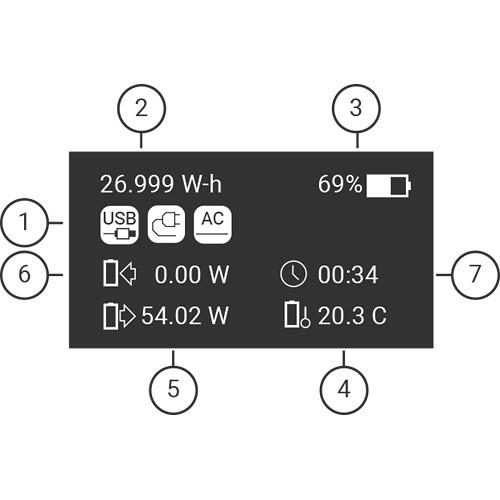

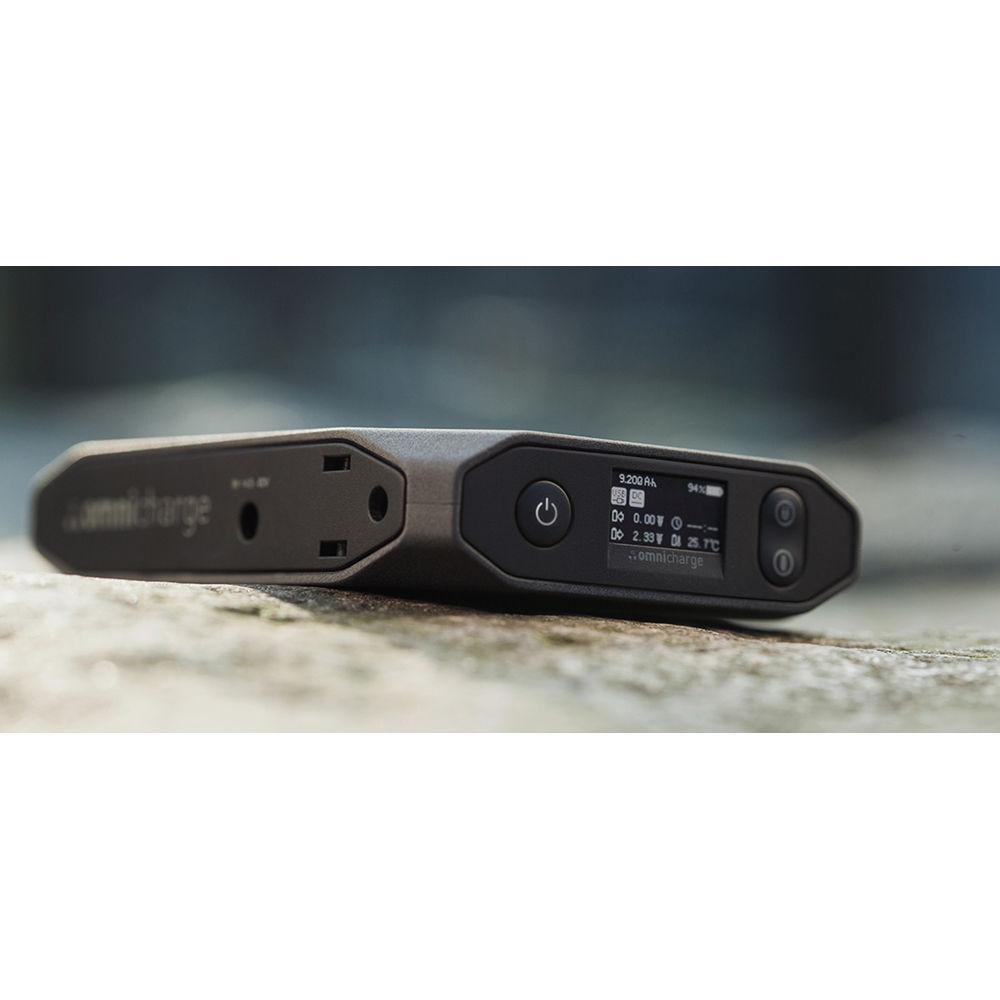

- OLED Screen
- The Omni 13 has an OLED screen that provides you with up-to-date information, such as:
- Icon display (see below)
- Remaining battery capacity
- Battery level (+/- 1%)
- Battery temperature
- Batter power output (watts)
Icons displayed while active include:- AC output
- HVDC output
- USB output
- Charging input
- Optimal charging
- Solar charging
- Low-temperature protection
- Overpower protection
- Overheating protection
- Overvoltage protection
- Power Safety Protection System
- The intelligent charging protection system not only simplifies the charging process, but it also protects the battery life of your devices and shelf life of the Omni 13.
Device Protection- Temperature protection
- Short-circuit protection
- Automatic power-off
- Reset program algorithm
- Self-balancing algorithm
- Overcharge protection
Output Protection- AC/USB outlet Protection
- Power overflow Protection
- Voltage underflow/overflow
Input Protection- Charging overflow protection
- Charging circuit protection
UPC: 853655007005 In the Box omnicharge Omni 13 13600mAh Compact Power Bank Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the omnicharge Omni 13 13600mAh Compact Power Bank in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersomnicharge OPSUBL16 Specs | Capacity | 3.6 V / 13600 mAh | | Output | Power Output: 120 V, 60 Hz, modified sine wave
HVDC Output: 150 V
Continuous Output Power: 65 W
Peak Output Power: 70 W (3 s)
Maximum Output Surge Power: 100 W (0.1 s) | | Ports | 2 x USB Type-A
1 x Barrel | | USB | 5 V / 4.8 A (total) | | Barrel | Input: 4.5 - 36 V, up to 2 A, 1 - 34 W | | Battery | Cell Dimension: 18650
Capacity: 4 cells, 49 Wh
Life Cycles: 500 times (depleted to 70% of the original capacity)
Shelf Life: One year after full charge | | Buttons | Power, AC/HVDC, USB | | Operating Temperature | Charging: 50 - 113°F / 10 - 45°C
Discharge: -4 - 140°F / -20 - 60°C | | Certifications | CE, FCC, RoHS | | Dimensions | 5.2 x 3.3 x 0.9" / 13.1 x 8.4 x 2.2 cm | | Weight | 0.83 lb / 0.38 kg | | | | Package Weight | 1.39 lb | | Box Dimensions (LxWxH) | 7.1 x 7.1 x 3.1" |
