User Manual for Omnicharge Omni 20 20,400mAh Power Bank Click to enlarge the picture
Contents of the user manual for the Omnicharge Omni 20 20,400mAh Power Bank
- Product category: Portable Battery Packs Others
- Brand: Others
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Others Portable Battery Packs
 |
User manual for the Omnicharge Omni 20 20,400mAh Power Bank contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Others product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Others user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Others product will considerably shorten its lifespan!
|

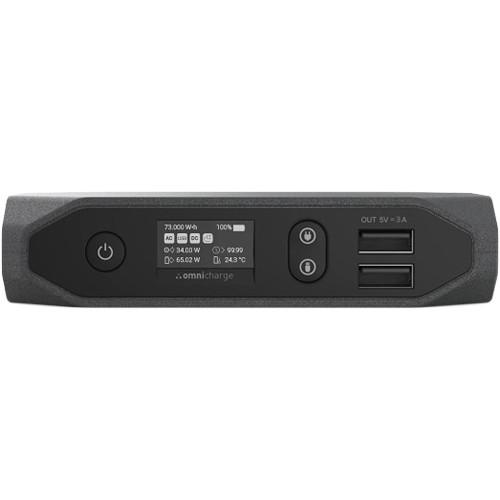

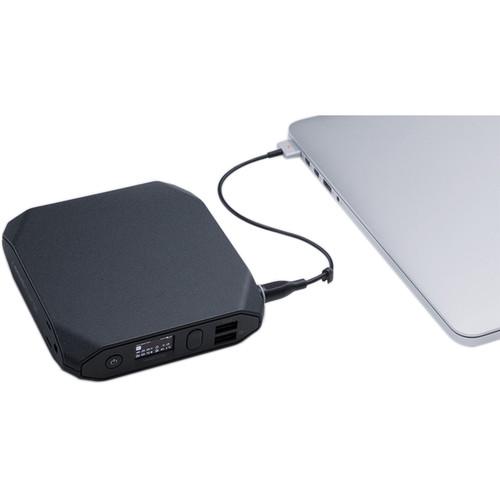

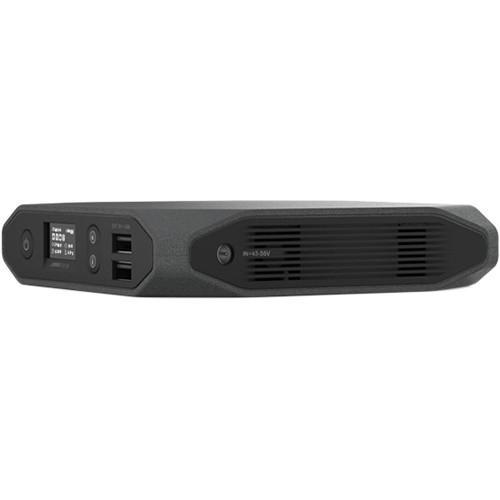

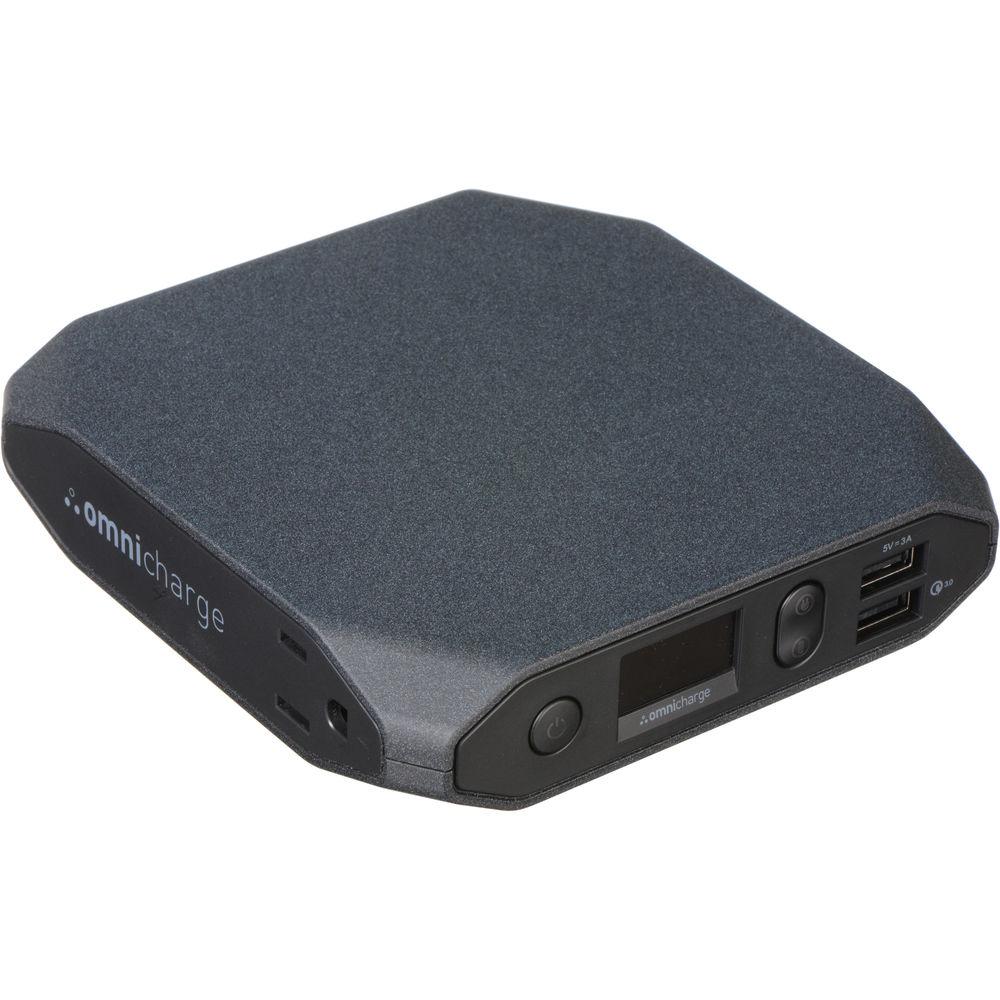

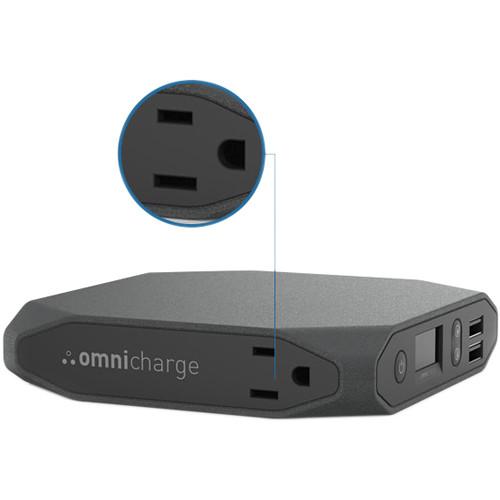

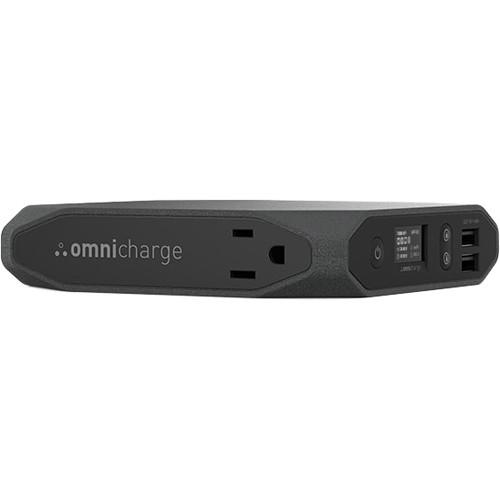

Product description Charge nearly any device with the Omni 20 20,400mAh Power Bank from Omnicharge. This intelligent power bank comes equipped with dual rapid-charge USB ports designed to quickly charge nearly any USB-compatible device including smartphones, tablets, and more. Alongside the dual USB ports there is a 120 AC / 150 HVDC, A and B socket-type power outlet. With a maximum power output of up to 100W, you can charge a laptop or power a monitor, projector, or other devices requiring an electrical outlet. If that's not enough, the Omni 20 also comes equipped with a single DC barrel port that supports both DC input and output power so you can provide power to a wide variety of devices, from laptops to DSLR cameras and more. -
- AC/HVDC outlet
- Rapid-charging USB ports
- Direct DC-out port
- Pass-through charging
- Universal charging
- Patented power-protection system
- OLED screen
- 20,400mAh capacity
UPC: 853655007128 In the Box Omnicharge Omni 20 20,400mAh Power Bank Limited 1-Year Warranty User Manual PDF 4.2mb Table of Contents
|
Upload User Manual
Have you got an user manual for the Omnicharge Omni 20 20,400mAh Power Bank in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersomnicharge OP20A002 Specs | AC/DC Power | Output: 120 V, 60 Hz, modified sine wave
HVDC Output: 150 V
Continuous Output Power: 100 W
Peak Output Power: 105 W
Maximum Output Surge Power: 150 W | | USB Output | Port 1: 5 V / 3 A
Port 2: Qualcomm Quick Charge (QC) 3.0; 5 V / 3 A, 9 V / 2 A, 12 V / 1.5 A

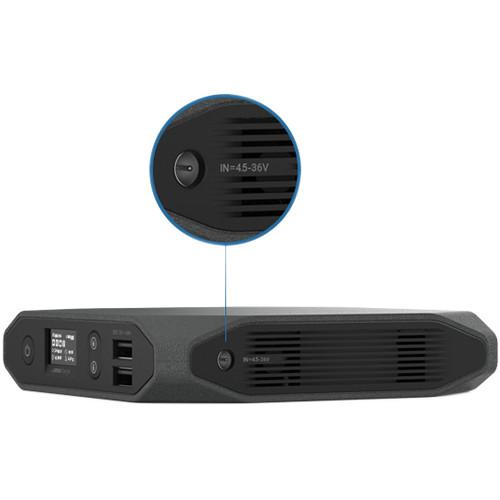

Backwards compatible with QC 2.0/1.0 | | Barrel Port | Connector: 5.5 x 2.1 mm
Input: 4.5 to 36 V, up to 3 A (2 to 45 W)
Output: Adjustable from 1 to 24 V with 0.1 V accuracy, up to 3.5 A (70 W max) | | Battery | Model: 18650 lithium-ion battery by Panasonic/LG Chem/Samsung
Capacity: 6 cells, 73 Wh (20,400 mAh at 3.6 V)
Lifecycles: 500 times (depleted to 70% of original capacity)
Shelf Life: 1 year after full charge | | Protection Features | Device Protection
Temperature
Short-circuit
Automatic power-off
Reset-program algorithm
Self-balancing algorithm
Overcharge
Output Protection
AC/USB-outlet
Power-overflow
Voltage-underflow/overflow
Input Protection
Charging-overflow
Charging-circuit | | Certifications | CE, FCC, ROHS | | Operating Temperature | Charging: 50 to 113°F (10 to 45°C)
Discharging: -4 to 140°F (-20 to 60°C) | | Dimensions | 5.0
