User Manual for omnicharge Omni Ultimate Power Bank Click to enlarge the picture
Contents of the user manual for the omnicharge Omni Ultimate Power Bank
- Product category: Portable Battery Packs omnicharge
- Brand: omnicharge
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for omnicharge Portable Battery Packs
 |
User manual for the omnicharge Omni Ultimate Power Bank contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any omnicharge product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official omnicharge user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a omnicharge product will considerably shorten its lifespan!
|

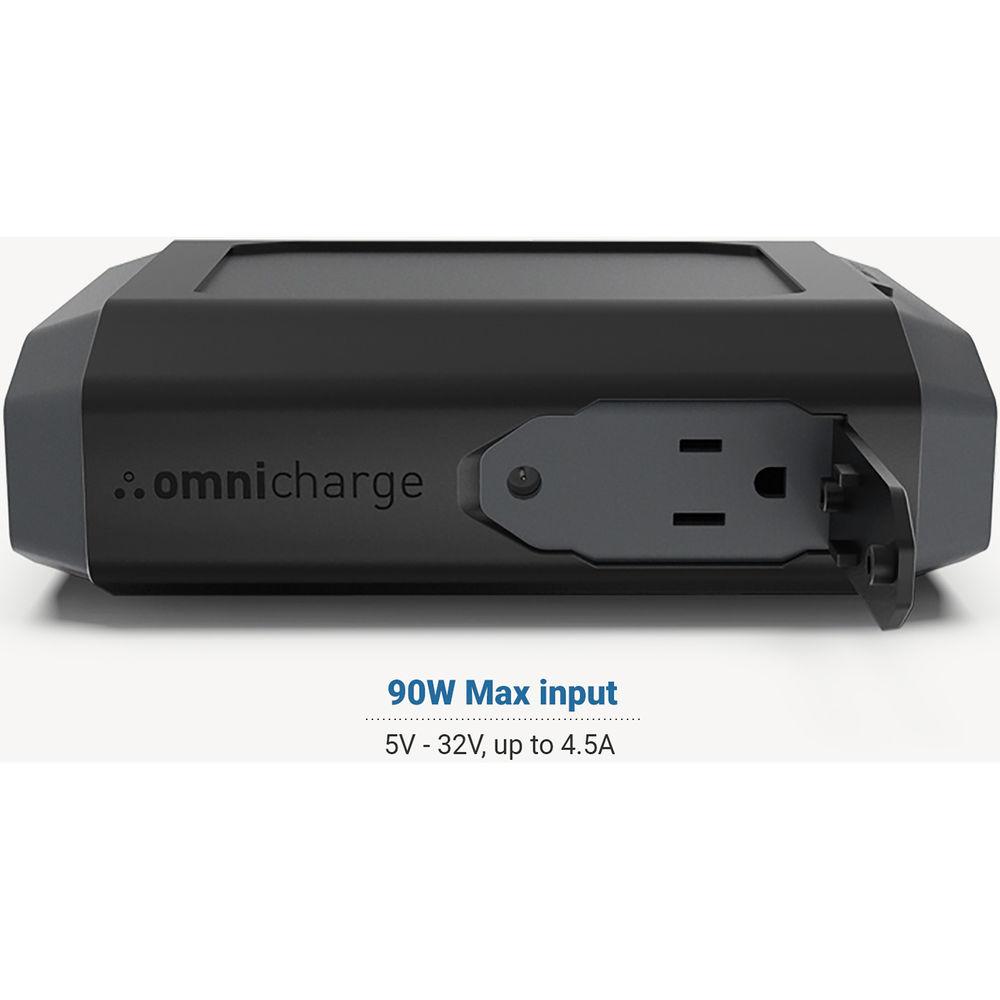

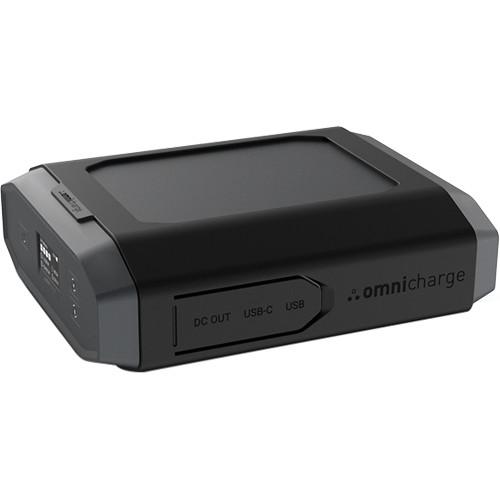

Product description Charge your mobile devices, cameras, laptops, small home appliances, and more with the Omni Ultimate Power Bank from omnicharge. This compact portable power bank comes equipped with a 60W USB Type-C power input/output port, two USB Type-A charging ports, a 120W AC outlet, and a 150W DC-out port with adjustable voltage and amperage up to 60V/8A. The splash- and dust-resistant Omni Ultimate features a removable battery pack and passthrough charging. - AC Outlet

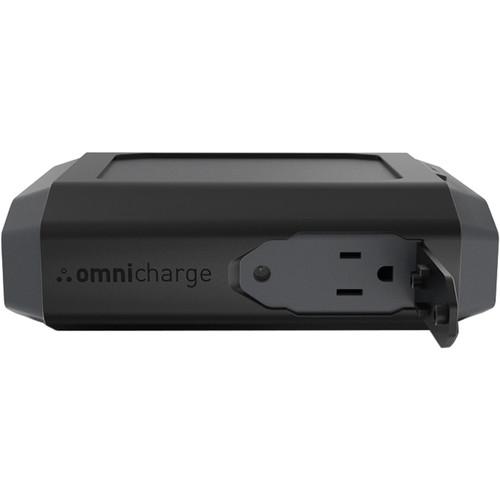

- The 120W pure sine-wave AC outlet (120V) is ideal for high-power laptops, DSLR cameras, drones, small home appliances, and more.

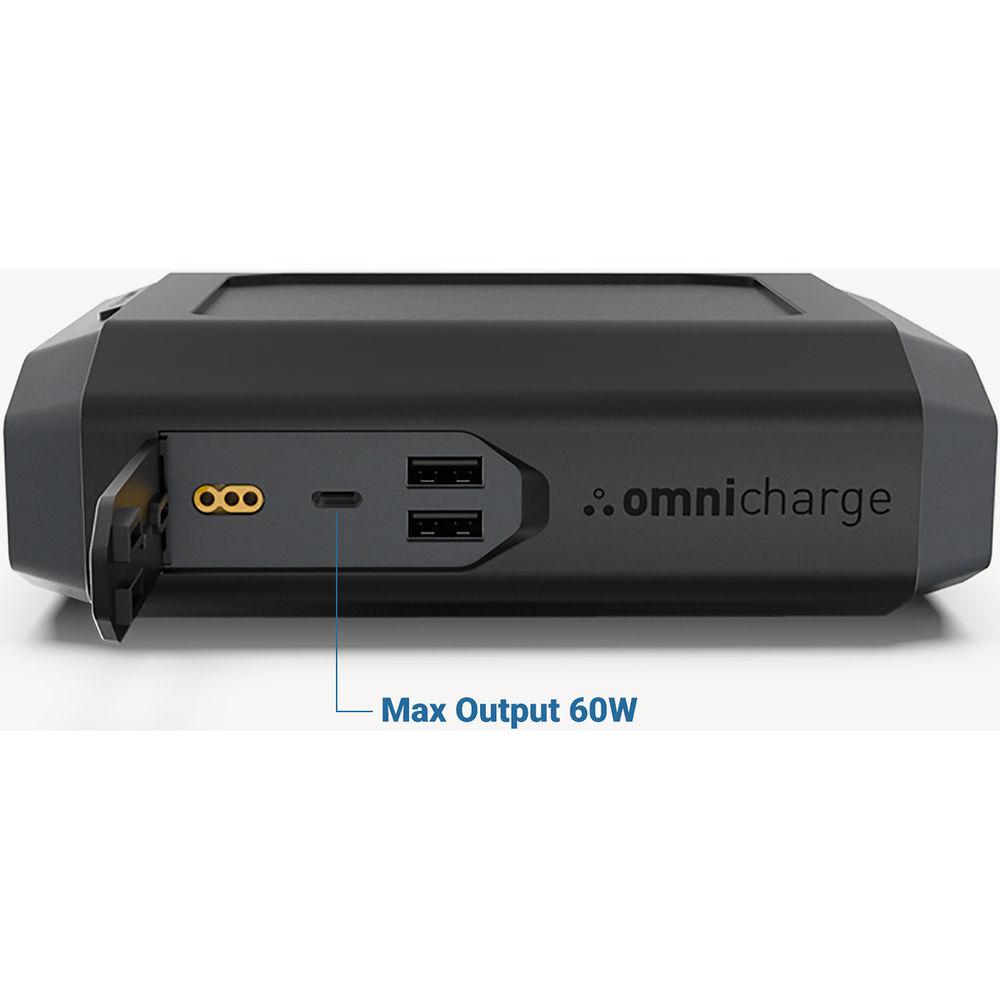

- USB Type-C Port
- Can output up to 60W and can accept input from most USB Type-C chargers.

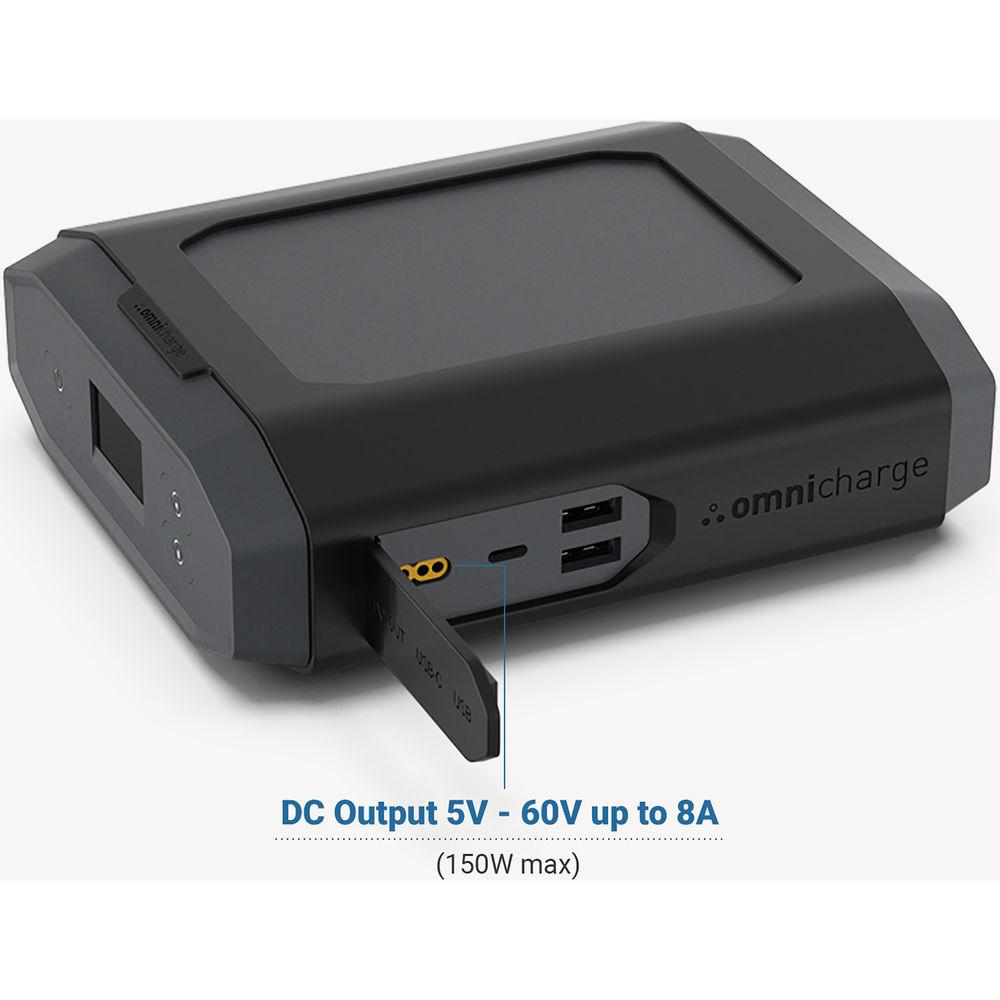

- DC-Out Port (Adjustable Voltage & Amp)
- Provides fully adjustable direct DC output voltage between 5-60V up to 8A with 0.1V/A increments. An included cable with a male MR30 connector and a female barrel jack is compatible with omnicharge's optional DC Output & Input Tips Set, MacBook Air & Pro Charging Cable, and Surface Pro 3 & 4 Charging Cable.
- Fast-Charging USB Ports
- Two fast-charging USB Type-A ports are available for your smart devices. Each Quick Charge 3.0-compatible port can output up to 5V/3A.
- Passthrough Charging
- Power your devices even while the Omni Ultimate is being recharged.
- Splash- and Dust-Resistant
- The IP54 enclosure offers 11 layers of protection against particles and water.

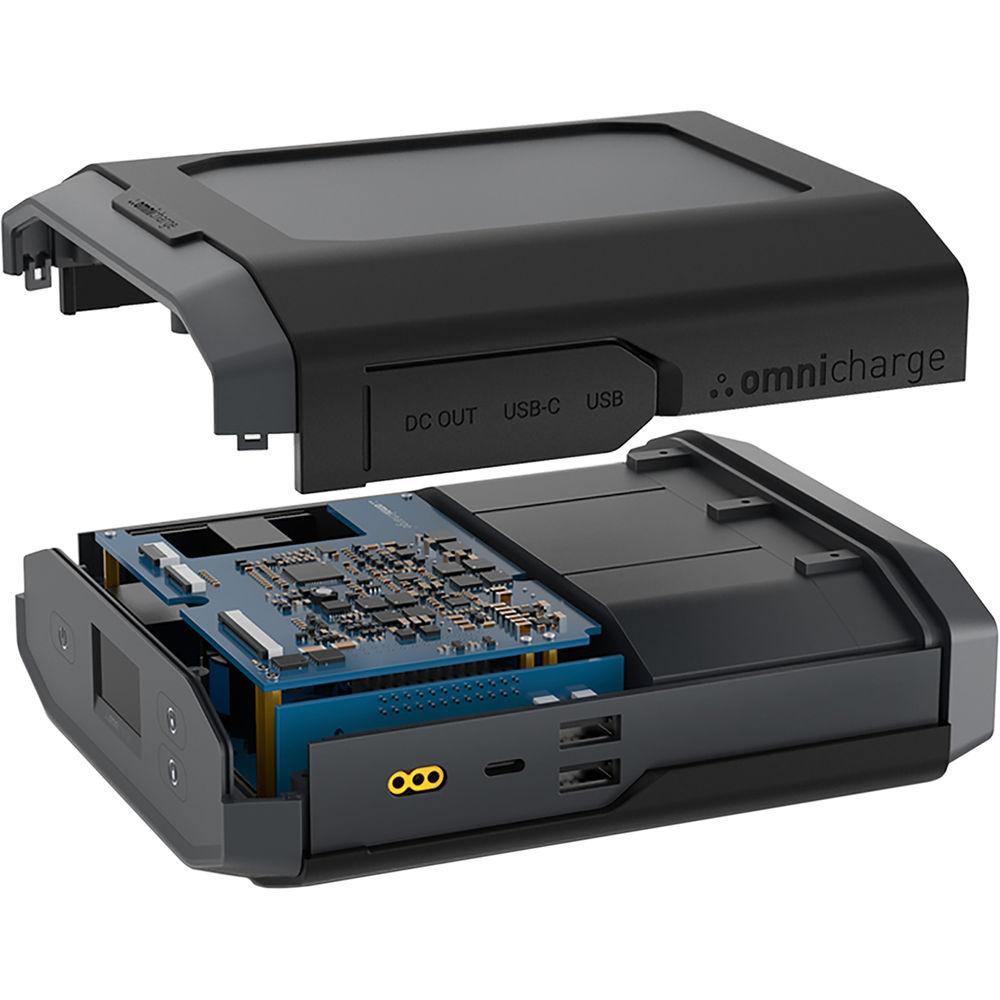

- Removable Battery Pack
- The interchangeable battery system allows you to replace the batteries once they are depleted.
- Power Protection System
- The patented Power Protection System not only simplifies the charging process, but also protects the battery life of your devices and shelf life of the Omni Ultimate.
- High Capacity & Fast Charging
- With a capacity of 40,300mAh, high wattage input, and a built-in charge controller, the Omni Ultimate is designed to be recharged in three hours. The 145Wh battery is at the upper limit of what you are allowed to bring in your carry-on, according to TSA/FAA guidelines.
- Premium Components
- The Omni Ultimate uses premium chips and MOSFETs from ST Microelectronics, Texas Instruments, Infineon Technologies, and Fairchild Semiconductor Company.
UPC: 855943008145 In the Box omnicharge Omni Ultimate Power Bank AC Wall Charger (60W) Male MR30-to-Female Barrel Plug (5.5 x 2.1mm) Cable Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the omnicharge Omni Ultimate Power Bank in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersomnicharge OP2FA001 Specs | | | Input Charging Port | Barrel, USB Type-C | | Output Ports | 2 x USB Type-A
1 x USB Type-C | | AC Outlet | 1 x 3-Prong | | | | Battery Chemistry | Lithium-Ion | | Capacity (Wh) | 145 Wh | | Capacity (mAh) | 40,300 mAh | | Charging Time | 3 Hours | | | | DC Input Power | 5 VDC at 3 A
9 VDC at 3 A
12 VDC at 3 A
15 VDC at 3 A
20 VDC at 3 A
5 to 32 VDC at 4.5 A | | Port Output Power | 5 V, 3 A
9 V, 3 A
12 V, 3 A
15 V, 3 A
20 V, 3 A
60 V, 8 A | | AC Power Output | 60 W |
