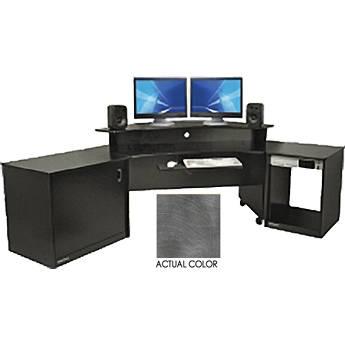

Product description The pewter brush HPL Omnirax Producer's Corner is an ergonomically designed workstation suite, consisting of 5 components that work in concert to provide a functionable environment for audio/video editing. All components are color coordinated in a pewter brush HPL finish.
The Producer's Corner consists of the following Omnirax components: the Producer 80 Workstation, MB 70 Monitor Meter Bridge, C14 Rolling Rack, the CC14D Rolling Rack with door and the KMSP Sliding Keyboard and Mouse Shelf.
The Producer 80 Workstation is the centerpiece that the Pro Corner Suite is built around. The MB70 Monitor Bridge sits atop it, with the C14 and CC14D rolling rack cabinets flanking it on each side. Together, the suite is designed to uniquely fit into many studio situations where other workstations may just not work. It can be placed perpendicular to a wall, or diagonally into a corner, and its modular design makes it easier to wire and move with its combination of movable pieces, especially in tough fit places.
The MB70 Monitor Bridge/Riser is designed to hold multiple video monitors as well as nearfield monitors. The Bridge raises monitors 6 inches above the Producer 80's desk height for more precise viewing of video monitors, and audio monitor listening.
Behind the door of the CC14D Rolling Rack are 14 rack spaces for gear and a 10" compartment for CPU storage. The rack cabinet features wheels for mobility and ease of adjusting cabling when needed. The C14 has a matching finish, is doorless, and also has wheels and 14 rack spaces. Additional workspace is afforded by the cabinets as their top surfaces are flush with the PROD80 desk.
The KMSP is a fully articulating keyboard / mouse shelf that mounts on a slide on the underside of the Prod 80 desk surface. This placement allows the shelf to be either front and center during usage or out of the way when out of play.
All of the components are finished in a pewter brush HPL finish. - PROD80 Producer's Corner Ensemble Suite
-
- Combines 5 A/V components to provide an optimized creative editing solution
- MB 70 Monitor Bridge
-
- Multiple monitor bridge / riser
- Raised 6" (15.24cm) above the bridge
- C14 Rack Cabinet
-
- 14 rack spaces
- Includes heavy-duty casters for mobility
- Provides extra workspace via a top surface that is flush with the PROD80 desk
- CC14D Rack Cabinet
-
- 14 rack spaces
- Includes heavy duty casters for mobility
- Includes a computer cubby with a door
- Provides extra workspace via a top surface that is flush with the PROD80 desk
- KMSP Shelf
-
- Adjustable computer keyboard / mouse shelf
- For use with the PROD80 workstation
In the Box Omnirax Producer's Corner (Pewter Gray Brush HPL) - PROD80 Desk/Base
- MB 70 Monitor Bridge
- C14 Rack Cabinet
- CC14D Rack Cabinet with Door
- KMSP Sliding Shelf
- Warranty Against Manufacturer's Defects at Time of Purchase
Table of Contents
|
Upload User Manual
Have you got an user manual for the Omnirax Producer's Corner in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersOmnirax PROCORNER-PB Specs | Shelf Size (W x D) | 28.5 x 10" / 72.4 x 25.4 cm (Keyboard) | | Rack Form Factor | 2 x 14 RU (Side) | | Overall Dimensions (W x H x D) | 122 x 36.3 x 61" / 309.9 x 92.2 x 154.9 cm | | Weight | 379 lb / 171.9 kg | | | | Package Weight | 380.0 lb | | Box Dimensions (LxWxH) | 86.0 x 41.0 x 27.0" |
