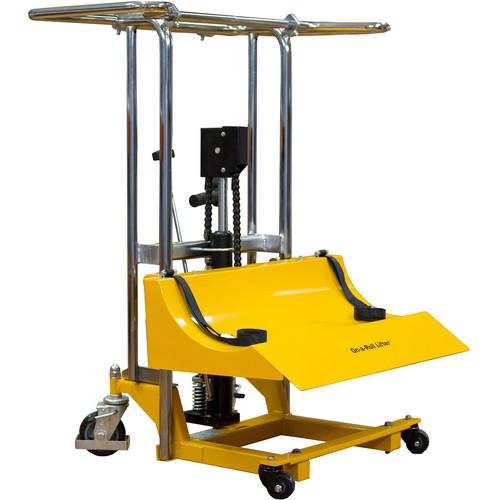

User Manual for On-A-Roll Lifter 61584 Standard Model Click to enlarge the picture
Contents of the user manual for the On-A-Roll Lifter 61584 Standard Model
- Product category: Large Format Printers Accessories On-A-Roll Lifter
- Brand: On-A-Roll Lifter
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for On-A-Roll Lifter Large Format Printers Accessories
|
User manual for the On-A-Roll Lifter 61584 Standard Model contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any On-A-Roll Lifter product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official On-A-Roll Lifter user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a On-A-Roll Lifter product will considerably shorten its lifespan!
|
Product description Designed to support media as heavy as 660 lb, this 61584 Standard Model of the On-A-Roll Lifter is capable of handling rolls for most brands of printers. Resting the roll atop a concave tray, this lifter stabilizes your media during transport and makes operation safer for all involved. It features a maximum lift height of 33.5", and supports rolls as wide as 8.2' and with a maximum diameter of 15.75". Made to simplify your media handling, this model comes equipped with a foot pump for effortless lifting as well as an ergonomic solid steel handle for maneuvering. Rotating caster wheels are used for transport and can be secured in place with a step-on lock. Included with the model are two nylon safety straps, which allow you to safely load the media roll and keep it secured while moving. -
- Handles rolls as heavy as 660 lb, as wide as 8.2', and with a maximum diameter of 15.75"
- Lifts media as high as 33.5" and can be easily operated via foot pump
- Media tray with concave design for keeping roll safe during operation
- Bottom fork clearance of 3.9"
- Rotating caster wheels spin 360° and feature a step-on lock
- Solid steel handle for maneuvering into tighter spots
- Nylon safety straps included, enable one operator to safely move heavier media rolls
In the Box On-A-Roll Lifter 61584 Standard Model 2 x Nylon Safety Straps Limited 2-Year Warranty on Wheels, Hydraulics, and Media Tray Limited 5-Year Warranty on Cross Bars Table of Contents
|
Upload User Manual
Have you got an user manual for the On-A-Roll Lifter 61584 Standard Model in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersOn-A-Roll Lifter 61584 Specs | Load Capacity | 660 lb / 300 kg | | Roll Size | Maximum Width: 8.2' / 2.5 m
Maximum Diameter: 15.75" / 40 cm | | Lift Height at Maximum Extension | 33.5" / 85.1 cm | | Minimum Clearance Height | 3.9" / 10 cm | | Dimensions (H x W x D) | 47 x 31.5 x 31.5" / 119.4 x 80 x 80 cm | | Weight | 176.4 lb / 80 kg |
Rating70% users recommend this product to others. And what about you?
This product has already been rated by 31 owners. Add your rating and experience with the product.
