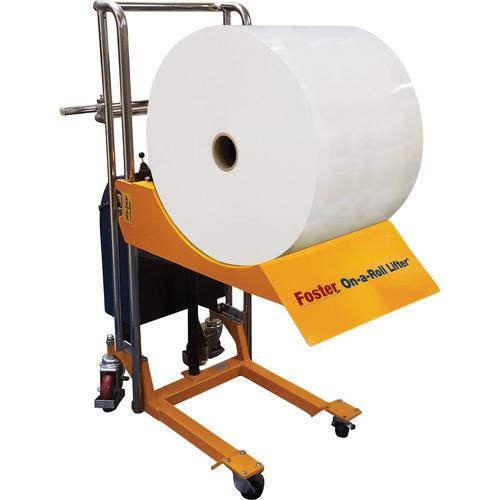

User Manual for On-A-Roll Lifter Narrow Web Click to enlarge the picture
Contents of the user manual for the On-A-Roll Lifter Narrow Web
- Product category: Large Format Printers Accessories On-A-Roll Lifter
- Brand: On-A-Roll Lifter
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for On-A-Roll Lifter Large Format Printers Accessories
|
User manual for the On-A-Roll Lifter Narrow Web contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any On-A-Roll Lifter product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official On-A-Roll Lifter user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a On-A-Roll Lifter product will considerably shorten its lifespan!
|
Product description Designed to handle media as heavy as 440 lb, the 61576 Narrow Web from On-A-Roll Lifter is the ideal solution for those seeking a powered solution for handling cumbersome rolls. Equipped with a 12 VDC motor, it features a simple control panel with two buttons for lifting and lowering and a key for switching it on and off. The motor is powered by a lead-acid battery, which can be replenished via its built-in 110 VAC charger. The lifter has a maximum lift height of 49.5", and supports roll as wide as 59" and with a maximum diameter of 31.5". -
- Handles rolls as heavy as 440 lb, as wide as 59", and with a maximum diameter of 31.5"
- Lifts media as high as 49.5"
- 12 VDC motor for lifting and lowering, with key-controlled power
- Built-in 110 VAC charger for replenishing motor battery
- Media tray with concave design for keeping roll safe during operation
- Rotating caster wheels spin 360° and feature a step-on lock
In the Box On-A-Roll Lifter Narrow Web - Limited 2-Year Warranty on Wheels, Hydraulics, and Media Tray
- Limited 5-Year Warranty on Cross Bars
Table of Contents
|
Upload User Manual
Have you got an user manual for the On-A-Roll Lifter Narrow Web in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersOn-A-Roll Lifter 61576 Specs | Load Capacity | 440 lb / 199.6 kg | | Roll Size | Maximum Width: 59" / 149.9 cm
Maximum Diameter: 31.5" / 80 cm | | Lift Height at Maximum Extension | 49.5" / 126 cm | | Motor | 12 VDC / 60 Ah | | Battery Chemistry | Lead-acid | | Battery Charger | 110 VAC, built-in | | Dimensions | 31.5 x 45.3 x 57.2" / 80 x 115 x 145.6 cm | | Weight | 309 lb / 140 kg |
