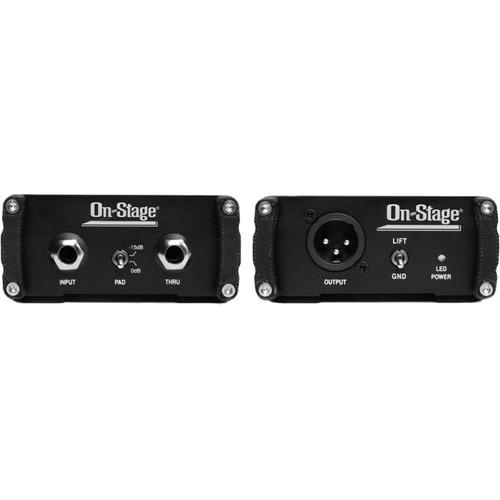

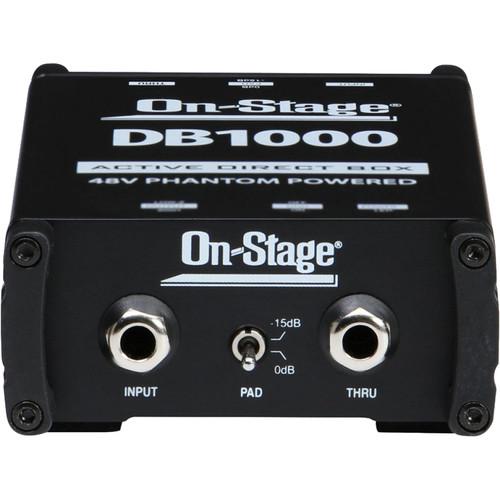

Product description Connect your keyboard, guitar, or bass directly to your preferred mic preamp with the On-Stage DB1000 active mono DI box. It adapts a high-impedance, instrument-level 1/4" TS input to a low-impedance, mic-level XLR output. By converting your signal from unbalanced to balanced, it allows longer cable runs, less noise, and proper compatibility with mic inputs. A 1/4" TS thru jack provides an unbalanced pass-through to an instrument amplifier or pedalboard. Flip the -15 dB pad switch to prevent distortion when accepting high-output sources, and utilize the ground-lift switch to rid your signal of hum from ground loops. Since the DB1000 is a phantom-powered direct box, no batteries, power cables, or AC adapters are required. It features a durable metal housing with protective nylon bumpers, making it equally well suited for constant use in the studio, on stage, or at home. - Ideal for connecting a keyboard, guitar, or bass to a mixing console, an outboard mic preamp, or an audio interface
- Transforms an unbalanced, high-impedance, instrument-level input signal to a balanced, low-impedance, mic-level output signal
- Selectable -15 dB pad prevents distortion when accepting high-output sources such as guitars and basses with active electronics
- 3-pin XLR male output socket for direct connection to a microphone preamp
- 1/4" TS thru jack provides an unbalanced, instrument-level split to an amplifier or pedalboard
- Ground-lift switch eliminates hum caused by problematic ground loops
UPC: 659814125562 In the Box On-Stage DB1000 Active Mono DI Box Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the On-Stage DB1000 Active Mono DI Box in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersOn-Stage DB1000 Specs | Type | Active | | Input Connections | 1 x 1/4" TS (Unbalanced) | | Output Connectors | 1 x 3-Pin XLR Male (Balanced)
1 x 1/4" TS Thru (Unbalanced) | | Pad | -15 dB | | Controls | Pad Switch
Ground-Lift Switch | | Input Resistance | 220 kOhms | | Frequency Response | 10 Hz to 40 kHz | | Power Requirement | 48 VDC Phantom Power | | Construction Material | Enclosure: Metal
Bumpers: Nylon | | Dimensions (W x D x H) | 3.5 x 1.5 x 6.0" / 8.9 x 3.8 x 15.2 cm | | Weight | 0.7 lb / 0.3 kg | | | | Package Weight | 0.88 lb | | Box Dimensions (LxWxH) | 6.9 x 5.9 x 2.9" |
