User Manual for On-Stage DB1100 Active DI Box with Stereo-to-Mono Summing

Click to enlarge the picture
On-Stage DB1100 Active DI Box with Stereo-to-Mono Summing Contents of the user manual for the On-Stage DB1100 Active DI Box with
  • Product category: Direct Boxes On-Stage
  • Brand: On-Stage
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for On-Stage Direct Boxes

On-Stage DB1100 Active DI Box with Stereo-to-Mono Summing On-Stage DB1100 Active DI Box with Stereo-to-Mono Summing
User manual for the On-Stage DB1100 Active DI Box with contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any On-Stage product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official On-Stage user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a On-Stage product will considerably shorten its lifespan!



Product description

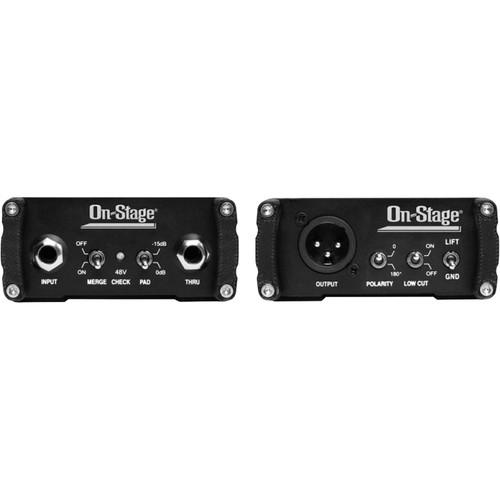

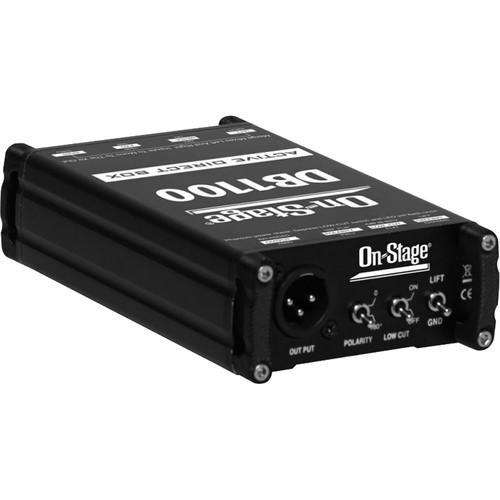

Connect your mono or stereo keyboard, or a guitar and bass directly to a single mic preamp with the On-Stage DB1100 active DI box. Thanks to a selectable stereo-to-mono summing function, it adapts up to two high-impedance, instrument-level 1/4" TS inputs to one low-impedance, mic-level XLR output. By converting your signal from unbalanced to balanced, it allows longer cable runs, less noise, and proper compatibility with mic inputs. When used as a standard DI box (merge mode off), the right 1/4" input serves as a thru jack for an unbalanced pass-through to an instrument amplifier or pedalboard. Flip the -15 dB pad switch to prevent distortion when accepting high-output sources, and utilize the low-cut switch to reduce overpowering low frequencies. Switchable polarity ensures optimal absolute phase even if your mic preamp lacks a similar option. A ground-lift switch is provided to rid your signal of hum from ground loops. Since the DB1100 is a phantom-powered direct box, no batteries, power cables, or AC adapters are required. It features a durable metal housing with protective nylon bumpers, making it equally well suited for constant use in the studio, on stage, or at home.
  • Ideal for connecting a keyboard, guitar, or bass to a mixing console, an outboard mic preamp, or an audio interface
  • Transforms an unbalanced, high-impedance, instrument-level input signal to a balanced, low-impedance, mic-level output signal
  • Two isolated 1/4" TS inputs with selectable stereo-to-mono merge function
  • Selectable -15 dB pad prevents distortion when accepting high-output sources such as drum machines or guitars/basses with active electronics
  • Switchable low-cut filter attenuates excessive low frequencies
  • Switchable polarity enables quick signal correction when using cables with swapped positive and negative conductors, or when optimizing the phase relationship of DI and microphone channels
  • 3-pin XLR male output socket allows direct connection to a microphone preamp
  • Right 1/4" input doubles as a thru jack when the merge function is off, providing an unbalanced, instrument-level split to an amplifier or pedalboard
  • Ground-lift switch eliminates hum caused by problematic ground loops
  • 48V power indicator
UPC: 659814125555 In the Box On-Stage DB1100 Active DI Box with Stereo-to-Mono Summing
  • Limited 3-Year Warranty
  • Table of Contents




    Upload User Manual

    Have you got an user manual for the On-Stage DB1100 Active DI Box with Stereo-to-Mono Summing in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%


    Technical parameters

    On-Stage DB1100 Specs

    Type Active
    Input Connections 2 x 1/4" TS (Unbalanced)
    Output Connectors 1 x 3-Pin XLR Male (Balanced)
    1 x 1/4" TS Thru (Unbalanced, Thru Is the Alternative Function of the Right 1/4" Input)
    Pad -15 dB
    Controls Merge On/Off Switch
    Pad Switch
    Low-Cut Switch
    Polarity Switch
    Ground-Lift Switch
    Input Resistance 220 kOhms
    Frequency Response 10 Hz to 40 kHz
    Power Requirement 48 VDC Phantom Power
    Construction Material Enclosure: Metal
    Bumpers: Nylon
    Dimensions (W x D x H) 3.5 x 1.5 x 6.0" / 8.9 x 3.8 x 15.2 cm
    Weight 0.7 lb / 0.3 kg
    Package Weight 0.96 lb
    Box Dimensions (LxWxH) 6.9 x 5.8 x 2.9"
