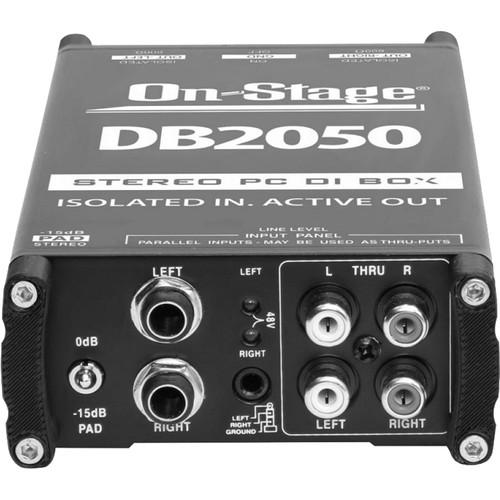

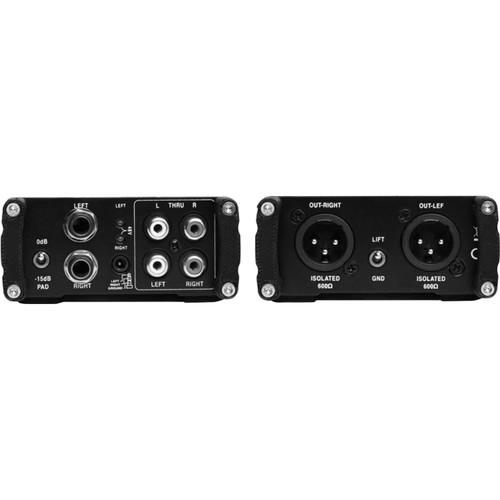

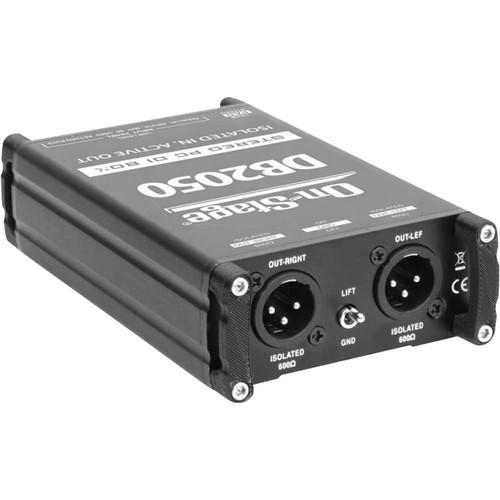

User Manual for On-Stage DB2050 Active Stereo Multimedia DI Box

Click to enlarge the picture
On-Stage DB2050 Active Stereo Multimedia DI Box Contents of the user manual for the On-Stage DB2050 Active Stereo Multimedia DI
  • Product category: Direct Boxes On-Stage
  • Brand: On-Stage
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for On-Stage Direct Boxes

On-Stage DB2050 Active Stereo Multimedia DI Box On-Stage DB2050 Active Stereo Multimedia DI Box
User manual for the On-Stage DB2050 Active Stereo Multimedia DI contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any On-Stage product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official On-Stage user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a On-Stage product will considerably shorten its lifespan!



Product description

Connect your computer, mobile device, DJ mixer, or keyboard directly to your preferred mic preamps with the On-Stage DB2050 active stereo multimedia DI box. It adapts high-impedance, line-level signals from the 1/4" TS, 3.5mm TRS, or RCA coaxial input jacks to two low-impedance, mic-level, isolated XLR outputs. By converting your signal from unbalanced to balanced, it allows longer cable runs, less noise, and proper compatibility with mic inputs. Parallel inputs and dedicated RCA thru jacks provide an unbalanced pass-through for easy connection to a personal mixer or secondary recorder. Flip the -15 dB pad switch to prevent distortion when accepting high-output sources, and utilize the ground-lift switch to rid your signal of hum from ground loops. Since the DB2050 is a phantom-powered direct box, no batteries, power cables, or AC adapters are required. It features a durable metal housing with protective nylon bumpers, making it equally well suited for constant use in the studio, on stage, or at home.
  • Ideal for connecting the stereo output of a keyboard, computer, smartphone, DJ mixer, or CD player to a mixing console, an audio interface, or outboard mic preamps
  • Transforms unbalanced line-level input signal to balanced, low-impedance, mic-level output signal
  • Isolated 1/4" TS, 3.5mm TRS, and RCA inputs
  • Selectable -15 dB pad prevents distortion when accepting high-output sources
  • Isolated 3-pin XLR male output sockets for direct connection to microphone preamps or mixer channels
  • RCA outputs and parallel inputs may be used as thru jacks for an unbalanced split to a personal monitor mixer, redundant recorder, or instrument amplifier
  • Ground-lift switch eliminates hum caused by problematic ground loops
  • Two 48V LED power indicators
UPC: 659814125548 In the Box On-Stage DB2050 Active Stereo Multimedia DI Box
  • Limited 3-Year Warranty
  • Table of Contents




    Upload User Manual

    Have you got an user manual for the On-Stage DB2050 Active Stereo Multimedia DI Box in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%


    Technical parameters

    On-Stage DB2050 Specs

    Type Active
    Input Connections 2 x 1/4" TS (Unbalanced)
    1 x 1/8" / 3.5 mm TRS (Unbalanced)
    2 x RCA Coaxial (Unbalanced, One Stereo Pair)
    Output Connectors 2 x 3-Pin XLR Male (Balanced)
    2 x RCA Coaxial Thru (Unbalanced, One Stereo Pair)
    Pad -15 dB
    Controls Pad Switch
    Ground-Lift Switch
    Input Resistance 50 kOhms
    Output Impedance 600 Ohms
    Frequency Response 10 Hz to 40 kHz
    Power Requirement 48 VDC Phantom Power per Channel
    Construction Material Enclosure: Metal
    Bumpers: Nylon
    Dimensions (W x D x H) 3.5 x 1.5 x 6.0" / 8.9 x 3.8 x 15.2 cm
    Weight 0.7 lb / 0.3 kg
    Package Weight 1.015 lb
    Box Dimensions (LxWxH) 6.9 x 5.8 x 2.9"

    Rating

    100% users recommend this product to others. And what about you?
    Rating: 5 of 5

    This product has already been rated by 65 owners. Add your rating and experience with the product.

    Discussion

    Discussion Ask our technicians if you have a problem with your settings, or if anything is unclear in the user manual you have downloaded. You can make use of our moderated discussion. The discussion is public and helps other users of our website who may be encountering similar problems.

    Post new comment to On-Stage DB2050 Active Stereo Multimedia DI Box

    Subject: Direct box
    Date: 24.01.2021 04:15:25Name: Ángel diaz
    My direct box only worked 10 minutes and it turned off. I do not know if it burned or contains a battery that has finished my box is one. DB2050 stereo Pc dibox, can you give me an opinion about what happened?
