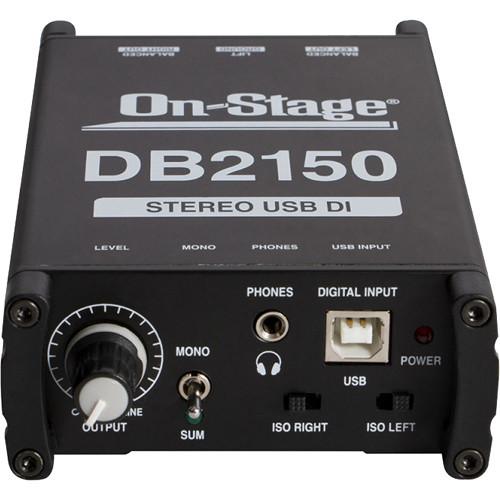

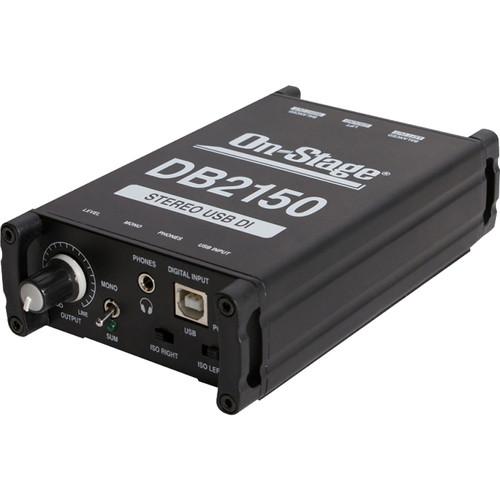

Product description The On-Stage DB2150 is a stereo USB/DAC direct box that provides noise-free, digital-to-analog conversion and features a full-speed USB 2.0 connection, discrete stereo-balanced XLR outputs, and an 1/8" stereo headphone output. The unit is automatically recognized as a soundcard by all Windows and Mac operating systems and offers a sample rate of 96 kHz with a frequency response of 10 Hz to 20 kHz and a dynamic range of 90 dB. Additional features include ISO left/right and mono-sum switches, which guard against phase issues and facilitate monophonic transference. The custom-wound resistors isolate and eliminate ground loops. The On-Stage DB2150 ships with a USB cable. -
- Custom wound transformer
- Transformer isolation eliminates ground loops
- Frequency Response: 10 Hz to 20 kHz
- Sample Rate: 96 kHz
- Dynamic Range: 90 dB
- Output Impedance: 200 Ohms
- Controls:
- Level: Used to control the overall output level

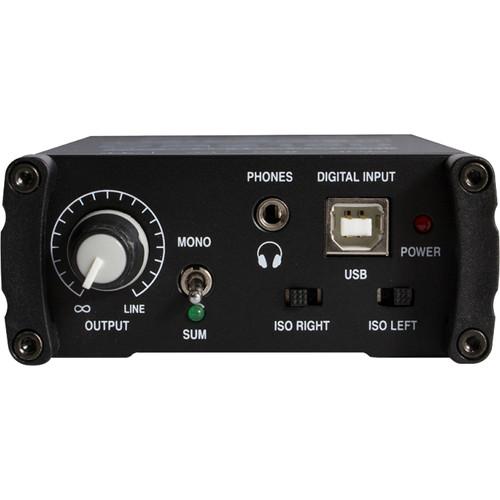

- Mono On/Off: Sums the stereo signal to mono. When active and switch is in the top position, sums to single channel and the LED indicator illuminates; when switch is in the bottom position, DI box changes to stereo, and the LED light is off
- Headphone: 3.5mm TRS headphone output works with earbuds and standard headphones
- USB Input: Connects from PC/Mac using a TYPE-B cable delivering the digital audio signal and power
- Power LED: When active, this indicator will illuminate
- ISO Left/Right: Switch left for thru, switch right for transformer isolation

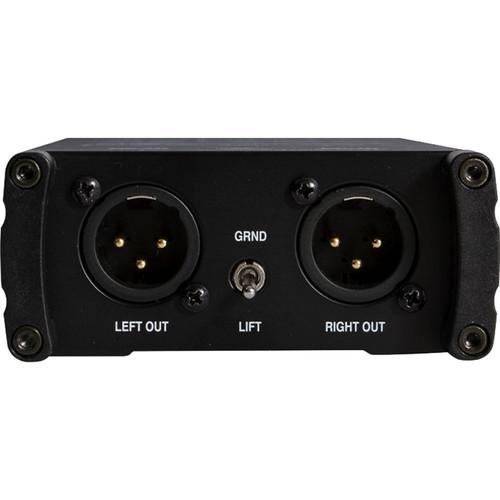

- Left Out: Right balanced output connects to console or active speaker
- Right Out: Left balanced output connects to console or active speaker
- Ground Lift: Disconnects input ground output to stop ground hum

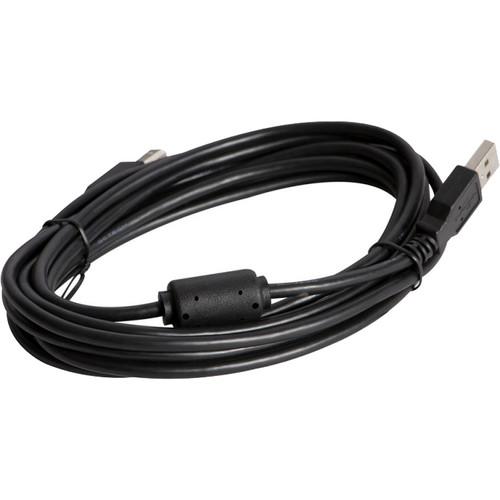

UPC: 659814133116 In the Box On-Stage DB2150 Stereo USB DAC - Direct Box USB Cable Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the On-Stage DB2150 Stereo USB DAC - Direct Box in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersOn-Stage DB2150 Specs | USB | USB 2.0 full speed | | Frequency Response | 10 Hz to 20 kHz | | Dynamic Range | 90 dB | | Output Impedance | 200 Ohms | | Sample Rate | 96 kHz | | Enclosure | All-metal | | Dimensions (L x W x D) | 5.8 x 3.5 x 1.5" / 146.1 x 88.9 x 38.1 mm | | Weight | 1.0 lb / 0.4 kg | | | | Package Weight | 1.7 lb | | Box Dimensions (LxWxH) | 7.0 x 6.0 x 3.0" |
