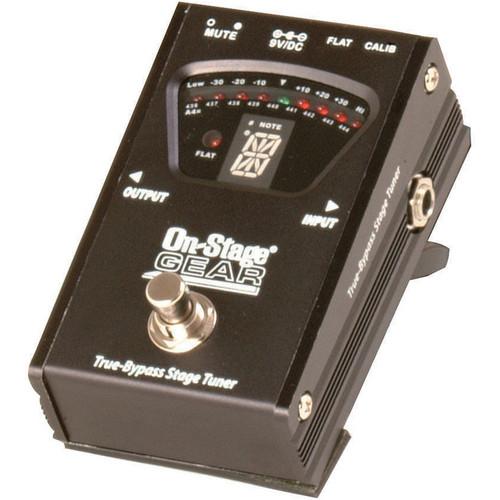

User Manual for On-Stage GTA7800 True-Bypass Pedal Tuner Click to enlarge the picture
Contents of the user manual for the On-Stage GTA7800 True-Bypass Pedal Tuner
- Product category: Tuners On-Stage
- Brand: On-Stage
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for On-Stage Tuners
|
User manual for the On-Stage GTA7800 True-Bypass Pedal Tuner contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any On-Stage product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official On-Stage user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a On-Stage product will considerably shorten its lifespan!
|
Product description The GTA7800 True-Bypass Pedal Tuner by On-Stage is a must-have accessory for any studio or touring musician. Its compact design fits nicely alongside most any standard-size guitar pedal and has a durable, two piece die-cast aluminum body with all-steel connectors. What's more, it offers variable pitch calibration, anti-slip rubber strips, a flat tuning option allowing you to lower the reference pitch by seven half steps and a bright LED display that ensures visibility on dark stages or dimly lit rooms. As if that wasn't enough, it also features true-bypass output allowing you to tune without the audience hearing and pass signal directly through the output to your other pedals without coloring the effects. The GTA7800 will easily fit into your pedal board system and can be powered with the included 9V battery or optional DC power supply. - True-Bypass circuitry offers zero signal distortion
- Rugged, die-cast aluminum body with all-steel connectors and anti-slip rubber strips
- Easily integrates into your pedal board system with its standard-size guitar pedal design
- Flat tuning option allows you to lower the reference pitch by seven half steps
- Variable pitch calibration from 436 Hz to 444 Hz
- Selectable mute mode silences output while tuning
- Bright LED display ensures visibility on dark stages and dimly lit rooms
- Can be powered by the included 9V battery or optional DC power supply
UPC: 659814817566 In the Box On-Stage GTA7800 True-Bypass Pedal Tuner 9V Battery Limited 3 Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the On-Stage GTA7800 True-Bypass Pedal Tuner in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersOn-Stage GTA7800 Specs | Connectors | 1/4" input
1/4" output | | Switch | SPDT true bypass | | Power | 9V battery
9V DC power supply (available separately) | | Dimensions | 4.5 x 2.75 x 1.75" (11.43 x 6.98 x 4.44 cm) | | Weight | 0.7 lb (0.31 kg) | | | | Package Weight | 0.815 lb | | Box Dimensions (LxWxH) | 19.2 x 6.1 x 3.6" |
