Product description The On-Stage PS801 Pedal Power Pack provides guitar and bass players with an easy way to power up to eight effect pedals at the same time, using the included 1300mA power adapter. The multi-plug cable system helps keep your pedalboard neat and organized, and allows you to take up only one position on an outlet strip or wall outlet. Compatible with most effect pedals, the PS801 Pedal Power Pack includes converter plugs for virtually any 9V pedal, even Line 6 modeling pedals. - Key Features
-
- Powers up to 8 pedals at the same time with included 1300mA power adapter
- Includes converter plugs for virtually any 9V pedal, even Line 6 modeling pedals
- Keeps your pedalboard neat
- Takes up only one position on an outlet strip or wall outlet
- 3.5" wire between each plug
- Heavy duty output cable

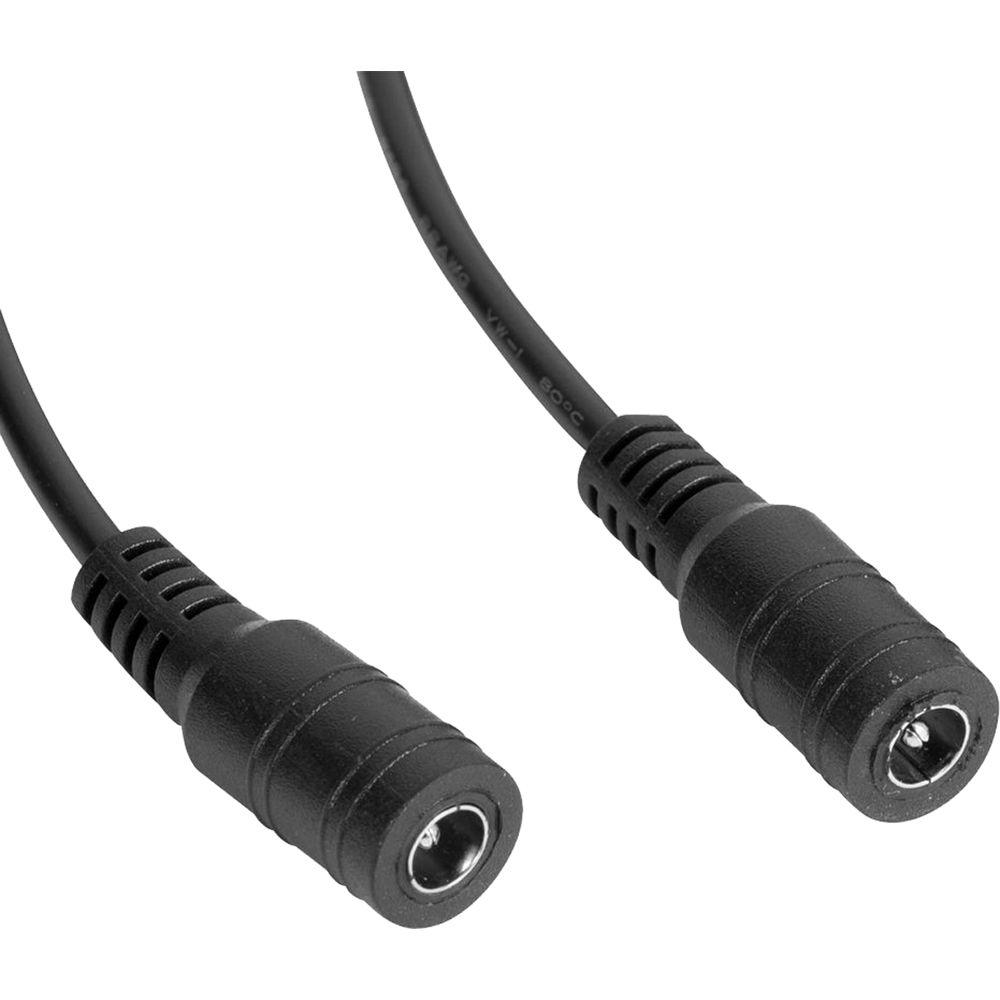

- Female main connector (5.5mm)
- 8 x male connectors (2.1mm)
- All internal connections have the same polarity
- Included Converter Plugs
-
- 2 x F6 lines: 5.5/2.1mm DC plug (positive outside and negative inside), 6F22 9V battery button as female connector – used for connecting batteries to charge equipment
- 1 x L6 line: 5.5/2.5mm DC plug, 5.5/2.1mm female connector (internal connections have same polarity) – used for charging equipment with different sockets

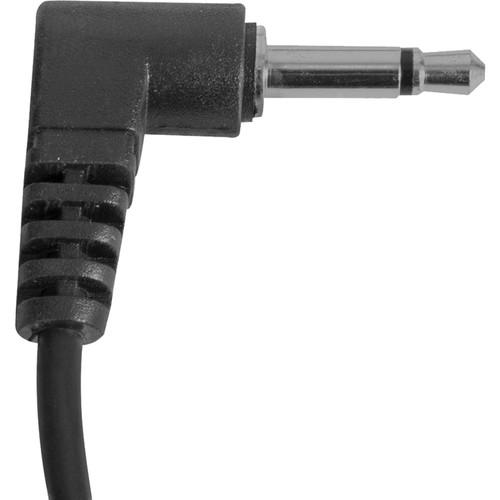

- 1 x L3 line: 3.5mm single-channel plug, 5.5/2.1mm female connector (internal connections have same polarity) – used for charging equipment with different sockets
- 1 x reverse polarity connector: 5.5/2.1mm DC plug, 5.5/2.1mm female connector (opposite polarity) – used for charging equipment with different power polarity

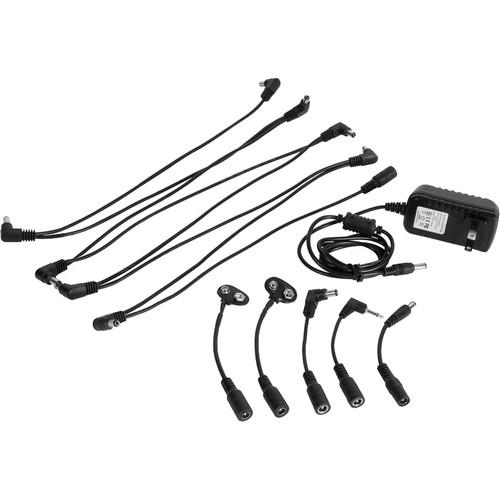

UPC: 659814129355 In the Box On-Stage PS801 Pedal Power Pack - Power Distribution System for 8 Pedals 1300mA Power Adapter PSA800 8-Plug Daisy Chain - Power Distribution Cable for 8 Pedals 2 x F6 Line Converter Plugs L6 Line Converter Plug L3 Line Converter Plug Reverse Polarity Converter Table of Contents
|
Upload User Manual
Have you got an user manual for the On-Stage PS801 Pedal Power Pack - Power Distribution System for 8 Pedals in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersOn-Stage PS801 Specs | Wire Length | 3.5" / 9.0 cm of wire between each plug | | Connectors | 1 x 5.5 mm female
8 x 2.1 mm male (All internal connections have same polarity) | | AC Adapter Input | 100-240 VAC, 50/60 Hz
Maximum 0.6 A | | AC Adapter Output | 9 VDC / 1300 mA (positive out, negative in) | | Plug | 5.5 / 2.1 mm | | | | Package Weight | 0.55 lb | | Box Dimensions (LxWxH) | 6.1 x 3.2 x 2.1" |
