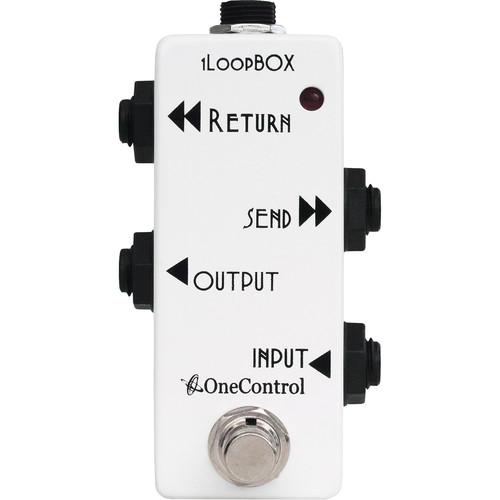

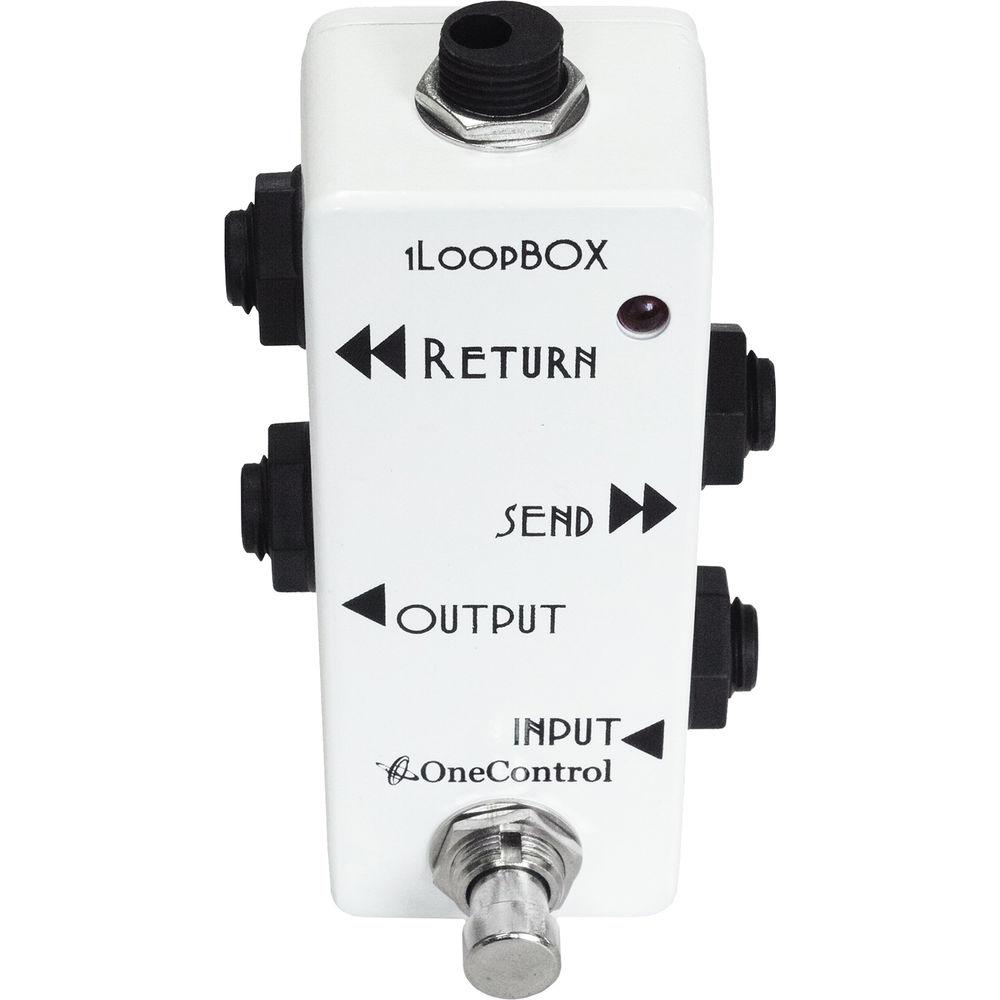

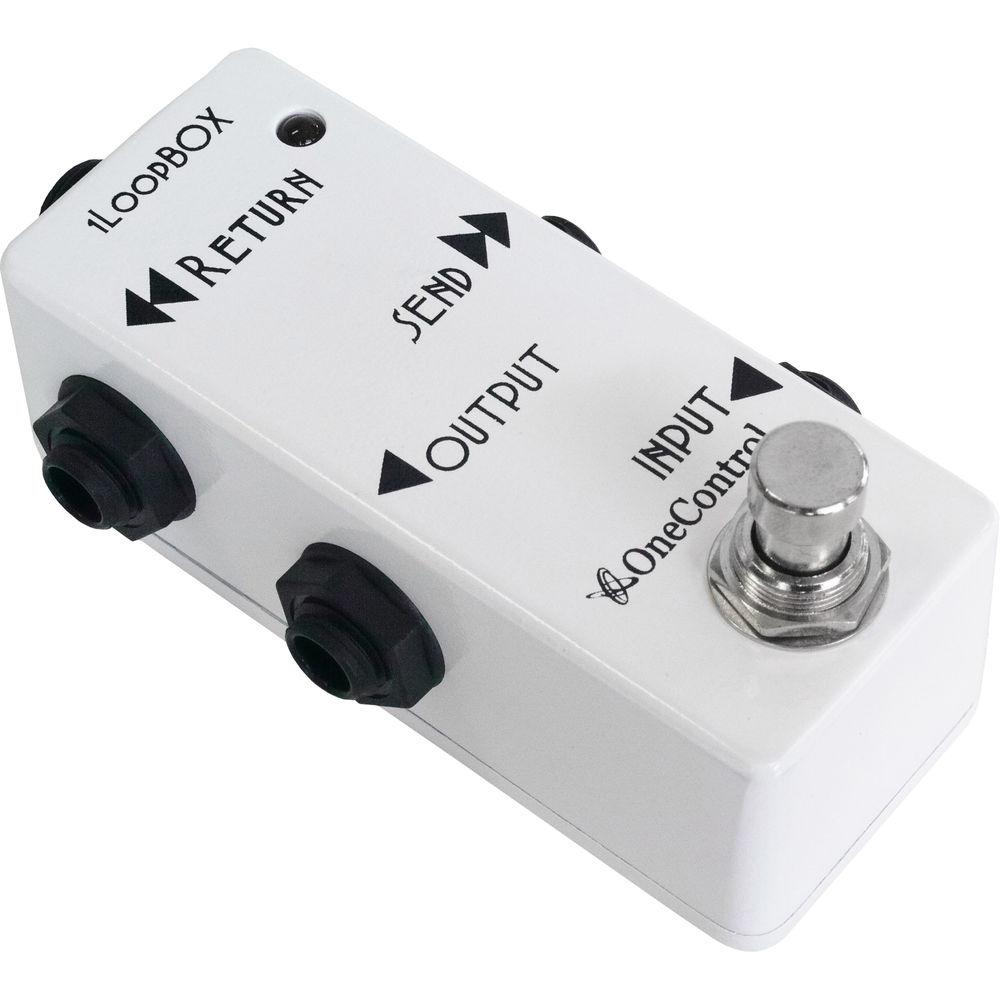

User Manual for OneControl 1LoopBox Passive Signal Switcher Click to enlarge the picture
Contents of the user manual for the OneControl 1LoopBox Passive Signal Switcher
- Product category: Effects Pedal Accessories OneControl
- Brand: OneControl
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for OneControl Effects Pedal Accessories
 |
User manual for the OneControl 1LoopBox Passive Signal Switcher contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any OneControl product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official OneControl user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a OneControl product will considerably shorten its lifespan!
|
Product description The 1LoopBox from OneControl is a compact, passive, mono signal switcher capable of multiple input-to-output configurations. It is designed to provide guitarists, bassists, and keyboardists an easy way to switch between different effects, amps, or instruments.When the 1LoopBox is bypassed, the input signal is routed to the output jack. Once activated, the pedal will route the input to the send jack, and the return signal to the output jack.The traditional configuration is as an effects send/return loop, that is, switching between dry and wet signals. Guitarists will appreciate the pedal's ability to switch between two amplifiers. Bass and keyboard players may use the 1LoopBox to route signal from one instrument or another into a pedalboard. The stompbox will function as a mute switch if only the input and output are connected.The 1LoopBox’s passive design requires no power source, though a 9 VDC power supply may be used for the LED indicator. The true bypass switching functions without a power source. -
- 1/4" input and output
- 1/4" send and return
- Multiple routing possibilities based upon connections used
- Effects send/return loop: switch the send/return in or out of the signal path
- A/B input switching: route either input to the main output
- A/B output switching: route the main input to either output
- Functions as a mute switch when only the main input and output are connected
- Passive circuitry does not require a power source
- LED status indicator can be used with a 9 VDC power supply connected
UPC: 818996011555 In the Box OneControl 1LoopBox Passive Signal Switcher Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the OneControl 1LoopBox Passive Signal Switcher in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersOneControl 1-LOOP-BOX Specs | Input Connections | 1 x 1/4" | | Output Connections | 1 x 1/4" | | Sends/Returns | 1 x 1/4" send
1 x 1/4" return | | Bypass Switch | True bypass | | Power Requirements | Power source not required
9 VDC, 1 mA power supply may be used for LED status | | Dimensions (W x D x H) | 2.1 x 4.0 x 1.9" / 54 x 101 x 48 mm (including jacks) | | Weight | 4.5 oz / 127 g |
