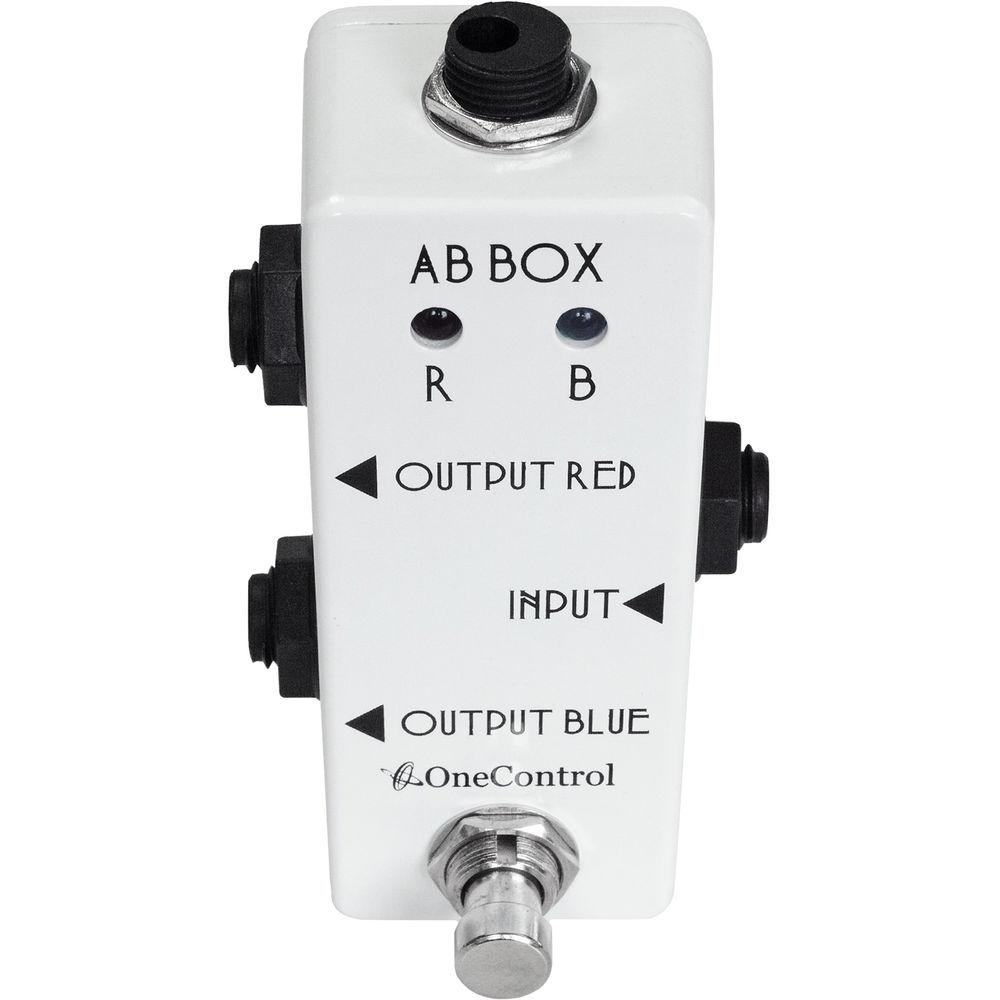

User Manual for OneControl AB Box Signal Switcher Click to enlarge the picture
Contents of the user manual for the OneControl AB Box Signal Switcher
- Product category: Effects Pedal Accessories OneControl
- Brand: OneControl
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for OneControl Effects Pedal Accessories
 |
User manual for the OneControl AB Box Signal Switcher contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any OneControl product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official OneControl user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a OneControl product will considerably shorten its lifespan!
|

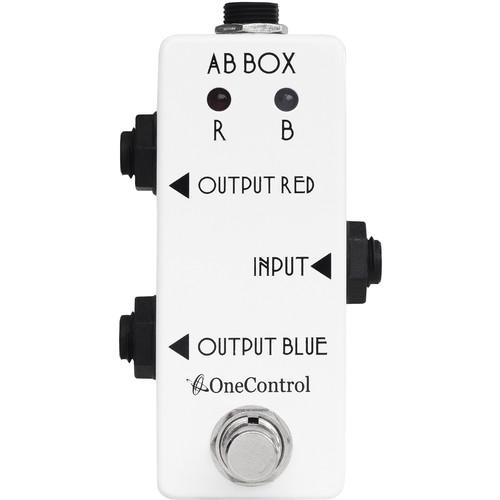

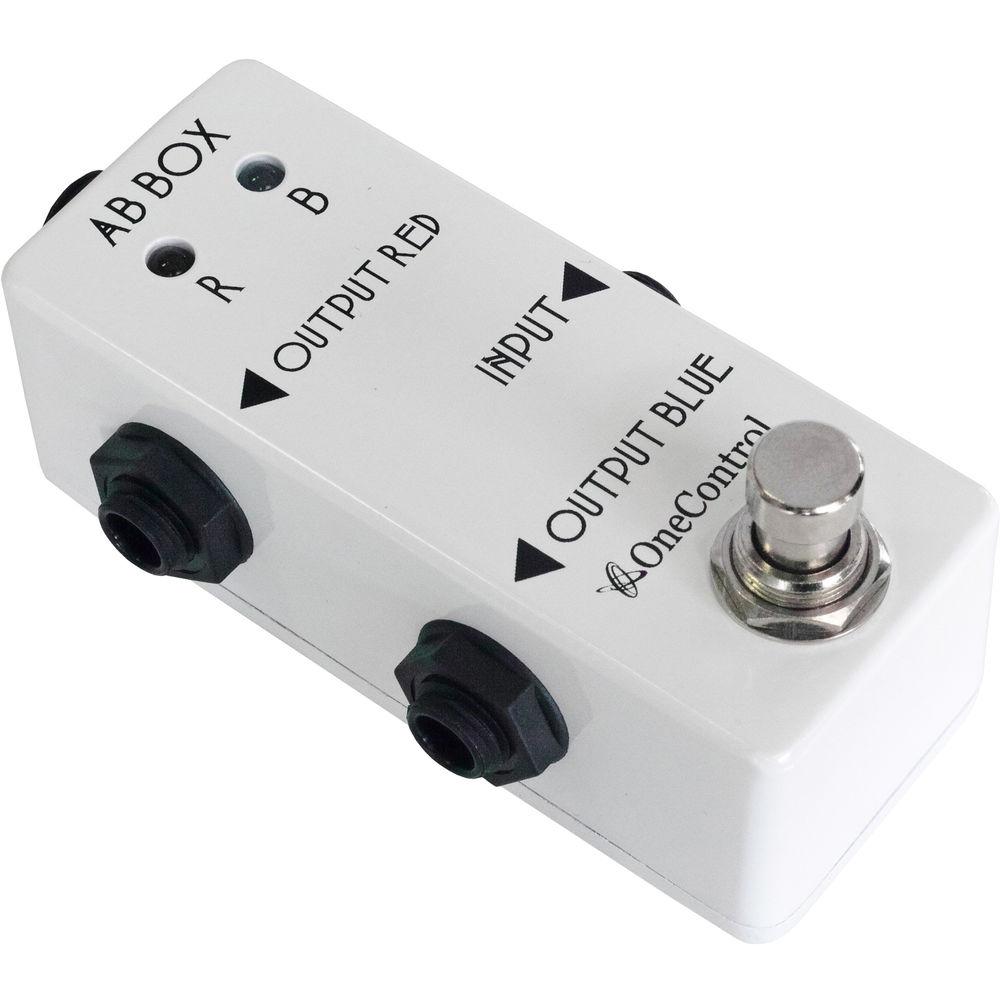

Product description The AB Box from OneControl is a compact, passive, mono signal switcher capable of A/B input or output switching. It is designed to provide guitarists, bassists, and keyboardists an easy way to toggle between different effects, amps, or instruments. For flexibility, the pedal's connections can be used in either direction.Guitarists will appreciate the pedal's ability to switch between two amplifiers. Bass and keyboard players may use the AB Box to route signal from one instrument or another into a pedalboard. Simple tuner switching is possible by connecting one output to a tuner, and the other output to the normal signal chain. The stompbox will function as a mute switch if only the input and one output are connected. The AB Box's passive design requires no power source, though a 9 VDC power supply may be used to light the LED indicator. The true bypass switching functions without a power source. -
- 1/4" input and outputs can be used in either direction
- Multiple routing possibilities based upon connections used
- A/B input switching: route one of two instruments to one output
- A/B output switching: route the input to either output
- Functions as a mute switch when the input and only one output are connected
- Passive circuitry does not require a power source
- LED status indicator can be used with a 9 VDC power supply connected
UPC: 818996011548 In the Box OneControl AB Box Signal Switcher Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the OneControl AB Box Signal Switcher in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersOneControl AB-BOX Specs | Input Connections | 1 x 1/4" | | Output Connections | 2 x 1/4" | | Bypass Switch | True bypass | | Power Requirements | Power source not required
9 VDC, 1 mA power supply may be used for LED status | | Dimensions (W x D x H) | 2.1 x 4.0 x 1.9" / 54 x 101 x 48 mm (including jacks) | | Weight | 4.5 oz / 125 g | | | | Package Weight | 0.7 lb | | Box Dimensions (LxWxH) | 5.2 x 3.0 x 2.4" |
Rating90% users recommend this product to others. And what about you?
This product has already been rated by 03 owners. Add your rating and experience with the product.
