User Manual for OneControl Baltic Blue Fuzz Pedal Click to enlarge the picture
Contents of the user manual for the OneControl Baltic Blue Fuzz Pedal
- Product category: Effects Pedals OneControl
- Brand: OneControl
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for OneControl Effects Pedals
 |
User manual for the OneControl Baltic Blue Fuzz Pedal contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any OneControl product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official OneControl user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a OneControl product will considerably shorten its lifespan!
|

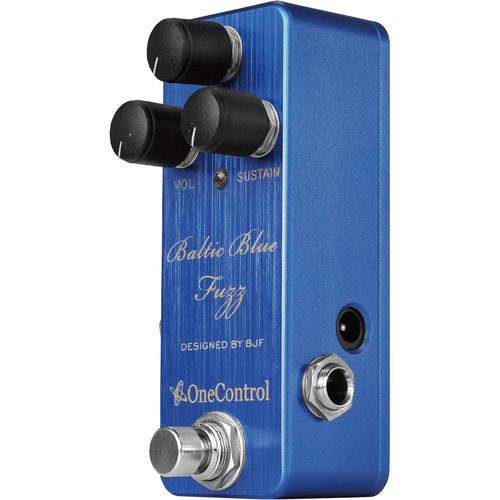

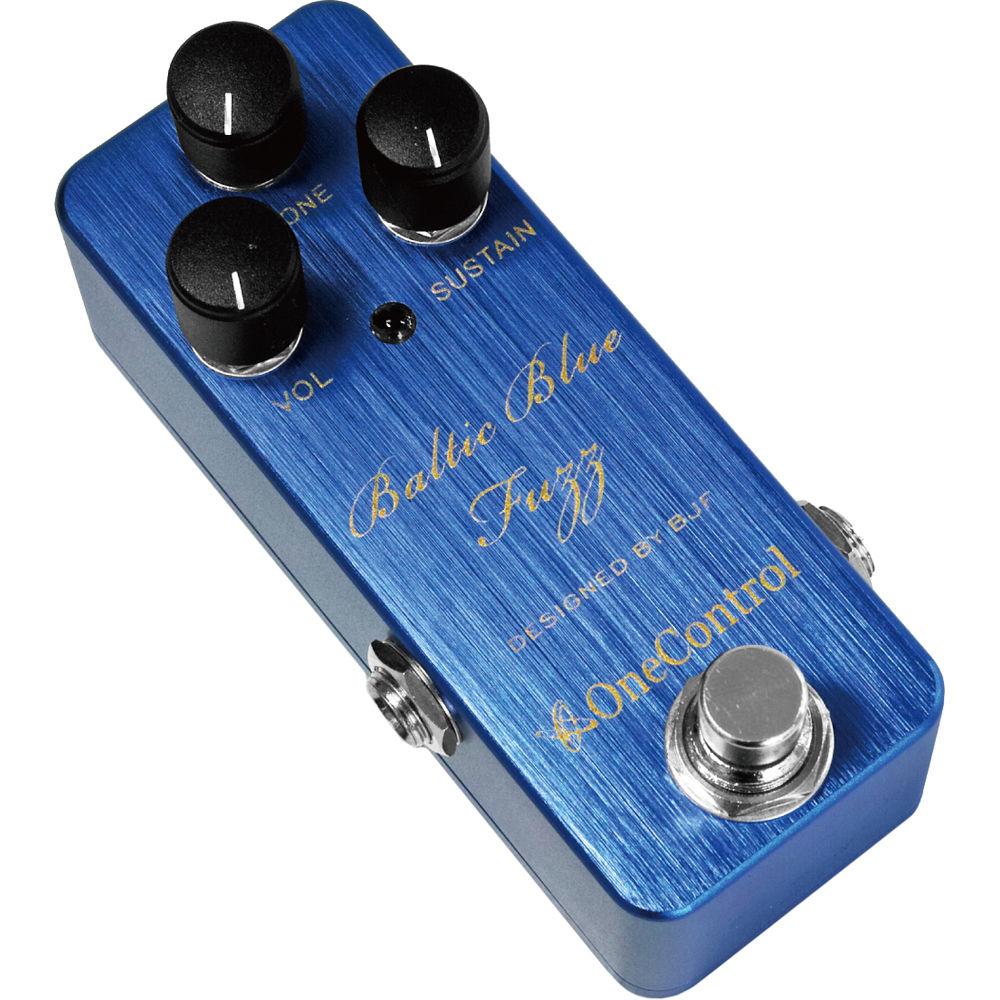

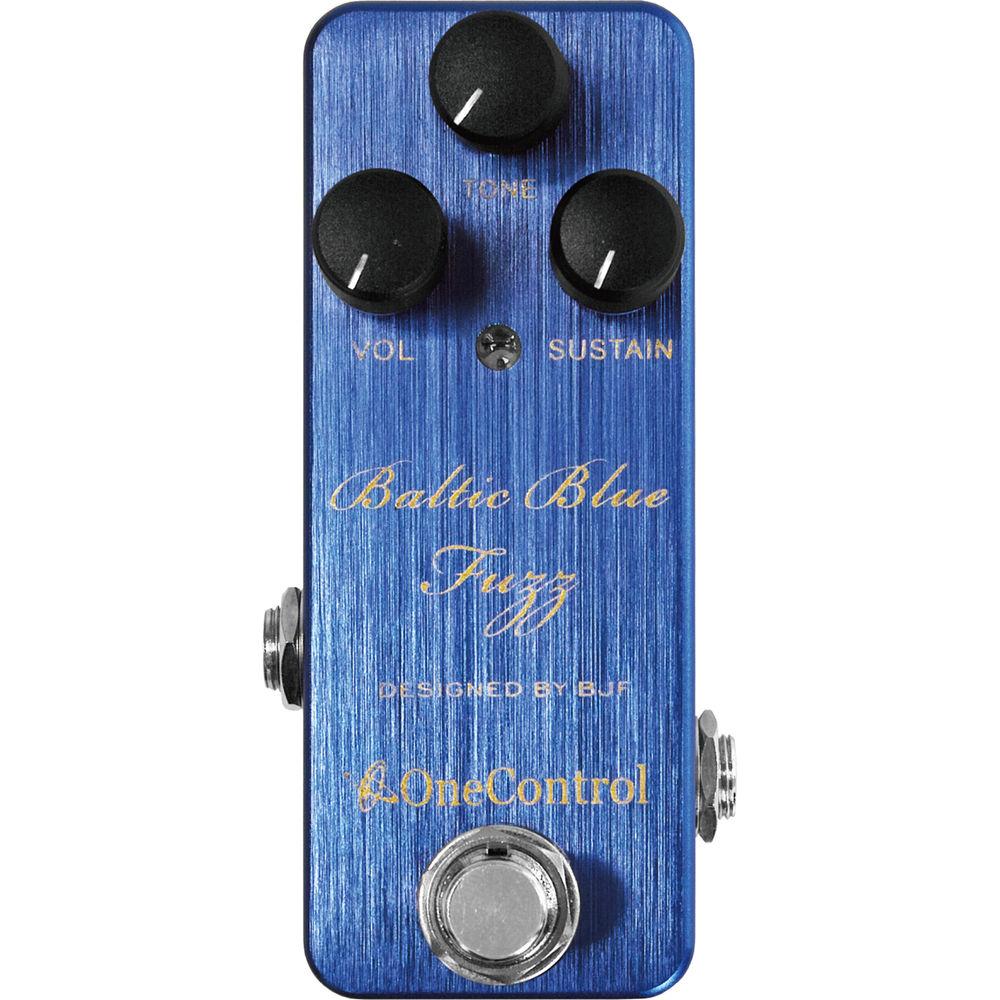

Product description The Baltic Blue Fuzz from One Control is a pedal designed to give you something like the vintage sound of the renowned Big Muff Pi, though in a more modern form factor taking up far less space on your pedalboard. It employs an op-amp in its construction, thus improving overall stability and avoiding the peakiness associated with old-school fuzz pedals.The Baltic Blue sports only three controls: Volume, Sustain, and Tone. The Tone knob allows you to add or subtract high-end from your sound, while the Sustain basically controls the amount of fuzz you’re introducing into your signal, giving you anything from a restrained bluesy tone, to edgy, blistering distortions. In conjunction with the Tone knob, many different styles of fuzz and distortion are possible, suitable for various genres. The pedal accepts a 9V battery, and utilizes a machined aluminum case for durability on the road. - Features at a Glance
-
- Same topology as famous fuzz pedals such as the Big Muff, though with different components
- Op-amp used for stability and matching implementation in modern pedalboard setups
- Multiple amplifying stages and filters allow for a variety of fuzz sounds, some sounding more like overdrive distortion, others offering a more classic fuzz
- Tone control for timbre adjustment to your preference
- Machined-aluminum housing
- True bypass circuitry for tonal preservation when disengaged

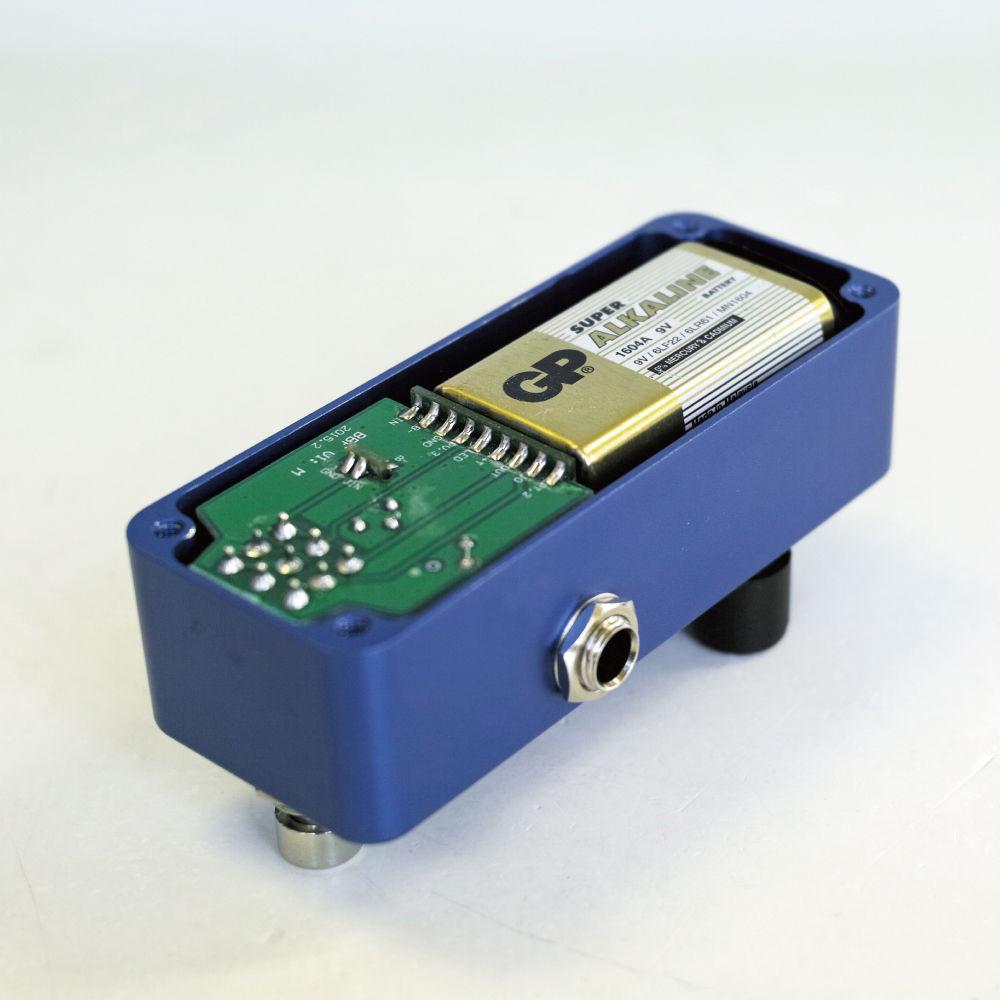

- Accepts a 9V battery
UPC: 818996011814 In the Box OneControl Baltic Blue Fuzz Pedal Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the OneControl Baltic Blue Fuzz Pedal in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersOneControl BALTIC-BLUE Specs | Audio I/O | 1 x 1/4" instrument input, phone type
1 x 1/4" instrument output, phone type | | Controls | Volume knob
Tone knob
Sustain knob
Bypass/engage footswitch | | Bypass Switch | True Bypass | | Impedance | Input: 40 kOhms
Output: 50 kOhms | | S/N Ratio | -70 dBm | | Voltage | Drive: 9 V | | Power Consumption | 6 mA | | Dimensions (W x D x H) | 1.5 x 3.9 x 1.2" / 39.0 x 100.0 x 31.0 mm (excluding protruding parts)
1.9 x 3.9 x 1.9" / 47.0 x 100.0 x 48.0 mm (including protruding parts) | | Weight | 5.6 oz / 160.0 g (without batteries)
7.1 oz / 200.0 g (with batteries) | | | | Package Weight | 0.49 lb | | Box Dimensions (LxWxH) | 5.5 x 2.3 x 2.13" |
Rating70% users recommend this product to others. And what about you?
This product has already been rated by 01 owners. Add your rating and experience with the product.
