User Manual for OneControl BJF Buffer Split Buffered Signal Splitter Switcher Click to enlarge the picture
Contents of the user manual for the OneControl BJF Buffer Split Buffered Signal
- Product category: Effects Pedal Accessories OneControl
- Brand: OneControl
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for OneControl Effects Pedal Accessories
 |
User manual for the OneControl BJF Buffer Split Buffered Signal contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any OneControl product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official OneControl user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a OneControl product will considerably shorten its lifespan!
|

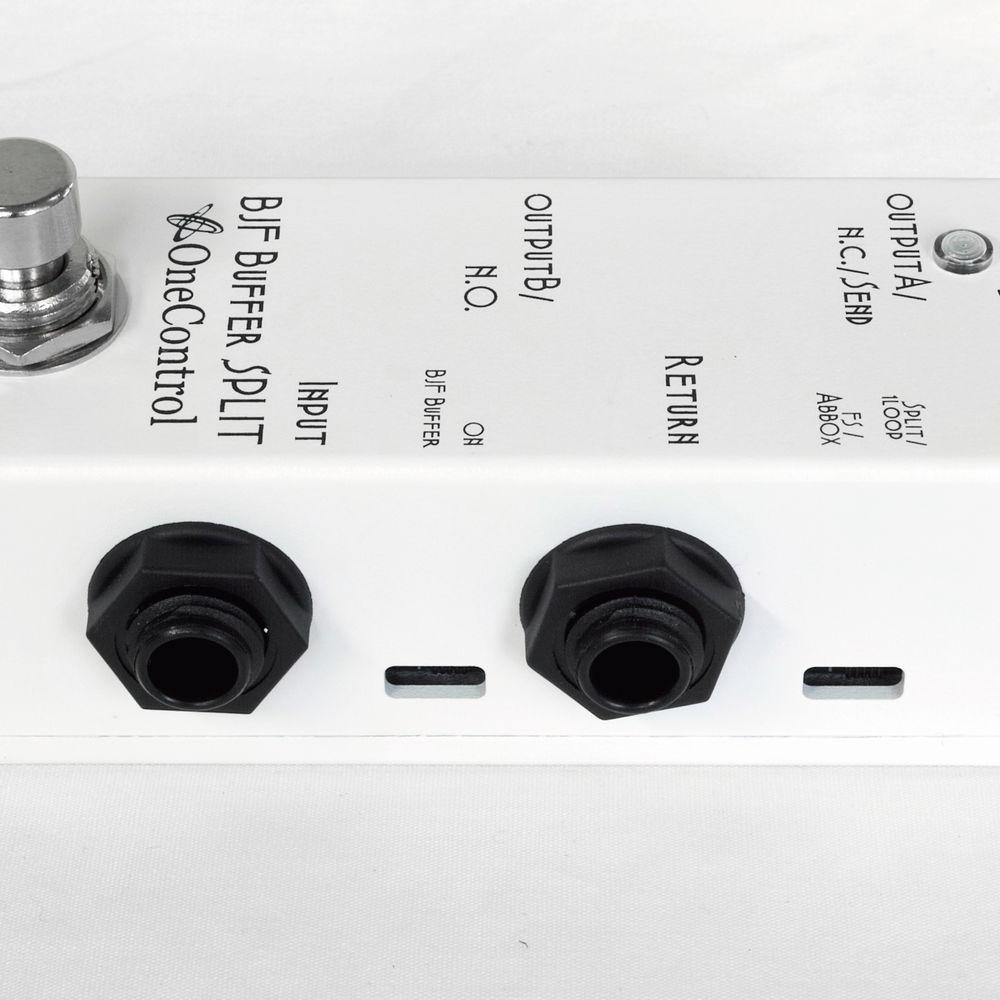

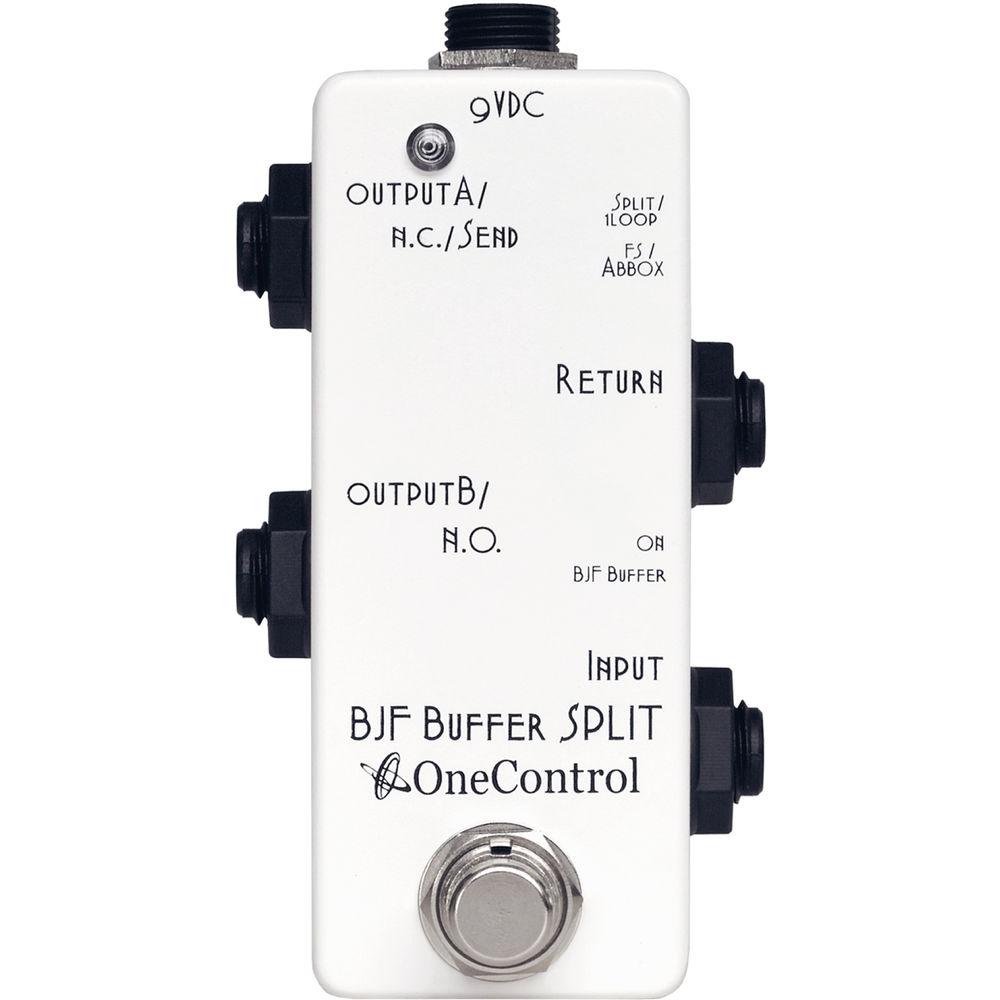

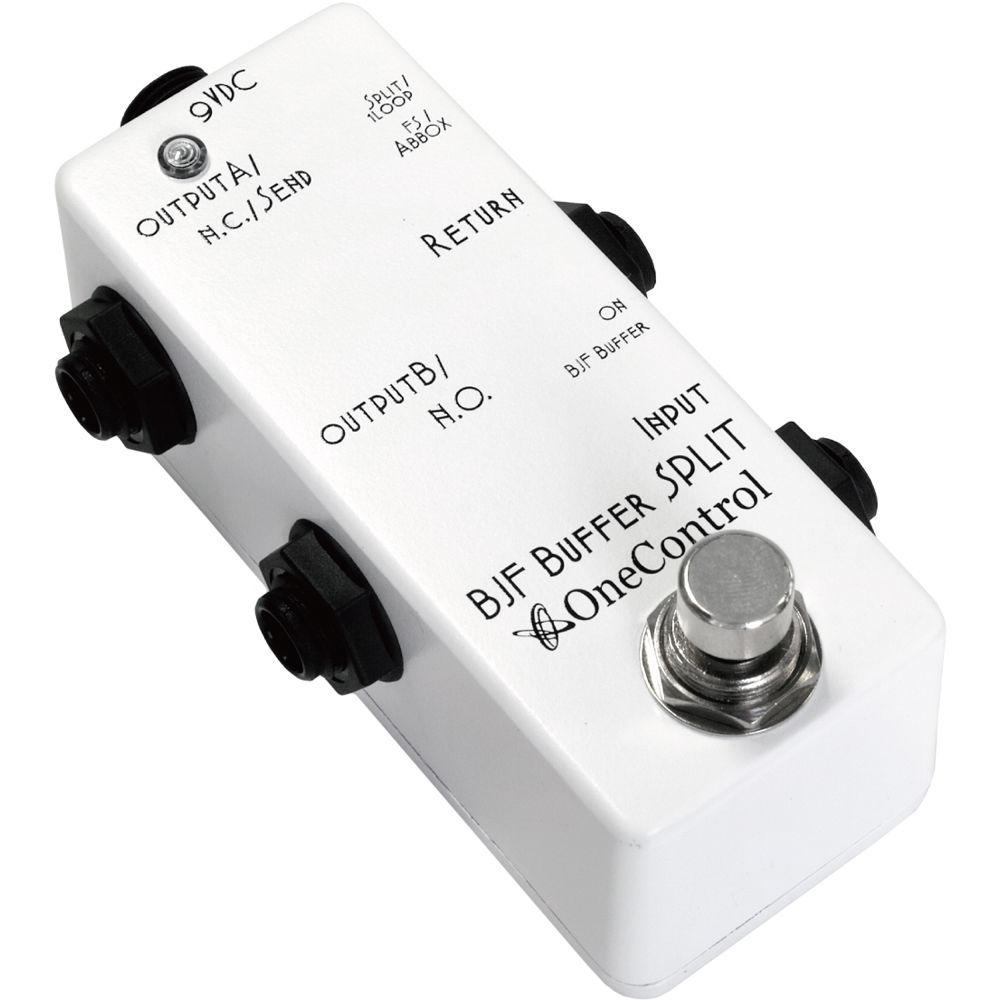

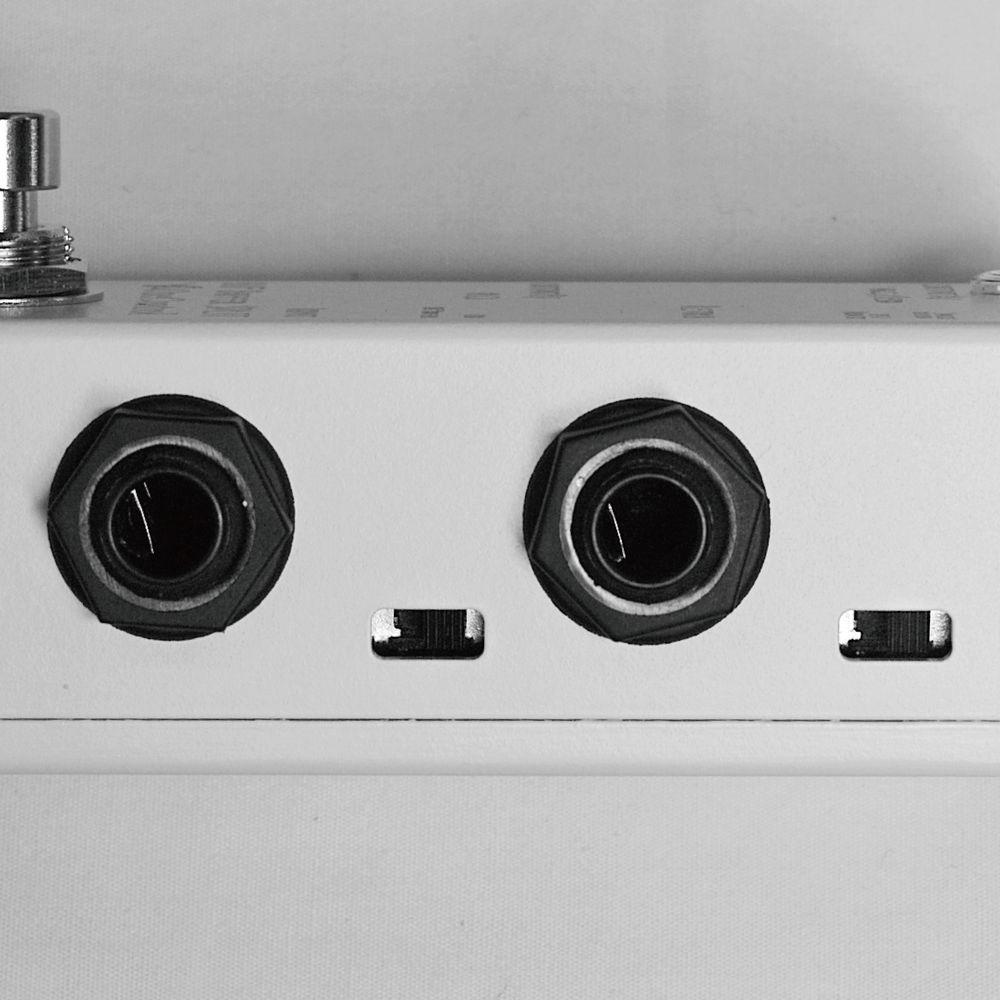

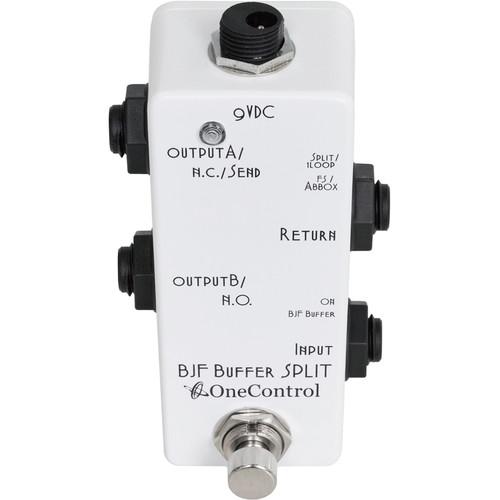

Product description The BJF Buffer Split from OneControl is a mono signal splitter/switcher capable of multiple input-to-output configurations. It is designed to provide guitarists, bassists, and keyboardists a compact, easy way to switch between different effects, amps, or instruments. Alternatively, it can split the input signal to two simultaneous outputs for parallel processing.When the BJF Buffer Split is bypassed, the input signal is routed to the output jack. Based upon the configuration of switches and connections, several routing schemes can be set up. Bass and keyboard players may use the BJF Buffer Split to route signal from one instrument or another into a pedalboard. Guitarists will appreciate the pedal's ability to switch between two amplifiers, or use two amps simultaneously. Additional uses include mute and tuner switching.The BJF Buffer Split features a true bypass switch and two function switches to control the pedal's internal routing. It is powered via a 9 VDC power supply (available separately). -
- 1/4" input and output
- 1/4" send and return
- Multiple routing possibilities based upon connections and function switches
- Effects send/return loop: switch the send/return in or out of the signal path
- A/B input switching: route either input to the main output
- A/B output switching: route the main input to either output
- Y-split: route the main input to both outputs
- Mute switch functionality
- Requires 9 VDC power supply (available separately)
UPC: 818996011746 In the Box OneControl BJF Buffer Split Buffered Signal Splitter/Switcher Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the OneControl BJF Buffer Split Buffered Signal Splitter Switcher in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersOneControl BJF-BUFFER-SPLIT Specs | Input Connections | 1 x 1/4" | | Output Connections | 1 x 1/4" | | Sends/Returns | 1 x 1/4" send
1 x 1/4" return | | Bypass Switch | True bypass | | Power Requirements | 9 VDC power supply | | Current Consumption | 3 mA | | Dimensions (D x W x H) | 4.0 x 2.1 x 1.9" / 101 x 53 x 49 mm | | Weight | 5.3 oz / 150 g |
