User Manual for OneControl BJF Series Jubilee RED Distortion Pedal Click to enlarge the picture
Contents of the user manual for the OneControl BJF Series Jubilee RED Distortion
- Product category: Effects Pedals OneControl
- Brand: OneControl
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for OneControl Effects Pedals
 |
User manual for the OneControl BJF Series Jubilee RED Distortion contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any OneControl product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official OneControl user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a OneControl product will considerably shorten its lifespan!
|

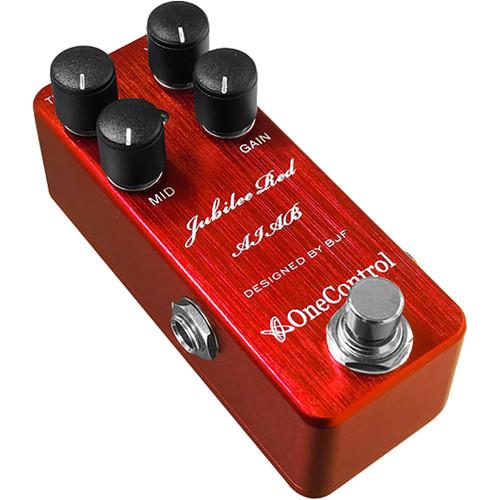

Product description Designed for electric guitar players, the One Control BJF Series Jubilee RED is a distortion pedal that emulates the sound of classic Jubilee amplifiers. It's intended for metal players primarily, though it will work with many kinds of hard and heavy rock.

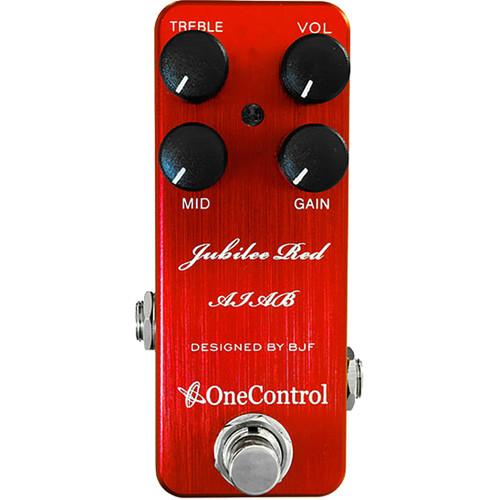

The pedal sports controls for Volume, Gain, Mid, and Treble. The Gain control adjusts the amount of gain, but also gives you different flavors. Set the knob counterclockwise for more of an 80s rock tone, while clockwise values will offer more of a modern timbre. The Mid control is a notch filter centered at 600 Hz. It can offer you a more scooped tone. The Treble control is more of a tonal balance knob. As it rolls off from 2 kHz and higher, it instantiates a bass boost around 100 Hz.

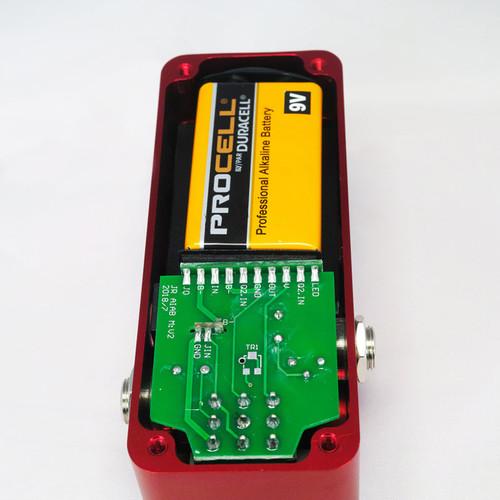

The pedal sports true bypass switching for keeping your tone unaffected when the pedal is disengaged. The RED can run off a single 9V battery or separately available power supplies. In the Box OneControl BJF Series Jubilee RED Distortion Pedal Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the OneControl BJF Series Jubilee RED Distortion Pedal in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersOneControl Jubilee RED Specs | Controls | Volume knob
Drive knob
Mid knob
Treble knob

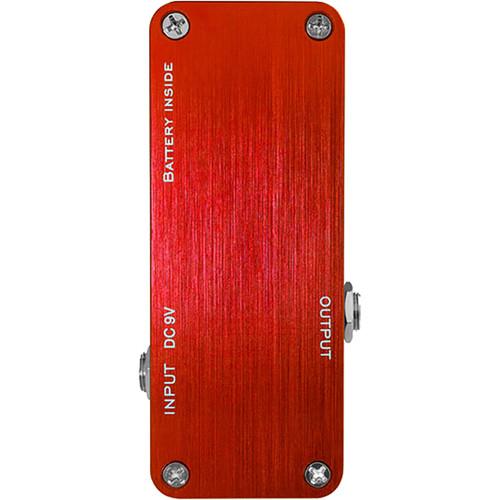

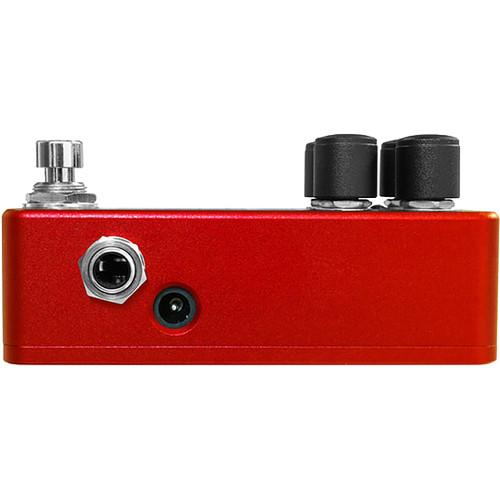

Bypass/engage footswitch | | I/O | 1 x 1/4" instrument input, phone type
1 x 1/4" instrument output, phone type | | Bypass Switch | True bypass circuitry | | Impedance | Input: 180 kOhms
Output: 50 kOhms | | S/N Ratio | 80 dB | | Input Voltage | 9 VDC | | Current Consumption | 6 mA at 9 V | | Dimensions (W x D x H) | With Protruding Parts: 1.9 x 3.9 x 1.8" / 4.7 x 10.0 x 4.6 cm
Without Protruding Parts: 1.5 x 3.9 x 1.2" / 3.9 x 10.0 x 3.1 cm | | Weight | 5.6 oz / 160.0 g (approximately) |
Rating80% users recommend this product to others. And what about you?
This product has already been rated by 97 owners. Add your rating and experience with the product.
