User Manual for OneControl Black Loop Passive 2-Loop Signal Switcher Click to enlarge the picture
Contents of the user manual for the OneControl Black Loop Passive 2-Loop Signal
- Product category: Effects Pedal Accessories OneControl
- Brand: OneControl
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for OneControl Effects Pedal Accessories
 |
User manual for the OneControl Black Loop Passive 2-Loop Signal contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any OneControl product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official OneControl user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a OneControl product will considerably shorten its lifespan!
|

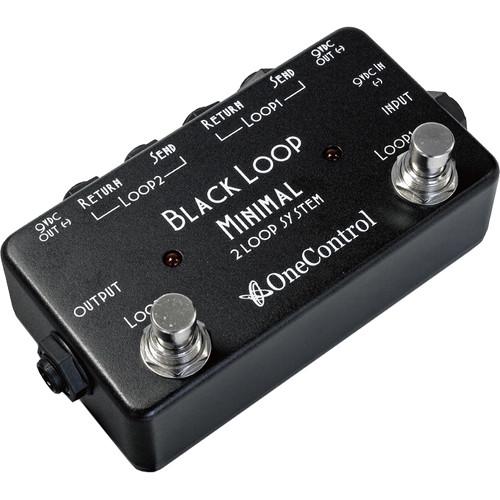

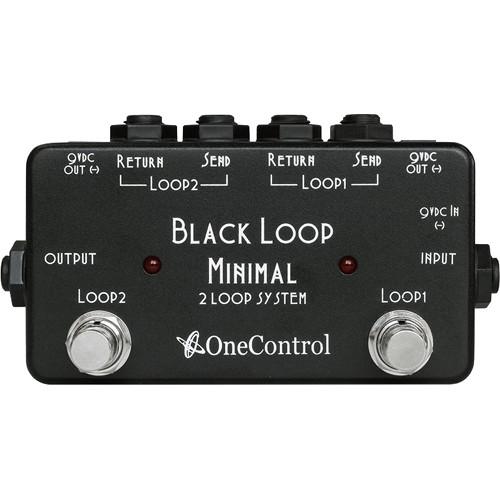

Product description The Black Loop from OneControl is a passive, mono, two-loop signal switcher capable of multiple input-to-output configurations. It is designed to provide guitarists, bassists, and keyboardists a compact, easy way to switch between different effects, amps, or instruments.When the Black Loop is bypassed, the input signal is routed to the output jack. Upon activating Loop 1 or 2, the pedal will route the input to the corresponding send jack, and the corresponding return signal to the output jack. This allows simple switching between the dry input, effects loop one, and effects loop two.Several alternate configurations are possible. Bass and keyboard players may use the Black Loop to route signal from one of three instruments into a pedalboard. Guitarists will appreciate the pedal's ability to switch between two or three amplifiers, or switch channels on one amp. Additional alternate uses include mute and tuner switching.The Black Loop's passive design requires no power source, though a 9 VDC power supply may be used for the LED indicators. If a 9 VDC power supply is used, the pedal's two 9 VDC outputs may be used to power other pedals. The true bypass switching functions without a power source. -
- 1/4" input and output
- 2 x 1/4" sends and returns
- Multiple routing possibilities based upon connections used
- Effects send/return loop: switch either send/return in or out of the signal path
- A/B/C input switching: route any of the inputs to the main output
- A/B/C output switching: route the main input to any of the three outputs
- Mute switch functionality
- Passive circuitry does not require a power source
- Connect a 9 VDC power supply (available separately) for LED functionality
- 2 x 9 VDC power outputs can power other pedals
UPC: 818996011623 In the Box OneControl Black Loop Passive 2-Loop Signal Switcher Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the OneControl Black Loop Passive 2-Loop Signal Switcher in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersOneControl BLACK-LOOP Specs | Input Connections | 1 x 1/4" | | Output Connections | 1 x 1/4" | | Sends/Returns | 2 x 1/4" send
2 x 1/4" return | | Bypass Switch | True bypass | | Power Requirements | Power source not required
9 VDC power supply may be used for LED functionality | | Output Power Connectors | 2 x 9 VDC outputs (to power other pedals) | | Current Draw | 4 mA (for LED indicators) | | Dimensions (W x D x H) | 4.7 x 2.6 x 1.8" / 120 x 65 x 46 mm (including jacks and switches) | | Weight | 7.1 oz / 200 g |
