User Manual for OneControl Crimson Red Bass Preamp Pedal Click to enlarge the picture
Contents of the user manual for the OneControl Crimson Red Bass Preamp Pedal
- Product category: Effects Pedals OneControl
- Brand: OneControl
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for OneControl Effects Pedals
 |
User manual for the OneControl Crimson Red Bass Preamp Pedal contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any OneControl product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official OneControl user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a OneControl product will considerably shorten its lifespan!
|

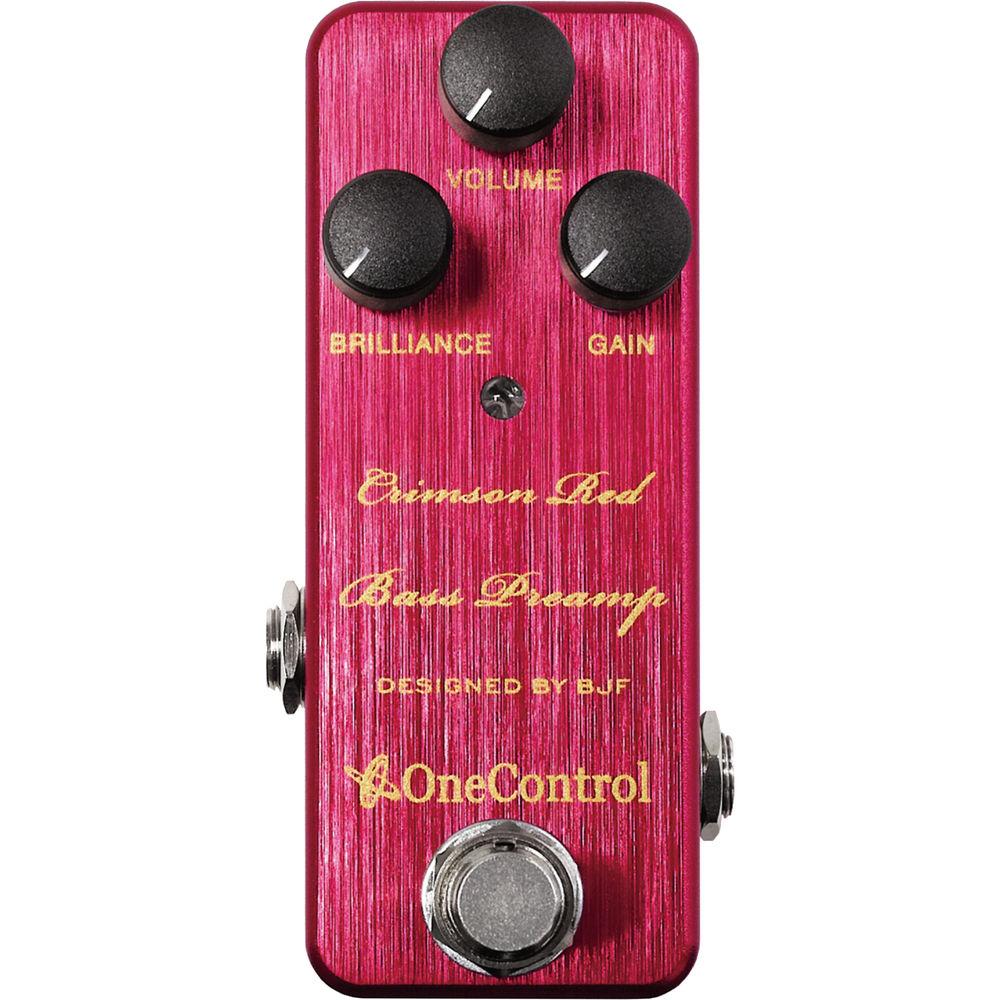

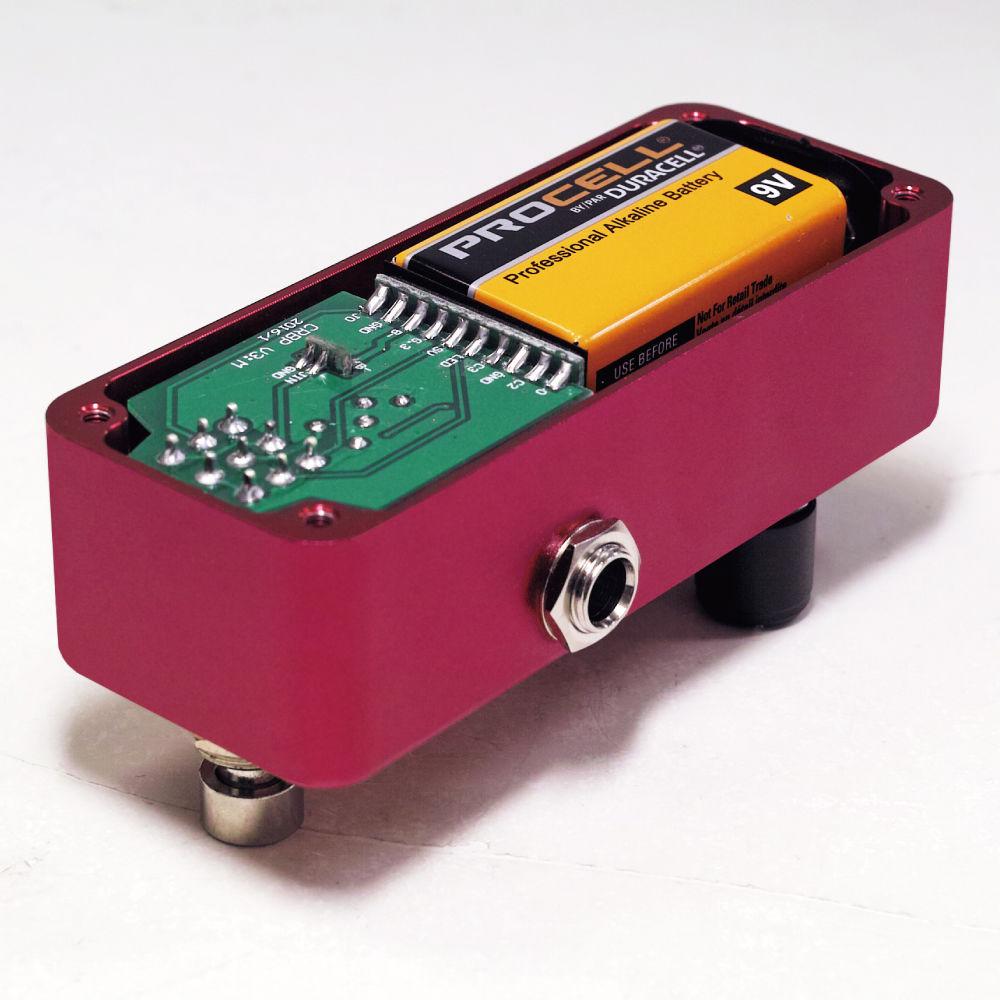

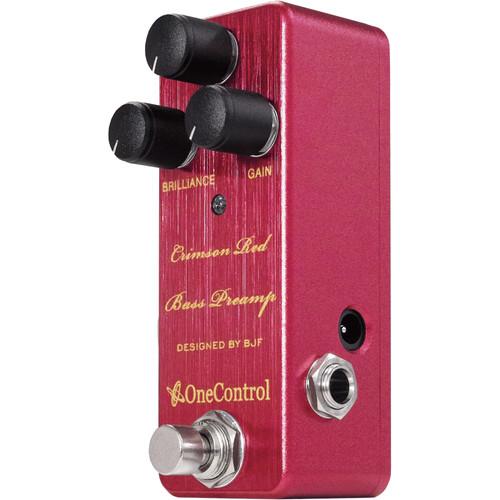

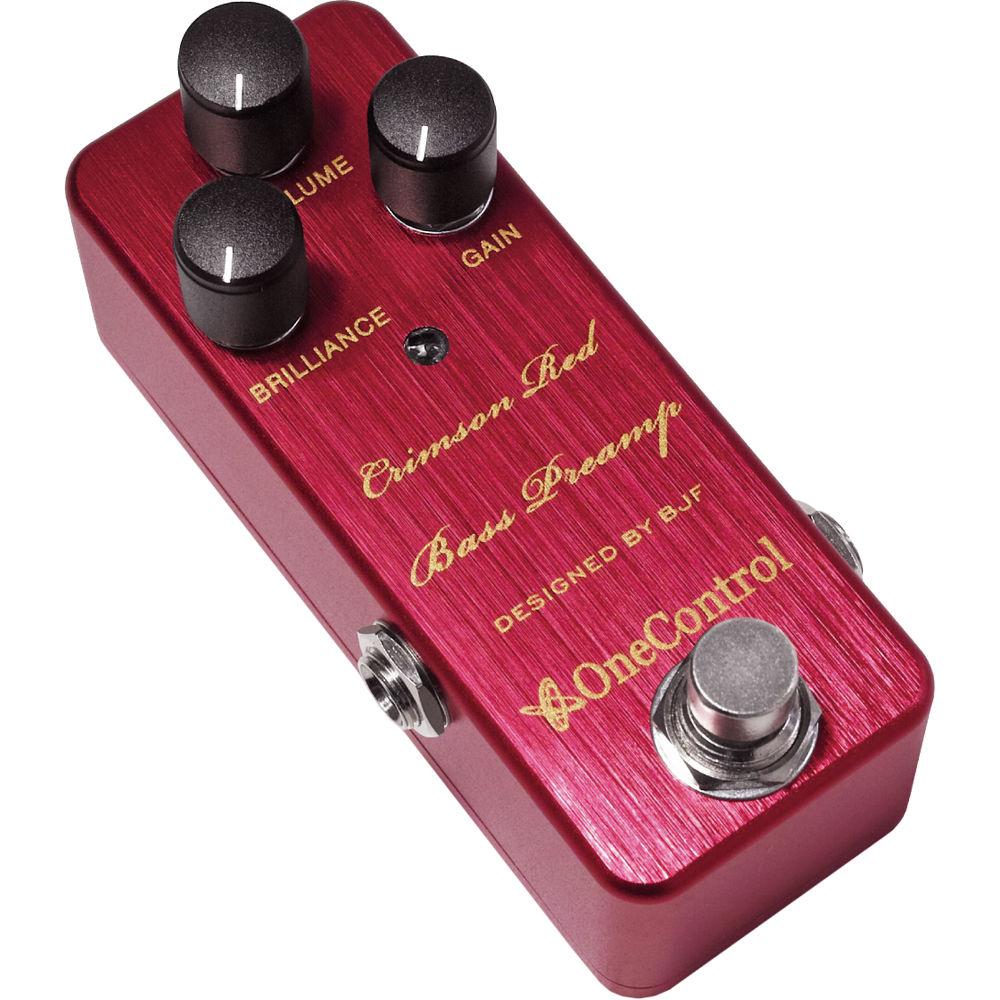

Product description The Crimson Red Bass Amp from One Control is a preamp designed for electric basses and packed into a relatively small pedal enclosure, at 1.9 x 3.9 x 1.8". It features three controls: a Volume knob for overall level, a Brilliance knob to determine how much treble you want to introduce into the sound, and a Gain knob, which serves as a level booster driving the output volume stage.In terms of tone, the pedal is quite adept at providing the low, fat bottom end characteristic of 60s and 70s funk bass timbres, giving you sounds also appropriate for fusion, Latin music, reggae, and more. Indeed, it was designed to reproduce the sound of vintage electric bass, reproducing the sound of a setup terminating in a 15 or 18” cabinet.The pedal provides I/O for a mono signal—one 1/4" instrument input jack and one 1/4” output jack. Its casing is an aluminum enclosure designed for durability. It’s designed to run off one 9V battery, though it also accepts power from a standard 9VDC adapter. UPC: 818996012071 In the Box OneControl Crimson Red Bass Preamp Pedal Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the OneControl Crimson Red Bass Preamp Pedal in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersOneControl CRIMSON-RED Specs | Enclosure | Aluminum | | Audio I/O | 1 x 1/4" instrument input, phone type
1 x 1/4" instrument output, phone type | | Controls | Volume knob
Brilliance knob
Gain knob
Bypass footswitch | | Bypass Switch | True bypass | | Impedance | Input: 650 kOhms
Output: 25 kOhms | | Signal to Noise Ratio | -80 dBm | | Voltage | 9 to approximately 15 V | | Current Consumption | 1 mA at 9 V | | Power Supply | 9 V battery
Standard 9 VDC power supply (available separately) | | Dimensions (W x D x H) | 1.5 x 3.9 x 1.2" / 39.0 x 100.0 x 31.0 mm (excluding protruding parts)
1.9 x 3.9 x 1.8" / 4.7 x 10.0 x 4.6 cm (including protruding parts) | | Weight | 5.6 oz / 160 g | | | | Package Weight | 0.5 lb | | Box Dimensions (LxWxH) | 5.2 x 2.9 x 2.4" |
Rating60% users recommend this product to others. And what about you?
This product has already been rated by 69 owners. Add your rating and experience with the product.
