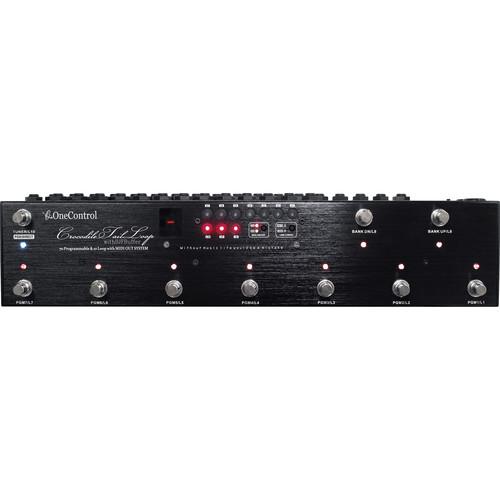

User Manual for OneControl Crocodile Tail Loop Programmable 10-Loop Signal Switcher Click to enlarge the picture
Contents of the user manual for the OneControl Crocodile Tail Loop Programmable 10-Loop
- Product category: Effects Pedal Accessories OneControl
- Brand: OneControl
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for OneControl Effects Pedal Accessories
 |
User manual for the OneControl Crocodile Tail Loop Programmable 10-Loop contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any OneControl product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official OneControl user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a OneControl product will considerably shorten its lifespan!
|

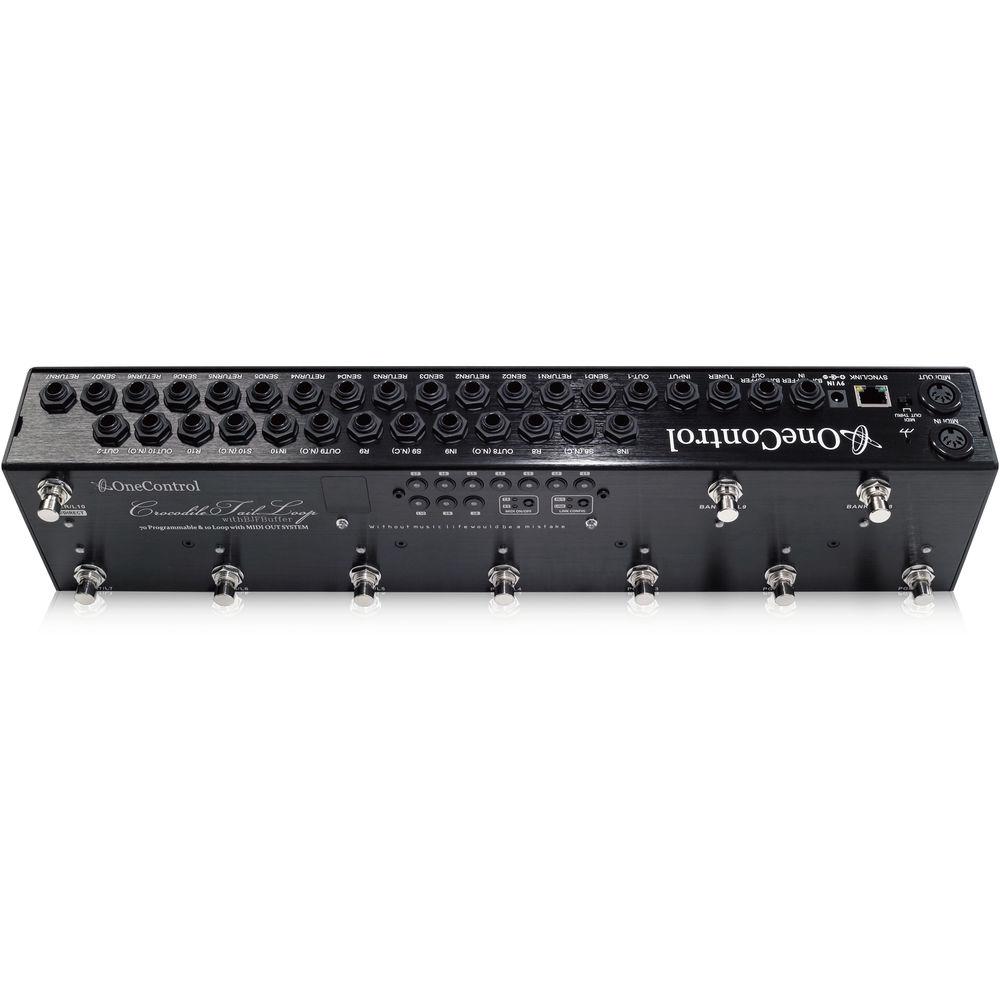

Product description The Crocodile Tail Loop from OneControl is a mono, programmable, 10-loop signal switcher capable of multiple input-to-output configurations. It is designed to provide guitarists, bassists, and keyboardists an easy way to switch between up to 10 different effects, amps, or instruments. It features separate buffered and non-buffered inputs, 70 customizable presets, and the ability to send and receive MIDI Program Change messages.When the Crocodile Tail Loop is bypassed, the input signal is routed to the output jack. Upon activating a loop, the pedal will route the input to the corresponding send jack, and the corresponding return signal to the output jack. This allows simple switching between the dry input and any of the 10 effects loops.Several alternate configurations are possible. Bass and keyboard players may use the Crocodile Tail Loop to route signal from one of many instruments into a pedalboard. Guitarists and studio engineers will appreciate the pedal's ability to switch between multiple amplifiers. The 1/4" tuner output, with a dedicated tuner/mute switch, allows convenient tuning without having to reconfigure pedal connections.Loops 1-7 are series loops, while Loops 8-10 are separate loops. This allows Loops 8-10 to be used for amplifier channel switching or additional loops. Different combinations of loops can be saved as presets, then recalled later for easy access. Store and load up to 70 presets, which are arranged in 10 banks.The Crocodile Tail Loop can send and receive MIDI Program Change messages, giving it the ability to switch patches on other devices, such as rackmount time-based effects processors.The Crocodile Tail Loop’s passive design requires no power source to switch loops. A 9 VDC power supply (available separately) is required for use of the programming functions and LED indicators. -
- 70 programmable presets arranged in 10 banks
- Separate buffered and non-buffered 1/4" inputs
- 10 x 1/4" send and return jacks
- Multiple routing possibilities based upon connections used
- Effects send/return loops: switch any of the 10 send/return loops in or out of the signal path
- Input switching: route any one of the inputs to the main output
- Output switching: route the main input to any of the outputs
- 1/4" tuner output and dedicated Tuner/Mute switch
- Transmit and receive MIDI Program Change messages for remote patch recall
- Passive circuitry does not require a power source for loop switching
- 9 VDC power supply required for programming functions and LED status indicators
- Link two Crocodile Tail Loop pedals using RJ45 connection
UPC: 818996011036 In the Box OneControl Crocodile Tail Loop Programmable 10-Loop Signal Switcher Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the OneControl Crocodile Tail Loop Programmable 10-Loop Signal Switcher in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersOneControl CROCODILE-TAIL-LOOP Specs | Input Connections | 5 x 1/4" (buffered input, non-buffered input, loop 8, 9, and 10 inputs) | | Output Connections | 6 x 1/4" (buffered output, output 1, output 2, loop 8, 9, and 10 outputs)
1 x 1/4" (tuner) | | Sends/Returns | 10 x 1/4" send
10 x 1/4" return | | Impedance | 500 kOhms (input)
10 kOhms (output) | | MIDI Connectors | 1 x 5-pin DIN (input)
1 x 5-pin DIN (output) | | Bypass Switch | True bypass | | Power Requirements | Power source not required for functionality of loop switching
9 VDC power supply required for programming functions and LED indicators | | Current Draw | 450 mA (maximum) | | Dimensions (W x D x H) | 18.2 x 4.3 x 2.5" / 462 x 110 x 64 mm | | Weight | 4 lb / 1.8 kg |
