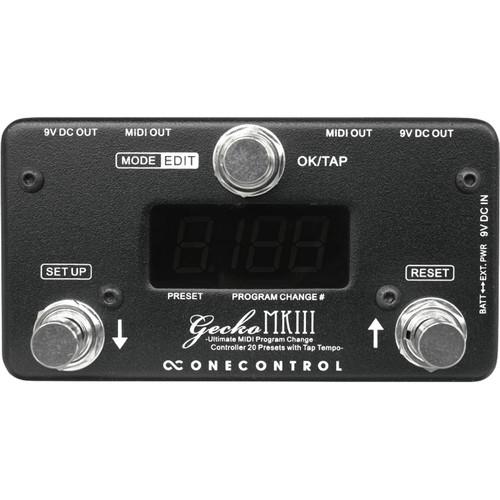

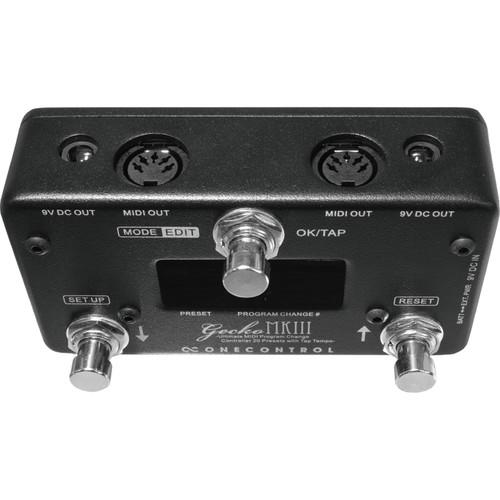

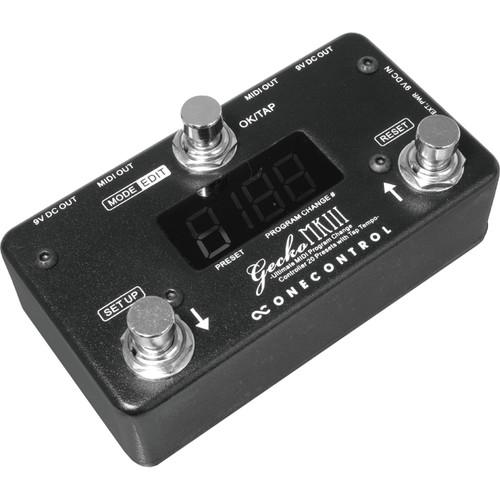

User Manual for OneControl Gecko MKIII Compact Programmable MIDI Switcher with 20 Presets Click to enlarge the picture
Contents of the user manual for the OneControl Gecko MKIII Compact Programmable MIDI
- Product category: Effects Pedals OneControl
- Brand: OneControl
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for OneControl Effects Pedals
 |
User manual for the OneControl Gecko MKIII Compact Programmable MIDI contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any OneControl product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official OneControl user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a OneControl product will considerably shorten its lifespan!
|
Product description Building upon the success of the Gecko MKII, the OneControl Gecko MKIII is a compact programmable MIDI switcher with 20 presets, well suited for live players wishing to access custom presets in a quick and efficient manner. Upgrades to the Gecko MKIII include tap tempo MIDI messages, 3 modes of operation, and 16 groups of program change numbers, which can control a maximum of 16 MIDI devices. - General Features
-
- Lightweight, compact MIDI controller
- PC (program change) signals of 16 MIDI channels can be sent simultaneously
- 20 presets
- Tap tempo control for multiple devices
- Can be powered by battery or 9V DC external power supply
- Two DC outs can also supply power (when using external power supply)
- Modes
-
- Mode 1 - Select Preset Mod (E1): MIDI signals sent only when the OK footswitch is pressed
- Mode 2 - Instant Preset Mode (E2): MIDI signals sent as soon as the preset number is changed
- Mode 3 - Direct Mode (E3): MIDI signals sent as soon as the program number (0-199) is changed
- Presets
-
- 20 presets
- Each preset can store one PC (program change) message for each of 16 MIDI channels.
- In modes E1 and E2, you can edit presets
- Program change # can be set between 0 to 199 (If set to Off, no MIDI signal will be sent to that MIDI channel)
- MIDI Channel & Tap Tempo
-
- Each individual MIDI channel can be turned off globally
- MIDI channels that are set to Off globally are not displayed during preset editing, so setup is faster
- Each MIDI channel can set the CC number to send when pressing the OK/TAP footswitch and use it as tap tempo control
- Set individual CC numbers for each channel and tap tempo to control up to 16 devices at once
In the Box OneControl Gecko MKIII Compact Programmable MIDI Switcher with 20 Presets Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the OneControl Gecko MKIII Compact Programmable MIDI Switcher with 20 Presets in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersOneControl Gecko-MkIII Specs | Power | Power Supply: 9 VDC
Current Consumption: 25 mA max (with external DC power supply)
Current Consumption: less than 1 mA (with battery) | | Dimension (W x D x H) | 4.7 x 2.6 x 1.8" / 120.0 x 65.0 x 46.0 mm | | Weight | 14.1 oz / 400.0 g |
