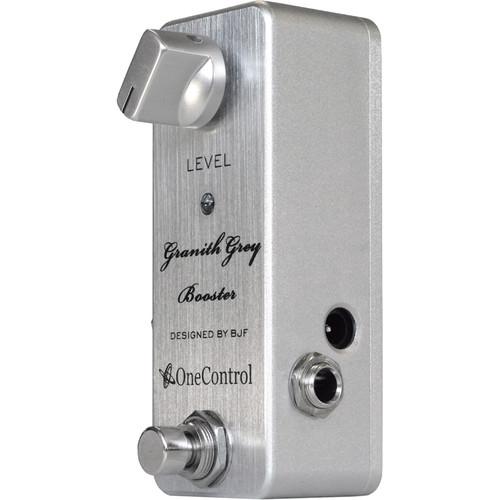

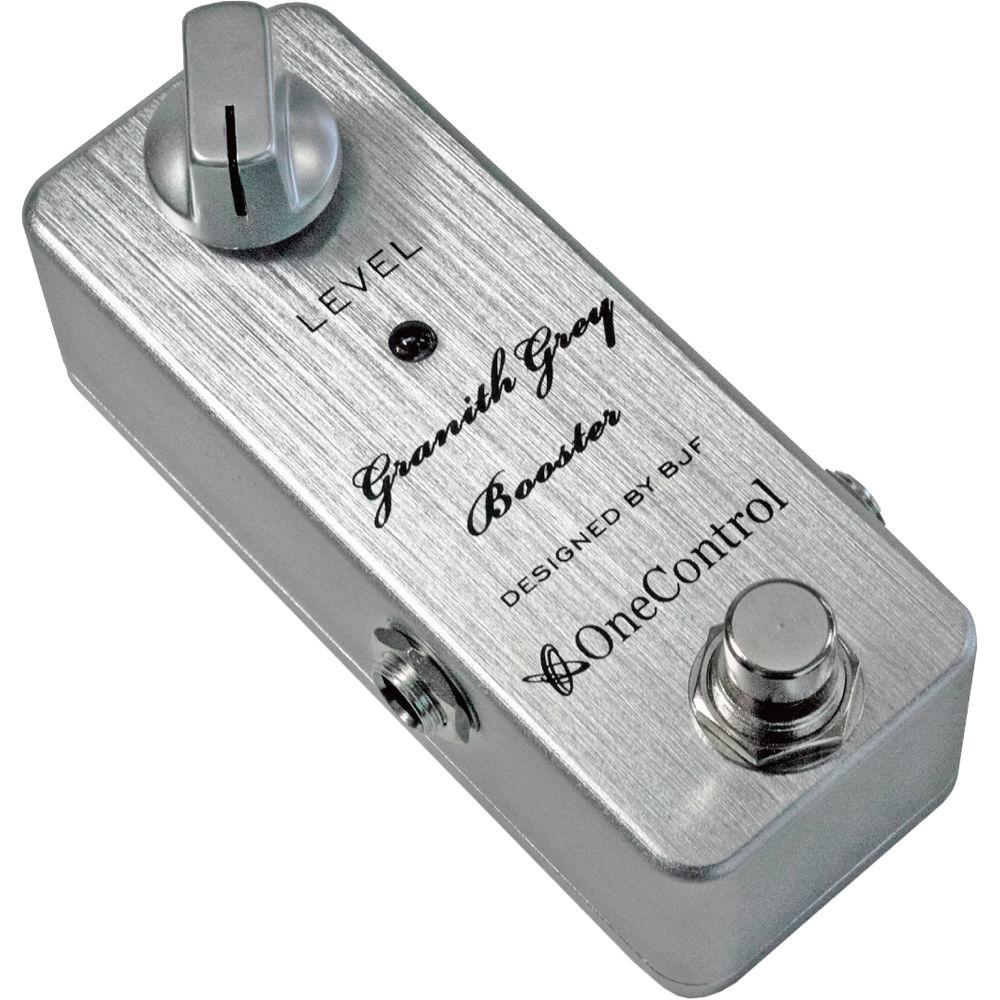

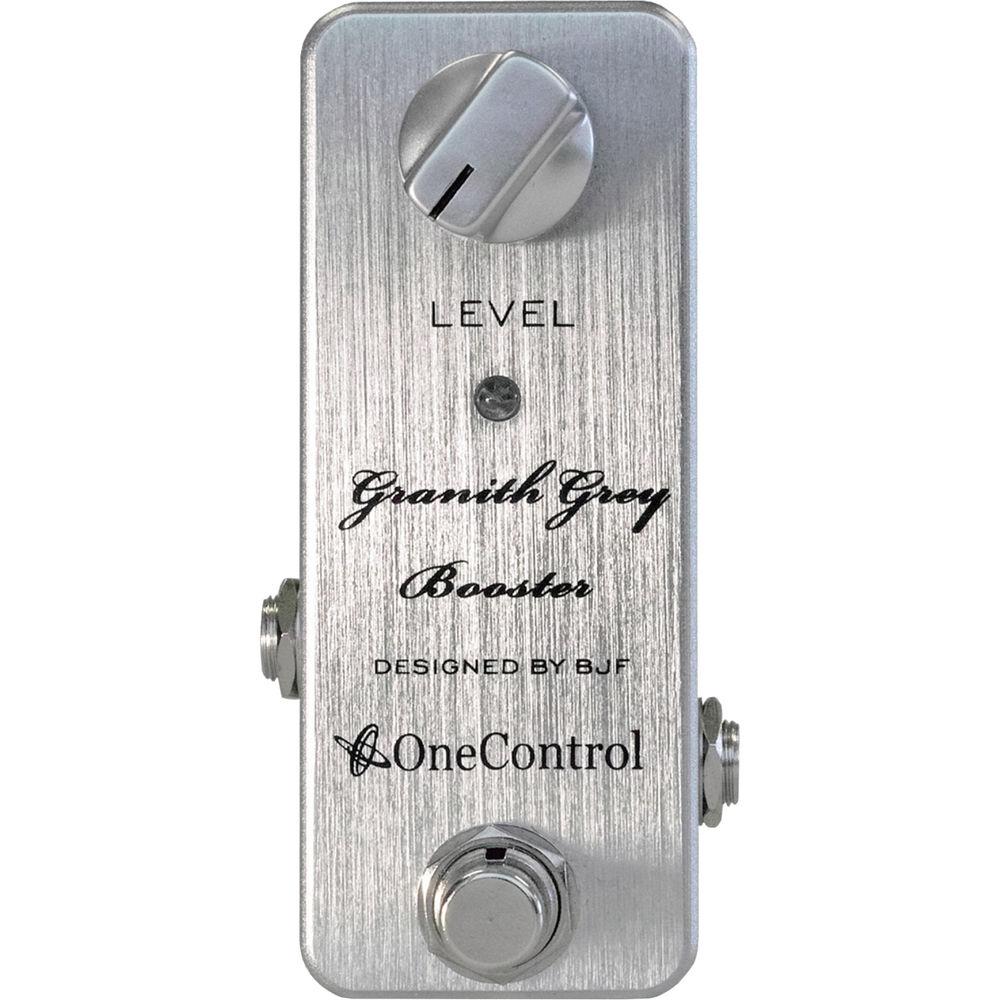

User Manual for OneControl Granith Grey Booster Pedal Click to enlarge the picture
Contents of the user manual for the OneControl Granith Grey Booster Pedal
- Product category: Effects Pedals OneControl
- Brand: OneControl
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for OneControl Effects Pedals
 |
User manual for the OneControl Granith Grey Booster Pedal contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any OneControl product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official OneControl user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a OneControl product will considerably shorten its lifespan!
|
Product description The Granith Grey Booster from OneControl is a BJF Series boost pedal designed to offer up to 15 dB of clean, low-noise signal boost for electric guitarists and bassists. Its custom circuitry achieves an impressive signal-to-noise ratio of 115 dB.Specially designed for the frequency response of an electric guitar, the Granith Grey Booster lowers overtones that may exist with other boost pedals. Increase preamp distortion by driving an amp input with it. Configure the booster in an amp's effects loop for control over power amp distortion. If an additional gain stage is needed for pedals lacking volume controls, place the Granith Grey Booster before or after another pedal.Like all BJF Series pedals, the Granith Grey Booster features an aluminum enclosure and true bypass switching. Its filter circuit minimizes switching noise. Power can be supplied from a 9V battery or 9 VDC power supply (both available separately). -
- Boost signal level using circuitry specially designed for the frequency range of electric guitar
- Level control for up to 15 dB of boost without compression
- High signal-to-noise ratio
- True bypass switching with filter circuit for minimized switching noise
- Aluminum enclosure
- Power can be supplied from 9V battery or 9 VDC power supply (both available separately)
UPC: 818996011586 In the Box OneControl Granith Grey Booster Pedal Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the OneControl Granith Grey Booster Pedal in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersOneControl GRANITH-GREY Specs | Gain | 15 dB | | Operational Voltage Range | 8.8 to 9.6 V | | Impedance | 500 kOhms (input)
2 kOhms (output) | | Signal to Noise Ratio | 115 dB | | THD | 0.006% @ 1 kHz | | Current Consumption | 1 mA @ 9 V | | Power | 9 V battery or 9 VDC power supply | | Enclosure Material | Aluminum | | Dimensions (W x D x H) | 1.5 x 3.9 x 1.2" / 39 x 100 x 31 mm (excluding protruding parts)
1.9 x 3.9 x 1.9" / 47 x 100 x 48 mm (including protruding parts) | | Weight | 4.9 oz / 140 g (approximately) |
