User Manual for OneControl Honey Bee Overdrive Pedal for Electric Guitars Click to enlarge the picture
Contents of the user manual for the OneControl Honey Bee Overdrive Pedal for
- Product category: Effects Pedals OneControl
- Brand: OneControl
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for OneControl Effects Pedals
 |
User manual for the OneControl Honey Bee Overdrive Pedal for contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any OneControl product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official OneControl user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a OneControl product will considerably shorten its lifespan!
|
Product description The OneControl Honey Bee is an overdrive pedal intended for guitarists and bassists. Inspired by the Supro amplifiers of the 1950s, this pedal provides a warm harmonic distortion that can be adjusted from subtle grit to all out crunch with the twist of a knob. The pedal has existed in one guise or another for a while, but this iteration of the stompbox features a gain increase of 6 dB, which gives the Drive control more range.

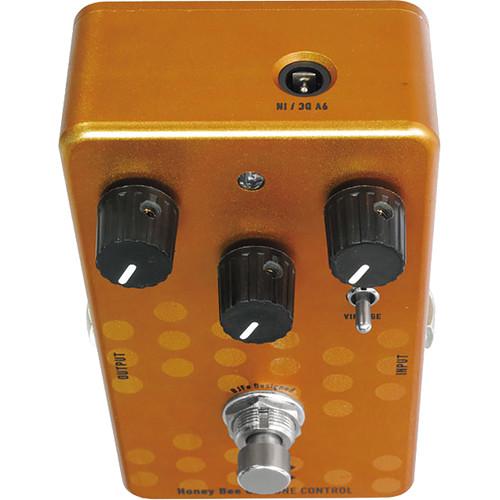

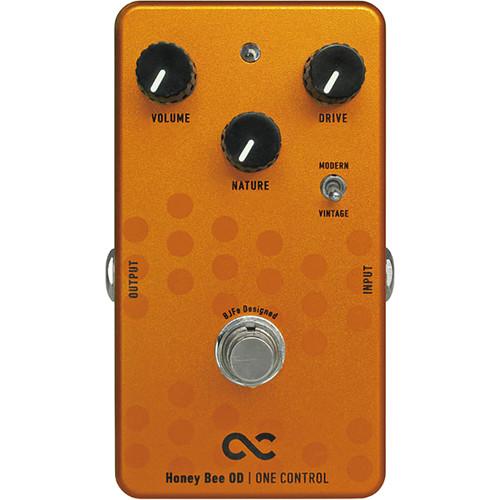

Controls are on hand for Volume, Drive, and Nature; the latter is a frequency control that tweaks your overall timbre. You'll also note the Vintage/Modern toggle switch, which gives you more tonal options. In vintage mode, the switch provides the sound of the original Honey Bee Overdrive pedal. Modern mode, on the other hand, gives you a tone with increased upper-midrange and the ability to boost treble with the Nature knob. The pedal features true bypass switching to keep your signal pristine when it's not engaged. It can be powered by 9V batteries or from conventional 9V power supplies. UPC: 818996012842 In the Box OneControl Honey Bee Overdrive Pedal for Electric Guitars Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the OneControl Honey Bee Overdrive Pedal for Electric Guitars in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersOneControl HONEY-BEE Overdrive Specs | I/O | 1 x 1/4" instrument input, phone type
1 x 1/4" instrument output, phone type | | Controls | Volume knob
Nature knob
Drive knob
Modern/vintage switch
Bypass/engage footswitch | | Enclosure | Aluminum | | Impedance | Input: 370 kOhms
Output: 50 kOhms | | Voltage | Drive voltage: 9 V, center negative | | Current Consumption | 3 mA | | Bypass | True bypass switching | | Dimensions (W x D x H) | 1.8 x 4.4 x 2.5" / 46.0 x 113.0 x 64.0 mm | | Weight | 10.4 oz / 295.0 g | | | | Package Weight | 0.78 lb | | Box Dimensions (LxWxH) | 5.2 x 2.9 x 2.4" |
Rating80% users recommend this product to others. And what about you?
This product has already been rated by 42 owners. Add your rating and experience with the product.
