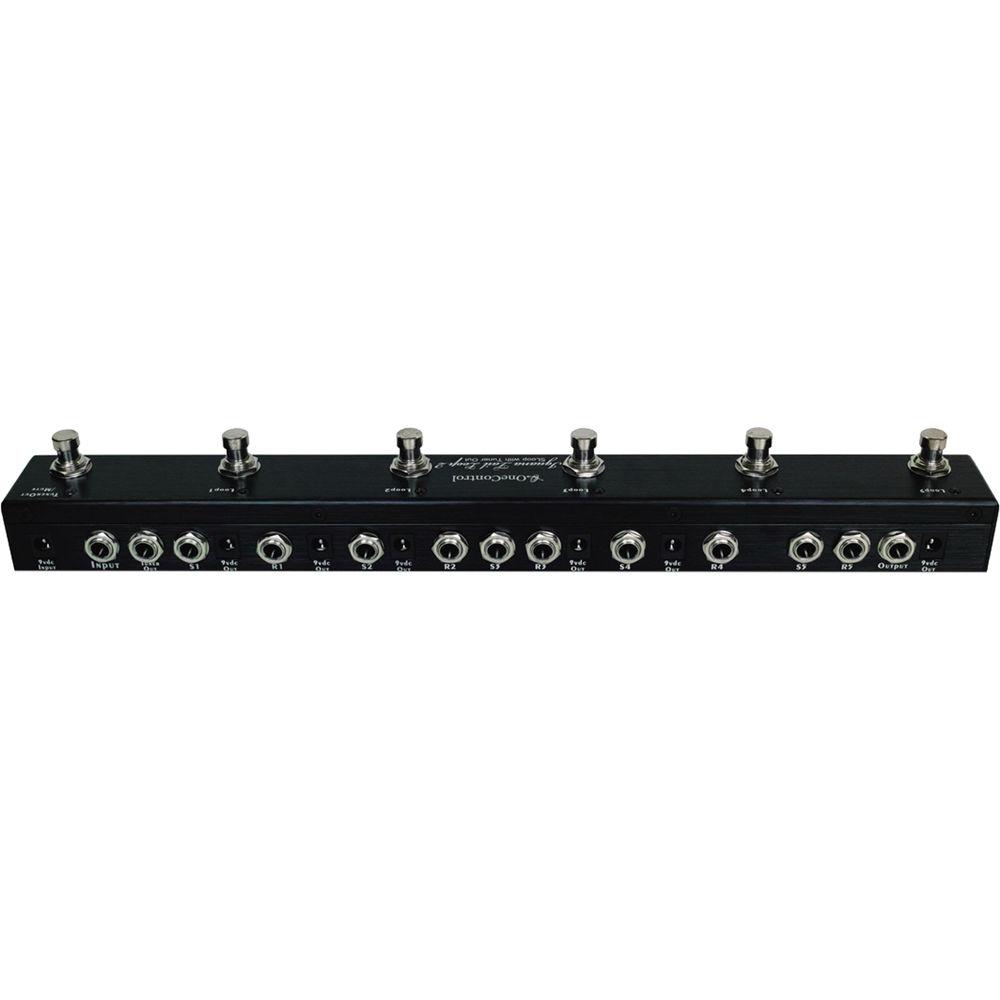

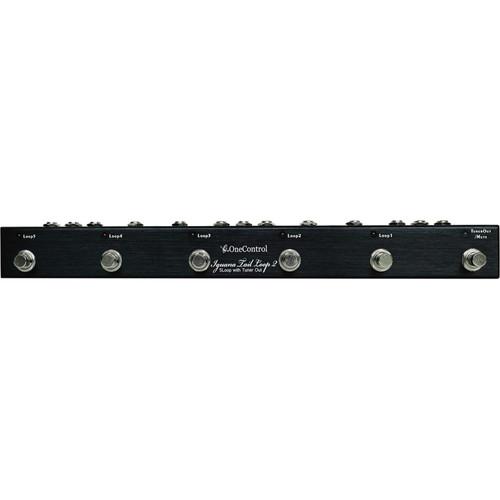

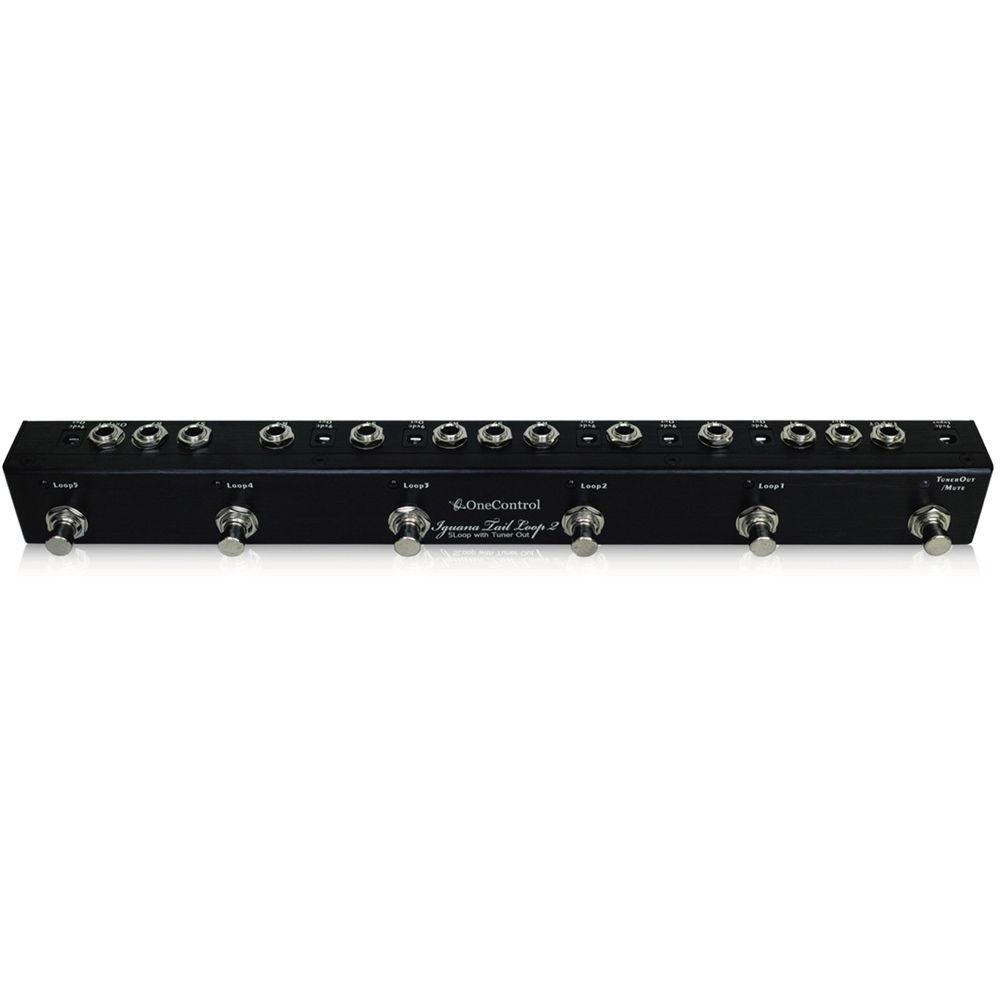

User Manual for OneControl Iguana Tail Loop 2 Passive Five-Loop Signal Switcher Click to enlarge the picture
Contents of the user manual for the OneControl Iguana Tail Loop 2 Passive
- Product category: Effects Pedal Accessories OneControl
- Brand: OneControl
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for OneControl Effects Pedal Accessories
 |
User manual for the OneControl Iguana Tail Loop 2 Passive contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any OneControl product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official OneControl user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a OneControl product will considerably shorten its lifespan!
|
Product description The Iguana Tail Loop 2 from OneControl is a passive, mono, five-loop signal switcher capable of multiple input-to-output configurations. It is designed to provide guitarists, bassists, and keyboardists an easy way to switch between up to five different effects, amps, or instruments.When the Iguana Tail Loop 2 is bypassed, the input signal is routed to the output jack. Upon activating a loop, the pedal will route the input to the corresponding send jack, and the corresponding return signal to the output jack. This allows simple switching between the dry input and any of the five effects loops.Several alternate configurations are possible. Bass and keyboard players may use the Iguana Tail Loop 2 to route signal from one of six instruments into a pedalboard. Guitarists and studio engineers will appreciate the pedal's ability to switch between multiple amplifiers. The 1/4" tuner output, with a dedicated tuner/mute switch, allows convenient tuning without having to reconfigure pedal connections.The Iguana Tail Loop 2's passive design requires no power source, though a 9 VDC power supply (available separately) may be used for the LED indicators. If a 9 VDC power supply is used, the pedal's six 9 VDC outputs are available for powering other pedals. The true bypass switching functions without a power source. -
- 1/4" input and output
- 5 x 1/4" send and return jacks
- Multiple routing possibilities based upon connections used
- Effects send/return loops: switch any of the five send/return loops in or out of the signal path
- Input switching: route any one of the inputs to the main output
- Output switching: route the main input to any of the outputs
- 1/4" tuner output and dedicated Tuner/Mute switch
- Passive circuitry does not require a power source
- LED status indicators can be used with a 9 VDC power supply connected
- 6 x 9 VDC power outputs can power other pedals if a power supply is connected
UPC: 818996011111 In the Box OneControl Iguana Tail Loop 2 Passive Five-Loop Signal Switcher Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the OneControl Iguana Tail Loop 2 Passive Five-Loop Signal Switcher in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersOneControl IGUANA-TAIL-LOOP-2 Specs | Input Connections | 1 x 1/4" | | Output Connections | 1 x 1/4" (audio)
1 x 1/4" (tuner) | | Sends/Returns | 5 x 1/4" send
5 x 1/4" return | | Bypass Switch | True bypass | | Power Requirements | Power source not required
9 VDC power supply may be used for LED indicators and power outputs | | Output Power Connectors | 6 x 9 VDC outputs (to power other pedals) | | Current Draw | 8 mA (for LED indicators) | | Dimensions (W x D x H) | 14.8 x 1.6 x 1.8" / 376 x 41 x 46 mm (including jacks and footswitches) | | Weight | 15.9 oz / 450 g |
