User Manual for OneControl Persian Green Screamer Overdrive Pedal Click to enlarge the picture
Contents of the user manual for the OneControl Persian Green Screamer Overdrive Pedal
- Product category: Effects Pedals OneControl
- Brand: OneControl
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for OneControl Effects Pedals
 |
User manual for the OneControl Persian Green Screamer Overdrive Pedal contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any OneControl product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official OneControl user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a OneControl product will considerably shorten its lifespan!
|

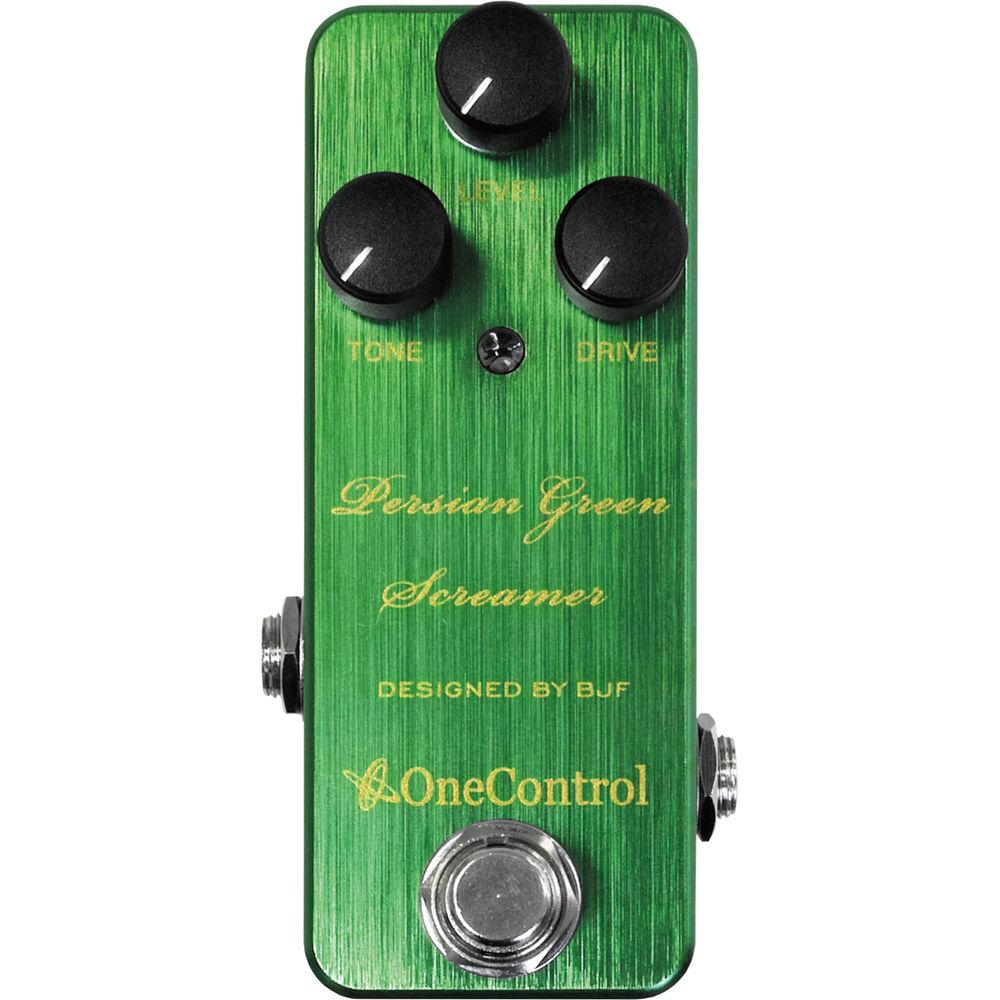

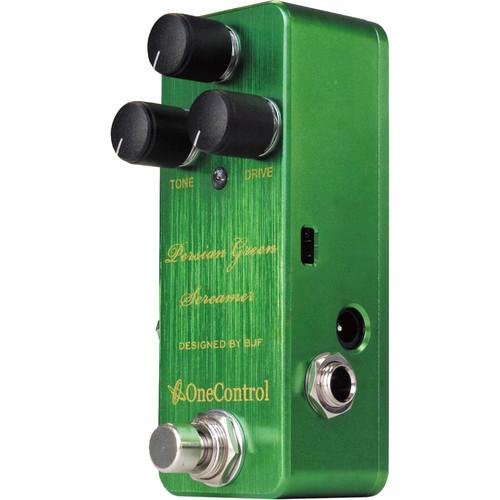

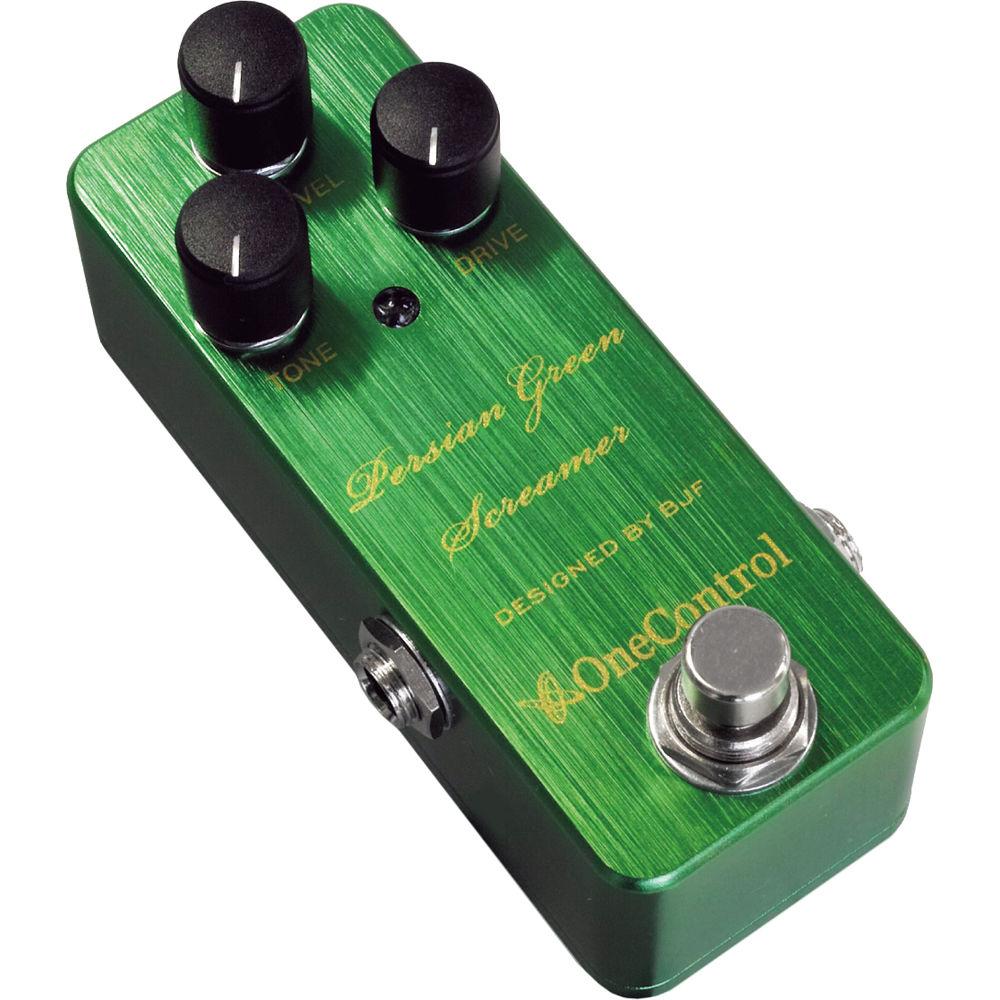

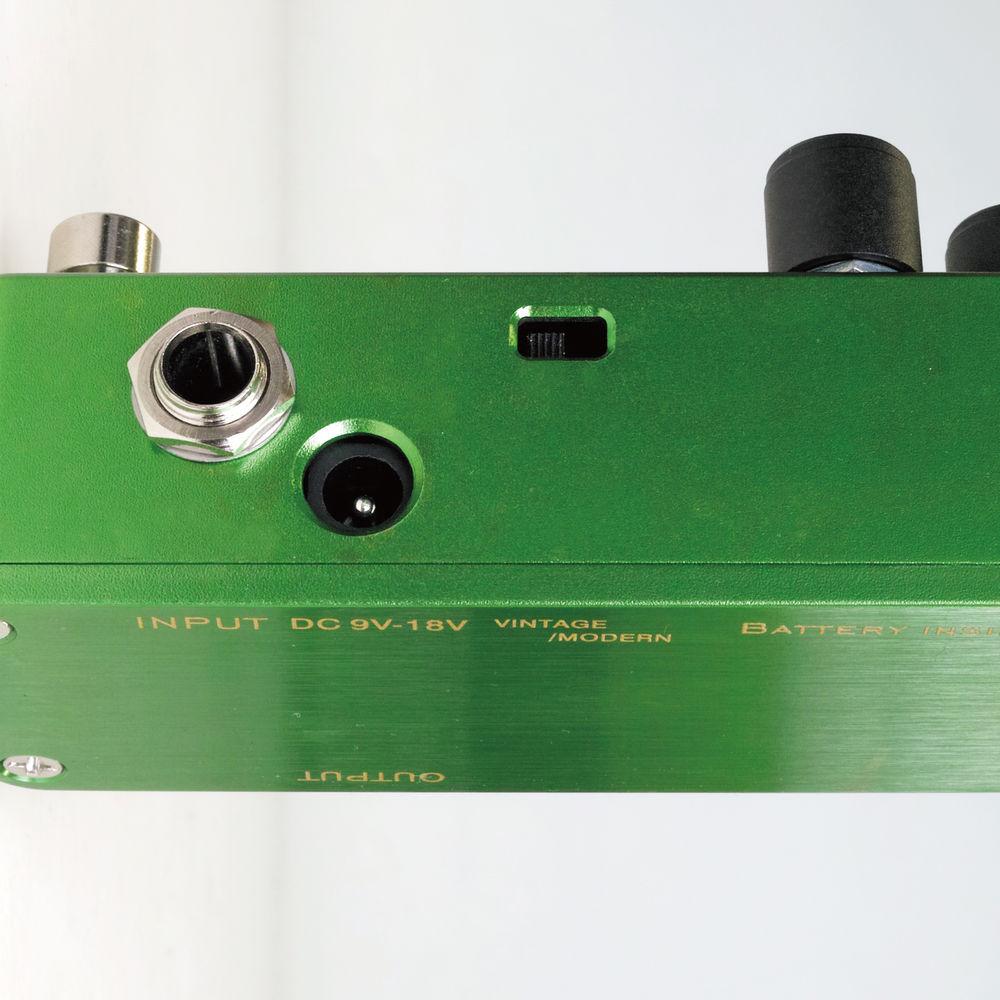

Product description The Persian Green Screamer from OneControl is a BJF Series overdrive pedal designed to offer overdrive sounds inspired by the iconic TS-808 tube screamer, great for rock, blues, and alternative guitarists. It integrates a dual op-amp and symmetrical diode clipping, providing tones beyond those available on a typical tube screamer. Its switchable distortion mode allows quick flipping between classic and modern overdrives.The pedal’s Vintage mode yields midrange-heavy overdrive similar to that of a tube screamer. Flip the switch to Modern for more transparent, balanced, and responsive overdrive. Simple controls allow for quick tonal adjustment. Set the desired amount of distortion using the Drive knob. Then, balance the output volume via the Level control. The Tone circuit, only active in Modern mode, offers gentle tailoring of the overdrive’s brightness. For boost, rather than overdrive, turn the Drive fully counterclockwise and the Level fully clockwise.Like all BJF Series pedals, the Persian Green Screamer features an aluminum enclosure and true bypass switching. Power can be supplied from a 9V battery or 9 VDC power supply (both available separately). The pedal will yield increased headroom and less gain when a high-voltage power supply (18V maximum) is used. -
- Switchable distortion modes (Vintage and Modern)
- Use Vintage mode for overdrive inspired by the classic tube screamer sound
- Modern mode gives thick, transparent overdrive
- Drive control for distortion level
- Tone control for equalization in Modern mode
- Level control for output volume
- True bypass switching
- Aluminum enclosure
- Power can be supplied from 9V battery or 9 VDC power supply (both available separately)
UPC: 818996011753 In the Box OneControl Persian Green Screamer Overdrive Pedal Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the OneControl Persian Green Screamer Overdrive Pedal in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersOneControl PERSIAN-GREEN Specs | Impedance | 500 kOhms (input)
10 kOhms (output) | | Signal to Noise Ratio | -100 dB | | Current Consumption | 2 mA @ 9 V | | Operational Voltage Range | 9 to 18 V | | Power | 9 V battery or 9 VDC power supply | | Enclosure Material | Aluminum | | Dimensions (W x D x H) | 1.5 x 3.9 x 1.2" / 39 x 100 x 31 mm (excluding protruding parts)
1.9 x 3.9 x 1.9" / 47 x 100 x 48 mm (including protruding parts) | | Weight | 5.6 oz / 160 g (approximately) | | | | Package Weight | 0.5 lb | | Box Dimensions (LxWxH) | 5.2 x 2.9 x 2.4" |
