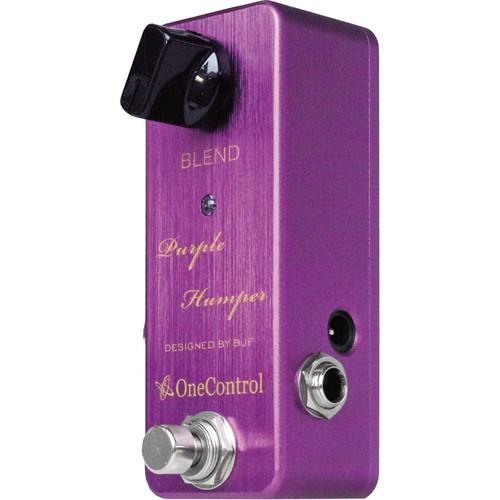

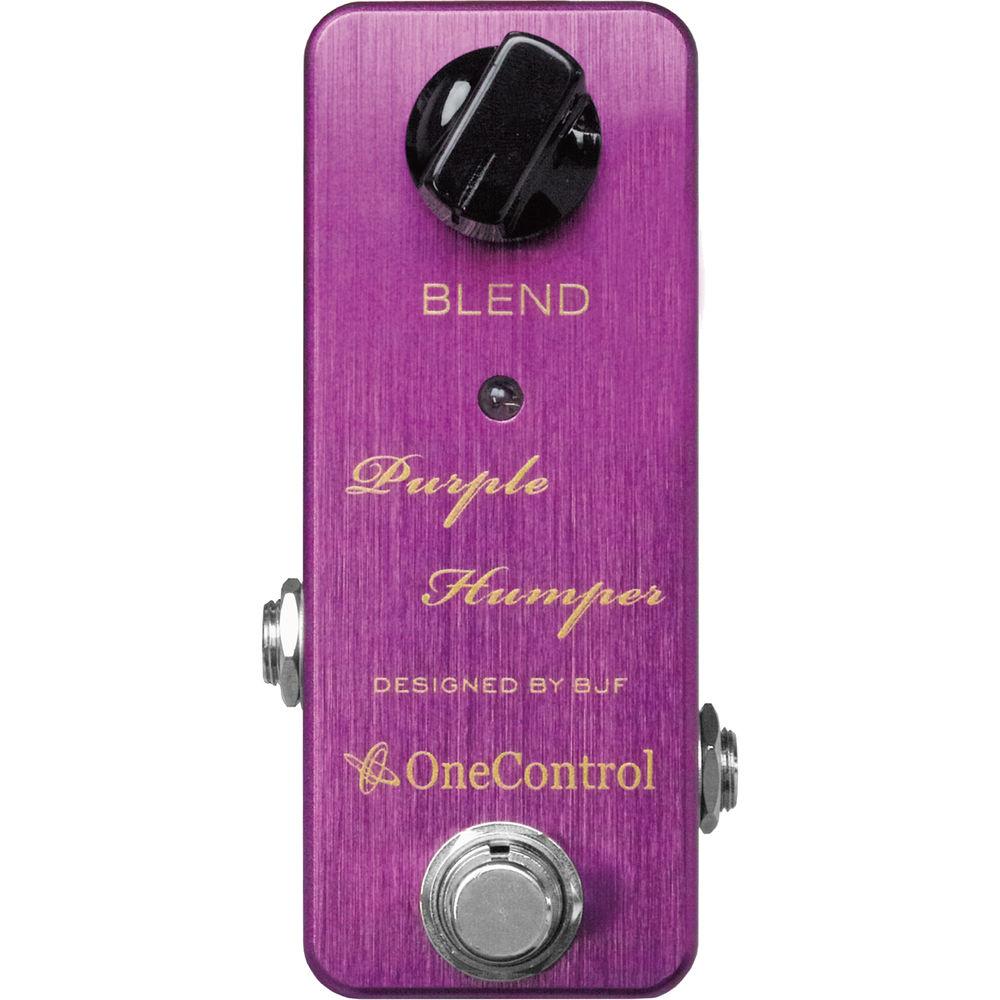

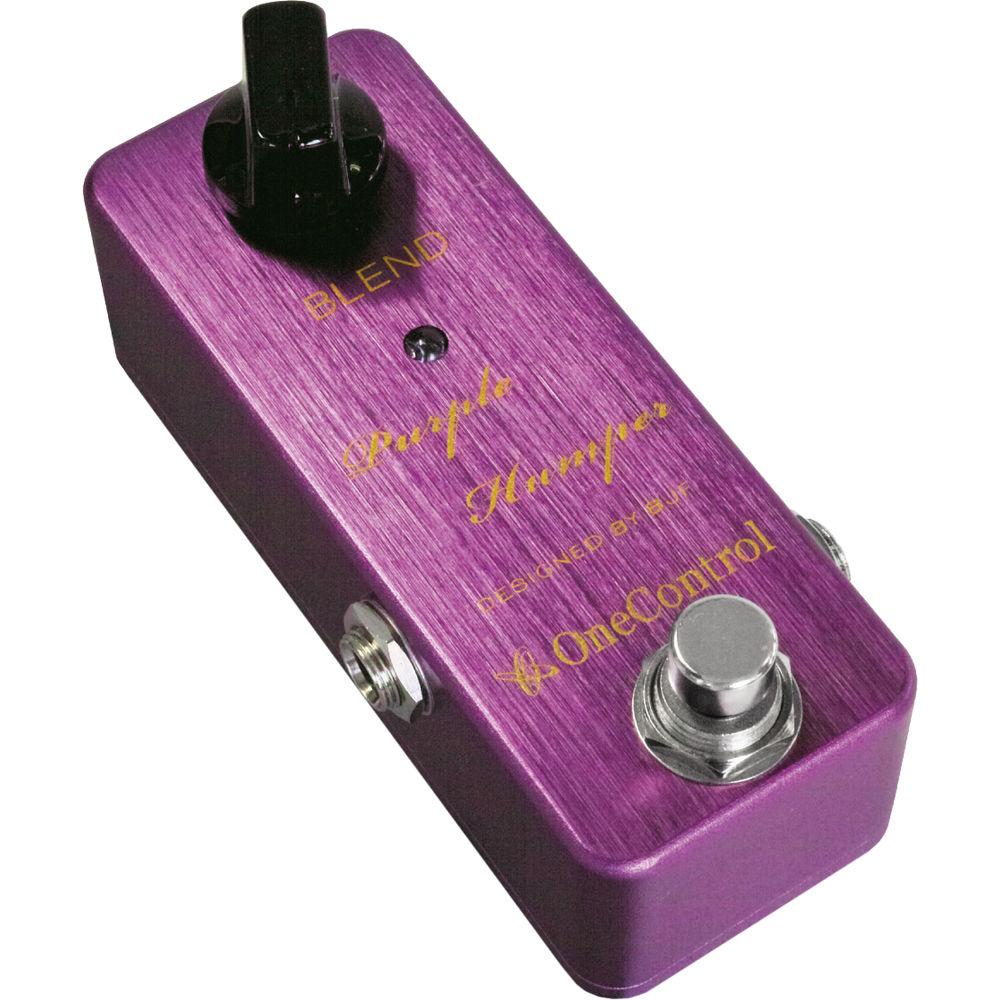

User Manual for OneControl Purple Humper Mid-Booster Pedal Click to enlarge the picture
Contents of the user manual for the OneControl Purple Humper Mid-Booster Pedal
- Product category: Effects Pedals OneControl
- Brand: OneControl
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for OneControl Effects Pedals
 |
User manual for the OneControl Purple Humper Mid-Booster Pedal contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any OneControl product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official OneControl user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a OneControl product will considerably shorten its lifespan!
|
Product description The Purple Humper from OneControl is a BJF Series boost pedal designed to offer 15 dB of midrange-emphasized boost for electric guitarists using single coil, P-90, and humbucking pickups. Its single control, Blend, sets the mix of input and boost signals.By focusing on midrange frequencies, the Purple Humper can effectively modify tone while changing gain. Use it to make a transistor amplifier sound similar to a vintage British amp. Make bridge pickups in solid-body guitars sound more like neck pickups in hollow-body guitars. Increase preamp distortion by driving an amp input with it. Configure the booster in an amp's effects loop for control over power amp distortion. If an additional gain stage is needed for pedals lacking volume controls, place the Purple Humper before or after another pedal.Like all BJF Series pedals, the Purple Humper features an aluminum enclosure and true bypass switching. Power can be supplied from a 9V battery or 9 VDC power supply (both available separately). -
- Midrange boost inspired by vintage British amplifiers
- 15 dB of gain
- Blend control to set mix of input and boost signal
- True bypass switching
- Aluminum enclosure

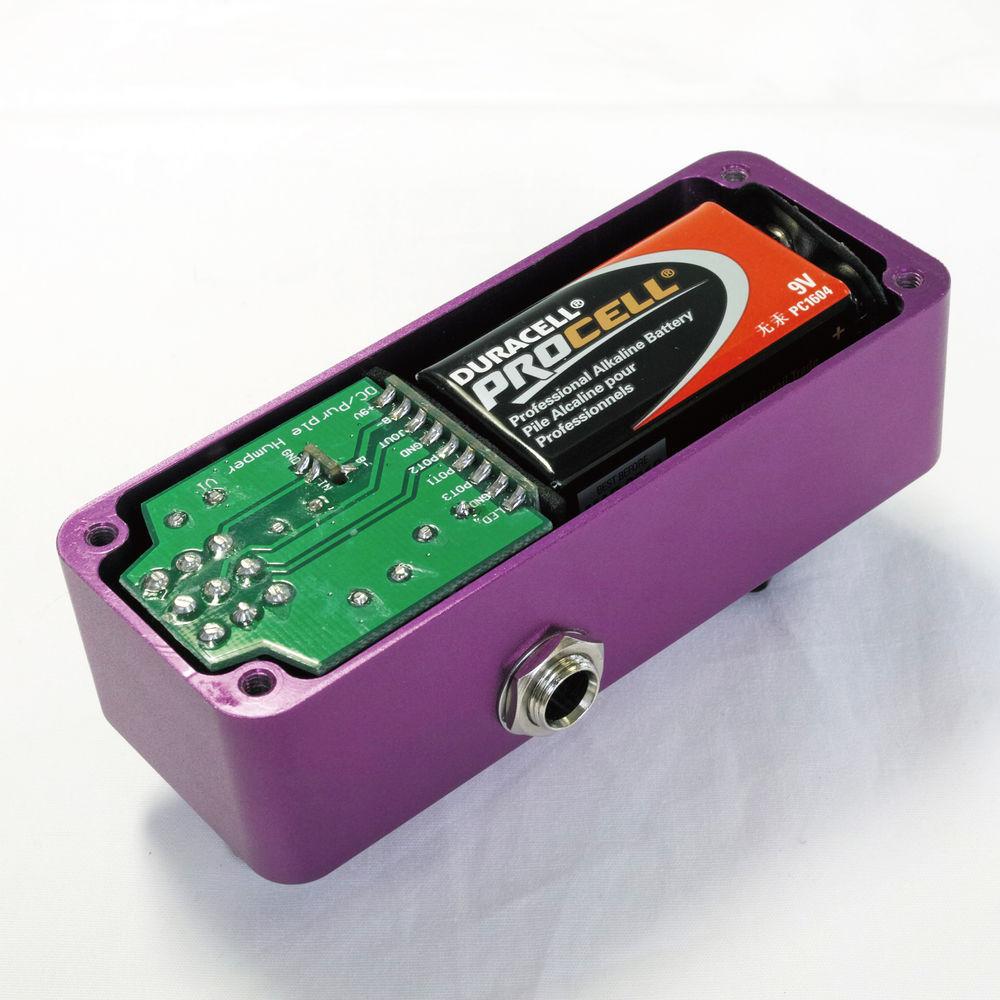

- Power can be supplied from 9V battery or 9 VDC power supply (both available separately)
UPC: 818996011708 In the Box OneControl Purple Humper Mid-Booster Pedal Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the OneControl Purple Humper Mid-Booster Pedal in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersOneControl PURPLE-HUMPER Specs | Gain | 15 dB | | Impedance | 330 kOhms (input)
1 kOhm (output) | | Signal to Noise Ratio | -100 dB | | Current Consumption | 3.6 mA @ 9 V | | Power | 9 V battery or 9 VDC power supply | | Enclosure Material | Aluminum | | Dimensions (W x D x H) | 1.5 x 3.9 x 1.2" / 39 x 100 x 31 mm (excluding protruding parts)
1.9 x 3.9 x 1.9" / 47 x 100 x 48 mm (including protruding parts) | | Weight | 5.6 oz / 160 g (approximately) |
Rating80% users recommend this product to others. And what about you?
This product has already been rated by 07 owners. Add your rating and experience with the product.
