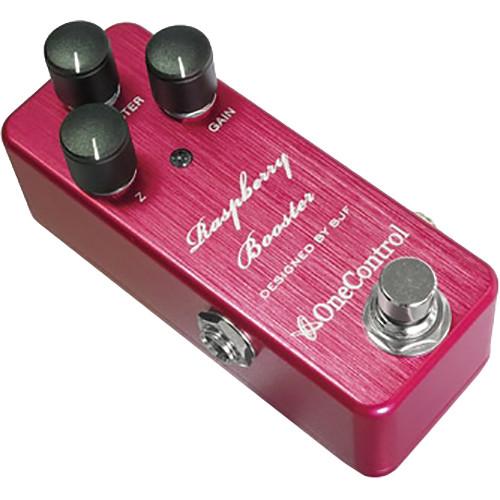

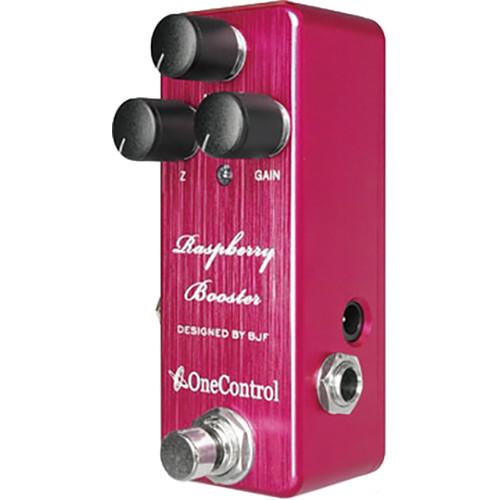

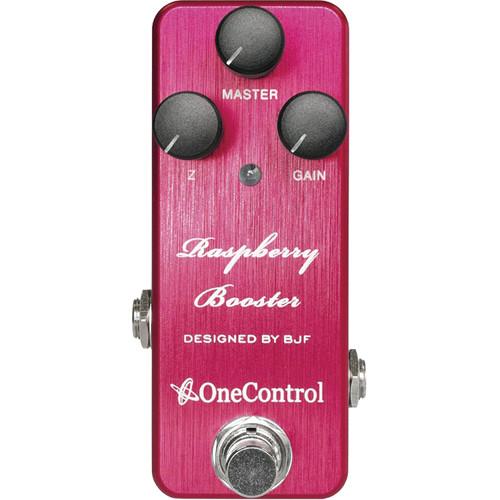

User Manual for OneControl Raspberry Booster Pedal for Electric Guitar Click to enlarge the picture
Contents of the user manual for the OneControl Raspberry Booster Pedal for Electric
- Product category: Effects Pedals OneControl
- Brand: OneControl
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for OneControl Effects Pedals
 |
User manual for the OneControl Raspberry Booster Pedal for Electric contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any OneControl product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official OneControl user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a OneControl product will considerably shorten its lifespan!
|
Product description Intended for electric guitarists, the OneControl Raspberry Booster is a pedal designed to raise the gain of your signal into the amplifier, causing it to distort naturally if it's already near the point of breakup, or simply heightening the level if the amp is sufficiently quiet. In other words, rather than producing its own distortion, the booster allows you to tailor the texture of the resulting distortion coming from the amplifier.
The pedal accomplishes this by means of its control set. Its Gain knob, for instance, also increases inherent compression. The master knob can initiate cuts as well as overall level boosts. These two controls, separated as they are, allow you to independently fine tune the squashing nature of adding gain and boosting the level.Finally, you'll note the Z knob, which controls the input impedance. Adjusting this knob will have an audible effect on the treble of the signal. You can use this to soften single-coil pickups or to add more juice to humbuckers. This control interacts with your guitar's controls to give you further versatility as you play.
The Raspberry Booster features true bypass switching to keep your signal pristine when it's not engaged. It can be powered by 9V batteries or from conventional DC power supplies. The pedal sports an aluminum enclosure. OneControl recommends you place this pedal in your signal chain first for best results. UPC: 818996012637 In the Box OneControl Raspberry Booster Pedal for Electric Guitar Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the OneControl Raspberry Booster Pedal for Electric Guitar in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersOneControl Raspberry Boost Specs | I/O | 1 x 1/4" instrument input, phone type
1 x 1/4" instrument output, phone type | | Controls | Volume knob
Treble knob
Distortion knob
Bypass/engage footswitch | | Enclosure | Aluminum | | Impedance | Input: 9.8 to 319 kOhms
Output: 25 kOhms | | Voltage | Drive voltage: 9 V | | Current Consumption | 1.5 mA | | S/N Ratio | -80 dB | | Power | 9 V battery or standard DC power supply | | Bypass | True bypass switching | | Dimensions (W x D x H) | 1.5 x 3.9 x 1.2" / 39.0 x 100.0 x 31.0 mm (not including projections) 1.9 x 3.9 x 1.9" / 47.0 x 100.0 x 48.0 mm (including projections) | | Weight | Approximately 5.6 oz / 160.0 g | | | | Package Weight | 0.45 lb | | Box Dimensions (LxWxH) | 5.2 x 2.9 x 2.4" |
Rating70% users recommend this product to others. And what about you?
This product has already been rated by 21 owners. Add your rating and experience with the product.
