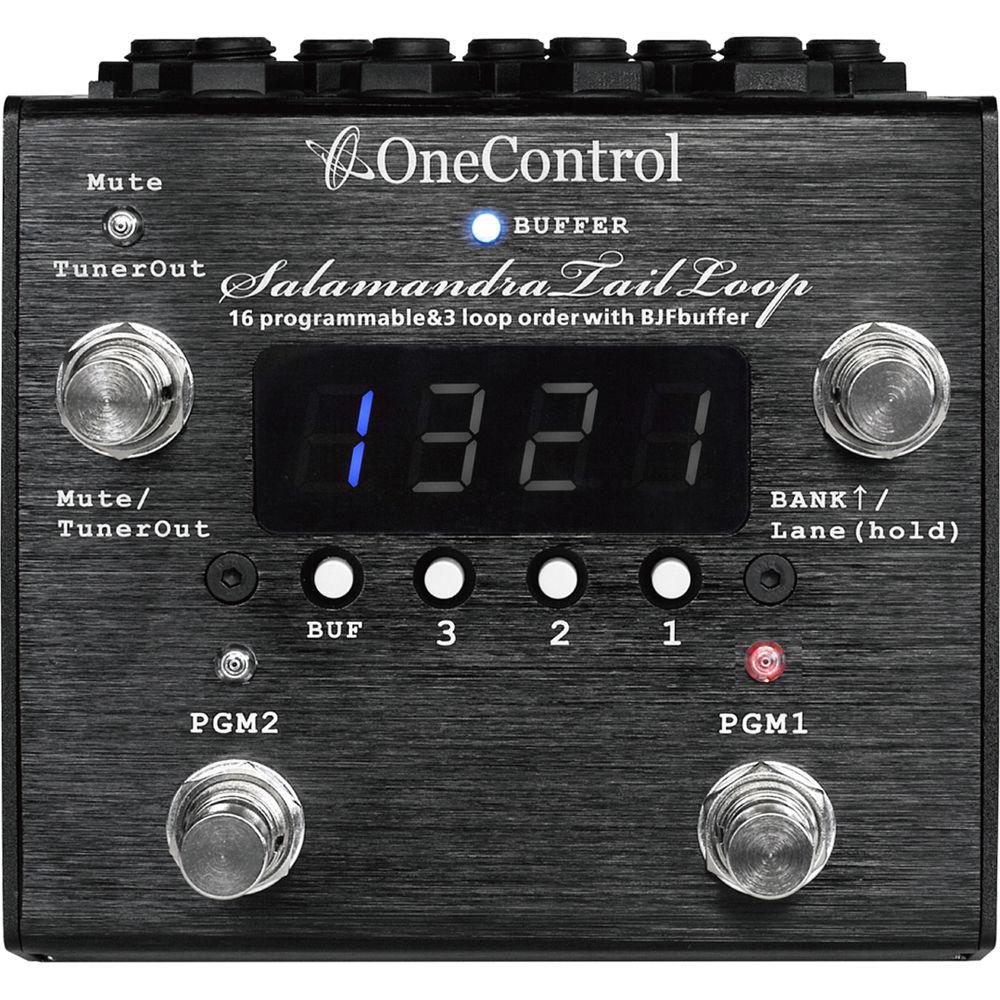

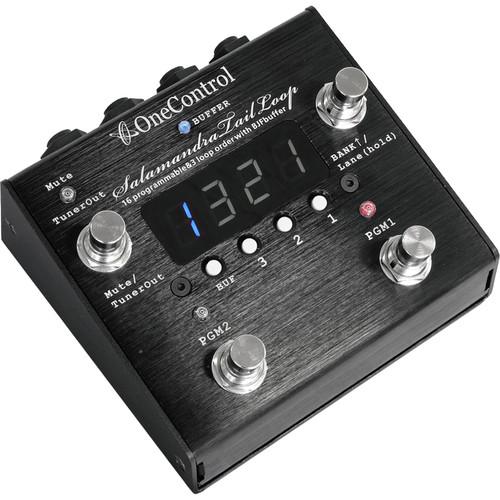

Product description The Salamandra Tail Loop from OneControl is a mono, programmable, three-loop signal switcher capable of multiple input-to-output configurations. It is designed to provide guitarists, bassists, and keyboardists an easy way to activate and reorder up to three different effects loops. It features a selectable BJF buffer on the input, plus 16 customizable presets.When the Salamandra Tail Loop is bypassed, the input signal is routed to the output jack. Upon activating a loop, the pedal will route the input to the corresponding send jack, and the corresponding return signal to the output jack. This allows simple switching between the dry input and any of the three effects loops.Rearranging the order of the three effects loops requires no re-patching. On-board controls allow you to specify the routing order of the effects loops. The current routing order is shown on the large, four-character display. Different combinations of loops can be saved as presets, then recalled later for easy access. Store and load up to 16 presets, which are arranged in four banks and two lanes. Turn on the lock switch to prevent preset changes. The 1/4" tuner output, with a dedicated tuner/mute switch, allows convenient tuning without having to reconfigure pedal connections.The Salamandra Tail Loop requires a 9 VDC power supply (available separately). If the power cable is disconnected or power is lost, the pedal automatically switches to bypass mode, ensuring no loss of sound. -
- 16 programmable presets arranged in four banks and two lanes
- 1/4" input with selectable BJF buffer
- 3 x 1/4" send and return jacks
- Multiple routing possibilities without re-patching cables
- Effects send/return loops: switch any of the three send/return loops in or out of the signal path
- Large, four-character display shows effects loop routing order
- 1/4" tuner output and dedicated Tuner/Mute switch
- Lock switch eliminates accidental preset changes
- If power is lost, the pedal automatically reverts to bypass mode, preventing loss of sound
- 9 VDC power supply required
UPC: 818996011951 In the Box OneControl Salamandra Tail Loop Three-Loop Programmable Signal Switcher Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the OneControl Salamandra Tail Loop Three-Loop Programmable Signal Switcher in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

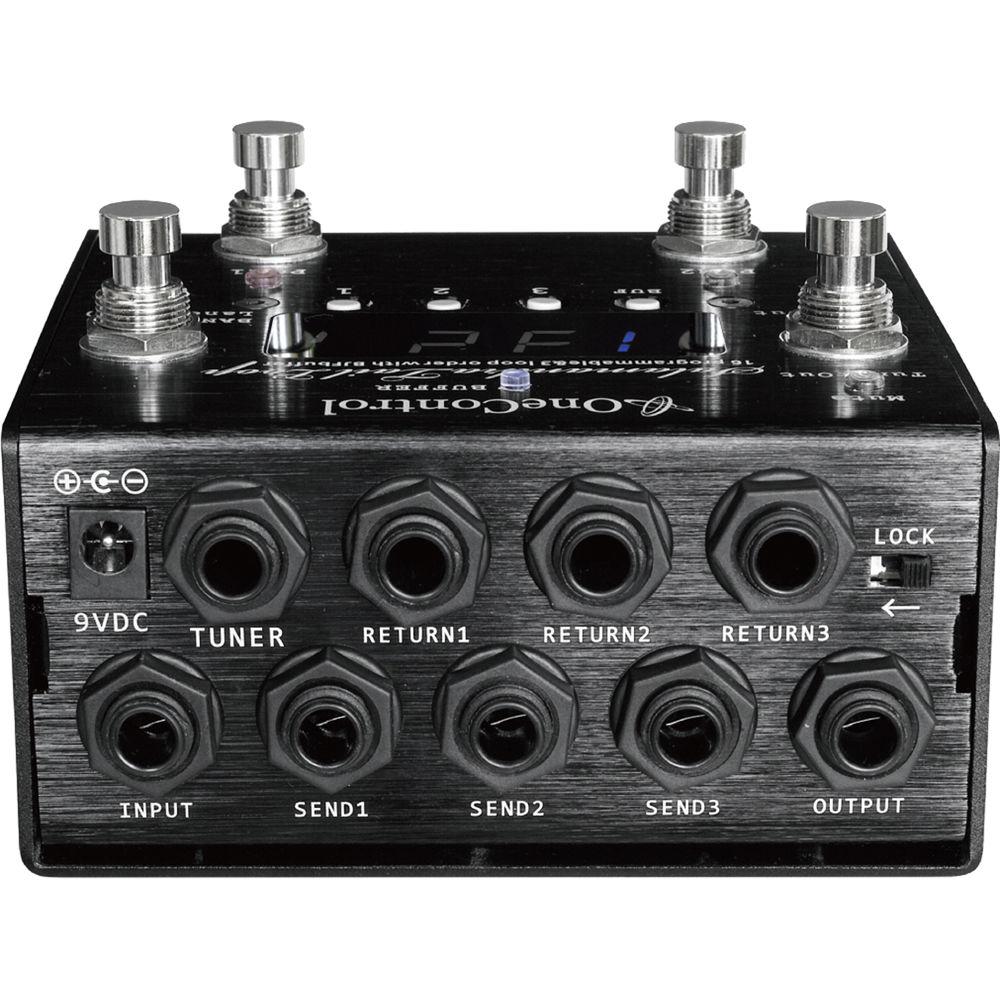

Technical parametersOneControl SALAMANDRA-TAIL-LOOP Specs | Input Connections | 1 x 1/4" | | Output Connections | 1 x 1/4" (audio)
1 x 1/4" (tuner) | | Sends/Returns | 3 x 1/4" send
3 x 1/4" return | | Impedance | 500 kOhms (input)
10 kOhms (output) | | Bypass Switch | True bypass | | Power Requirements | 9 VDC power supply | | Current Draw | 160 mA | | Enclosure Material | Aluminum | | Dimensions (W x D x H) | 4.3 x 4.5 x 2.4" / 110 x 115 x 60 mm | | Weight | 14.1 oz / 400 g |
