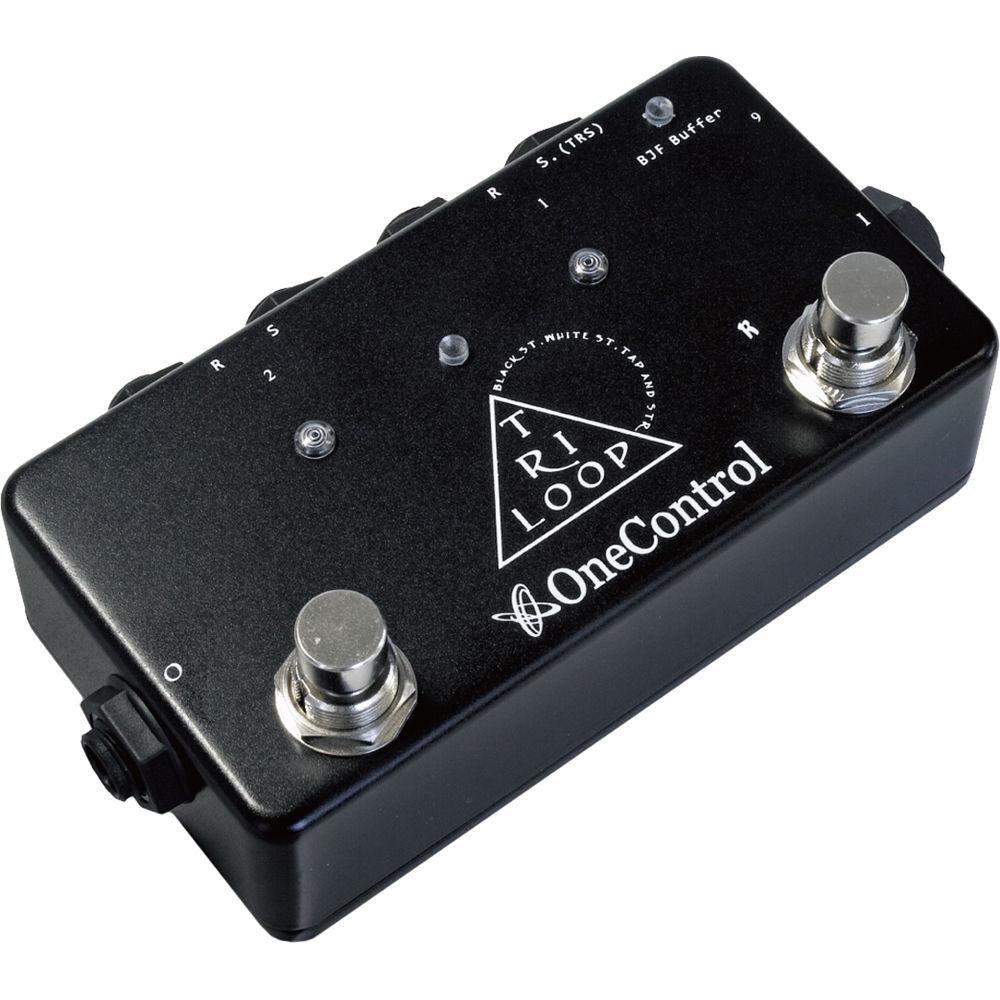

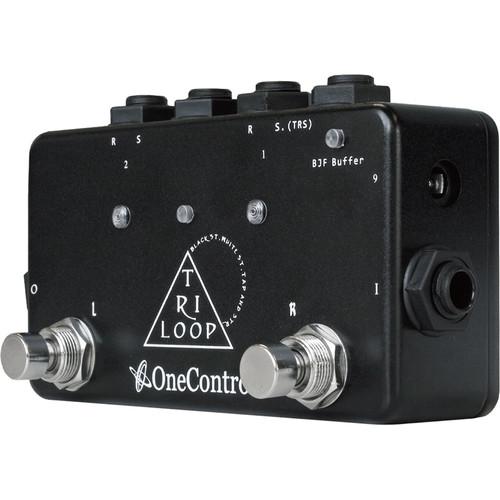

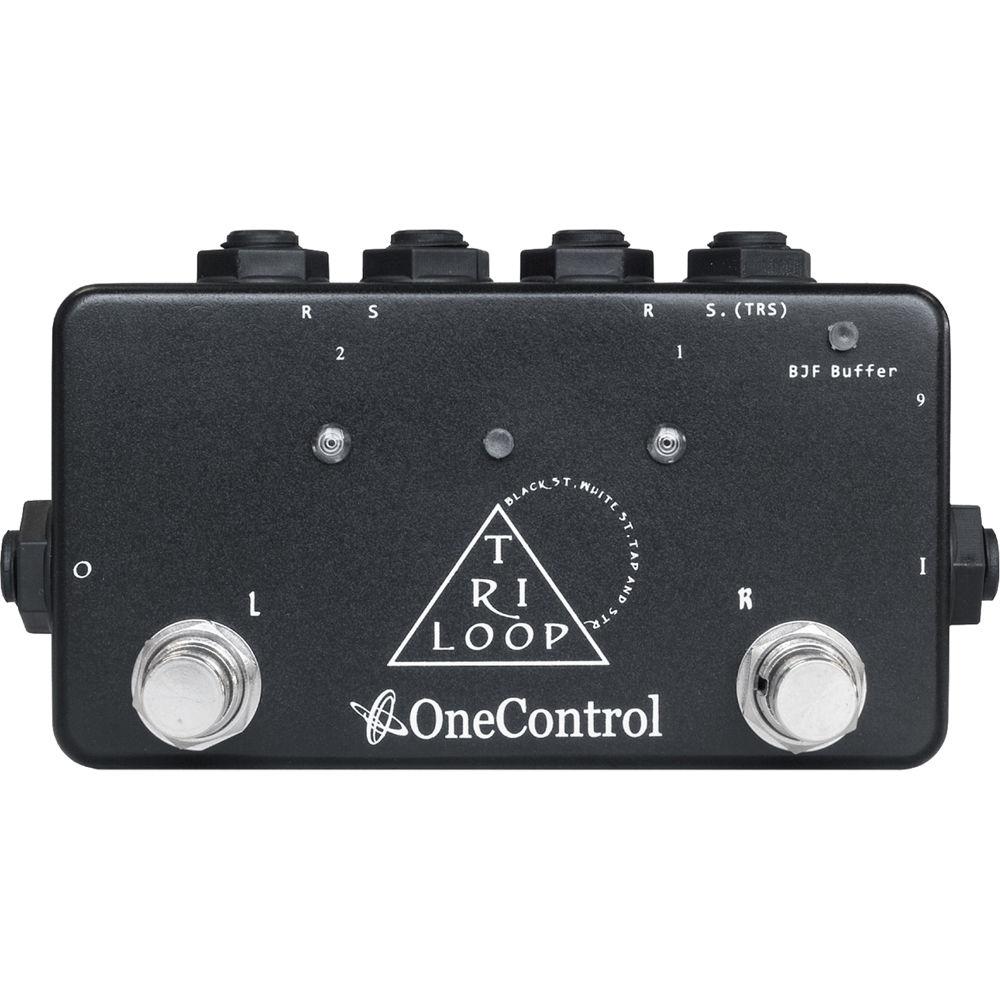

User Manual for OneControl Tri Loop 2 Loop Signal Switcher Splitter Click to enlarge the picture
Contents of the user manual for the OneControl Tri Loop 2 Loop Signal
- Product category: Effects Pedal Accessories OneControl
- Brand: OneControl
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for OneControl Effects Pedal Accessories
 |
User manual for the OneControl Tri Loop 2 Loop Signal contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any OneControl product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official OneControl user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a OneControl product will considerably shorten its lifespan!
|
Product description The Tri Loop from OneControl is a mono, two-loop signal switcher/splitter capable of multiple input-to-output configurations. It is designed to provide guitarists, bassists, and keyboardists a compact, easy way to switch between different effects, amps, or instruments. Alternatively, it can split the input signal to two simultaneous outputs for parallel processing.When the Tri Loop is bypassed, the input signal is routed to the output jack. Upon activating Loop 1 or 2, the pedal will route the input to the corresponding send jack, and the corresponding return signal to the output jack. This allows simple switching between the dry input, effects loop one, or effects loop two.Several alternate configurations are possible, based upon connections and the selected pedal mode. Bass and keyboard players may use the Tri Loop to route signal from one of three instruments into a pedalboard. Guitarists will appreciate the pedal's ability to switch between any of three amplifiers, or send signal to two amps simultaneously. With compatible devices, such as Eventide stompboxes and studio processors, the Tri Loop can be used for other functions, including tap tempo, preset change, or bypass. Additional alternate uses include tuner switching, changing amp channels, and muting.The Tri Loop requires a 9 VDC power supply (available separately). -
- 1/4" input and output
- 2 x 1/4" sends and returns
- Multiple routing possibilities based upon connections and selected mode
- Effects send/return loop: switch either send/return in or out of the signal path
- A/B/C input switching: route any of the inputs to the main output
- A/B/C output switching: route the main input to any of the three outputs
- Y-split: route the main input to two devices
- Four-color LEDs indicate mode selection
- Powered by 9 VDC power supply (available separately)
UPC: 818996011739 In the Box OneControl Tri Loop 2 Loop Signal Switcher/Splitter Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the OneControl Tri Loop 2 Loop Signal Switcher Splitter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersOneControl TRI-LOOP Specs | Input Connections | 1 x 1/4" | | Output Connections | 1 x 1/4" | | Sends/Returns | 2 x 1/4" send
2 x 1/4" return | | Power Requirements | 9 VDC power supply | | Current Draw | 100 mA | | Maximum Input Voltage | 3 V p-p | | Dimensions (W x D x H) | 4.6 x 2.5 x 2.0" / 118 x 64 x 50 mm | | Weight | 8.8 oz / 250 g |
Rating90% users recommend this product to others. And what about you?
This product has already been rated by 56 owners. Add your rating and experience with the product.
