User Manual for Onkyo A-9110 2-Channel 100W Home Theater Integrated Amplifier Click to enlarge the picture
Contents of the user manual for the Onkyo A-9110 2-Channel 100W Home Theater
- Product category: Amplifiers Onkyo
- Brand: Onkyo
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Onkyo Amplifiers
 |
User manual for the Onkyo A-9110 2-Channel 100W Home Theater contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Onkyo product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Onkyo user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Onkyo product will considerably shorten its lifespan!
|

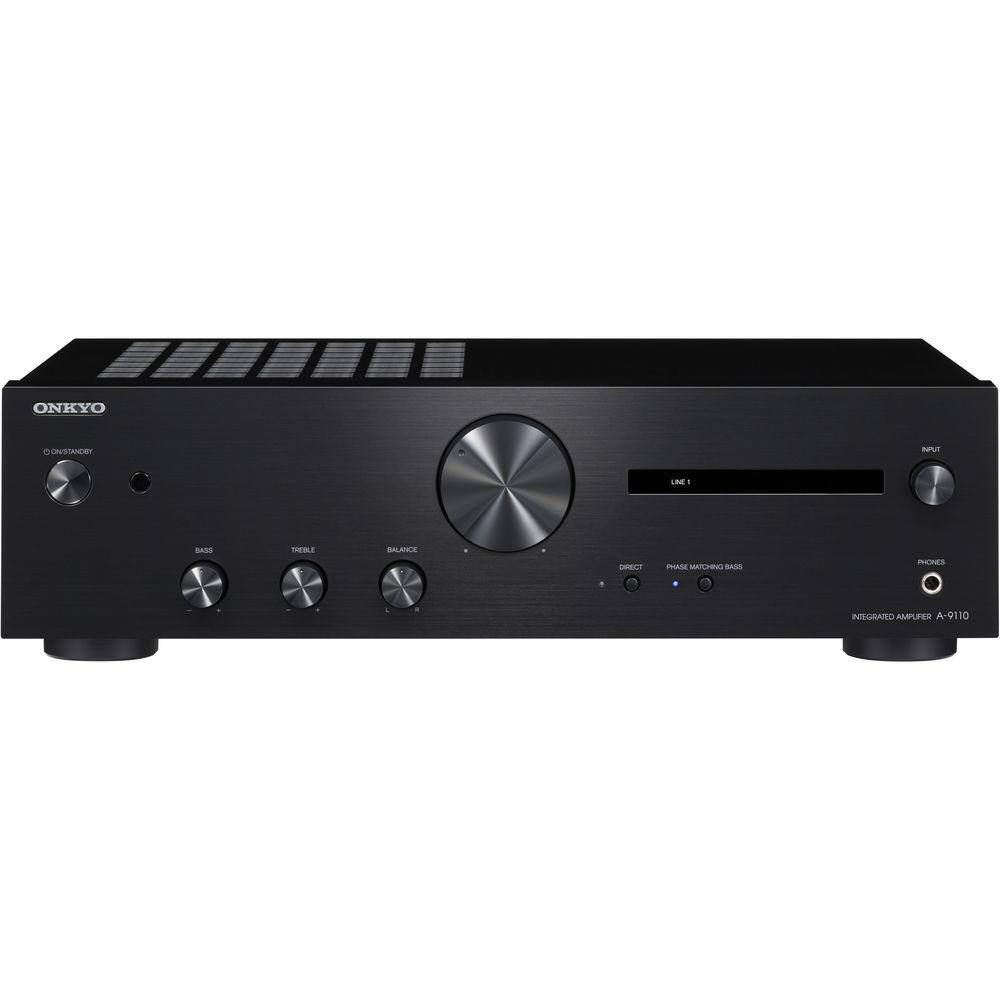

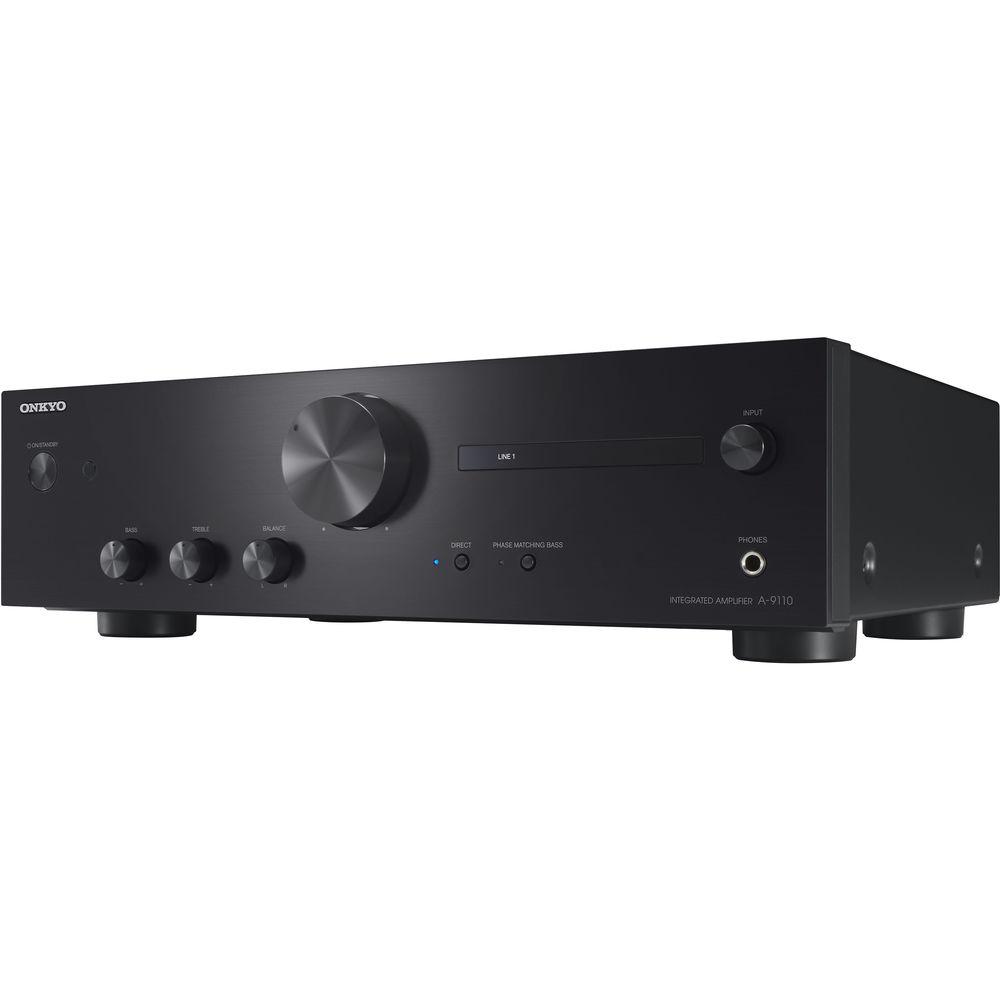

Product description Enjoy high-resolution stereo sound with your music source, speakers, and the Onkyo A-9110 2-Channel 100W Home Theater Integrated Amplifier. It delivers up to 50W per channel at 4 Ohms and has a phono input and four stereo RCA inputs. The A-9110 features a front-panel 1/4" headphone jack for private listening. - High-Current Power with Wide-Range Amplifiers

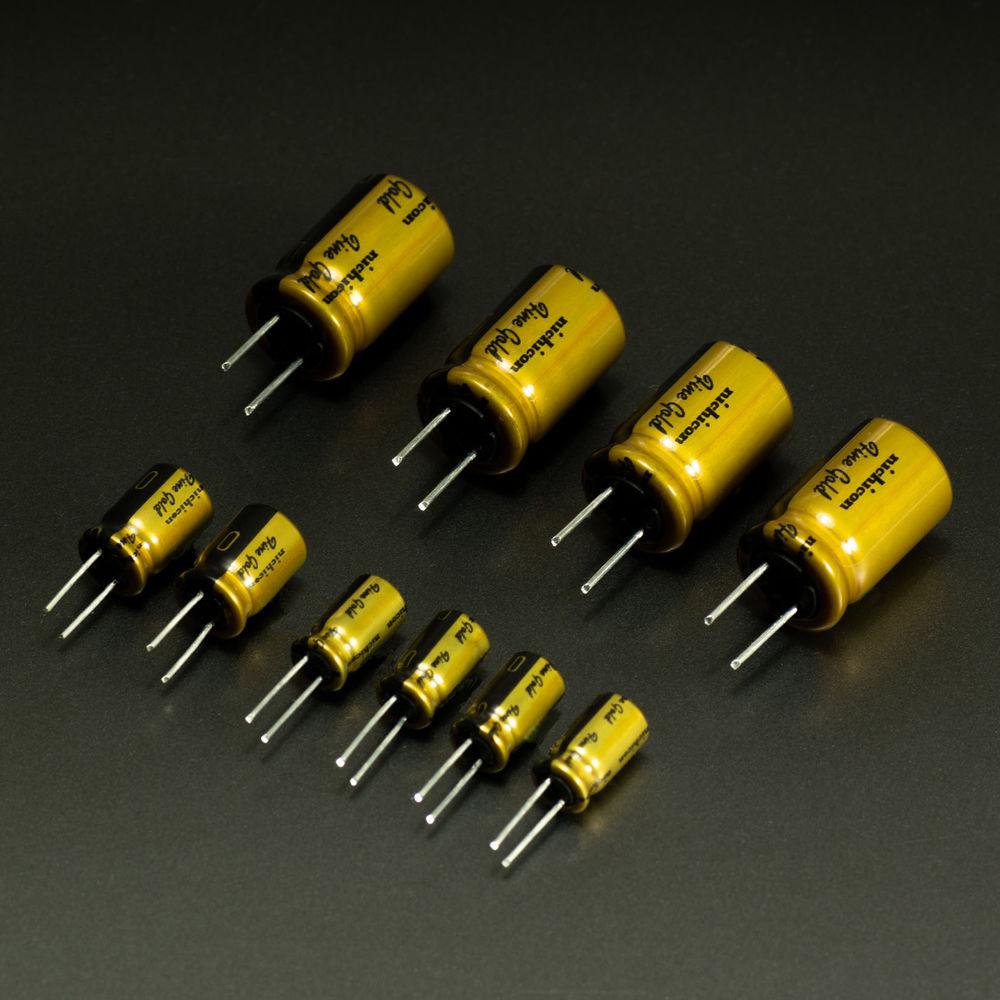

- Dynamic changes in music can cause impedance to fluctuate. If power can't be delivered when this happens, sound quality can suffer. Onkyo's solution is WRAT, the high-output El transformer and large main audio capacitors. High-current stability controls the speaker's drivers for accurate reproduction of dynamic musical passages, and the low-negative-feedback amplifier topology helps distinguish the timbral warmth, fullness, and vibrancy of the recording. Together, this circuitry is designed to capture a wide frequency spectrum with low distortion.
- Clarity at Low Volumes
- When playing music at low volume, the signal can drop close to the component's noise floor, causing the signal to pick up noise, which is then amplified, causing muffled sound. To avoid this, the A-9110 features Optimum Gain Volume Circuitry, a volume circuit that requires less than half the usual amount of attenuation. The signal doesn't approach the noise floor, so you can enjoy clear sound at low volume.
- Phase Matching Bass Boost
- To further enhance sound quality at low volumes, the Phase Matching Bass Boost function is designed to eliminate phase-shift between low- and mid-range frequency bands above 300 Hz. This helps enhance bass response without compromising vocal clarity, which is particularly useful when playing music at low volume where bass and high-frequency sounds are more difficult to hear.
- Rigid Chassis for Minimized Resonance
- Every hi-fi component generates electromechanical resonance, which translates into signal noise and affects the sound coming from your speakers. To combat the effects of vibration, the A-9110 features a rigid metal chassis that's 1/16" thick. Working together with insulators, unwanted resonance is virtually eliminated.
- Direct Mode
- This playback mode bypasses the tone and Phase Matching Bass Boost circuits. Combined with a refined amp circuit design and short signal path lengths, this helps produce accurate sound quality. Enjoy end-to-end analog music reproduction from your turntable to your speakers.
- Front-Panel Display
- The display panel is designed to be easy to read at a distance, showing the active selected input at a glance.

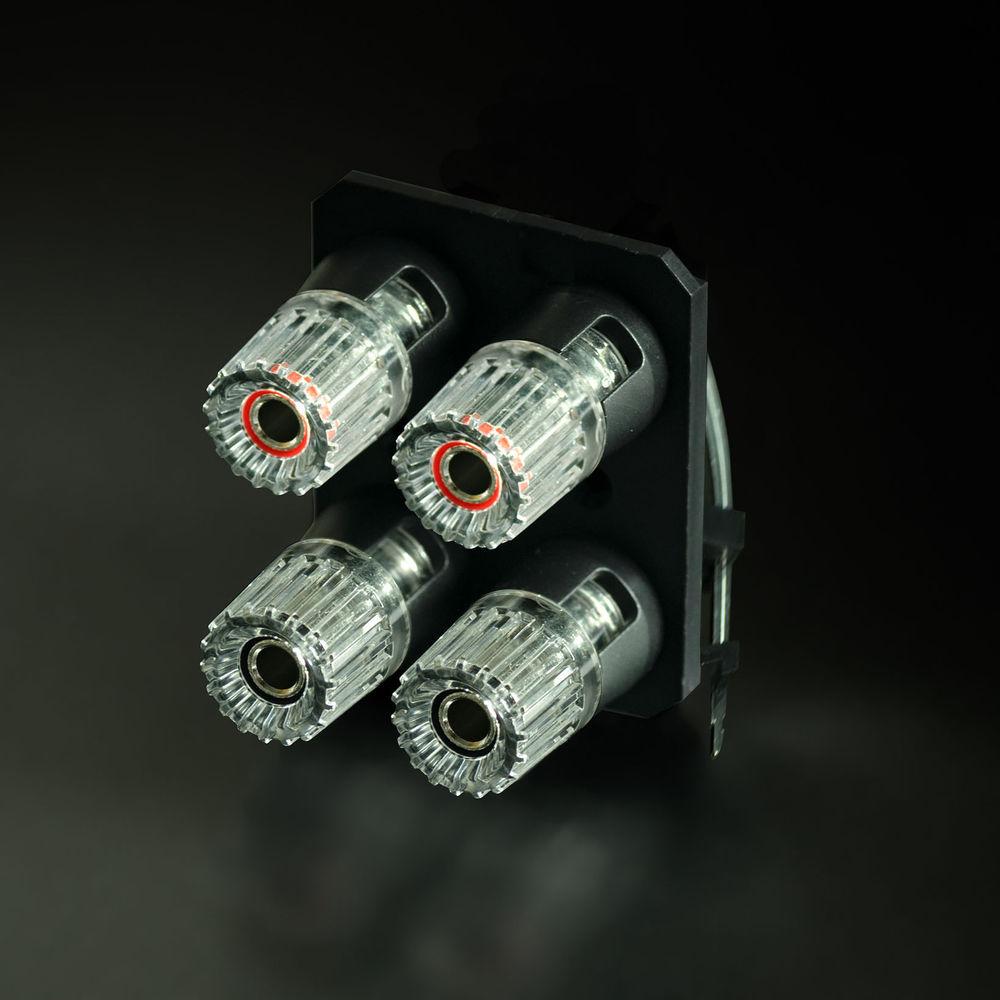

- Non-Magnetic Speaker Posts
- Speaker cables with your choice of terminal are secured by the onboard binding posts. Each non-magnetic post helps prevent interference and features an easy-to-grip transparent knob. These posts are gold-plated and banana plug-compatible.

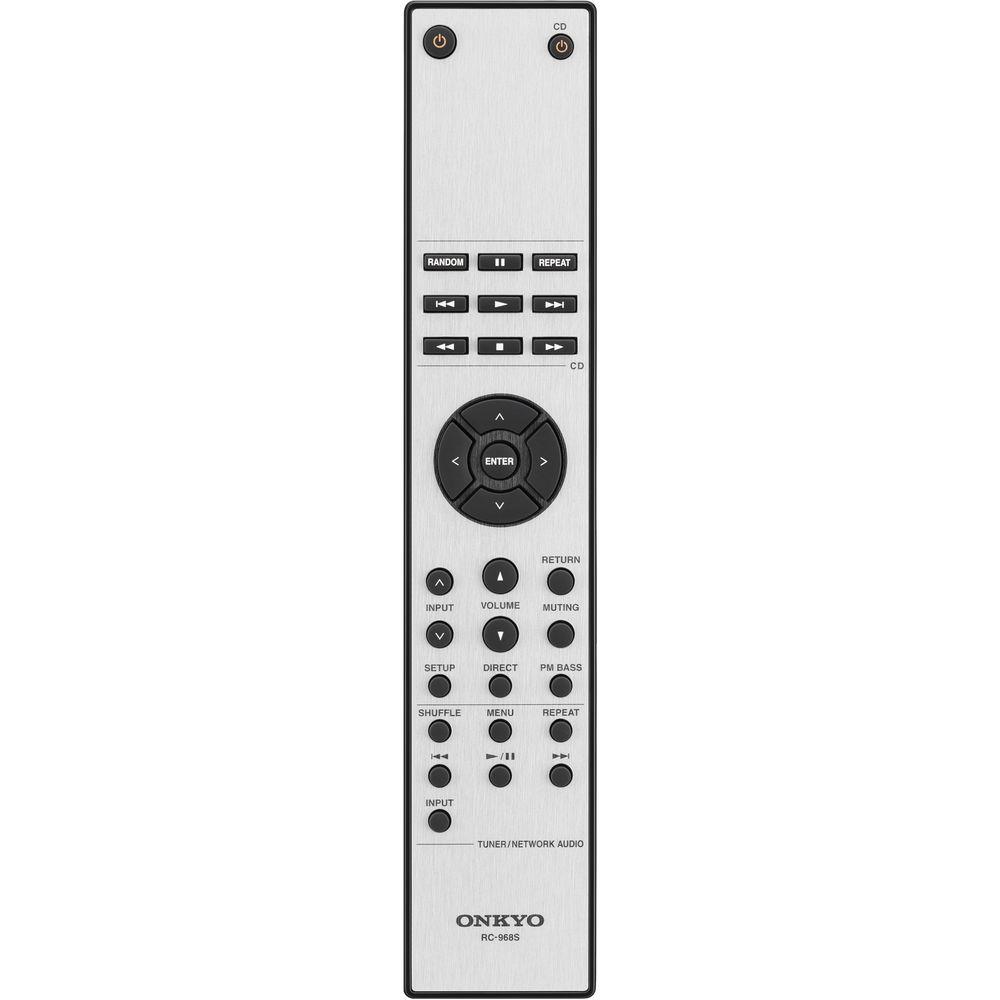

UPC: 889951001393 In the Box Onkyo A-9110 2-Channel 100W Home Theater Integrated Amplifier Remote Control 2 x AAA Batteries Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Onkyo A-9110 2-Channel 100W Home Theater Integrated Amplifier in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersOnkyo A-9110 Specs | | | Number of Channels | 2 | | Power Rating | 50 W per channel @ 4 Ohms, 20 Hz to 20 kHz, 0.9% THD, 2-channels driven, FTC | | Speaker Impedance | 4 to 16 Ohms | | Frequency Response | 10 Hz to 100 kHz, +1, -3 dB (Direct Mode) | | Signal to Noise Ratio | IHF-A, Line In, Speaker Out: 103 dB
IHF-A, Phono In, Speaker Out: 78 dB | | THD & Noise | 0.05% @ 8 Ohms, 1 kHz, half power | | Damping Factor | 95 (1 kHz, 8 Ohms) | | Tone Control | Bass: ±10 dB, 100 Hz

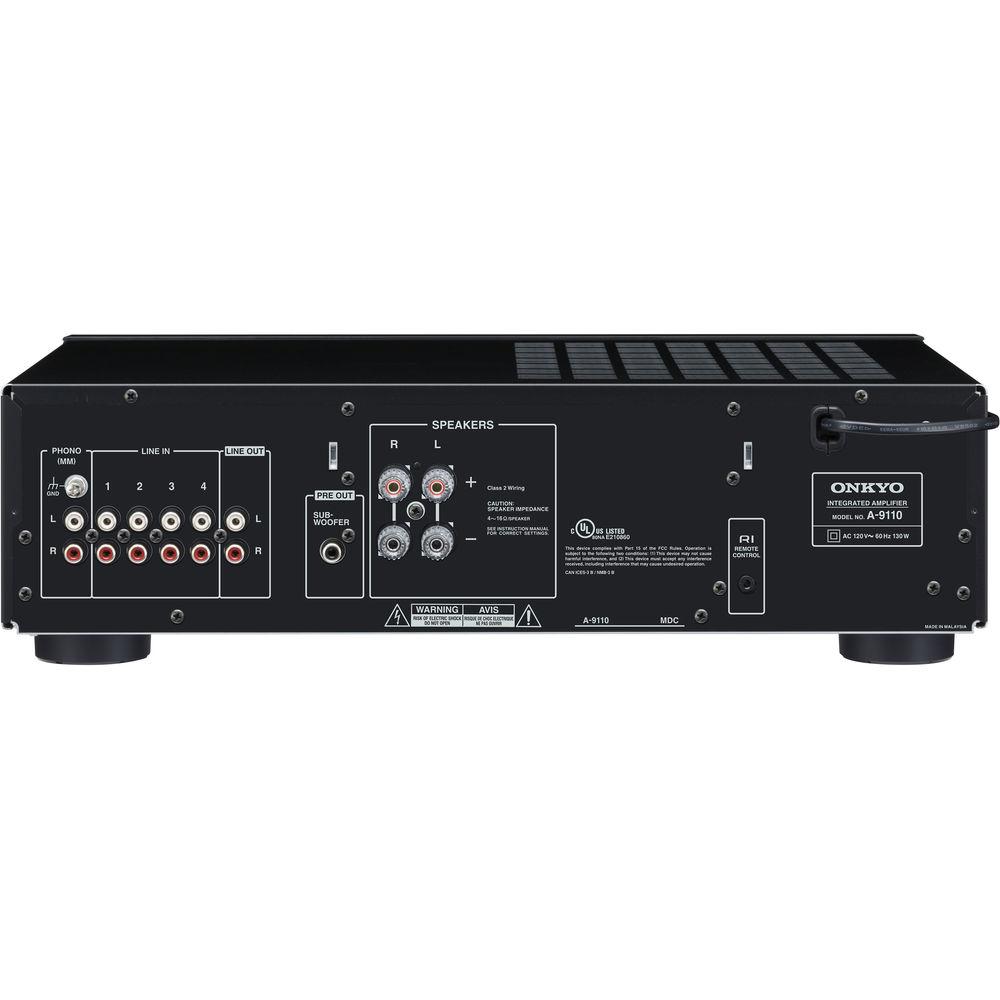

Treble: ±10 dB, 10 kHz | | | | Input | 5 x stereo RCA pairs (1 phono with ground screw) | | Output | 1 x stereo RCA pair
1 x RCA subwoofer pre-out
1 x 1/4" / 6.35 mm headphone (front) | | Speaker Connectors | 2 x gold-plated binding post pairs | | Other Connectors | 1 x 1/8" / 3.5 mm Remote Interactive port | | Input Sensitivity/Impedance | Line: 200 mV / 47 kOhms
Phono MM: 4 mV / 47 kOhms | | Output Level and Impedance | Line Out: 0.2 V / 2.3 kOhms
Phono Overload: 70 mV (MM, 1 kHz, 0.5%) | | | | Power Requirements | 120 VAC, 60 Hz | | Power Consumption (Active) | 140 W | | Power Consumption (Standby) | 0.1 W | | Dimensions (W x H x D) | 17.13 x 5.06 x 13" / 435 x 129 x 330 mm | | Weight | 15.4 lb / 7 kg | | | | Package Weight | 19.5 lb | | Box Dimensions (LxWxH) | 22.0 x 16.5 x 9.5" |
