User Manual for Onkyo CS-265 Colibrino CD Hi-Fi Bluetooth Mini System Click to enlarge the picture
Contents of the user manual for the Onkyo CS-265 Colibrino CD Hi-Fi Bluetooth
- Product category: Mini Hi-Fi Systems Onkyo
- Brand: Onkyo
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Onkyo Mini Hi-Fi Systems
 |
User manual for the Onkyo CS-265 Colibrino CD Hi-Fi Bluetooth contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Onkyo product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Onkyo user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Onkyo product will considerably shorten its lifespan!
|

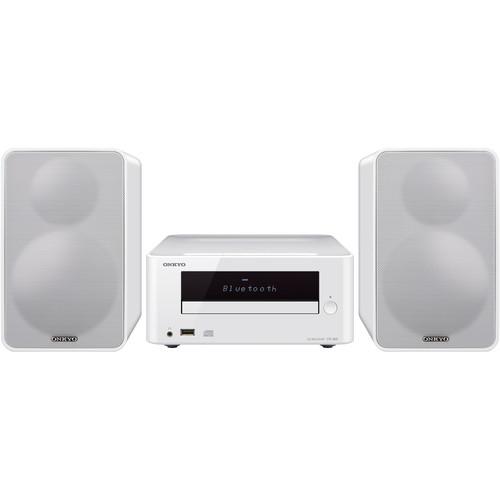

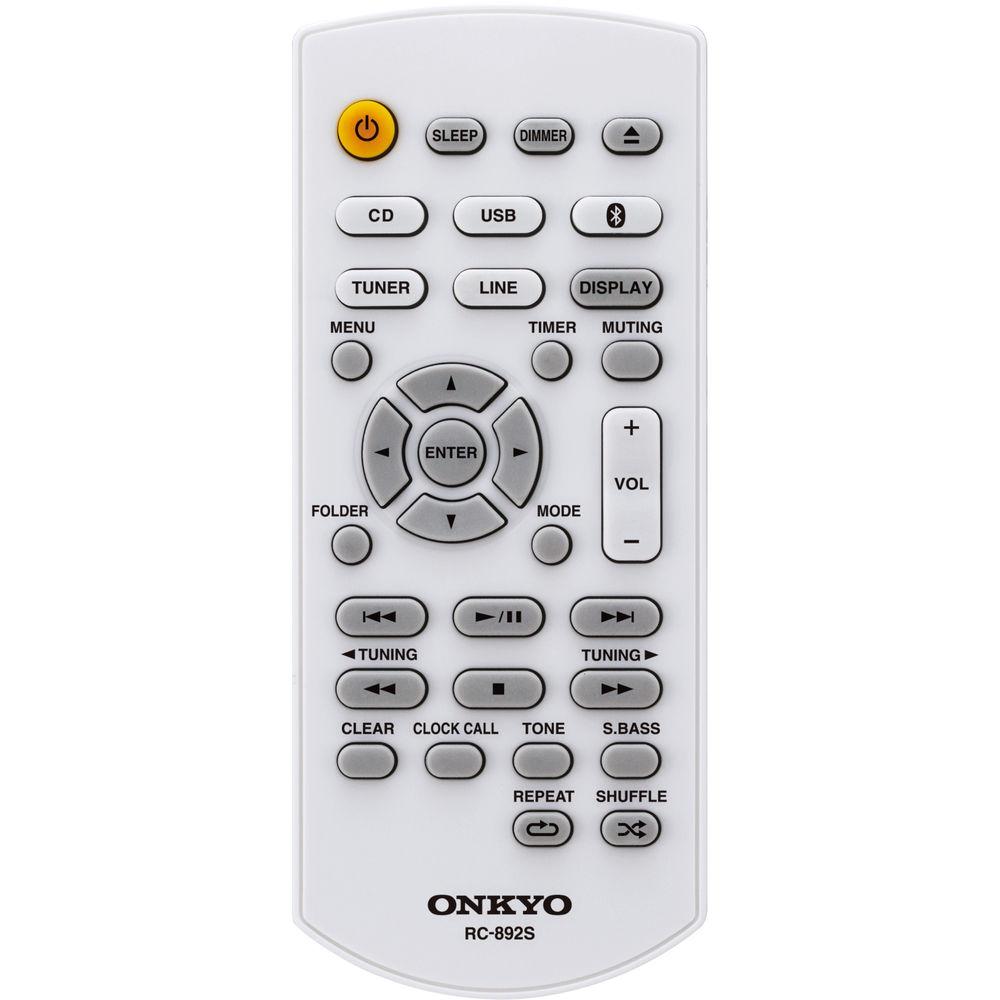

Product description Get big sound from a compact package with the Onkyo CS-265 Colibrino CD Hi-Fi Bluetooth Mini System in white. This small stereo features a front-loading CD player, Bluetooth 4.0 wireless connectivity, analog stereo input, and USB connectivity for iOS devices. Its bass-reflex speakers feature 3.9" woofers and 0.75" dome tweeters for enhanced sound reproduction over a wide volume range. A remote control is included. - USB Connectivity
- Connect your compatible iOS device via the front USB port and you'll be able to recharge while playing your favorite tracks. Select your songs via the device itself or with the system's remote control. MP3s can also be played back through compatible USB flash drives.
- Super Bass
- The two-mode Super Bass function heightens low-end tones.
- CD Player
- The front-loading CD player lets you enjoy conventional audio CDs and CD-R/RW discs along with MP3 and WAV-encoded discs. Repeat, random playback, track, and album modes give you a variety of ways to listen.
- AM/FM Tuner
- The AM/FM tuner has 30 presets, enabling you to easily find your favorite station. Presets are stored in a battery-free memory backup, protecting them in the event of loss of power.
UPC: 751398012297 In the Box Onkyo CS-265 Colibrino CD Hi-Fi Bluetooth Mini System (White) Remote Control Power Cord Indoor FM Antenna AM Loop Antenna 2 x Speaker Cable 8 x Floor Pad Limited 1-Year Warranty Guides & Manuals Table of Contents
|
Upload User Manual
Have you got an user manual for the Onkyo CS-265 Colibrino CD Hi-Fi Bluetooth Mini System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Download User ManualThe user manual for the Onkyo CS-265 Colibrino CD Hi-Fi Bluetooth Mini System can be downloaded in PDF format at the link stated below.
Technical parametersOnkyo CS-265 Specs | | | Power Rating | 20 W + 20 W (6 ohms, 1 kHz, 10% THD, two channels driven, FTC) | | No. of Channels | 2 | | Input Sensitivity and Impedance | 1000 mV/10 kOhms (LINE) | | Frequency Response | Main Unit: 30 Hz to 22 kHz ±3 dB | | Tone Control | Treble: ±7 dB, 10 kHz
Bass: ±7 dB, 80 Hz | | Total Harmonic Distortion (THD) + N | 10% (power rated)
0.1% (1 kHz, 1 W) | | Signal to Noise Ratio | 77 dB (LINE, IHF-A) | | Speaker Impedance | 6 to 16 Ohms | | AM/FM Tuner | AM Frequency Range: 530 to 1710 kHz
FM Frequency Range: 87.5 to 107.9 MHz | | AM/FM Presets | 30 | | CD Player | Front-loading, optical non-contact
Frequency Response: 30 Hz to 20 kHz
THD: 0.1%
Playable Media: CD, CD-R, CD-RW | | USB Port | Yes (front-panel USB port for iOS or flash memory device)
Supported iOS devices: iPhone through iPhone 5s, iPod touch 1st through 5th generation, iPod nano 2nd through 7th generation, iPad through iPad Air, iPad mini 1/3 | | Input | RCA, USB, Bluetooth | | Bluetooth Version | 4.0 | | Bluetooth Range | Up to 33' (10 m) | | Bluetooth Frequency | 2.4 GHz band (2.4000 GHz to 2.4835 GHz), FHSS | | Supported Bluetooth Profiles | A2DP 1.2, AVRCP 1.5 | | Supported Codecs | SBC | | Bluetooth Transmission Range | A2DP: 20 Hz to 20 kHz (sampling frequency 44.1 kHz) | | Dimensions | 8.5 x 3.9 x 10.7" (21.5 x 9.9 x 27.3 cm) | | Weight | 4.2 lb (1.9 kg) | | | | Speaker Type | 2-way bass reflex | | Frequency Response | 80 Hz to 20 kHz | | Crossover | 10.4 kHz | | Impedance | 6 ohms | | Maximum Input Power | 40 W | | Output Sound Pressure Level | 82 dB/W/m | | Magnetic Shielding | Yes | | Driver | 3.9" (10.0 cm) cone woofer
0.8" (2.0 cm) balanced dome tweeter | | Connector Type | Spring type, color coded | | Capacity | 0.12 ft3 (3.4 L) | | Dimensions | 5.1 x 8.3 x 6.9" (13.0 x 21.0 x 17.6 cm) each, including grille and projection | | Weight | 3.7 lb (1.7 kg) | | | | Remote Control | Yes, 32 buttons, takes CR2025 battery | | Power Requirements | Power Supply: 120 VAC, 60 Hz
In-Use Power Consumption: 32 W
Standby Power Consumption: 0.5 W (without mobile device connection) | | | | Package Weight | 14.8 lb | | Box Dimensions (LxWxH) | 15.5 x 13.5 x 10.0" |
Rating98% users recommend this product to others. And what about you?
This product has already been rated by 79 owners. Add your rating and experience with the product.
