User Manual for Onkyo CS-N575 40W Network Music System Click to enlarge the picture
Contents of the user manual for the Onkyo CS-N575 40W Network Music System
- Product category: Mini Hi-Fi Systems Onkyo
- Brand: Onkyo
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Onkyo Mini Hi-Fi Systems
 |
User manual for the Onkyo CS-N575 40W Network Music System contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Onkyo product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Onkyo user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Onkyo product will considerably shorten its lifespan!
|

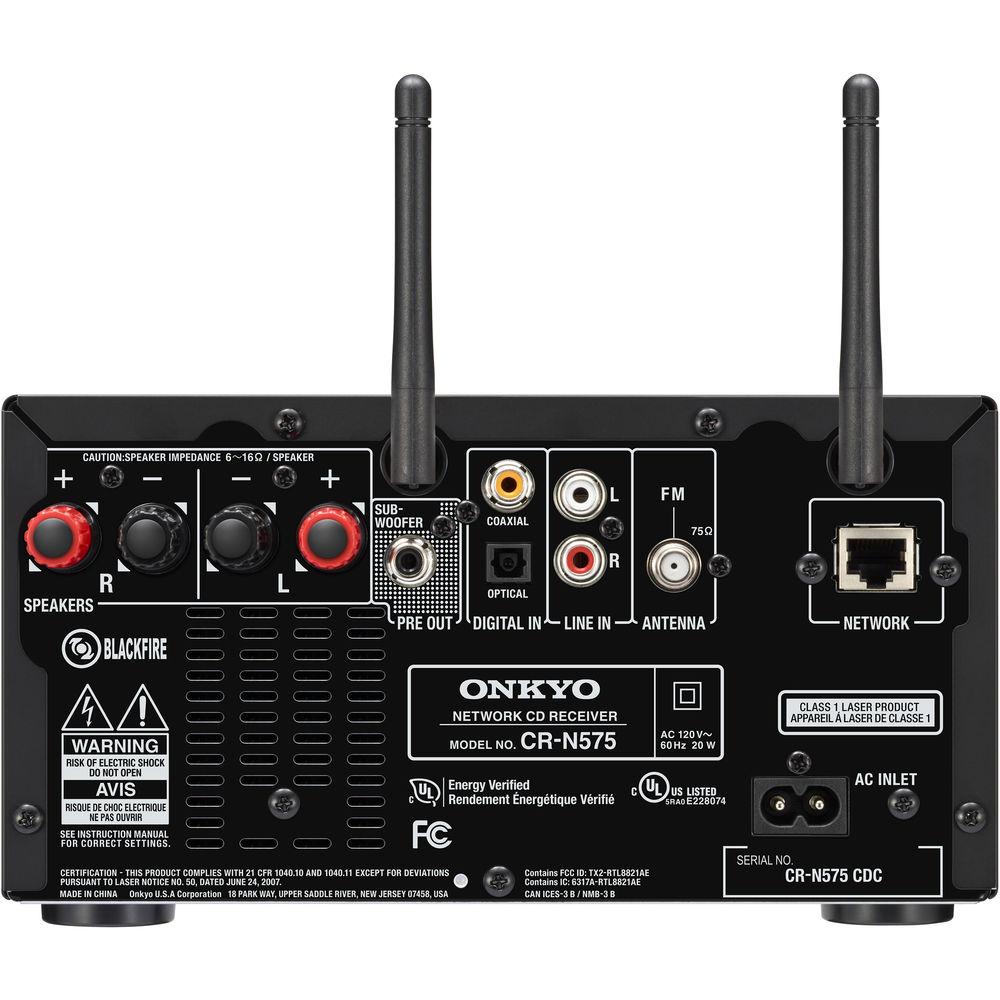

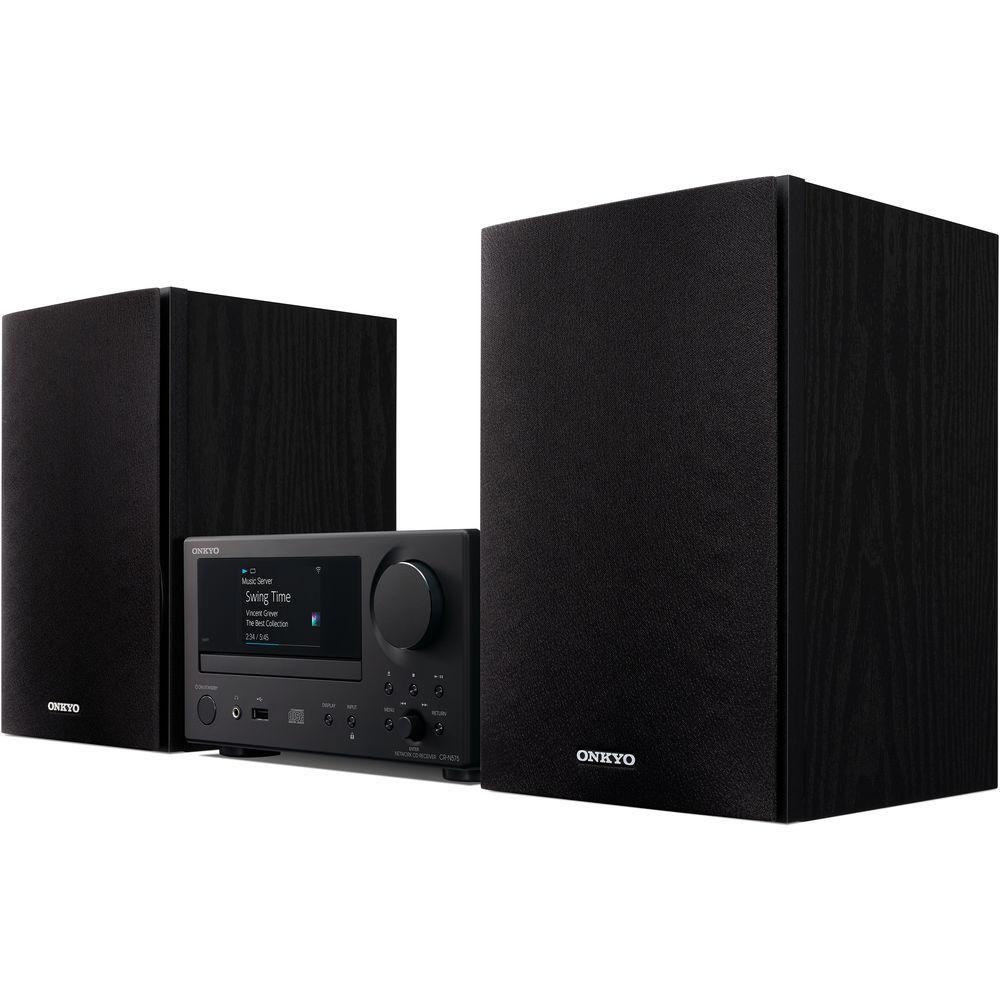

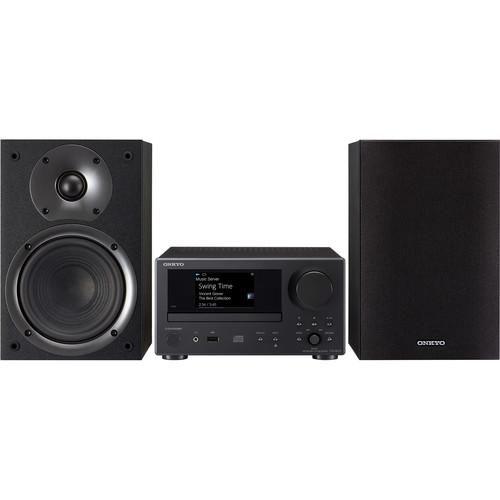

Product description Enjoy Bluetooth and Wi-Fi wireless streaming, FM radio, and CD playback with the Onkyo CS-N575 40W Network Music System. It features a stereo design that produces up to 40W of total power with its 2-way speakers. In addition to the aforementioned sources, the CS-N575 also features stereo RCA, digital coaxial, and optical inputs, allowing you to connect a variety of device types. The USB input allows for playback of your digitally stored media from flash drives and HDDs. - Connect with Chromecast built-in
- Stream music and control playback with Chromecast-enabled apps from your compatible device, such as an iOS or Android phone or tablet, Mac or Windows computer, or Chromebook.
- FireConnect Wireless Multi-Room Audio
- FireConnect is designed to mirror network audio and external analog sources connected to a master component on FireConnect-compatible speakers in other rooms. Music selection, speaker grouping, and playback management across the home are built into the Onkyo Controller app for iOS and Android devices.
- Integrated Wi-Fi and Streaming Services
- Built-in Wi-Fi provides access to Spotify, Pandora, TIDAL, Deezer, and TuneIn via the system GUI.
- Switching Amp with Optimum Audio Control Technology
- The CS-N575 features a switching amplification system designed to deliver high speaker-driving power, maximizing sound pressure levels for enhanced energy and punch over an expansive soundstage. Optimum Audio Control technology was developed to integrate amplification and speaker characteristics with factory DSP tuning for harmonized performance with augmented vocal range, dynamics, and clarity of detail.
- Two-Way Bookshelf Speakers
- The accompanying 2-way bookshelf speakers each incorporate a 5.2" pressed cone woofer made from natural pulp fiber that's designed to be expressive of vocal nuances with deep bass. Soft-dome tweeters are fashioned to sound clean and unstrained in the high frequency range, with unwanted resonance absorbed by MDF baffles.
- Onkyo Controller App
- The Onkyo Controller app supports system and multi-room playback control, the selection and distribution of on-demand streaming services, and more in one interface for iOS and Android devices.
- Plug-and-Play Audio via USB Input
- Plug a portable HDD or USB flash memory device into the front USB input and access your digital music using the JOG dial or remote control.
- FM Tuner with 40 Memory Presets
- Scan and save up to 40 FM radio stations for one-touch recall.
- Bluetooth Wireless Audio Streaming
- With Bluetooth wireless technology, you can tap and stream virtually any audio playing on your compatible device. The Auto Connect function and wake-on-signal detection help expedite your listening experience.
- Ready for DTS Play-Fi Multi-Room Audio, via a Future Firmware Update
- The DTS Play-Fi app for iOS, Android, Windows computers, and the Kindle Fire lets you stream from on-demand services, your media server, or your device library over Wi-Fi to any number of optional compatible speakers. DTS Play-Fi connects systems from synchronized music in every room, and can stream different music to different rooms from the same device. DTS Play-Fi supports lossless audio and is scheduled to be made available via a future firmware update.
- Additional Features
-
- Fully digital audio processing system with filtering
- Supports Hi-Res Audio playback (FLAC and WAV up to 192 kHz/24-bit)
- Direct Mode for more authentic sound-source reproduction
- JOG dial and LCD screen
- Displays album art, song, album, artist, FM station, and network streaming service information
- Bluetooth connectivity with Wake on Play, Bluetooth Standby, and Auto Connect functions
- Battery-free memory backup
- Front-loading CD player with three playback modes (normal, random, repeat)
- 96 kHz/24-bit-capable optical and digital coaxial inputs
- Program timer (daily/once)
- Sleep timer (off/30/60/90 minutes)
- 3-stage display dimmer (bright/dim/dimmer)
- Isolator feet to reduce vibration
- Removable cloth grilles for speakers

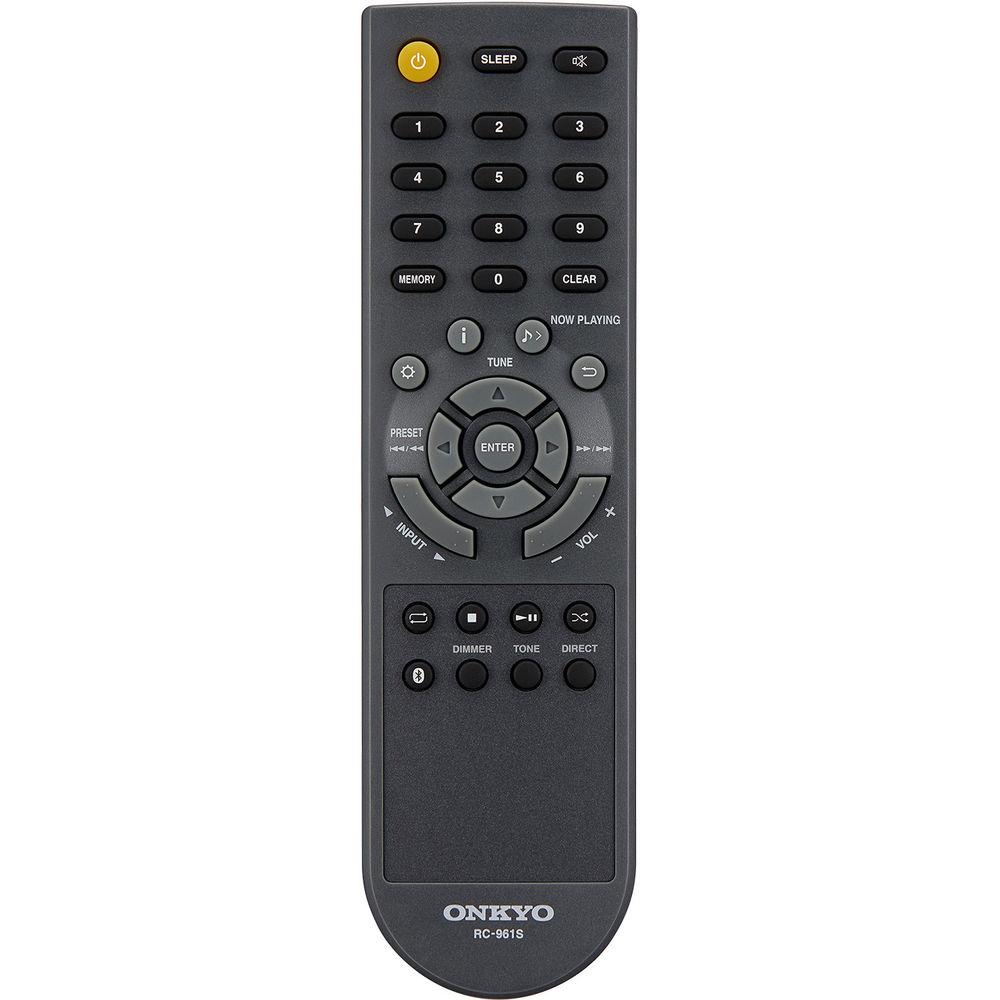

UPC: 889951001058 In the Box Onkyo CS-N575 40W Network Music System Remote Control 2 x AAA Batteries Indoor FM Antenna 2 x Speaker Cables 8 x Speaker Cushions AC Power Cable Limited 1-Year Warranty More from Manufacturer azuaebfuytvsrreceerrzycfeevbcub Table of Contents
|
Upload User Manual
Have you got an user manual for the Onkyo CS-N575 40W Network Music System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersOnkyo CS-N575 Specs | | | Power Output | 2 x 20 W (6 Ohms, 1 kHz, 10% THD, 2 channels driven)
2 x 12 W (6 Ohms, 1 kHz, 0.9% THD, 2 channels driven, FTC) | | THD & Noise | 0.05% (1 kHz, 1 W) | | Input Sensitivity and Impedance | 400 mV / 34 kOhms (Line) | | Tone Control | Bass: ±6 dB, 60 Hz
Treble: ±6 dB, 10 kHz | | Speaker Impedance | 6 Ohms | | Bluetooth | Version 4.1 + LE (A2DP/AVRCP) | | Wi-Fi | Dual-band 2.4 / 5 GHz | | Inputs | 1 x optical TOSLINK
1 x digital coaxial
1 x stereo RCA
1 x USB (front, 5 V / 0.5 A)
1 x FM antenna
1 x Ethernet LAN | | Output | 1 x 1/8" (3.5 mm) headphone (front)
1 x subwoofer pre-out | | Speaker Connectors | 2 x binding post pairs | | Power Requirements | 120 VAC, 60 Hz | | Power Consumption | Typical: 20 W
Standby: 0.3 W
Wired Network Standby On: 2.5 W
Wi-Fi Network/Bluetooth Standby: 2.9 W | | Dimensions (W x H x D) | 8.5 x 4.6 x 11.67" (215 x 117 x 296.5 mm) | | Weight | 5 lb (2.3 kg) | | | | Supported CD Format | Audio CD, CD-R/RW, MP3 CDs | | | | FM Frequency Range | 87.5 to 107.9 MHz | | Presets | 40 | | | | Speaker Type | 2-way acoustic suspension | | Drivers | Woofer: 5.2" (130 mm) pulp pressed-cone
Tweeter: 1" (25 mm) soft dome | | Frequency Response | 55 Hz to 40 kHz | | Output Sound Pressure Level | 82.5 dB/W/m | | Maximum Input Power | 20 W | | Nominal Impedance | 6 Ohms | | Cabinet Construction | Anti-resonant MDF baffle | | Dimensions (W x H x D) | 6.3 x 9.8 x 7.25" (160 x 250 x 184 mm) | | Weight | 5.7 lb (2.6 kg) each | | | | Package Weight | 20.0 lb | | Box Dimensions (LxWxH) | 18.0 x 14.2 x 13.5" |
