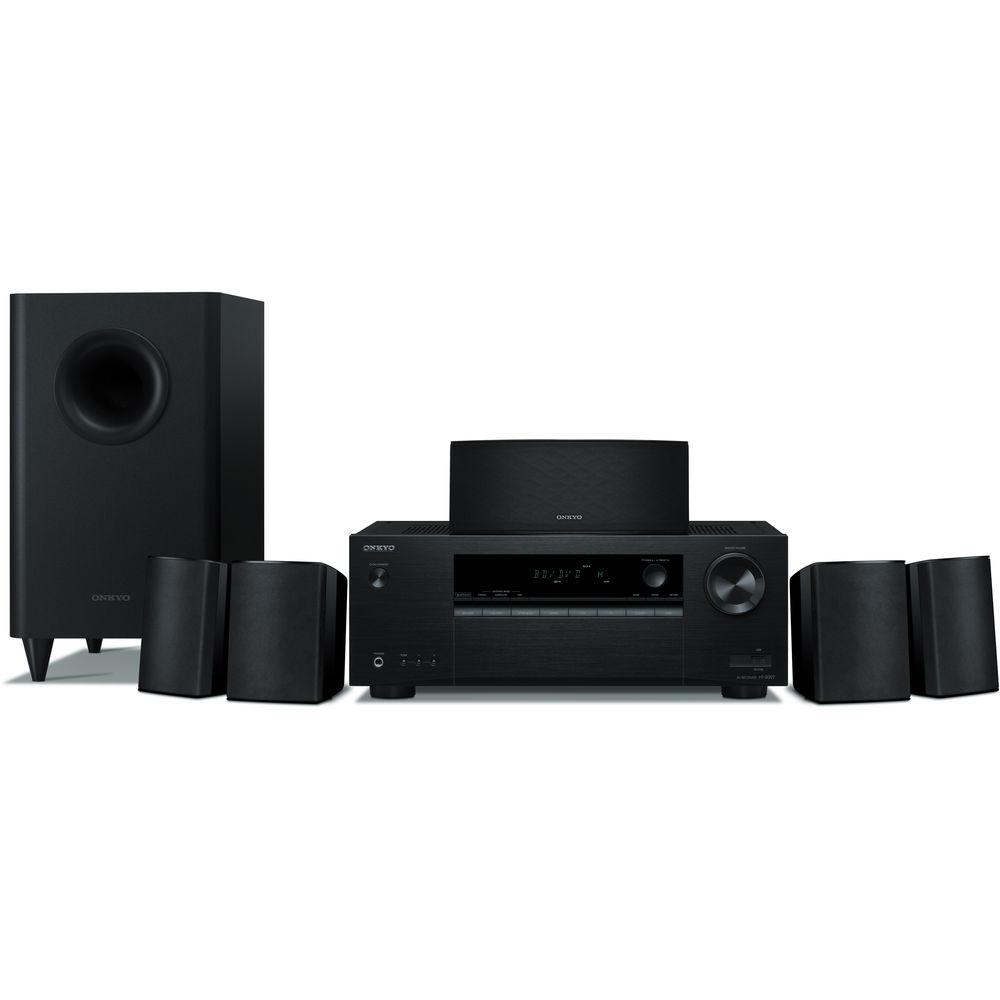

User Manual for Onkyo HT-S3900 5.1-Channel Home Theater System Click to enlarge the picture
Contents of the user manual for the Onkyo HT-S3900 5.1-Channel Home Theater System
- Product category: Home Theater in a Box Onkyo
- Brand: Onkyo
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Onkyo Home Theater in a Box
 |
User manual for the Onkyo HT-S3900 5.1-Channel Home Theater System contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Onkyo product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Onkyo user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Onkyo product will considerably shorten its lifespan!
|
Product description Enjoy an immersive surround sound experience with the Onkyo HT-S3900 5.1-Channel Home Theater System. It delivers up to 60W per channel at 8 Ohms for robust audio playback. The receiver has built-in Bluetooth technology, which allows you to wirelessly stream music from compatible audio sources such as computers, MP3 players, smartphones, tablets, and more.
Wired connectivity includes four HDMI inputs, two composite video, one optical, one digital coaxial, and three stereo RCA audio inputs. The HDMI ports support 4K resolution, which can be passed through to your display via the HDMI output, which supports ARC for the reproduction of display-based audio, such as that from built-in apps like Netflix or YouTube.
The included speaker package features a 5.1-channel configuration, with two front speakers, a center channel, two surround speakers, and a 6.44" down-firing passive subwoofer. - Movie Soundtracks at Studio Resolution
- The included receiver decodes Dolby TrueHD and DTS-HD Master Audio, which are lossless multichannel soundtrack formats common to Blu-ray discs.
- Discrete Amplification
- Discrete analog amps, as opposed to an all-in-one integrated circuit, deliver instantaneous current to the speaker system for dynamic audio reproduction.
- Bluetooth Wireless Technology Featuring Qualcomm aptX Audio
- Bluetooth wireless technology mirrors whatever's playing on your mobile device, laptop, or computer on the home theater. Devices supporting the Qualcomm aptX codec deliver virtually lossless low-latency playback, while Advanced Music Optimizer mode is designed to enrich any compressed audio for an enhanced musical experience.
- HDMI Connectivity
- The onboard HDMI terminals support 4K/60 Hz, HDR, BT.2020, and HDCP 2.2. The HDMI output supports Audio Return Channel (ARC) for the reproduction of display-based audio, such as from built-in apps.
- Enjoy Music via the USB Input
- Connect a compatible USB memory device filled with MP3, WMA, or AAC audio files to enjoy simple reproduction of your music. D/A conversion and a selection of DSP listening programs are designed to further enhance sound to suit different kinds of music.
- Easy Connection Guide Helps Simplify Setup
- Connections to speakers and external devices are labeled and illustrated on the rear panel, and the connection diagram is readable upside-down for when you're leaning over the top of the receiver. Color-coded speaker cables are also included.
- Additional Features
-
- 192 kHz / 24-bit multichannel DAC
- SACD playback via HDMI (2.8 MHz, 2 channels)
- Direct Mode for enhanced stereo playback
- A/V sync control (up to 500 ms in 5 ms steps at 48 kHz)
- HDMI pass-through on standby
- Tone control for front L/R channels (bass/treble)
- 3-mode display dimmer (Normal/Dim/Dimmer)
- Sleep Timer
- Gloss-finished speaker exteriors
- Wall-mountable front and surround speakers
- Down-firing passive subwoofer
UPC: 889951000907 In the Box Onkyo HT-S3900 5.1-Channel Home Theater System Remote Control 2 x AAA Batteries Indoor FM Antenna AM Loop Antenna Color-Coded Speaker Cables Non-Skid Pads Limited 2-Year Warranty More from Manufacturer yqeaccruzqbzbwaayyvxuwrz Table of Contents
|
Upload User Manual
Have you got an user manual for the Onkyo HT-S3900 5.1-Channel Home Theater System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersOnkyo HT-S3900 Specs | | | Channels | 5.1 | | Power Output per Channel | 60 W per channel @ 8 Ohms, 20 Hz to 20 kHz, 0.7% THD, 2-channels driven, FTC
120 W per channel @ 6 Ohms, 1 kHz, 10% THD, 1-channel driven | | THD & Noise | 0.06% (20 Hz to 20 kHz, 8 Ohms, 1-channel driven, 50 W) | | Input Sensitivity and Impedance | 250 mV / 47 kOhms (line) | | Frequency Response | 10 Hz to 100 kHz / 0 dB, -3 dB (Direct Mode) | | Tone Control | ±10 dB, 100 Hz (bass)
±10 dB, 10 kHz (treble) | | Signal-to-Noise Ratio | 106 dB (line, IHF-A Network, 1 kOhm shorted) | | Impedance | 6 to 16 Ohms | | | | Input Sensitivity/Output Level and Impedance | Composite: 1.0 Vp-p ±5%/75 Ohms | | | | Tuning Frequency Range | FM: 87.5 MHz to 108 MHz
AM: 530 kHz to 1700 kHz | | FM/AM Preset Memory | 30 stations | | | | Bluetooth | Yes, with aptX | | Audio Return Channel (ARC) | Yes | | Inputs | 4 x HDMI
2 x composite video
1 x optical TOSLINK
1 x digital coaxial
3 x stereo RCA
1 x USB (front) | | Outputs | 1 x HDMI
1 x composite video
1 x 1/4" (6.35 mm) headphone (front) | | Other Connections | 1 x AM antenna in
1 x FM antenna in | | Speaker Connectors | 6 x spring clip pairs | | | | Channels | 5.1 | | Speaker Type | Front, Center, Surround: Full-range, acoustic suspension, passive
Subwoofer: Bass reflex, passive | | Drivers | Front, Center, Surround: 1x 3" (7.7 cm) cone
Subwoofer: 1x 6.44" (16 cm) cone | | Frequency Response | Front, Surround: 80 Hz to 20 kHz
Center: 70 Hz to 20 kHz
Subwoofer: 28 to 5 kHz | | Output Sound Pressure Level | Front, Surround, Subwoofer: 83 dB/W/m
Center: 84 dB/W/m | | Maximum Input Power | Front, Center, Surround: 150 W
Subwoofer: 100 W | | Nominal Impedance | 6 Ohms | | | | Power Consumption | Active: 190 W
Standby: 0.35 W | | Power Requirements | 120 VAC, 60 Hz | | Dimensions (W x H x D) | Receiver: 17.1 x 6.7 x 12.9" (435 x 168 x 326.5 mm)
Each Front/Surround Speaker: 4 x 5.5 x 3.75" (100 x 140 x 95 mm)
Center Speaker: 9.4 x 3.75 x 3.75" (240 x 95 x 95 mm)
Subwoofer: 9.1 x 16.5 x 14.1" (230 x 418 x 358 mm) | | Weight | Receiver: 17 lb (7.7 kg)
Each Front/Surround Speaker: 1.3 lb (0.6 kg)
Center Speaker: 1.5 lb (0.7 kg)
Subwoofer: 11.6 lb (5.3 kg) | | | | Package Weight | 39.5 lb | | Box Dimensions (LxWxH) | 26.0 x 20.0 x 18.0" |
Rating96% users recommend this product to others. And what about you?
This product has already been rated by 31 owners. Add your rating and experience with the product.
Discussion
Ask our technicians if you have a problem with your settings,
or if anything is unclear in the user manual you have downloaded.
You can make use of our moderated discussion.
The discussion is public and helps other users of our website who may be encountering similar problems.
Post new comment to Onkyo HT-S3900 5.1-Channel Home Theater System
| Subject: Rear speakers | | Date: 02.10.2022 19:27:14 | Name: Paul | | I can barely hear my rear speakers. Have been told I can adjust via remote. Have no idea of how! Onkyo 5.1 HT-S3900 | | Post reply |
