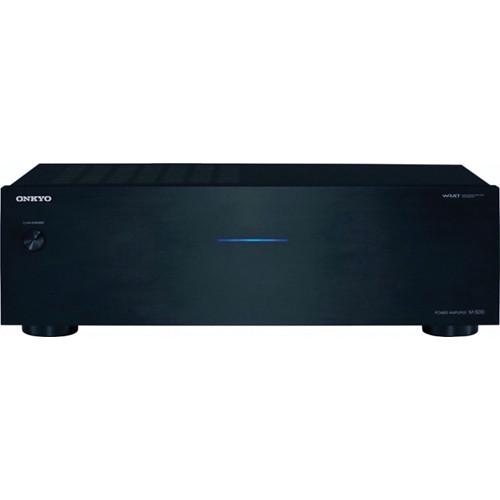

Product description Offering a blend of power, accuracy, and value, the M-5010 Two-Channel Amplifier from Onkyo features WRAT with 3-stage Inverted Darlington Circuitry. This 2-channel power amplifier handles the fast-changing dynamics of movie soundtracks while retaining enough sensitivity to deliver a nuanced and musical performance for all your audio content. The amplifier is built around a thick anti-resonant metal chassis with aluminum faceplate for extra vibration resistance. Under the hood, audio enthusiasts will note the aluminum heat sink, large 10,000 microfarad capacitors, and quality copper bus bars for superior grounding potential—all these features are designed to improve responsiveness and clarity. For greater convenience, the amp has a 12V trigger switch, banana plug-compatible speaker binding posts, and multi-zone audio connections. - WRAT (Wide Range Amplifier Technology)
- Heavy-duty EI transformer
- 12V trigger input and output with audio switch
- Input level adjustment on rear panel
- Aluminum front panel with power light
- Three-stage inverted Darlington circuitry
- All discrete output stage circuitry
- High-current, low-impedance drive
- Two large 10,000 uF capacitors
- Copper bus plate for low impedance drive
- Auto power-on function by receiving audio signal
UPC: 751398010897 In the Box Onkyo M-5010 Two-Channel Amplifier Limited 2-Year Warranty on Parts & Labor Table of Contents
|
Upload User Manual
Have you got an user manual for the Onkyo M-5010 Two-Channel Amplifier in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersOnkyo M-5010 Specs | | | THD | 4 Ω: 65 W/Channel (1 kHz, 0.08%, 2 channels driven, FTC) 8 Ω: 75 W/Channel (1 kHz, 0.08%, 2 channels driven, FTC) | | Damping Factor | 60 (front, 1 kHz, 8 Ω) | | Input Sensitivity/Impedance | 870 mV/20 k (unbalanced) | | Rated RCA Output Level | 0.87 V | | Impedance | 270 Ω (line out) | | Frequency Response | 10 Hz to 100 kHz/+0 dB, -3 dB | | S/N | 110 dB (line, IHF-A) | | Speaker Impedance | 4 Ω to 16 Ω | | | | Power Supply (AC) | 120 VAC, 60 Hz | | Power Consumption | 160 W
No-Sound: 45 W | | Standby Power Consumption | 0.4 W | | Dimensions | 17.1 x 5.5 x 12.3" (435.0 x 140.0 x 311.1 mm) | | Weight | 17.6 lb (8.0 kg) | | | | Package Weight | 21.5 lb | | Box Dimensions (LxWxH) | 21.8 x 16.6 x 10.2" |
