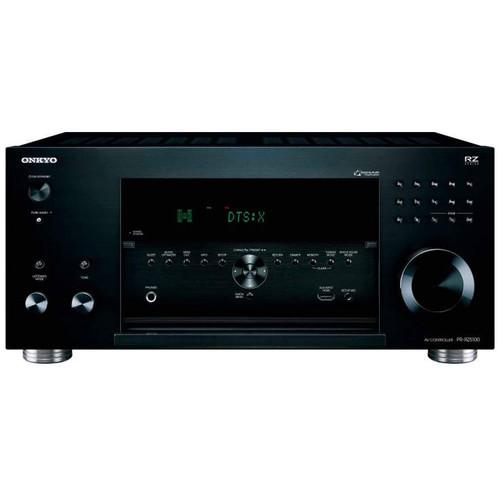

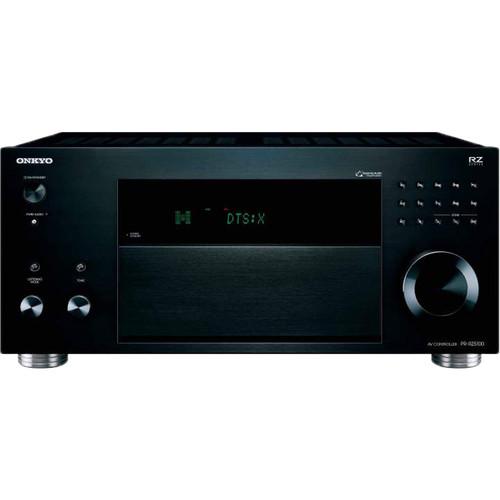

Product description The Onkyo PR-RZ5100 11.2-Channel Network A/V Preamplifier is designed to deliver sophisticated audio processing, enhanced surround sound options, 4K video upscaling, and a variety of connectivity options when paired with a separately sold power amplifier. This preamplifier offers the flexibility of unbalanced and balanced pre-outputs for connectivity to nearly any amplifier. Built-in Dolby Atmos support gives you the ability to add front height channels for a more immersive audio experience. The AccuEQ room calibration suite is built into the preamplifier to help you tailor the sound of the unit to your listening environment with the included setup microphone.
Not only can you connect traditional audio sources like CD players, but the PR-RZ5100 can connect to wireless audio sources via integrated Bluetooth, AirPlay, and Wi-Fi connectivity. An Ethernet port is also available for wired high-speed connections. Additionally, Internet connectivity allows you to access Internet streaming services such as Spotify, Pandora, Deezer, TIDAL, and TuneIn. AM and FM tuners are also built-in for free over-the-air programming.
The PR-RZ5100 is well-equipped for video sources as well as audio. This preamplifier features eight HDMI inputs and two HDMI outputs, which includes support for HDCP 2.2-compliant devices on five inputs and both outputs. There are also six stereo RCA, three optical, two digital coaxial, USB, and phono inputs. Furthermore, the built-in video processor can upscale video sources to conform to 4K displays. For control flexibility, you can use the included remote control, or operate the PR-RZ5100 from your Android or iOS smart device with the free Onkyo remote App. - DTS:X and Dolby Atmos Decoding
- With 11.2 pre-amp channels, you can let your speakers deliver a complete multidimensional movie experience in your home theater through a 7.2.4 layout. Dolby Atmos and DTS:X unlock sound from conventional channels and free the audio to move above and around the audience for a more immersive movie experience. The Onkyo PR-RZ5100 features dual 32-bit DSP engines to decode and scale DTS:X and Dolby Atmos to your home theater layout. Additionally, a Dolby surround up-mixer allows for your current channel-based content (that has not been mixed for Dolby Atmos) to be expanded to fill the speaker layouts of a Dolby Atmos system. DTS Neural:X retrieves spacial cues from standard multi-channel formats and up-mixes them for a 3D soundtrack that's virtually identical to a native DTS:X source, augmenting your existing Blu-ray library.
- Cohesive Multidimensional Sound
- AccuReflex – part of the AccuEQ room calibration suite – phase-matches height and floor-standing speakers for transparent and seamless reproduction of object-based sound. AccuEQ optimizes the entire system to suit your space without affecting front-speaker characteristics for augmented stereo listening.
- Google Cast, AirPlay, Wi-Fi, and Bluetooth
- Most smartphone and computer music apps let you mirror what's playing to your PR-RZ5100 within moments using Google Cast. The receiver also features AirPlay, Bluetooth, and Wi-Fi for additional wireless audio support, including DSD up to 11.2 MHz.
- Enhanced Processing
- At the heart of the PR-RZ5100 are dual Analog Devices SHARC processors capable of up to six billion operations per second. Digital-to-analog audio conversion comes courtesy of discrete AKM 32-bit DACs.
- Engineered for Hi-Res Audio
- The PR-RZ5100 is engineered for universal hi-res compatibility and ease of use. It's easy to enjoy albums mastered in high-resolution that you've downloaded and stored on your computer or media server. Almost every hi-res and lossless format is supported, from gapless FLAC and WAV to ALAC and WMA. The PR-RZ5100 also handles 11.2 MHz DSD, 192/24 PCM, and Dolby TrueHD formats for enhanced depth and clarity.
- THX Ultra2 Plus Certified
- THX certification is designed to guarantee the same high-volume sound you experience in a multiplex theater. Your PR-RZ5100 processor has passed laboratory tests to ensure that its audio performance meets the standards for theater-reference sound. THX Ultra2 Plus is recommended for screen-to-seat viewing distances greater than 12' and for room volumes 3000 cubic feet or greater.
- Near-Noiseless Signal Processing with VLSC
- VLSC (Vector Linear Shaping Circuitry) compares vectors from the input/output signal and uses that information to erase digital noise. A nearly noise-free analog signal is fed to your amps, resulting in enhanced detail resolution and clarity.
- Multi-Zone Playback
- Put your extra speakers to good use – plug them into an external power amp connected to the PR-RZ5100 using its Zone 2 and Zone 3 pre-/line-outs. Dedicated DACs and the smartphone control app lets you manage digital and analog content via the preamp in any zone.
- Ready for the FireConnect Wireless Multi-Room Solution
- The PR-RZ5100 includes the ability to cast nearly anything playing through your receiver – including vinyl and streaming audio – to optional compatible speakers around your home using FireConnect technology. Manage multi-zone playback with Onkyo's free smartphone app.
- 4K UltraHD Video Performance
- The PR-RZ5100's HDMI specifications and HDCP 2.2 compatibility support up to 18 Gbps bandwidth to achieve a 4:4:4 color space and 4K @ 50/60 Hz (2160p). The PR-RZ5100 enables transmission of High Dynamic Range (HDR) formats, with BT.2020 support, and provides enhanced picture quality by simultaneously enabling greater detail for both the dark and bright parts of an image. The PR-RZ5100 also upscales 1080p video to 4K UltraHD.
- Enjoy Your Favorite Music Streaming Sources
- Enjoy the music you want anytime on your home theater via Spotify, Pandora, Deezer, TIDAL, and TuneIn.
- Additional Features
-
- Shielded low-hum transformer
- Separate transformer for Standby Mode
- PLL (Phase Locked Loop) jitter-cleaning circuitry for S/PDIF audio
- Dolby Atmos, DTS:X, Dolby TrueHD, and DTS-HD Master Audio decoding
- Multiple 32-bit digital signal processing engines
- 4 DSP Modes for gaming: Rock, Sports, Action, and RPG
- Theater-dimensional virtual surround function
- Direct Mode and Pure Audio Mode
- Component video switching (two inputs and one output) and two composite video inputs
- Phono input (MM) for turntable connection
- Mass storage class USB memory playback capability (rear input)
- A/V sync control (up to 500 ms in 5 ms steps at 48 kHz)
- Graphical overlaid on-screen display (OSD) via HDMI with Quick Setup function
- Hybrid standby function with HDMI pass-through
- 40 FM/AM and 40 Internet radio station presets
- RIHD (Remote Interactive Over HDMI) for system control
- Aluminum front panel and volume control knob
UPC: 889951000273 In the Box Onkyo PR-RZ5100 11.2-Channel Network A/V Preamplifier Remote Control 2 x AA Batteries Indoor FM Antenna AM Loop Antenna Speaker Setup Microphone Limited 3-Year Warranty More from Manufacturer Table of Contents
|
Upload User Manual
Have you got an user manual for the Onkyo PR-RZ5100 11.2-Channel Network A V Preamplifier in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

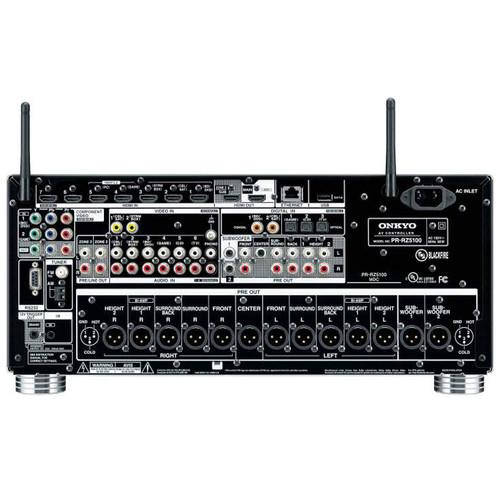

Technical parametersOnkyo PR-RZ5100 Specs | | | Input Sensitivity/Impedance | Line: 200 mV / 82 kOhms
Phono MM: 3.5 mV / 47 kOhms | | RCA Output Level and Impedance | Zone Out: 200 mV / 1.2 kOhms
Zone Pre-Out: 2 V / 1.2 kOhms
Pre-Out / Subwoofer Pre-Out: 1 V / 330 Ohms | | Phono Overload | 70 mV (MM, 1 kHz 0.5 %) | | Frequency Response | Direct Mode: 5 Hz to 100 kHz / +1 dB, -3 dB | | Tone Control | Bass, Treble: ±10 dB, 20 Hz | | Signal to Noise Ratio | Line, IHF-A: 110 dB
Phono, IHF-A: 80 dB | | | | Digital Inputs | 8 x HDMI
3 x Optical TOSLINK
2 x Digital coaxial
1 x USB (rear) | | Analog Input | 7 x Stereo RCA (1 phono)
2 x RCA component video
2 x RCA composite video | | Wireless Connectivity | Apple AirPlay
FireConnect ready
Google Cast | | | | Digital Outputs | 2 x HDMI | | Analog Output | 1 x Component video
1 x 0.25" (6.3 mm) headphone output | | Pre-Out | 11.2-channel XLR
11.2-channel RCA | | | | I/O | 1 x 12 V assignable trigger out with IR input
1 x RS232 | | | | Power Requirements | 120 VAC, 60 Hz | | Power Consumption (Operating) | 65 A | | Power Consumption (Standby) | 0.15 W | | Dimensions (W x H x D) | 17.1 x 17.8 x 18.4" (435 x 199 x 466.5 mm) | | Weight | 30.9 lb (14 kg) | | | | Package Weight | 36.5 lb | | Box Dimensions (LxWxH) | 21.8 x 21.6 x 13.0" |
