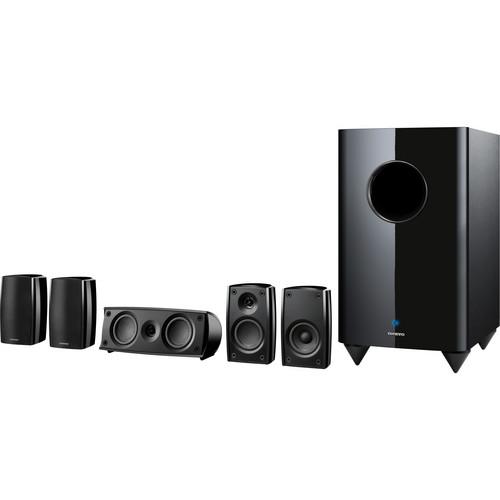

User Manual for Onkyo SKS-HT690 5.1 Surround Sound Home Theater System Click to enlarge the picture
Contents of the user manual for the Onkyo SKS-HT690 5.1 Surround Sound Home
- Product category: Speaker Separates Onkyo
- Brand: Onkyo
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Onkyo Speaker Separates
|
User manual for the Onkyo SKS-HT690 5.1 Surround Sound Home contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Onkyo product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Onkyo user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Onkyo product will considerably shorten its lifespan!
|
Product description The SKS-HT690 5.1 Surround Sound Home Theater System from Onkyo provides realistic, immersive sound in a compact and affordable package. The system has an active subwoofer with a 10" down-firing driver. This design allows you to place the sub in a corner or near a wall without worrying about interference from the wall. The sub has a bass-reflex cabinet design, which helps to extend low frequency response and reduce compression.
The front speakers each contain a 3.25" woofer and a 1" balanced dome tweeter, while the center speaker has a pair of 3.25" woofers and a 1" balanced dome tweeter. This provides a wide frequency response with excellent intelligibility for clear vocals, music, and sound effects. The rear speakers each have a 3.25" woofer to provide full-range audio for detailed surround effects. - Compact design and glossy black styling matches virtually any decor
- True 5.1 surround sound brings movies and music to life
- The cabinets are built from a high-density resin that provides excellent rigidity and resistance to vibration. The subtle front curves and rounded rear sections counteract standing waves. The result is clear, realistic audio
- The active subwoofer has a 10" down-firing driver. This design allows you to place the sub in a corner or near a wall without worrying about interference from the wall
- The sub has a bass-reflex cabinet design, which helps to extend low frequency response and reduce compression
- The front speakers each contain a 3.25" woofer and a 1" balanced dome tweeter, while the center speaker has a pair of 3.25" woofers and a 1" balanced dome tweeter. This provides a wide frequency response with excellent intelligibility for clear vocals, music, and sound effects
- The rear speakers each have a 3.25" woofer to provide full-range audio for detailed surround effects
UPC: 751398010330 In the Box Onkyo SKS-HT690 5.1 Surround Sound Home Theater System Power Cable Speaker Connector Cables Limited 1-Year Warranty Brochure PDF 571kbsvavvudcrvwrwczrvytsurtf Table of Contents
|
Upload User Manual
Have you got an user manual for the Onkyo SKS-HT690 5.1 Surround Sound Home Theater System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersOnkyo SKS-HT690 Specs | Driver Configuration | Front: 2-Way
Center: 2-Way
Rear: Full-Range | | Power Handling | Front:
130 W
Subwoofer:
230 W | | Frequency Response | Subwoofer: 25 Hz to 150 Hz
Front, Center: 70 Hz to 50 kHz
Rear: 80 Hz to 20 kHz | | Impedance | Subwoofer: 4 Ohms
6 Ohms | | Sensitivity | Subwoofer: 550 mV | | Driver Type/Size | Front, Center:
1 x 1" / 25 mm Tweeter
1 x 3.3" / 83 mm Woofer
Subwoofer:
1 x 9.8" / 250 mm Woofer (Down-Firing)
Rear:
1 x 3.3" / 83 mm Woofer | | Subwoofer Type | Active | | Enclosure Type | Subwoofer: Bass-Reflex | | Dimensions | Subwoofer: 10.8 x 19.9 x 16.2" / 274.0 x 505.0 x 411.0 mm
Center: 10.9 x 4.3 x 4.3" / 277.0 x 110.0 x 110.0 mm
Front, Rear: 4.0 x 6.7 x 4.1" / 102.0 x 170.0 x 105.0 mm | | Weight | Rear (Each): 2.0 lb / 0.9 kg
Front (Each): 2.2 lb / 1.0 kg
Subwoofer: 25.6 lb / 11.6 kg
Center: 3.7 lb / 1.7 kg | | | | Package Weight | 45.4 lb | | Box Dimensions (LxWxH) | 23.2 x 22.1 x 20.5" |
