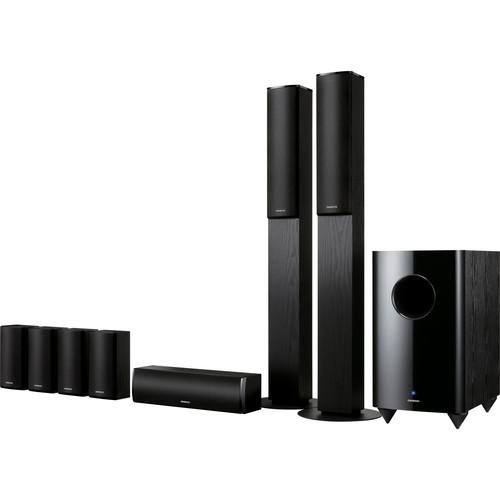

User Manual for Onkyo SKS-HT870 7.1-Channel Home Theater Speaker System Click to enlarge the picture
Contents of the user manual for the Onkyo SKS-HT870 7.1-Channel Home Theater Speaker
- Product category: Speaker Separates Onkyo
- Brand: Onkyo
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Onkyo Speaker Separates
|
User manual for the Onkyo SKS-HT870 7.1-Channel Home Theater Speaker contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Onkyo product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Onkyo user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Onkyo product will considerably shorten its lifespan!
|
Product description The Onkyo SKS-HT870 7.1-Channel Home Theater Speaker System is an 8-piece speaker package that includes a 290W 10" powered subwoofer, 2 front speakers, a center speaker, 2 mid surround and 2 surround back speakers, and all the cables and accessories you'll need to hook them up with your receiver as soon as you get it home. The system's 3 1/4" woofers ensure accurate low-frequency sound reproduction of movie soundtracks, while the 1" balanced dome tweeters handle the high frequencies. The powerful subwoofer recreates the low-frequency effects so popular in action movies. For realistic, cinema-quality sound, the Onkyo SKS-HT870 7.1-Channel Home Theater Speaker System is the ideal finishing touch to complete your home theater. All you need to add is the popcorn! - Complete 7.1-Channel Speaker System
- Onkyo has put together a complete 7.1-channel speaker system that you can use right out of the box - as long as you have a receiver to power them. The system also includes all the cables needed for hook-up.
- 290W 10" Powered Subwoofer
- A 10" powered subwoofer ensures that the low end of your home theater sound system will always be loud and clear. Crank up the bass!
- 130W Front/Center Speakers
- The 130W, 2-way bass-reflex front and center speakers provide the ideal soundstage for your home theater viewing.
- 3 1/4" Dual Woofers
- The 3 1/4" dual woofers included in this 7.1 system's front and center speakers provide extra lows throughout the entire sound environment. You'll enjoy the full audio quality of your home cinema system as it was meant to be heard.
- 1" Balanced Dome Tweeters
- The 1" balanced dome tweeters included in this 7.1 system's front and center speakers provide smooth highs without degradation of sound quality. Enjoy your home cinema's high frequencies with clarity.
- Wall Mounting Capability
- The center and surround speakers can be wall mounted using the built-in keyhole slots. Raising these speakers closer to ear level creates a more realistic audio effect.
UPC: 751398009174 In the Box Onkyo SKS-HT870 7.1-Channel Home Theater Speaker System 2 x Front Speakers (SKF-770) Center Speaker (SKC-770) 2 x Mid Surround Speakers (SKR-770) 2 x Surround Back Speakers (SKB-770) Powered Subwoofer (SKW-770) 2 x 11' (3.5 m) Speaker Cables for Front Speakers (Red/White) 10' (3 m) Speaker Cable for Center Speaker (Green) 4 x 26' (8.0 m) Speaker Cables for Mid Surround and Surround Back Speakers (Blue/Gray/Brown/Tan) 10' (3 m) RCA Cable for Subwoofer Connection 4 x Floor Pads for Subwoofer 4 x Cork Stoppers for Center Speaker 2 x Speaker Bases 8 x Screws for Speaker Bases Instruction Manual Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Onkyo SKS-HT870 7.1-Channel Home Theater Speaker System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersOnkyo SKS-HT870 Specs | Speaker Configuration | 7.1-Channel | | Driver Configuration | Front: 3-Way | | Power Handling | Front, Center, Rear, Side:
130 W
Subwoofer:
290 W | | Frequency Response | Front: 55 Hz to 50 kHz
Center: 60 Hz to 50 kHz
Rear: 80 Hz to 20 kHz
Subwoofer: 25 Hz to 150 Hz | | Impedance | 6 Ohms | | Sensitivity | Rear: 81 dB
Subwoofer: 140 mV
Center: 79 dB
Front: 79.5 dB | | Driver Type/Size | Center:
1 x 1" / 25.4 mm Tweeter
2 x 3.1" / 80 mm Woofer
Front:
2 x 3.1" / 80 mm Woofer
1 x 1" / 25.4 mm Tweeter
Subwoofer:
1 x 9.8" / 250 mm Woofer
Side, Rear:
1 x 3.1" / 80 mm Woofer | | Connector Type | RCA, Spring Clip | | Enclosure Type | Subwoofer: Bass-Reflex | | AC Input Power | 120 VAC, 60 Hz | | Dimensions | Front: 10.3 x 41.3 x 10.3" / 262.0 x 1050.0 x 262.0 mm
Subwoofer: 10.8 x 19.9 x 16.2" / 275.0 x 507.0 x 411.0 mm
Center: 16.9 x 4.5 x 4.8" / 430.0 x 115.0 x 121.0 mm
Rear: 4.5 x 9.1 x 3.8" / 115.0 x 230.0 x 96.0 mm | | Weight | Front (Each): 11.5 lb / 5.2 kg
Center: 4.9 lb / 2.2 kg
Rear (Each): 2.2 lb / 1.0 kg
Subwoofer: 25.6 lb / 11.6 kg | | | | Package Weight | 78.0 lb | | Box Dimensions (LxWxH) | 45.0 x 27.0 x 22.0" |
