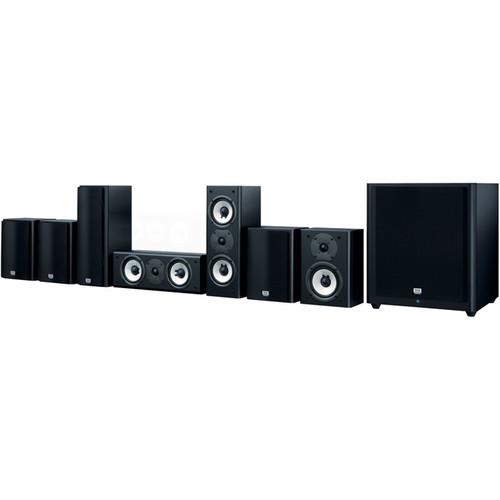

User Manual for Onkyo SKS-HT993THX 7.1-Channel Home Theater Speaker System Click to enlarge the picture
Contents of the user manual for the Onkyo SKS-HT993THX 7.1-Channel Home Theater Speaker
- Product category: Speaker Separates Onkyo
- Brand: Onkyo
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Onkyo Speaker Separates
|
User manual for the Onkyo SKS-HT993THX 7.1-Channel Home Theater Speaker contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Onkyo product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Onkyo user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Onkyo product will considerably shorten its lifespan!
|
Product description Enjoy true THX-quality sound with your favorite THX-certified receiver and the Onkyo SKS-HT993THX 7.1-Channel Home Theater Speaker System. Its THX certification ensures that you will hear your THX movie soundtracks as the director intended. The 125W subwoofer features a 12" front-firing driver and the rest of the speakers sport a 2-way acoustic-suspension design to reduce bass distortion. - THX-Certified Theater Reference Surround Sound
- Each speaker is independently tested by Onkyo and THX technicians to ensure film soundtracks demonstrate rich layers of detail and immersive wide-spectrum dynamics.
- Designed for Optimal Sound
- This system's solid MDF cabinets are designed to keep vibration minimal. Its A-OMF woofer diaphragms use layers of lightweight polyethylene naphthalate, cotton weave, and aramid to achieve enhanced speed and accuracy for augmented audio quality.
- Sealed Speaker Cabinets
- Because the speakers are sealed, you can position them almost anywhere. It's even possible to wall-mount the surround speakers without compromising bass power or clarity.
- Powered Subwoofer
- Rounding out this 7.1-channel speaker package is a 125W powered subwoofer. Its 12" front-firing cone is designed to fill rooms with wall-shaking bass.
UPC: 751398012051 In the Box Onkyo SKS-HT993THX 7.1-Channel Home Theater Speaker System 2 x 11' Color-Coded Front Speaker Wires 10' Color-Coded Center Speaker Wire 4 x 26' Color-Coded Surround and Surround Back Speaker Wires 10' Subwoofer RCA Cable 12 x Cork Stoppers Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Onkyo SKS-HT993THX 7.1-Channel Home Theater Speaker System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersOnkyo SKS-HT993THX Specs | Power Handling | Front, Center, Rear, Side:
130 W
Subwoofer:
125 W | | Frequency Response | Front, Center, Rear, Side: 50 Hz to 45 kHz
Subwoofer: 20 Hz to 100 Hz | | Impedance | 6 Ohms | | Sensitivity | Subwoofer: 280 mV | | SPL | Front: 79.5 dB
Center: 79 dB
Rear: 81 dB | | Driver Type/Size | Front, Center:
1 x 1" / 25.4 mm Tweeter
2 x 4.7" / 120 mm Woofer
Subwoofer:
1 x 11.8" / 300 mm Woofer
Side, Rear:
1 x 5.1" / 130 mm Woofer
1 x 1" / 25 mm Tweeter | | Dimensions | Front: 6.2 x 17.1 x 7.8" / 158.0 x 433.0 x 199.0 mm
Center: 17.1 x 6.2 x 7.8" / 433.0 x 158.0 x 199.0 mm
Rear: 7.9 x 10.8 x 6.1" / 200.0 x 275.0 x 169.0 mm
Subwoofer: 14.9 x 17.5 x 16.9" / 380.0 x 444.0 x 429.0 mm | | Weight | Front (Each): 11.7 lb / 5.3 kg
Rear (Each): 7.7 lb / 3.5 kg
Subwoofer: 34.2 lb / 15.5 kg | | | | Package Weight | 111.9 lb | | Box Dimensions (LxWxH) | 33.0 x 29.0 x 20.0" |
