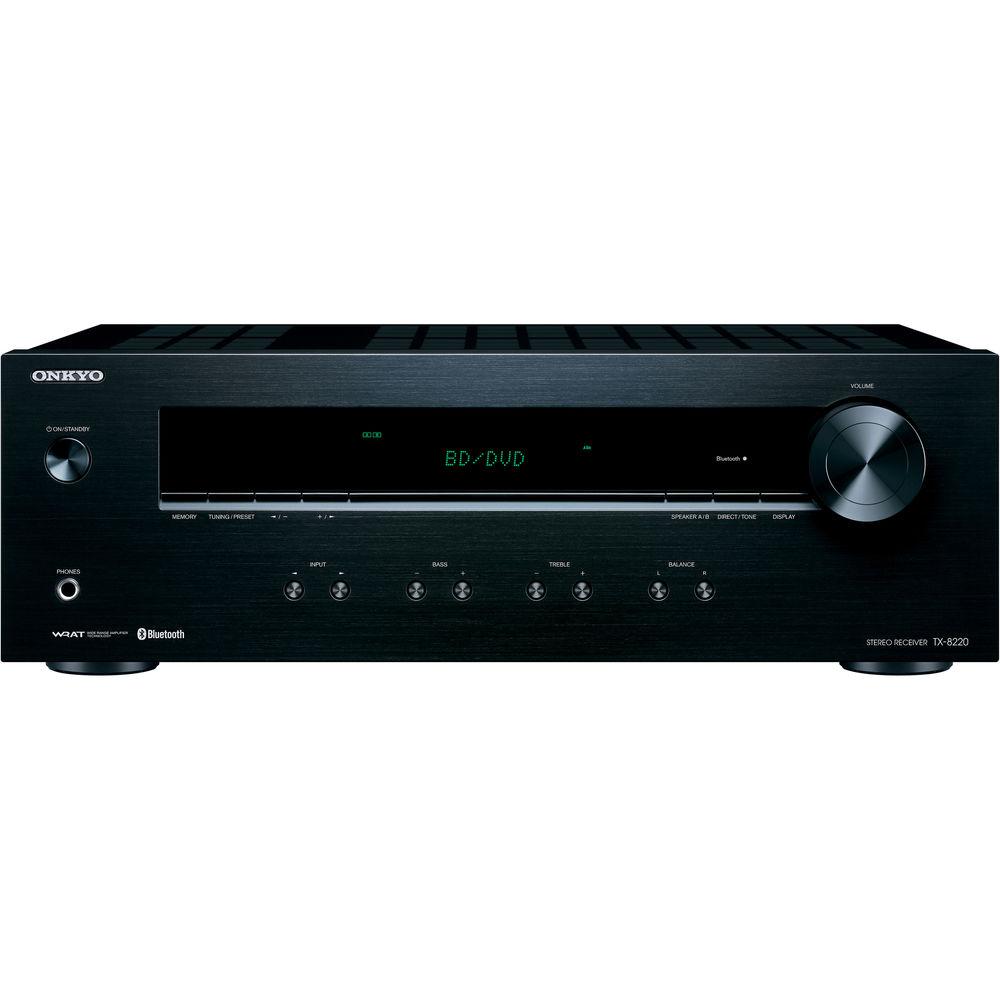

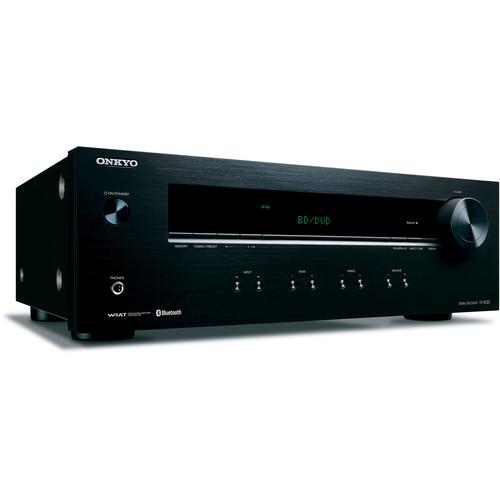

Product description Enjoy wireless connectivity and room-filling sound with the Onkyo TX-8220 Stereo Receiver. It features Onkyo's WRAT amplifier technology and produces up to 45W per channel at 8 Ohms for robust audio playback. Bluetooth connectivity is built-in to allow you to wirelessly stream music from compatible audio sources such as computers, smartphones, and tablets. For more traditional connectivity, the Onkyo TX-8220 has a digital coaxial, optical, four RCA, and a phono RCA input for connecting a variety of audio sources. A remote control is included as an added convenience. - Bluetooth Allows Mobile Audio to Fill the Room
- With low-latency Bluetooth 4.1 wireless technology, you can stream almost any audio that's playing on your smartphone, tablet, laptop, or computer. The Auto Connect function helps make pairing and playing back your music quick and easy, with enhanced stability for a reduced loss in audio quality.
- Enhanced Connectivity
- The TX-8220 is equipped with inputs to connect a range of sources. Use Hi-Res Audio-ready digital audio inputs to route display or computer audio through to the speakers, line-level inputs for a CD player or DAC, and the MM phono input for your turntable. Enjoy room-filling reproduction of these as well as FM/AM radio and Bluetooth sources.
- Designed for Hi-Fi Sound
- Pair the TX-8220 with your choice of speakers to add high-fidelity sound to everyday entertainment, from streaming audio to TV programs, vinyl, and CD. Its discrete amplifiers, large EI transformer, and customized capacitors are engineered to deliver ample driving power with low distortion. A high current grips the speaker cones for accurate control, helping to restore vitality and detail to music. Non-phase-shift circuitry, meanwhile, aids in focusing the audio image.
- High-Current, Low-Impedance Drive
- Dynamic passages in music and film soundtracks can see impedance spike and dip dramatically for short periods. This can place up to 10 times the usual load on your amplifier, and if it can't meet power demands, sound quality suffers. Onkyo's high-current low-impedance WRAT (Wide Range Amp Technology) design uses an EI transformer to help drive your speakers accurately, even under heavy loads.
- AM/FM Tuner with 40 Memory Presets
- Scan, name, and save 40 AM and FM radio stations for one-touch recall anytime. Bring a variety of programming to your listening space, from news and sports to music and talk radio.
- Discrete Amplifier Design with Quality Parts
- Unlike amplifiers based on integrated circuit (IC) boards, Onkyo's discrete amplifiers incorporate hand-selected audio-grade parts into their design. The TX-8220 has fully discrete output stage circuitry with heavy-duty transistors to control running temperatures, lower distortion, and increase the life of the product.
- A/B Speaker Posts for Multi-Room Audio
- The TX-8220 features two sets of speaker posts, allowing you to connect up to two pairs of speakers. The receiver is designed to drive either a single pair of speakers rated at 4 to 16 Ohms, or two pairs of 8- to 16-Ohm speakers, allowing you to enjoy the same audio source in two rooms at once, or to switch between two sets of speakers in the same room.
- Independent Bass, Treble, & Balance Controls
- Bass, treble, and balance controls are useful for optimizing the tonal characteristics of your music. These circuits let you fine-tune the sound to your own taste with no perceived loss in audio quality.
- Additional Features
-
- Bluetooth standby
- 192 kHz / 24-bit (PCM1754) digital-to-analog converter
- Non-phase-shift amp design for more realistic sound imaging
- Direct Mode
- Direct access tuning
- Automatic/manual tuning
- Sleep timer
- RI-compatible remote control
UPC: 889951001096 In the Box Onkyo TX-8220 Stereo Receiver Remote Control Limited 2-Year Warranty More from Manufacturer Table of Contents
|
Upload User Manual
Have you got an user manual for the Onkyo TX-8220 Stereo Receiver in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersOnkyo TX-8220 Specs | | | Channels | 2.1 | | Impedance | A or B: 4 to 16 Ohms
A & B: 8 to 16 Ohms | | Power Output | 45 W per channel @ 8 Ohms, 20 Hz to 20 kHz, 0.08% THD, 2 channels driven, FTC
100 W per channel @ 6 Ohms, 1 kHz, 0.1% THD, 2 channels driven, FTC | | Dynamic Power per Channel | 80 W (8 Ohms, front)
120 W (4 Ohms, front)
140 W (3 Ohms, front) | | THD & Noise | 0.08% (20 Hz to 20 kHz, half power) | | Frequency Response | 10 Hz to 100 kHz / +1, -3 dB (Direct Mode) | | Phono Overload | 40 mV (MM, 1 kHz, 0.5%) | | Signal-to-Noise Ratio | 100 dB (IHF-A, line-in, speaker-out)

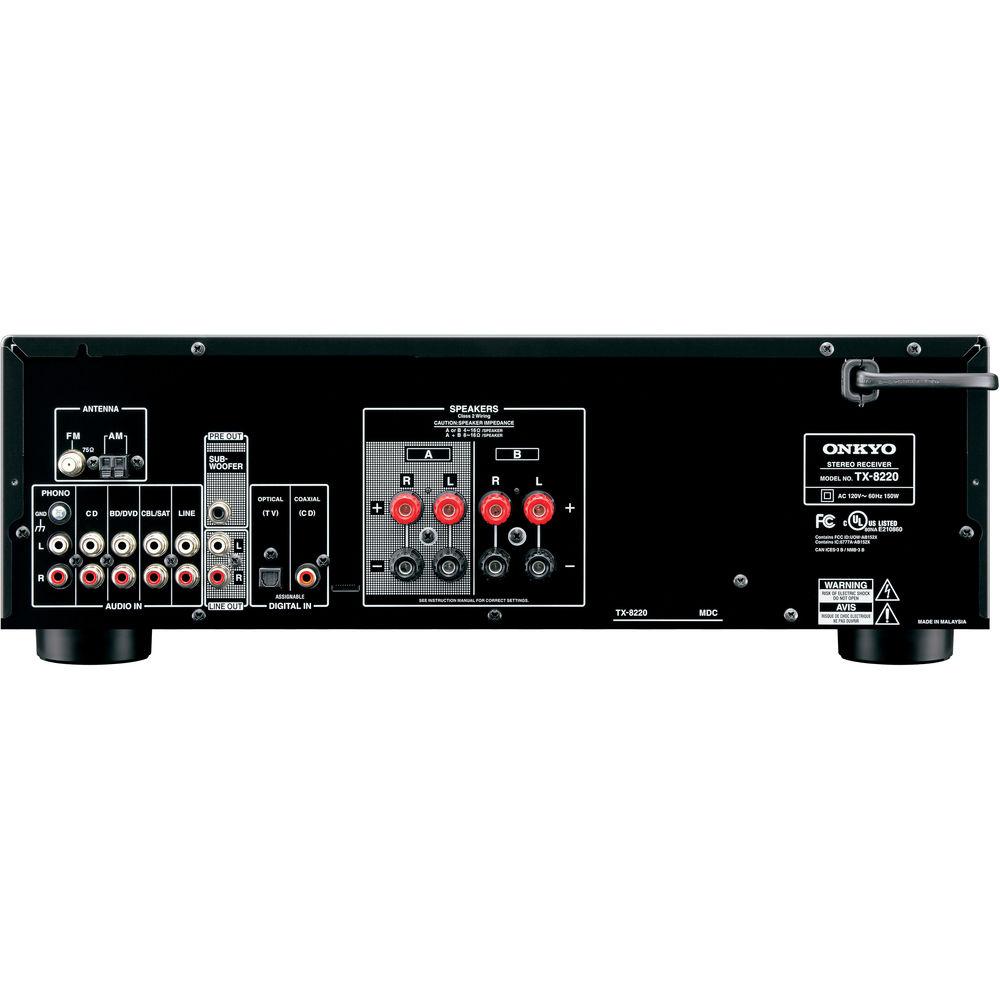

93 dB (IHF-A, phono-in, speaker-out) | | | | FM Frequency Range | 87.5 to 107.9 MHz | | AM Frequency Range | 530 to 1710 kHz | | FM/AM Preset Memory | 40 stations | | | | Bluetooth | Version 4.1 (A2DP/AVRCP) | | Inputs | 4 x stereo RCA (1 phono)
1 x digital coaxial
1 x optical TOSLINK | | Outputs | 1 x stereo RCA
1 x RCA subwoofer pre-out
1 x 1/4" (6.35 mm) headphone (front) | | Other Interfaces | 1 x AM antenna
1 x FM antenna | | Speaker Connectors | 4 x binding post pairs (L/R, A/B) | | | | Power Requirements | 120 VAC, 60 Hz | | Power Consumption | Active: Not specified by manufacturer
No Sound: 20 W
Standby: 0.4 W | | Dimensions (W x H x D) | 17.1 x 5.9 x 12.9" (435 x 149 x 328 mm) | | Weight | 15 lb (6.8 kg) | | | | Package Weight | 18.7 lb | | Box Dimensions (LxWxH) | 21.5 x 14.0 x 9.0" |
