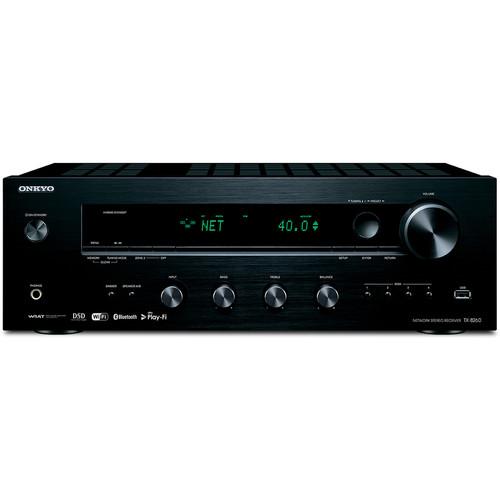

User Manual for Onkyo TX-8260 Network Stereo Receiver Click to enlarge the picture
Contents of the user manual for the Onkyo TX-8260 Network Stereo Receiver
- Product category: Receivers Onkyo
- Brand: Onkyo
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Onkyo Receivers
|
User manual for the Onkyo TX-8260 Network Stereo Receiver contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Onkyo product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Onkyo user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Onkyo product will considerably shorten its lifespan!
|
Product description Enjoy wireless connectivity and room-filling sound with the Onkyo TX-8260 Network Stereo Receiver. It features Onkyo's WRAT amplifier technology and produces up to 70W per channel at 8 ohms for robust audio playback. AirPlay, Bluetooth, and Chromecast built-in allow you to wirelessly stream music from compatible audio sources such as computers, smartphones, and tablets. Onboard Wi-Fi and Ethernet connectivity gives you the ability to stream music from Internet radio sources.
The Onkyo TX-8260 has two coaxial, two optical, six RCA, and a phono input for connecting a variety of audio sources. There are two USB ports for interfacing additional sources such as mass-storage devices. The Onkyo Controller app allows you to control your receiver from a compatible smartphone or tablet. - Designed to Drive Powerful Speakers
- Match the TX-8260 with your stereo speakers to enjoy hi-fi sound with all your entertainment sources. Discrete high-current amplifiers and capacitors help ensure effortless driving power with low distortion. The high current grips the speaker cones for accurate control and enhanced vitality and detail. Non-phase-shift circuitry is designed to focus the audio image and reproduce a wide frequency bandwidth for Hi-Res Audio and vinyl sources.
- Stream with Chromecast built-in
- Stream and control music from your compatible smartphone or computer
- DTS Play-Fi Multi-Room Audio, Available via Future Firmware Update
- DTS Play-Fi technology lets you stream from linked online services, media servers, or device libraries over Wi-Fi to any number of compatible products via the Onkyo Music Control app for iOS and Android devices. DTS Play-Fi connects systems for synchronized music in every room with a compatible speaker or system, and can stream different music to different rooms from the same device. DTS Play-Fi is scheduled to be made available via a future firmware update.
- Onkyo Controller App for Smartphones and Tablets
- The Onkyo Controller app supports receiver and multi-room control; the selection and distribution of on-demand streaming services, radio selection, USB disk browsing, and more are available from one interface on your compatible iOS or Android device.
- FireConnect Wireless Multi-Room Audio
- FireConnect is designed to mirror network audio and external analog sources connected to a master component on FireConnect-compatible speakers in other rooms. Music selection, speaker grouping, and playback management across the home are built into the Onkyo Controller app for iOS and Android devices.
- Wi-Fi, AirPlay, and Built-In Streaming Services
- Spotify, TIDAL, Deezer, TuneIn, and Pandora are built into the system GUI for streaming over Wi-Fi. Use dedicated apps or the Onkyo Controller app to find and play music. Cast from Windows, Mac, and iOS devices from iTunes, together with other supported applications, via AirPlay technology.
- USB Music Playback
- Plug a USB flash device into either the front or rear USB input to play your digital files. Use the Onkyo Controller app to explore albums containing MP3, AAC, ALAC, FLAC, WAV, and DSD files.
- AM/FM Tuner with 40 Memory Presets
- Scan and save 40 AM/FM radio stations for one-touch recall anytime. Bring a variety of programming to your listening space, from news and sports to music and talk radio.
- Bluetooth Streaming
- With Bluetooth wireless technology, you can stream almost any audio playing on your compatible smartphone, tablet, or computer. The Auto Connect and wake-on-signal detection functions get music playing wirelessly in moments.
- Versatile Connectivity
- Designed for music and film lovers seeking hi-fi sound, the TX-8260 is equipped with inputs to connect a range of devices. Use Hi-Res Audio-ready digital audio inputs to route display or computer audio through to the speakers, line-level inputs for a CD player or DAC, and the MM phono input for your turntable.
- Digital-to-Analog Processing
- The AKM AK4452VN digital-to-analog converter features low-distortion filtering technologies suited to the frequency response of Hi-Res Audio files. Enhanced S/N and low-noise performance help ensure clear analog conversion of nearly any digital source.
- Wide Range Amplification Technology
- This technology is engineered to produce dynamic and accurate sound for a focused and realistic listening experience.
- Advanced Features
-
- Works with Google Assistant smart speakers
- Zone 2 line output for distributed net/USB/analog audio to another room
- Radio station preset naming (up to 10 characters)
- Optimum gain volume circuitry
- Advanced Music Optimizer enhances compressed digital audio quality, including via Bluetooth
- Direct Mode for source-authentic audio reproduction
- Additional Features
-
- Gold-plated RCA, digital coaxial, and headphone terminals
- Phono input with MM equalizer
- Banana-plug-ready speaker posts with screw knobs
- Front USB input with 5 V/0.5 A power, rear USB input with 5 V/1 A power
- LAN input with IP control capability for home automation systems
- Input selector knob and bass/treble/balance controls
- Front-panel speaker A/B selector button
- 3-mode display dimmer (Normal/Dim/Dimmer)
- Sleep timer and battery-free memory backup
- RI (Remote Interactive) remote control
- Network Standby, Bluetooth Standby, and Auto Standby modes
UPC: 889951001119 In the Box Onkyo TX-8260 Network Stereo Receiver Remote Control 2 x AAA Batteries Indoor FM Antenna AM Loop Antenna Limited 2-Year Warranty More from Manufacturer Table of Contents
|
Upload User Manual
Have you got an user manual for the Onkyo TX-8260 Network Stereo Receiver in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersOnkyo TX-8260 Specs | Channels | 2 | | Power Output | 70 W per channel @ 8 Ohms, 20 Hz to 20 kHz, 0.08% THD, 2 channels driven, FTC
160 W per channel @ 6 Ohms, 1 kHz, 10% THD, 2 channels driven | | Dynamic Power per Channel | 100 W (8 Ohms, front)
160 W (4 Ohms, front)
180 W (3 Ohms, front) | | THD & Noise | 0.08% (20 Hz to 20 kHz, half power) | | Frequency Response | 10 Hz to 100 kHz / +1, -3 dB (Direct Mode) | | Tone Control | Bass: ±10 dB, 100 Hz
Treble: ±10 dB, 10 kHz | | | | FM Frequency Range | 87.5 to 107.9 MHz | | AM Frequency Range | 530 to 1710 kHz | | FM/AM Preset Memory | 40 stations | | | | Wi-Fi | Dual-band 2.4/5 GHz | | Bluetooth | Version 4.1 +LE (A2DP/AVRCP) | | AirPlay | Yes | | Inputs | 7 x stereo RCA (1 phono)
2 x digital coaxial
2 x optical TOSLINK
2 x USB (1 front) | | Outputs | 1 x stereo RCA line out
1 x stereo RCA zone 2
1 x RCA subwoofer pre-out
1 x 1/4" (6.35 mm) headphone (front) | | Other Interfaces | 1 x Ethernet LAN
1 x RI remote control
1 x 1/8" (3.5 mm) IR remote control in
1 x 1/8" (3.5 mm) IR remote control out
1 x AM antenna
1 x FM antenna | | Speaker Connectors | 4 x binding post pairs (L/R, A/B) | | Speaker Impedance | A or B: 4 to 16 Ohms
A and B: 8 to 16 Ohms | | Headphone Output Impedance | 390 Ohms | | Rated Output | Headphones: 200 mW @ 32 Ohms, 1 kHz, 10% THD | | Input Sensitivity and Impedance | Line: 200 mV/50 kOhms
Phono MM: 2.5 mV/50 kOhms | | RCA Output Level and Impedance | Rated, Pre-Out: 150 mV/470 Ohms
Rated, Subwoofer Pre-Out: 470 mV/680 Ohms | | Signal-to-Noise Ratio | 106 dB (IHF-A, line-in, speaker-out)
80 dB (IHF-A, phono-in, speaker-out) | | Phono Overload | 70 mV (MM, 1 kHz, 0.5%) | | | | Power Requirements | 120 VAC, 60 Hz | | Power Consumption | Active: 230 W
No Sound: 70 W
Standby: 0.1 W
Hybrid Standby: 2.9 W | | Dimensions (W x H x D) | 17.1 x 5.9 x 12.9" (435 x 149 x 329 mm) | | Weight | 18.3 lb (8.3 kg) | | | | Package Weight | 22.85 lb | | Box Dimensions (LxWxH) | 22.0 x 16.5 x 10.0" |
