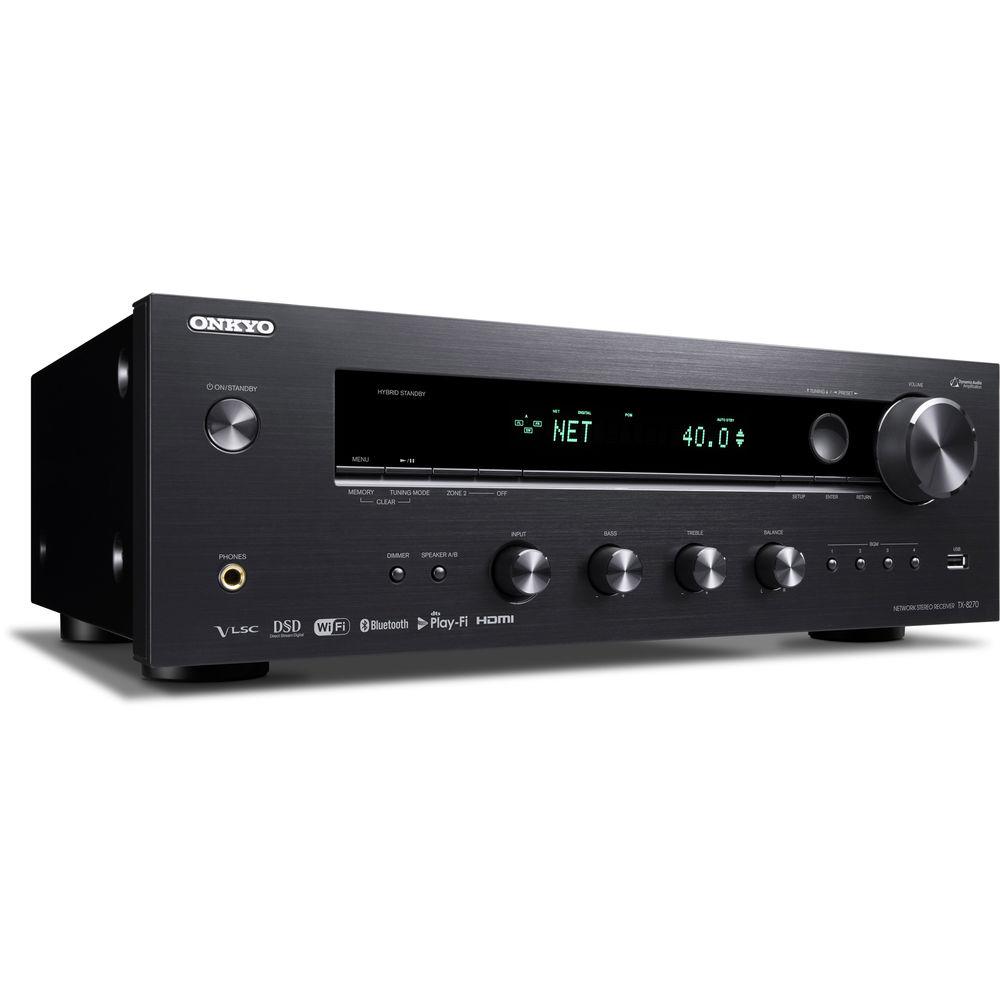

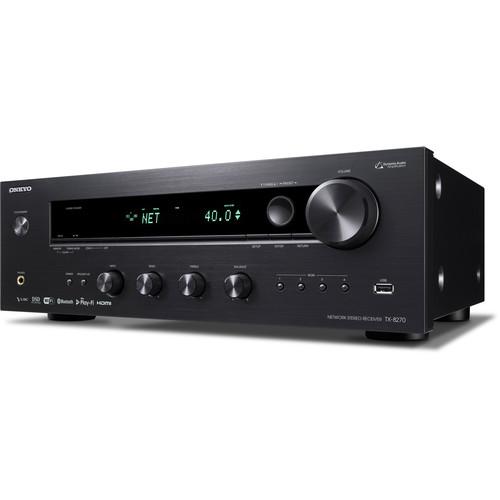

Product description Enjoy stereo sound and network connectivity with the Onkyo TX-8270 Stereo Network A/V Receiver. It features a discrete amp configuration that provides up to 100W per channel at 8 Ohms. The four HDMI inputs and single HDMI output support 4K, HDR, and 3D pass-through for connecting a variety of A/V equipment. Its HDMI output also supports ARC for display-based sound, such as from your display's built-in apps.
The TX-8270 also features built-in Wi-Fi and Apple AirPlay connectivity for wireless streaming. Furthermore, the receiver can be controlled wirelessly from your compatible smart device with the Onkyo Controller app. Its front-panel USB port allows direct device connectivity for playback of your digitally stored multimedia files. Note: Access to certain Internet-based content may require a subscription to a service. - Drive Big Speakers
- This amp system is designed to generate a high current. Its circuitry features discrete output transistors for low distortion. The high current helps ensure accurate control. Non-phase-shift circuitry, meanwhile, is designed to focus the audio image and reproduce a wide frequency bandwidth to maximize Hi-Res Audio and vinyl playback.
- Smooth Analog Signal
- Vector Linear Shaping Circuitry (VLSC) is fashioned to reassemble the audio signal to its original form following processing. Unlike conventional filters, VLSC removes pulse noise generated in D/A conversion, allowing the sound wave to be reproduced with enhanced fidelity for a smooth analog signal.
- Zone 2
- A dedicated DAC for NET/USB audio distribution and Zone 2 pre-outs send any audio (even streamed audio) to a second room equipped with a power amp and a pair of speakers. Play the same source in both rooms or a different source in Zone 2.
- A Stereo Receiver that Connects Everything
- The TX-8270 is equipped with connections allowing it to serve as an amp for TV entertainment. Joining analog, digital, phono, and USB inputs are HDMI terminals (connect an Apple TV or similar) together with a network audio platform.
- Supports 4K HDR and BT.2020 Video Pass-Through
- Connect up to four media players to the receiver's HDCP 2.2-compliant HDMI inputs. The terminals support pass-through of 4K/60 Hz video, 4K HDR in HDR10 or Dolby Vision formats, as well as BT.2020 4K video standard. Enjoy 4K Ultra HD content untouched from source to screen.
- Dual-Band Wi-Fi, AirPlay, and Spotify Connect
- A selectable 5 GHz Wi-Fi channel helps assure stable connectivity in areas with traffic congestion on the 2.4 GHz band. Enjoy smooth streaming over AirPlay, the Spotify Connect app, and other network audio services.
- Internet Radio, Streaming Services, and FM/AM Radio
- TIDAL, Deezer, TuneIn, and Pandora are built into the GUI, making it easy to select from a range of music and radio programs. FM/AM radio tuners are also included with 40 station presets. Get instant access to four of your favorite stations via memory preset buttons on the front panel.
- Digital-to-Analog Processing
- The AK4438 384 kHz/32-bit digital-to-analog converter from AKM features low-distortion technologies suited to DSD 5.6 MHz (after PCM conversion) and PCM signals up to 192 kHz/24-bit (except over WLAN or USB). Together with VLSC filtering circuitry, which is designed to eliminate ultra-high-frequency pulse noise, playback is clear.
- Onkyo Controller App for Network Audio
- The Onkyo Controller app collects streaming services and network-attached audio into an interface that's designed to be intuitive. Cue and control music and distribute it around the home from one app.
- Stream with Chromecast built-in with a Future Firmware Update
- Stream any music from your smartphone, laptop, or computer to the TX-8270 with ease. Control playback with Chromecast-enabled apps you know and love from your iPhone, iPad, Android phone or tablet, Mac or Windows laptop, or Chromebook. Chromecast built-in is scheduled to be made available with a future firmware update.
- Stream Anything with DTS Play-Fi with a Future Firmware Update
- DTS Play-Fi is a wireless protocol that works with nearly any audio app on mobile devices and computers. Flick whatever's playing to the receiver, even different sources to different components at the same time. DTS Play-Fi is scheduled to be made available with a future firmware update.
- FireConnect Wireless Multi-Room Audio with Future Firmware Update
- FireConnect, powered by Blackfire, is designed to mirror network audio sources and any external analog source playing through the receiver – from streaming audio to vinyl – on optional wireless speakers. Playback control across the home is via the Onkyo Controller app. FireConnect is scheduled to be made available with a future firmware update.
- Additional Advanced Features
-
- High-current El transformer
- Non-phase-shift amp circuitry with discrete power output stages
- Optimum gain volume circuitry
- Bluetooth wireless technology for mobile devices, laptops, and desktop computers
- HDMI supports 4K/60 Hz, HDR, 3D, ARC, DeepColor, x.v.Color, LipSync, DSD (after PCM conversion), DVD-audio, SACD, and CEC
- Supports Dolby Vision pass-through
- Supports Hi-Res Audio via network – DSD 5.6 MHz (after PCM conversion) and 192 kHz/24-bit PCM (except via WLAN or USB)
- Decodes FLAC, WAV, ALAC, DSD (after PCM conversion), AIFF, WMA Lossless, MP3, and AAC formats over network and USB
- Additional Features
-
- Graphical user interface with overlaid on-screen display via HDMI

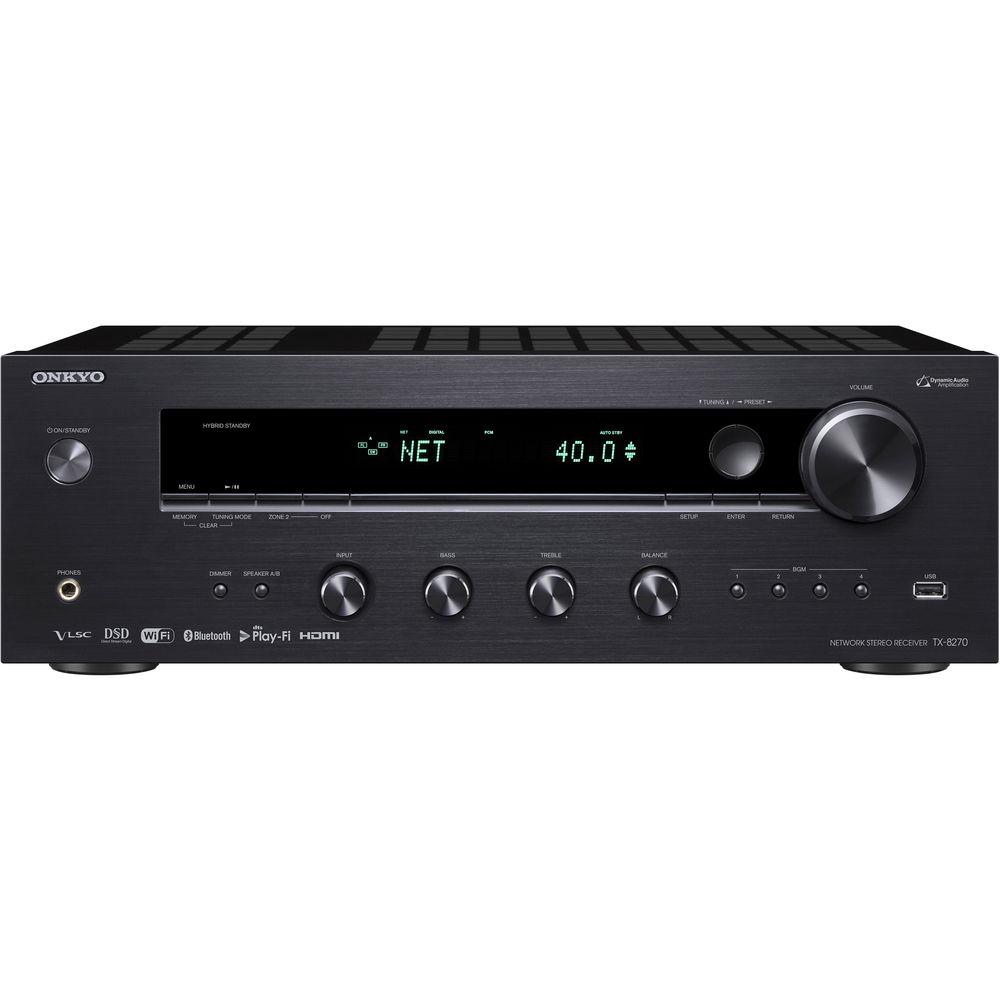

- Preset selector buttons on front panel
- Input selector knob and physical tone/balance controls
- Advanced Music Optimizer designed to improve compressed digital audio quality, including over Bluetooth
- Direct Mode and Double Bass Mode
- Crossover adjustment (40/50/60/70/80/90/100/120/150/180/200 Hz)
- A/V Sync control (up to 500 ms in 5 ms steps at 48 kHz)
- Front-panel speaker A/B selector button
- 3-mode display dimmer (Normal/Dim/Dimmer)
- Sleep timer with battery-free memory backup
- RI remote control
- Network Standby Mode, HDMI Pass-Through, and Auto Standby
- Detachable AC power cable

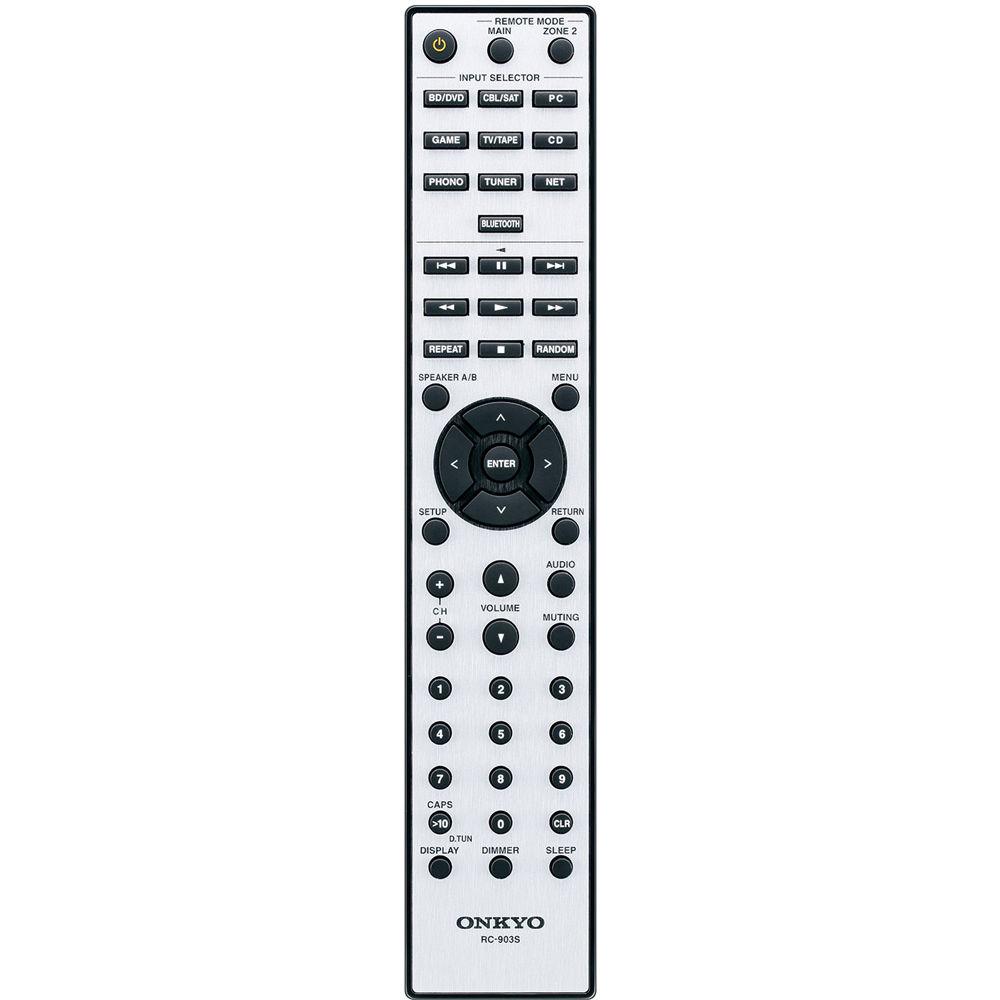

UPC: 889951000730 In the Box Onkyo TX-8270 Stereo Network A/V Receiver Remote Control 2 x AAA Batteries Indoor FM Antenna AM Loop Antenna Limited 2-Year Warranty More from Manufacturer Table of Contents
|
Upload User Manual
Have you got an user manual for the Onkyo TX-8270 Stereo Network A V Receiver in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersOnkyo TX-8270 Specs | | | Channels | 2 | | Power Output | 100 W per channel @ 8 Ohms, 20 Hz to 20 kHz, 0.08% THD, 2-channels driven, FTC
170 W per channel @ 6 Ohms, 1 kHz, 0.1% THD, 1-channel driven, FTC | | Dynamic Power | 120 W @ 8 Ohms
210 W @ 4 Ohms

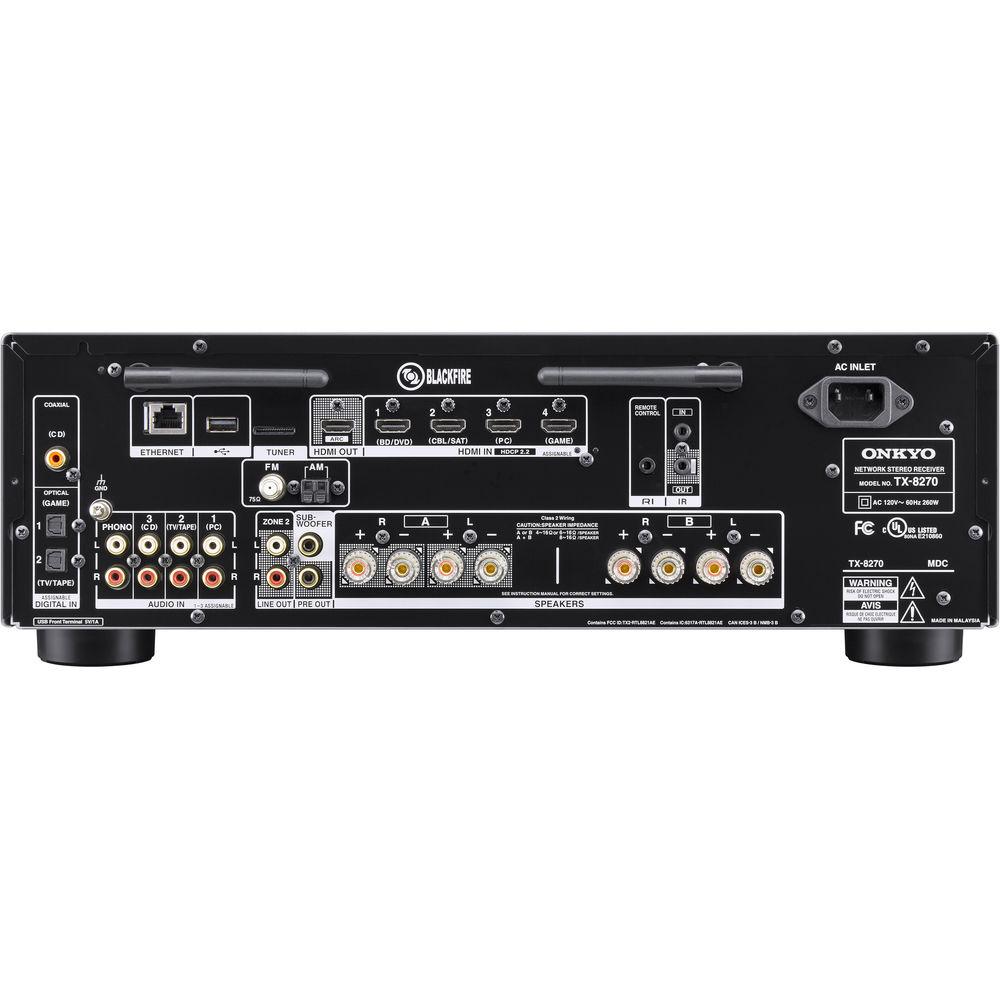

240 W @ 3 Ohms | | Phono Overload | 70 mV (MM, 1 kHz, 0.5%) | | | | FM Frequency Range | 87.5 to 107.9 MHz | | AM Frequency Range | 530 to 1710 kHz | | FM/AM Preset Memory | 40 stations plus 4 faceplate BGM Presets | | | | Wi-Fi | Dual-band 2.4 / 5 GHz | | Bluetooth | Yes | | Inputs | 4 x HDMI
2 x optical TOSLINK
1 x digital coaxial
3 x gold-plated stereo RCA
1 x gold-plated stereo RCA phono | | Outputs | 1 x HDMI
1 x gold-plated stereo RCA Zone 2 pre-out
2 x gold-plated RCA subwoofer pre-outs
1 x gold-plated 1/4" (6.35 mm) headphone (front) | | Other Connectors | 1 x Ethernet LAN
1 x 5 V / 1 A USB port (front)
1 x 5 V / 500 mA USB port
1 x 1/8" (3.5 mm) IR in
1 x 1/8" (3.5 mm) IR out
1 x 1/8" (3.5 mm) remote control in
1 x AC power | | Speaker Connectors | 4 x banana-plug-ready binding post pairs | | A/B Speaker Selection | Yes | | HDCP Version | 2.2 | | | | Power Supply | 120 VAC, 60 Hz | | Dimensions (W x H x D) | 17.1 x 5.9 x 12.9" (435 x 149.5 x 329 mm) | | Weight | 18.1 lb (8.2 kg) | | | | Package Weight | 22.0 lb | | Box Dimensions (LxWxH) | 21.0 x 16.0 x 9.0" |
