User Manual for Onkyo TX-NR757 7.2-Channel Network A V Receiver Click to enlarge the picture
Contents of the user manual for the Onkyo TX-NR757 7.2-Channel Network A V
- Product category: Receivers Onkyo
- Brand: Onkyo
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Onkyo Receivers
 |
User manual for the Onkyo TX-NR757 7.2-Channel Network A V contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Onkyo product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Onkyo user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Onkyo product will considerably shorten its lifespan!
|
Product description Enjoy wireless audio streaming and object-based, multi-channel audio with the Onkyo TX-NR757 7.2-Channel Network A/V Receiver. The receiver features Dolby Atmos compatibility for object-based audio support, plus it will support DTS:X with a future firmware upgrade. It delivers up to 110W per channel at 8 Ohms for robust audio playback. Built-in AirPlay and Bluetooth connectivity allow you to wirelessly stream music from compatible audio sources such as computers, MP3 players, smartphones, and tablets. Onboard Wi-Fi and Ethernet connectivity give you the ability to stream music from Internet radio sources.
The Onkyo TX-NR757 has eight HDMI inputs for interfacing audio and video sources, three of which support 3D and 4K video sources. There's also a USB port on the rear panel for attaching a USB drive. The free Onkyo Remote app will allow you to control your receiver from a smartphone or tablet. Built-in high-resolution audio support allows you to take advantage of dynamic surround sound formats like DTS-HD Master Audio and Dolby TrueHD. Note: Not all services are available in all areas. Access to certain Internet-based content may require a subscription to a service. - THX-Certified Sound
- The TX-NR757 features THX certification, which is designed to guarantee the same low-distortion audio heard in commercial theaters.
- Made for Control and Custom Installation
- The TX-NR757 includes system integration connectivity such as RS232 with support for two-way communication with third-party home automation systems. An infrared (IR) input allows pass-through of IR signals to control other devices connected to the TX-NR757, such as a TV or Blu-ray player. The 12-volt trigger can be used to raise/lower a projection screen, power on/off an external amplifier, or open/close the drapes with the touch of a button. A detachable power cord and an optional rack mount kit make for easy installation.
- Multi-Zone Audio
- The TX-NR757 Powered Zone 2 brings audio to speakers connected to the receiver into a second room. With the dedicated Zone 2 DAC for Net & SPDIF, you can send Internet audio and digital audio sources connected via coax or optical (such as an Apple TV) to your second listening zone. Also, Zone 2 A/B speaker selection lets you double-up your zone 2 speaker selections.
- Dynamic Audio Amplification
- Onkyo's dynamic audio amplification delivers power at 180W/Ch (6 Ohms, 1 kHz, 0.9% THD, 1 Channel Driven)/ 110W/Ch (8 Ohms, 20 Hz to 20 kHz, 0.08% THD, 2 Channels Driven).
- Smooth Analog Signal
- Onkyo developed Vector Linear Shaping Circuitry (VLSC) to reassemble the audio signal to its original form following processing. Unlike conventional filters, VLSC removes pulse noise generated in D/A conversion, allowing the sound wave to be reproduced with high fidelity for a smooth analog signal.
- Supports Dolby Atmos Up to 5.1.2 Channels
- Dolby Atmos surround sound technology dispenses with channel-based coding in favor of more advanced object-based coding, giving the sound designer the ability to precisely place sounds anywhere in the 3-dimensional space. The TX-NR757 features the ability to connect a surround sound speaker system and two additional overhead speakers, or two additional Dolby Atmos-certified up-firing speakers.
- DTS:X Ready
- DTS:X is an object-based surround sound technology that includes height channels for a more immersive listening experience. You will be able to personalize your audio experience, for example, by turning up just the dialog within a mix. DTS:X allows you to customize to your room layout as well as control dialog and dynamic range. DTS:X functionality will be made available via a future firmware update.
- 4K Ultra HD Video Performance
- The TX-NR757 features HDCP 2.2 compatibility on three inputs and both outputs to support 4:4:4 color space and 4K @ 50/60 Hz, which is four times the clarity of 1080p/60 video resolution. The TX-NR757 enables transmission of High Dynamic Range (HDR) formats, with BT.2020 support, and provides enhanced picture quality by simultaneously enabling greater detail for both the dark and bright parts of an image. The TX-NR757 also upscales 1080p video to UHD.
- Bluetooth and Wi-Fi with Pandora, Spotify, and AirPlay
- The TX-NR757 has AirPlay, Wi-Fi, and Bluetooth technologies built-in to stream virtually any audio from a smartphone, tablet, or computer to your home theater for powerful sound. With Spotify, Pandora, and TuneIn built-in, you can select a station and search for music available on these services via the free Onkyo Remote app on your phone. The Onkyo Remote app puts streaming options at your fingertips, from universal hi-res audio via network-attached devices, to Internet streaming services, to music on your smartphone and tablet. Furthermore, Tidal and Google Cast will be operable with an upcoming firmware update.
- 384 kHz/32-bit DAC
- No matter what you're listening to, it will sound full, clean, and clear. The AK4458 digital-to-analog converter from Asahi Kasei implements low-distortion filtering technologies for clear sound and unlocks the potential of any audio format, including compressed, lossless, and hi-res audio (MP3, WMA, WMA Lossless, FLAC, WAV, Ogg Vorbis, AAC, Apple Lossless, DSD 5.6 MHz, LPCM, and Dolby TrueHD).
- AccuEQ with AccuReflex
- AccuEQ conducts two measurements to set the level, distance, and crossover for all speakers, including the subwoofer. Choose to include or bypass EQ measurement for front left and right speakers, and choose to automatically or manually set the EQ. Further, you can save your own manual EQ settings into three available presets. AccuReflex technology aligns the phase of up-firing "height" speakers with the sound coming directly from your other speakers. Any delay is resolved so that everything arrives at your ears at the same time. The result is cohesive reproduction of object-based soundtracks.
- FireConnect Multi-Room Audio
- A firmware update will enable any audio source connected to the receiver (from vinyl to streaming audio) to be sent wirelessly via FireConnect, powered by Blackfire, to an optional compatible speaker placed anywhere in your home.
- Play Everything from Vinyl to Hi-Res Audio
- A phono input connects a turntable so you can enjoy your record collection while easy-to-use universal hi-res audio compatibility allows the use of Onkyo's remote control app to find your 192/24, 96/24, or 5.6 MHz DSD albums on PC/NAS for enjoyment on your Onkyo home theater.
- Advanced Features
-
- THX Select2 Plus Certified for theater reference sound
- Bluetooth specification version 4.1 (compatible profile: A2DP v1.2, AVRCP v1.3) with Advanced Music Optimizer DSP Technology
- Advanced Music Optimizer to enhance compressed digital audio quality including Bluetooth audio
- Control and stream with the free Onkyo Remote Streaming app for compatible iOS and Android devices
- Powered Zone 2, Zone 2 A/B and Zone 2 Line Out for distributed analog/digital audio playback in another room
- Bi-amping capability for the front channels
- Amplifier Features
-
- High-current amp design to effectively drive the speakers
- Non-phase-shift amp circuits for enhanced realism
- PLL (Phase Locked Loop) jitter-cleaning circuit technology for S/PDIF audio
- Processing Features
-
- Dolby TrueHD and DTS-HD Master Audio Decoding
- Four DSP Modes for gaming: Rock, Sports, Action, and RPG
- Theater-dimensional virtual surround function
- CinemaFILTER
- Direct Mode
- Double Bass function
- Connection Features
-
- Mass storage USB support
- Phono input for turntable connection
- Location-numbered speaker terminals
- Additional Features
-
- Crossover adjustment for each channel (40/50/60/70/80/90/100/120/150/180/200 Hz)
- A/V Sync Control (up to 500 ms in 5 ms steps at 48 kHz)
- Graphical overlaid on-screen display (OSD) via HDMI with Quick Set-Up
- Hybrid Standby function with HDMI passthrough
- Tone Control (Bass/Treble) for front L/R channels
- 3-mode display dimmer (Normal/Dim/Dimmer)
- 40 FM/AM presets
- Firmware updates via Ethernet and USB
- RIHD (Remote Interactive Over HDMI) for system control

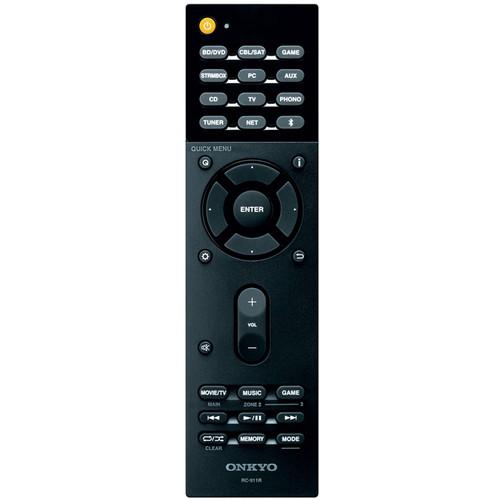

- Simple remote control
- RS232 Port
- 12V trigger out
- IR input
- Detachable power cord
- Optional rack kit
In the Box Onkyo TX-NR757 7.2-Channel Network A/V Receiver - Remote Control
- 2 x AAA Batteries
- Indoor FM Antenna
- AM Loop Antenna
- Speaker Set-Up Microphone
- Limited 2-Year Warranty
Manual PDF 3.9mb Table of Contents
|
Upload User Manual
Have you got an user manual for the Onkyo TX-NR757 7.2-Channel Network A V Receiver in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersOnkyo TX-NR757 Specs | Channels | 7.2 | | Power Output per Channel | 110 W per channel (8 Ohms, 20 Hz to 20 kHz, 0.08% THD, 2-channels driven, FTC)
180 W per channel (6 Ohms, 1 kHz, 1% THD, 1-channel driven) | | Dynamic Power per Channel | 130 W (8 Ohms, front)
220 W (4 Ohms, front)
250 W (3 Ohms, front) | | THD & Noise | 0.08% (20 Hz to 20 kHz, half power) | | Input Sensitivity and Impedance | 200 mV / 47 kOhms (line/unbalanced)
3.5 mV / 47 kOhms (phono MM) | | RCA Output Level and Impedance | Rated:
200 mV / 2.3 kOhms (zone 2 line-out)
1 V / 470 Ohms (subwoofer pre-out) | | Phono Overload | 70 mV (MM, 1 kHz, 0.5%) | | Frequency Response | 10 Hz to 100 kHz / +1 dB, -3 dB (Direct Mode) | | Tone Control | Bass: ± 10 dB, 90 Hz
Treble: ± 10 dB, 7.5 kHz | | Signal-to-Noise Ratio | 106 dB (line, IHF-A)
80 dB (phono, IHF-A) | | Speaker Impedance | 6 to 16 Ohms | | | | Input Sensitivity/Output Level and Impedance | 1.0 Vp-p / 75 Ohms (component Y)
0.7 Vp-p / 75 Ohms (component PB/CB, PR/CR)
1.0 Vp-p / 75 Ohms (composite) | | Component Video Frequency Response | +0 dB, -3 dB | | 3D Support | Yes | | Deep Color / x.v. Color Support | Yes | | HDMI CEC | Yes | | | | DAC | Asahi Kasei AK4458 384 kHz/32-bit | | Dolby | Atmos, True HD, Dolby Digital Plus | | DTS | DTS-HD Master Audio
DTS:X with future firmware upgrade | | Calibration | AccuEQ with AccuReflex | | | | Tuning Frequency Range | FM: 87.5 to 107.9 MHz

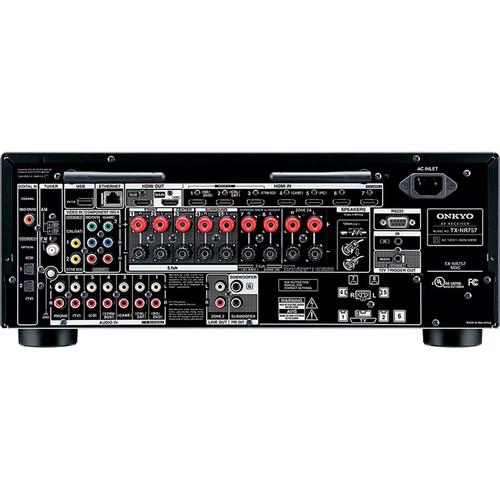

AM: 530 to 1710 kHz | | FM/AM Preset Memory | 40 Stations | | | | Wi-Fi | Yes, dual-band (2.4 & 5 GHz) | | Bluetooth | Yes | | AirPlay | Yes | | Bi-Amp Capability | Yes | | Audio Return Channel (ARC) | Yes | | Inputs | 8 x HDMI (1 front)
2 x Component video
2 x Composite video
1 x Digital coaxial
2 x Digital optical
6 x Stereo RCA
1 x Stereo RCA phono
1 x USB (rear) | | Outputs | 2 x HDMI
1 x Stereo RCA Zone 2 and A/B
2 x Subwoofer pre-out
1 x Headphone (front) | | Other Interfaces | 1 x Ethernet
1 x IR remote control input
1 x RS-232 input
1 x 12 V trigger
1 x Calibration microphone (front)
1 x AM antenna
1 x FM antenna | | Speaker Connectors | 9 x Binding post pairs | | | | Power Requirements | 120 VAC, 60 Hz | | Power Consumption | Typical: 600 W
Standby: 0.1 W | | Dimensions (W x H x D) | 17.1 x 6.8 x 14.9" (435 x 173.5 x 378 mm) | | Weight | 22 lb (10 kg) | | | | Package Weight | 28.5 lb | | Box Dimensions (LxWxH) | 21.8 x 18.5 x 11.4" |
